580.328342 (8966-2) - Craftsman 3,600 Watt Portable Generator Cradle Parts Diagram

3,600 Watt Portable Generator

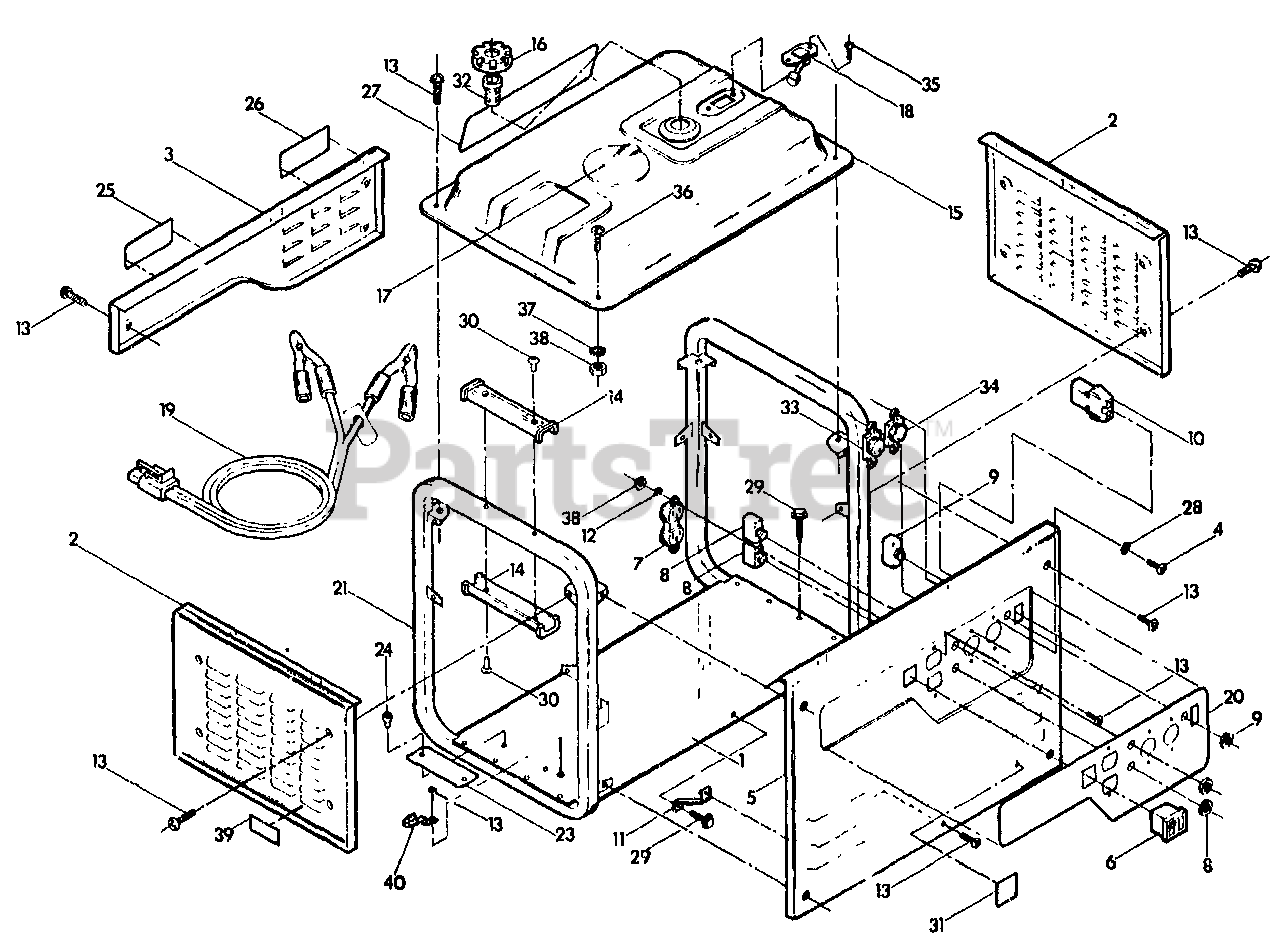

Cradle Parts Diagram

  • Title

1

Briggs & Stratton 73017

BASE, ENGINE CRADLE
(Superseded to 7073017YP)

Note: Contact Generac for quantity required

$

$

Not available

2

Briggs & Stratton 73012

PANEL, END
(Superseded to 7073012YP)

Note: Contact Generac for quantity required

$66.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 73016

PANEL, EXHAUST MUFFLER

Note: Contact Generac for quantity required

$

$

Currently unavailable

4

Briggs & Stratton 36901

SCREW, NO. 6-32 x 3/8"

Note: Contact Generac for quantity required

$

$

Currently unavailable

5

Briggs & Stratton 73005

PANEL, RECEPTACLE
(Superseded to 7073005YP)

Note: Contact Generac for quantity required

$239.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66817

SWITCH, ENGINE RUN/STOP
(Superseded to 66817GS)

Note: Contact Generac for quantity required

$39.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 68759

RECEPTACLE-120 VOLT, 20AMP
(Superseded to 68759GS)

Note: Contact Generac for quantity required

$24.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 66819

BREAKER, CIRCUIT-20AMP

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 66820

BREAKER, CIRCUIT-10AMP DC

Note: Contact Generac for quantity required

$

$

Not available

10

Briggs & Stratton 6720730

RECEPTACLE-12 VOLTS DC

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 73745

BRACE, RECEPTACLE PANEL
(Superseded to 7073745YP)

Note: Contact Generac for quantity required

$12.99

$

Usually ships in 2-12 days

0

12

UNKNOWN

$

$

Not available

13

Briggs & Stratton 56893

SCREW, NO. 10-32 x 1/2"
(Superseded to 56893GS)

Note: Contact Generac for quantity required

$3.49

$

In Stock, only 1 left!

0

14

Briggs & Stratton 66450

COVER, HANDLE

Note: Contact Generac for quantity required

$

$

Not available

15

Briggs & Stratton 73715

TANK, FUEL-4.5 U.S. GALLONS
(Superseded to 7073715YP)

Note: Contact Generac for quantity required

$

$

Not available

16

Briggs & Stratton 69658

CAP, FUEL TANK FILLER

Note: Contact Generac for quantity required

$

$

Currently unavailable

17

Briggs & Stratton 64680B

COVER, SPARK PLUG ACCESS
(Superseded to 64680BGS)

Note: Contact Generac for quantity required

$7.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 66391B

INDICATOR, FUEL LEVEL

Note: Contact Generac for quantity required

$

$

Not available

19

Briggs & Stratton 71394

CABLE, BATTERY CHARGE
(Superseded to 71394GS)

Note: Contact Generac for quantity required

$42.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 73014

DECAL, RECEPTACLE PANEL

Note: Contact Generac for quantity required

$

$

Currently unavailable

21

Briggs & Stratton 72272

CRADLE, ENGINE END

Note: Contact Generac for quantity required

$

$

Currently unavailable

22

Briggs & Stratton 72099

CRADLE, GENERATOR END

Note: Contact Generac for quantity required

$

$

Currently unavailable

23

Briggs & Stratton 60213R

PLATE, DATA

Note: Contact Generac for quantity required

$

$

Currently unavailable

24

Briggs & Stratton 25832

RIVET, DATA PLATE

Note: Contact Generac for quantity required

$

$

Currently unavailable

25

Briggs & Stratton 66823

DECAL, CHOKE

Note: Contact Generac for quantity required

$

$

Currently unavailable

26

Briggs & Stratton 66824

DECAL, CAUTION!-HOT!

Note: Contact Generac for quantity required

$

$

Currently unavailable

27

Briggs & Stratton 70365D

DECAL-STARTING DATA

Note: Contact Generac for quantity required

$

$

Currently unavailable

28

Briggs & Stratton 22155

WASHER, LOCK-NO. 6
(Superseded to 5022155)

Note: Contact Generac for quantity required

$130.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 58443

SCREW, 1/4"-20 x 3/8"
(Superseded to 58443GS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 66831

RIVET-4MM

Note: Contact Generac for quantity required

$

$

Not available

31

Briggs & Stratton 29084

DECAL-U.S.D.A.

Note: Contact Generac for quantity required

$

$

Currently unavailable

32

Briggs & Stratton 70630

FILTER, FUEL

Note: Contact Generac for quantity required

$

$

Currently unavailable

33

Briggs & Stratton 68868

RECEPTACLE-120V. 30AMP (FULL CAPACITY)
(Superseded to 705932)

Note: Contact Generac for quantity required

$37.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 68867

RECEPTACLE-120/240V.
(Superseded to 68867GS)

Note: Contact Generac for quantity required

$46.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 52749

SCREW-M5-0.80 x 12MM

Note: Contact Generac for quantity required

$

$

Currently unavailable

36

Briggs & Stratton 23963

SCREW-NO. 10-32 x 3/4"
(Superseded to 593696)

Note: Contact Generac for quantity required

$25.99

$

In Stock, only 4 left!

0

37

UNKNOWN

$

$

Not available

38

UNKNOWN

$

$

Not available

39

Briggs & Stratton 73054

DECAL-FUEL SHUT-OFF

Note: Contact Generac for quantity required

$

$

Not available

40

Briggs & Stratton 25433

GROUND LUG

Note: Contact Generac for quantity required

$

$

Not available

Briggs & Stratton 43483

PLUG, CONNECTOR
(Superseded to 100522GS)

Note: Contact Generac for quantity required

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 77560

MANUAL, OWNERS

Note: Contact Generac for quantity required

$

$

Currently unavailable

Briggs & Stratton 37807

PLUG, CONNECTOR

Note: Contact Generac for quantity required

$

$

Currently unavailable
