580.328350 (8892-0) - Craftsman 5,000 Watt Portable Generator Mounting Base No. 68873-A Parts Diagram

5,000 Watt Portable Generator

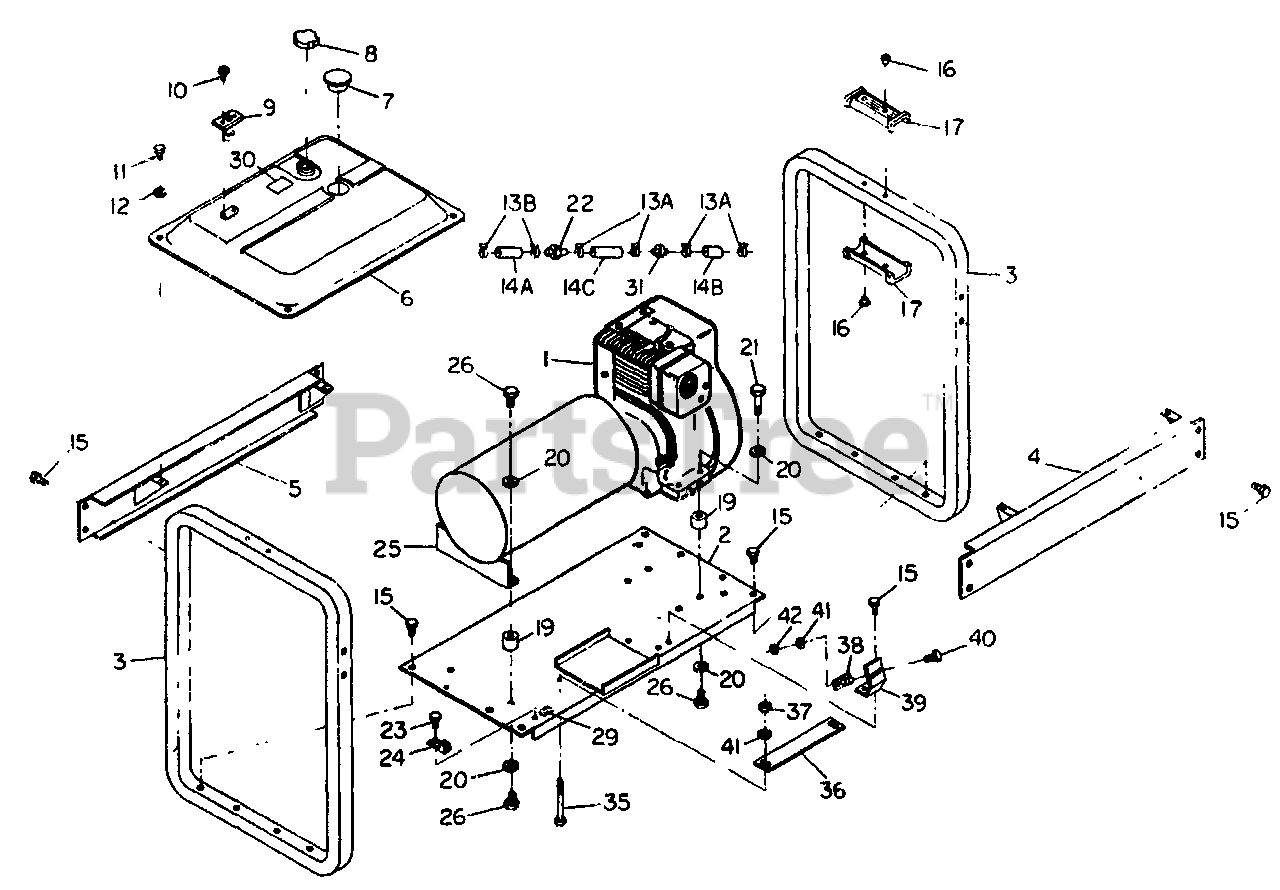

Mounting Base No. 68873-A Parts Diagram

  • Title

1

Briggs & Stratton 68861

ENGINE- Briggs & Stratton 252415-0742-01

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 68339C

BASE, Mounting- w/Battery Tray

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 68340

LOOP, Cradle End

Note: Contact Generac for quantity required

$

$

Currently unavailable

4

Briggs & Stratton 68890A

SUPPORT, Fuel Tank - Right

Note: Contact Generac for quantity required

$

$

Currently unavailable

5

Briggs & Stratton 68890

SUPPORT, Fuel Tank - Left

Note: Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 66431

TANK, Fuel - 4.5 Gallons (17.0 Liters)

Note: Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 64680B

COVER, Spark Plug Access
(Superseded to 64680BGS)

Note: Contact Generac for quantity required

$7.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 66802A

CAP, Fuel Tank

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 66391B

GAUGE, Fuel Level

Note: Contact Generac for quantity required

$

$

Not available

10

Briggs & Stratton 52749

SCREW - M5-0.80 x 12mm

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 36933

SCREW - No. 10-32 x 3/8"

Note: Contact Generac for quantity required

$

$

Not available

12

Briggs & Stratton 22152

WASHER, Lock - No. 10
(Superseded to 5022152)

Note: Contact Generac for quantity required

$32.99

$

Usually ships in 2-12 days

0

13A

Briggs & Stratton 48031C

CLAMP, Fuel Hose - 1/4"

Note: Contact Generac for quantity required

$

$

Not available

13B

Briggs & Stratton 48013B

CLAMP, Fuel Hose - 3/16"

Note: Contact Generac for quantity required

$

$

Currently unavailable

14A

Briggs & Stratton 68736

HOSE, Fuel - 3" long x 3/16" Diameter

Note: Contact Generac for quantity required

$

$

Currently unavailable

14B

Briggs & Stratton 47662B

HOSE, Fuel - 3" long x 1/4" Diameter

Note: Contact Generac for quantity required

$

$

Not available

14C

Briggs & Stratton 47662AA

HOSE, Fuel - 14" long x 1/4" Diameter

Note: Contact Generac for quantity required

$

$

Currently unavailable

15

Briggs & Stratton 69254

SCREW (Crimptite) - 1/4"-20 x 1/2"

Note: Contact Generac for quantity required

$

$

Currently unavailable

16

Briggs & Stratton 66831

RIVET - 4mm

Note: Contact Generac for quantity required

$

$

Not available

17

Briggs & Stratton 66450

HANDLE - Plastic

Note: Contact Generac for quantity required

$

$

Not available

19

Briggs & Stratton 44624

MOUNT, Vibration

Note: Contact Generac for quantity required

$

$

Not available

20

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

Note: Contact Generac for quantity required

$2.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 22128

SCREW - 5/16"-18 x 1-1/4"

Note: Contact Generac for quantity required

$

$

Currently unavailable

22

Briggs & Stratton 68893

ADAPTER, Fuel Hose - 1/4" to 3/16"

Note: Contact Generac for quantity required

$

$

Currently unavailable

23

Briggs & Stratton 24489

SCREW (taptite) - No. 10-32 x 3/8"

Note: Contact Generac for quantity required

$

$

Currently unavailable

24

Briggs & Stratton 25433

LUG, Grounding

Note: Contact Generac for quantity required

$

$

Not available

25

Briggs & Stratton 44392B

SUPPORT, Rear Generator

Note: Contact Generac for quantity required

$

$

Currently unavailable

26

Briggs & Stratton 22142

SCREW - 5/16"-18 x 3/4"
(Superseded to 5022142)

Note: Contact Generac for quantity required

$45.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 67210A

DECAL - Ground
(Superseded to 67210AGS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 68876

DECAL - Fuel Caution

Note: Contact Generac for quantity required

$

$

Currently unavailable

31

Briggs & Stratton 68740

FILTER, Fuel
(Superseded to 68740GS)

Note: Contact Generac for quantity required

$11.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 45000

SCREW - 1/4"-20 x 7" long
(Superseded to 45000GS)

Note: Contact Generac for quantity required

$11.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 44951

BRACKET, Battery Retaining

Note: Contact Generac for quantity required

$

$

Currently unavailable

37

Briggs & Stratton 27529

NUT, Hex (Nylok) - 1/4"-20

Note: Contact Generac for quantity required

$

$

Not available

38

Briggs & Stratton 53030

CONTACTOR, Starter
(Superseded to 53030GS)

Note: Contact Generac for quantity required

$57.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 65121

BRACKET, Starter Contactor

Note: Contact Generac for quantity required

$

$

Currently unavailable

40

Briggs & Stratton 22287

SCREW - 1/4"-20 x 3/4"
(Superseded to 22287GS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

Note: Contact Generac for quantity required

$

$

Not available

Briggs & Stratton 68870A

MANUAL, Owner's
(Superseded to 68870AGS)

Note: Contact Generac for quantity required

$14.99

$

Usually ships in 2-12 days

0
