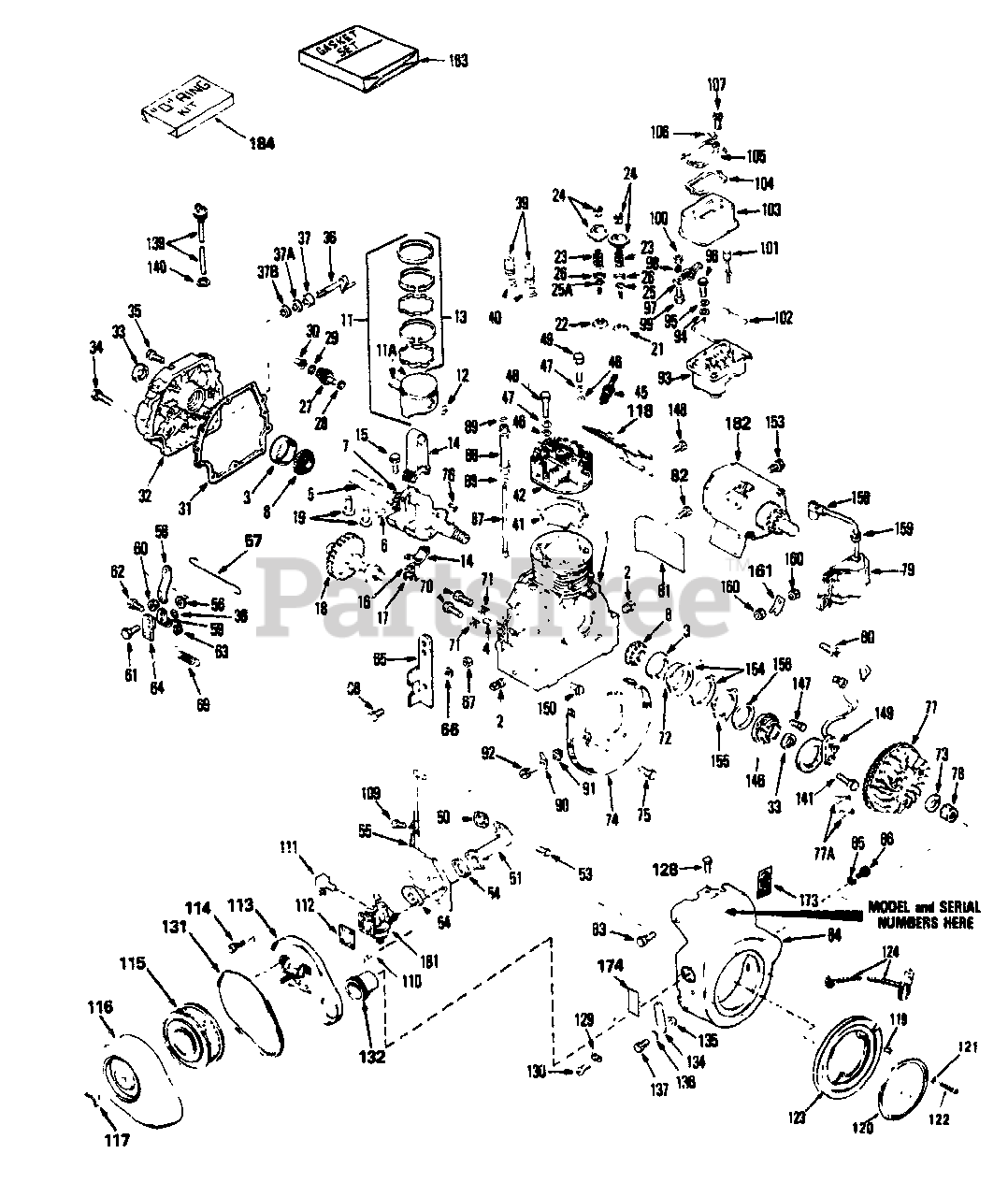

Craftsman 4-Cycle Engine Model No. 143.770022 Parts Diagram

  • Title

1

Briggs & Stratton 34648A

Cylinder Assy.

Note: (Incl. Nos. 2, 4 & 33) Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 31927

Plug, Oil drain (Sq. hd., 3/8-18)

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 31928

Cup, Bearing

Note: Contact Generac for quantity required

$

$

Currently unavailable

4

Briggs & Stratton 27652

Pin, Dowel
(Superseded to 7027652YP)

Note: Contact Generac for quantity required

$106.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 34402A

Crankshaft Assy.

Note: (Incl. Nos. 3, 6, 7 & 8) Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 29783

Pin, Crankshaft gear
(Superseded to 7029783YP)

Note: Contact Generac for quantity required

$6.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 34692

Gear, Crankshaft

Note: Contact Generac for quantity required

$

$

Currently unavailable

8

Briggs & Stratton 31932

Bearing, Tapered roller

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 34624

Piston Pin & Ring Assy. (Std.)

Note: (Incl. Nos. 11A, 12 & 13) Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 34625

Piston, Pin & Ring Assy. (.010 oversize)

Note: (Incl. Nos. 11A, 12 & 13) Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 34626

Piston, Pin & Ring Assy. (.020 oversize)

Note: (Incl. Nos. 11A, 12 & 13) Contact Generac for quantity required

$

$

Currently unavailable

11A

Briggs & Stratton 34629

Piston & Pin Assy. (Std.)

Note: (Incl. No. 12) Contact Generac for quantity required

$

$

Currently unavailable

11A

Briggs & Stratton 34630

Piston & Pin Assy. (.010 oversize)

Note: (Incl. No. 12) Contact Generac for quantity required

$

$

Currently unavailable

11A

Briggs & Stratton 34631

Piston & Pin Assy. (.020 oversize)

Note: (Incl. No. 12) Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 34634

Ring, Piston pin retaining

Note: Contact Generac for quantity required

$

$

Currently unavailable

13

Briggs & Stratton 34635

Ring Set, Piston (Std.)

Note: Contact Generac for quantity required

$

$

Currently unavailable

13

Briggs & Stratton 34636

Ring Set, Piston (.010 oversize)

Note: Contact Generac for quantity required

$

$

Currently unavailable

13

Briggs & Stratton 34637

Ring Set, Piston (.020 oversize)

Note: Contact Generac for quantity required

$

$

Currently unavailable

14

Briggs & Stratton 34640

Rod Assy., Connecting (Std.)

Note: (Incl. Nos. 15, 16 & 17) Contact Generac for quantity required

$

$

Currently unavailable

14

Briggs & Stratton 35243

Rod Assy., Connecting (.010 undersize)

Note: (Incl. Nos. 15, 16 & 17) Contact Generac for quantity required

$

$

Currently unavailable

14

Briggs & Stratton 35244

Rod Assy., Connecting (.020 undersize)

Note: (Incl. Nos. 15, 16 & 17) Contact Generac for quantity required

$

$

Currently unavailable

15

Briggs & Stratton 32077

Bolt, Connecting rod

Note: Contact Generac for quantity required

$

$

Currently unavailable

16

Briggs & Stratton 26073

Washer, Connecting rod

Note: Contact Generac for quantity required

$

$

Currently unavailable

17

Briggs & Stratton 28264

Nut, Connecting rod

Note: Contact Generac for quantity required

$

$

Currently unavailable

18

Briggs & Stratton 34752

Camshaft (Mechanical Compression Release)

Note: Contact Generac for quantity required

$

$

Currently unavailable

19

Briggs & Stratton 33472

Lifter, Valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

21

Briggs & Stratton 34643

Valve, Intake (Std.)

Note: Contact Generac for quantity required

$

$

Currently unavailable

21

Briggs & Stratton 34644

Valve, Intake (1/32" oversize)

Note: Contact Generac for quantity required

$

$

Currently unavailable

22

Briggs & Stratton 33506

Valve, Exhaust (Std.)

Note: Contact Generac for quantity required

$

$

Currently unavailable

22

Briggs & Stratton 33646

Valve, Exhaust (1/32" oversize)

Note: Contact Generac for quantity required

$

$

Currently unavailable

23

Briggs & Stratton 33507

Spring, Valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

24

Briggs & Stratton 33508

Retainer & Cap Set, Keeper valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

25

Briggs & Stratton 33509

"O" Ring (Intake)

Note: Contact Generac for quantity required

$

$

Currently unavailable

25A

Briggs & Stratton 34410

"O" Ring (Exhaust)

Note: Contact Generac for quantity required

$

$

Currently unavailable

26

Briggs & Stratton 33510

Cap, Valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

27

Briggs & Stratton 34751

Gear & Shaft Assy., Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

28

Briggs & Stratton 860745

Washer, Flat

Note: Contact Generac for quantity required

$

$

Currently unavailable

29

Briggs & Stratton 30590A

Washer, Flat

Note: Contact Generac for quantity required

$

$

Currently unavailable

30

Briggs & Stratton 31948

Spool, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

31

Briggs & Stratton 31956A

Gasket, Cylinder cover

Note: Contact Generac for quantity required

$

$

Currently unavailable

32

Briggs & Stratton 34221

Cover Assy., Cylinder

Note: (Incl. Nos. 33 & 36 thru 38) - Contact Generac for quantity required

$

$

Currently unavailable

33

Briggs & Stratton 31950

Seal, Oil

Note: Contact Generac for quantity required

$

$

Currently unavailable

34

Briggs & Stratton 30684

Screw, Hex hd. Sems, 1/4-20 x 1

Note: Contact Generac for quantity required

$

$

Currently unavailable

35

Briggs & Stratton 650588

Screw, Hex hd. Sems, 1/4-20 x 2

Note: Contact Generac for quantity required

$

$

Currently unavailable

36

Briggs & Stratton 32425

Rod Assy., Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

37

Briggs & Stratton 32426

Spacer, Governor rod

Note: Contact Generac for quantity required

$

$

Currently unavailable

37A

Briggs & Stratton 34222

Bearing, Needle

Note: Contact Generac for quantity required

$

$

Currently unavailable

37B

Briggs & Stratton 34223

Bearing & Seal Assy., Needle

Note: Contact Generac for quantity required

$

$

Currently unavailable

38

Briggs & Stratton 29193

Ring, Retaining
(Superseded to 7029193YP)

Note: Contact Generac for quantity required

$7.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 730218

Valve Guide Kit

Note: (Incl. No. 40) Contact Generac for quantity required

$

$

Currently unavailable

40

Briggs & Stratton 792035

Ring, Retaining

Note: Contact Generac for quantity required

$

$

Not available

41

Briggs & Stratton 34641

Gasket, Cylinder head

Note: Contact Generac for quantity required

$

$

Currently unavailable

42

Briggs & Stratton 34771

Head, Cylinder

Note: Contact Generac for quantity required

$

$

Currently unavailable

45

Briggs & Stratton 34645

Resistor Spark Plug (Champion RN-4C or equivalent)

Note: Contact Generac for quantity required

$

$

Currently unavailable

46

Briggs & Stratton 650690

Washer, Belleville

Note: Contact Generac for quantity required

$

$

Currently unavailable

47

Briggs & Stratton 650691

Washer, Flat

Note: Contact Generac for quantity required

$

$

Currently unavailable

48

650692

Screw, Hex hd., 5/16-18 x 1-3/4

Note: Contact Generac for quantity required

$

$

Not available

49

Briggs & Stratton 650746

Screw, Hex hd., 5/16-18 x 1-3/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

50

Briggs & Stratton 33515

Gasket, Intake pipe

Note: Contact Generac for quantity required

$

$

Currently unavailable

51

Briggs & Stratton 33475

Pipe, Intake

Note: Contact Generac for quantity required

$

$

Currently unavailable

53

Briggs & Stratton 792028

Screw, Hex hd. Sems, 5/16-18 x 7/8

Note: Contact Generac for quantity required

$28.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 33476

Gasket, Carburetor

Note: Contact Generac for quantity required

$

$

Currently unavailable

55

Briggs & Stratton 33477A

Baffle, Air extension

Note: Contact Generac for quantity required

$

$

Currently unavailable

56

Briggs & Stratton 8345

Washer, Flat

Note: Contact Generac for quantity required

$

$

Currently unavailable

57

Briggs & Stratton 33478

Link, Governor lever-to-throttle

Note: Contact Generac for quantity required

$

$

Currently unavailable

58

Briggs & Stratton 31963

Lever, Governor adjusting

Note: Contact Generac for quantity required

$

$

Currently unavailable

59

Briggs & Stratton 31964

Clamp, Governor lever

Note: Contact Generac for quantity required

$

$

Currently unavailable

60

Briggs & Stratton 650518

Lockwasher, No. 10 E.T.

Note: Contact Generac for quantity required

$

$

Currently unavailable

61

Briggs & Stratton 30312

Screw, Hex washer hd. Sems, 10-32 x 1/2

Note: Contact Generac for quantity required

$

$

Currently unavailable

62

Briggs & Stratton 650544

Screw, Pan flex hd., 10-24 x 7/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

63

Briggs & Stratton 7975

Nut, Square, 10-24

Note: Contact Generac for quantity required

$

$

Currently unavailable

64

Briggs & Stratton 31965

Plate, Governor spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

65

Briggs & Stratton 31964A

Lever, Control

Note: Contact Generac for quantity required

$

$

Currently unavailable

66

Briggs & Stratton 28558

Washer, Spring wave

Note: Contact Generac for quantity required

$

$

Currently unavailable

67

Briggs & Stratton 31985

Bushing, Governor lever

Note: Contact Generac for quantity required

$

$

Currently unavailable

68

Briggs & Stratton 550597

Screw, Hex washer hd., 10-24 x 5/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

69

Briggs & Stratton 31967

Spring, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

70

Briggs & Stratton 650591

Screw, Fil. hd., 10-24 x 2

Note: Contact Generac for quantity required

$

$

Currently unavailable

71

Briggs & Stratton 33099

Spring, Locking

Note: Contact Generac for quantity required

$

$

Not available

72

Briggs & Stratton 32599

"O" Ring

Note: Contact Generac for quantity required

$

$

Currently unavailable

73

Briggs & Stratton 650666

Washer, Lock

Note: Contact Generac for quantity required

$

$

Currently unavailable

74

Briggs & Stratton 32579

Baffle, Blower housing

Note: Contact Generac for quantity required

$

$

Currently unavailable

75

Briggs & Stratton 650561

Screw, Hex washer hd. Duriok, 1/4-20 x 5/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

76

Briggs & Stratton 650592

Key, Flywheel

Note: Contact Generac for quantity required

$

$

Currently unavailable

77

Briggs & Stratton 610967

Flywheel

Note: (Incl. No. 77A) Contact Generac for quantity required

$

$

Currently unavailable

77A

Briggs & Stratton 730201

Trigger Pin Kit

Note: Contact Generac for quantity required

$

$

Currently unavailable

78

Briggs & Stratton 650594

Nut, Flywheel

Note: Contact Generac for quantity required

$

$

Currently unavailable

79

Briggs & Stratton 610906

Magneto, Solid State

Note: (Incl. Nos. 158 thru 161) Contact Generac for quantity required

$

$

Currently unavailable

80

Briggs & Stratton 650861

Screw, Fil. hd. w/conical spring lockwasher, 1/4-20 x 3/4

Note: Contact Generac for quantity required

$

$

Currently unavailable

81

Briggs & Stratton 33479

Extension, Blower housing

Note: Contact Generac for quantity required

$

$

Currently unavailable

82

Briggs & Stratton 30688

Screw, Hex hd. Sems, 1/4-20 x 1/2

Note: Contact Generac for quantity required

$

$

Currently unavailable

83

Briggs & Stratton 650751

Screw, Hex hd. w/conical spring washer, 1/4-20 x 7/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

84

Briggs & Stratton 34195B

Housing, Blower

Note: Contact Generac for quantity required

$

$

Currently unavailable

85

Briggs & Stratton 8274

Lockwasher, Split, 5/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

86

Briggs & Stratton 650595

Screw, Hex hd., 5/16-24 x 3/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

87

Briggs & Stratton 33471

Rod, Push

Note: Contact Generac for quantity required

$

$

Currently unavailable

88

Briggs & Stratton 33480

Tube, Push rod

Note: Contact Generac for quantity required

$

$

Currently unavailable

89

Briggs & Stratton 33481

"O" Ring

Note: Contact Generac for quantity required

$

$

Currently unavailable

90

Briggs & Stratton 33356

Terminal, Ground

Note: Contact Generac for quantity required

$

$

Currently unavailable

91

Briggs & Stratton 28545

Grommet, Plastic

Note: Contact Generac for quantity required

$

$

Currently unavailable

92

Briggs & Stratton 650643

Screw, Pan hd. self-tapping, 8-18 x 3/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

93

Briggs & Stratton 33754

Housing Assy., Rocker arm

Note: Contact Generac for quantity required

$

$

Currently unavailable

94

Briggs & Stratton 33484

"O" Ring

Note: Contact Generac for quantity required

$

$

Currently unavailable

95

Briggs & Stratton 650168

Washer, Flat, 1/4"

Note: Contact Generac for quantity required

$

$

Currently unavailable

96

Briggs & Stratton 32610A

Screw, Flanged hex hd., 1/4-20 x 29/32

Note: Contact Generac for quantity required

$

$

Currently unavailable

97

Briggs & Stratton 33485

Arm, Rocker

Note: Contact Generac for quantity required

$

$

Currently unavailable

98

Briggs & Stratton 33486

Ring, Retaining

Note: Contact Generac for quantity required

$

$

Currently unavailable

99

Briggs & Stratton 650755

Screw, Adjusting

Note: Contact Generac for quantity required

$

$

Currently unavailable

100

Briggs & Stratton 650864

Nut, Hex, 1/4-20

Note: Contact Generac for quantity required

$

$

Currently unavailable

101

Briggs & Stratton 650756

Stud, Rocker arm housing cover

Note: Contact Generac for quantity required

$

$

Currently unavailable

102

Briggs & Stratton 33487

"O" Ring

Note: Contact Generac for quantity required

$

$

Currently unavailable

103

Briggs & Stratton 33488

Cover, Rocker arm housing

Note: Contact Generac for quantity required

$

$

Currently unavailable

104

Briggs & Stratton 31958

Gasket, Breather

Note: Contact Generac for quantity required

$

$

Currently unavailable

105

Briggs & Stratton 33489

Body Assy., Breather

Note: Contact Generac for quantity required

$

$

Currently unavailable

106

Briggs & Stratton 33490

Tube, Breather

Note: Contact Generac for quantity required

$

$

Currently unavailable

107

Briggs & Stratton 30102

Screw, Hex washer hd, Sems, w/Masticwasher, 10-32 x 5/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

109

Briggs & Stratton 650738

Screw, Hex washer spinlock hd. thread forming, 1/4-20 x 5/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

110

Briggs & Stratton 650378

Screw, Fil. hd. Sems, 5/16-18 x 1-1/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

111

Briggs & Stratton 28566

Fitting, Fuel line
(Superseded to 7028566YP)

Note: Contact Generac for quantity required

$25.99

$

Usually ships in 2-12 days

0

112

Briggs & Stratton 35471

Gasket, Air cleaner bracket

Note: Contact Generac for quantity required

$

$

Currently unavailable

113

Briggs & Stratton 35473

Bracket, Air cleaner

Note: Contact Generac for quantity required

$

$

Not available

114

Briggs & Stratton 650399

Screw, Fil. hd. Sems, 10-32 x 5/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

115

Briggs & Stratton 32008

Element, Air cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

116

Briggs & Stratton 34193

Cover, Air cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

117

Briggs & Stratton 650513

Nut, Wing, 1/4-20

Note: Contact Generac for quantity required

$

$

Currently unavailable

118

Briggs & Stratton 33495

Cover, Cylinder head

Note: Contact Generac for quantity required

$

$

Currently unavailable

119

Briggs & Stratton 31992

Spacer, Screen

Note: Contact Generac for quantity required

$

$

Currently unavailable

120

Briggs & Stratton 33776

Screen, Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable

121

Briggs & Stratton 27070

Washer, Lock, 1/4"

Note: Contact Generac for quantity required

$

$

Currently unavailable

122

Briggs & Stratton 650680

Screw, Truss hd., 1/4-20 x 1-1/2

Note: Contact Generac for quantity required

$

$

Currently unavailable

123

Briggs & Stratton 31980

Pulley, Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable

124

Briggs & Stratton 32046

Rope Assy., Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable

128

Briggs & Stratton 650752

Screw, Hex hd. Sems, 1/4-20 x 7/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

129

Briggs & Stratton 27793

Clip, Conduit

Note: Contact Generac for quantity required

$

$

Currently unavailable

130

Briggs & Stratton 28942

Screw, Hex hd. Sems, 10-32 x 3/8
(Superseded to 7028942YP)

Note: Contact Generac for quantity required

$7.99

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 34197

Gasket, Air cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

132

Briggs & Stratton 34194A

Tube, Air cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

134

Briggs & Stratton 32039

Switch, Stop

Note: Contact Generac for quantity required

$

$

Currently unavailable

135

Briggs & Stratton 650890

Washer, Lock, 5/16 I.T.

Note: Contact Generac for quantity required

$

$

Currently unavailable

136

Briggs & Stratton 26073

Washer, Flat

Note: Contact Generac for quantity required

$

$

Currently unavailable

137

Briggs & Stratton 650624

Screw, Hex hd., 5/16-24 x 9/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

139

Briggs & Stratton 33069

Dipstick, Oil

Note: (Incl. No. 140) Contact Generac for quantity required

$

$

Currently unavailable

140

Briggs & Stratton 29673

Gasket, Oil fill

Note: Contact Generac for quantity required

$

$

Not available

141

Briggs & Stratton 650399

Screw, Fil. hd. Sems, 10-32 x 5/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

146

Briggs & Stratton 32577

Cover, Cylinder

Note: Contact Generac for quantity required

$

$

Currently unavailable

147

Briggs & Stratton 792028

Screw, Hex hd. Sems, 5/16-18 x 7/8

Note: Contact Generac for quantity required

$28.99

$

In Stock, only 1 left!

0

148

Briggs & Stratton 650736

Screw, Pan hd., 10-16 x 3/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

149

Briggs & Stratton 610965

Stator Plate Assy.

Note: Contact Generac for quantity required

$

$

Currently unavailable

150

Briggs & Stratton 29443

Clip
(Superseded to 7061017YP)

Note: Contact Generac for quantity required

$

$

Not available

153

Briggs & Stratton 650781

Screw, Hex hd. Sems, 5/16-18 x 11/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

154

Briggs & Stratton 31971

Gasket, Shim (.004/.005 thick)

Note: Contact Generac for quantity required

$

$

Not available

155

Briggs & Stratton 31972

Gasket, Shim (.005/.007 thick)

Note: Contact Generac for quantity required

$

$

Currently unavailable

156

Briggs & Stratton 32031

Spacer, Steel (.010 thick)

Note: Contact Generac for quantity required

$

$

Currently unavailable

158

Briggs & Stratton 610118

Cover, Spark plug

Note: Contact Generac for quantity required

$

$

Currently unavailable

159

Briggs & Stratton 610750

Grommet, Lead wire

Note: Contact Generac for quantity required

$

$

Currently unavailable

160

Briggs & Stratton 610408

Nut, Hex, 8-32

Note: Contact Generac for quantity required

$

$

Currently unavailable

161

Briggs & Stratton 610908

Terminal, Female

Note: Contact Generac for quantity required

$

$

Currently unavailable

173

Briggs & Stratton 34768

Decal, Name

Note: Contact Generac for quantity required

$

$

Currently unavailable

174

Briggs & Stratton 34346

Decal, Instruction

Note: Contact Generac for quantity required

$

$

Currently unavailable

181

Briggs & Stratton 632456

Carburetor

Note: (Incl. No. 54) Contact Generac for quantity required

$

$

Currently unavailable

182

Briggs & Stratton 33835

Starter Motor (12 Volt)

Note: (Incl. No. 153) Contact Generac for quantity required

$

$

Currently unavailable

183

Briggs & Stratton 33516E

Gasket Set

Note: (Incl. items 25, 25A, 31, 33, 41, 50, 54, 72, 89, 94, 102, 104, 107, 112, 131, 154, 155, 156) Contact Generac for quantity required

$

$

Currently unavailable

184

Briggs & Stratton 36075

"O" Ring Kit

Note: (Incl. items 25, 25A, 89, 94, 102, 104, & 107,) Contact Generac for quantity required

$

$

Currently unavailable
