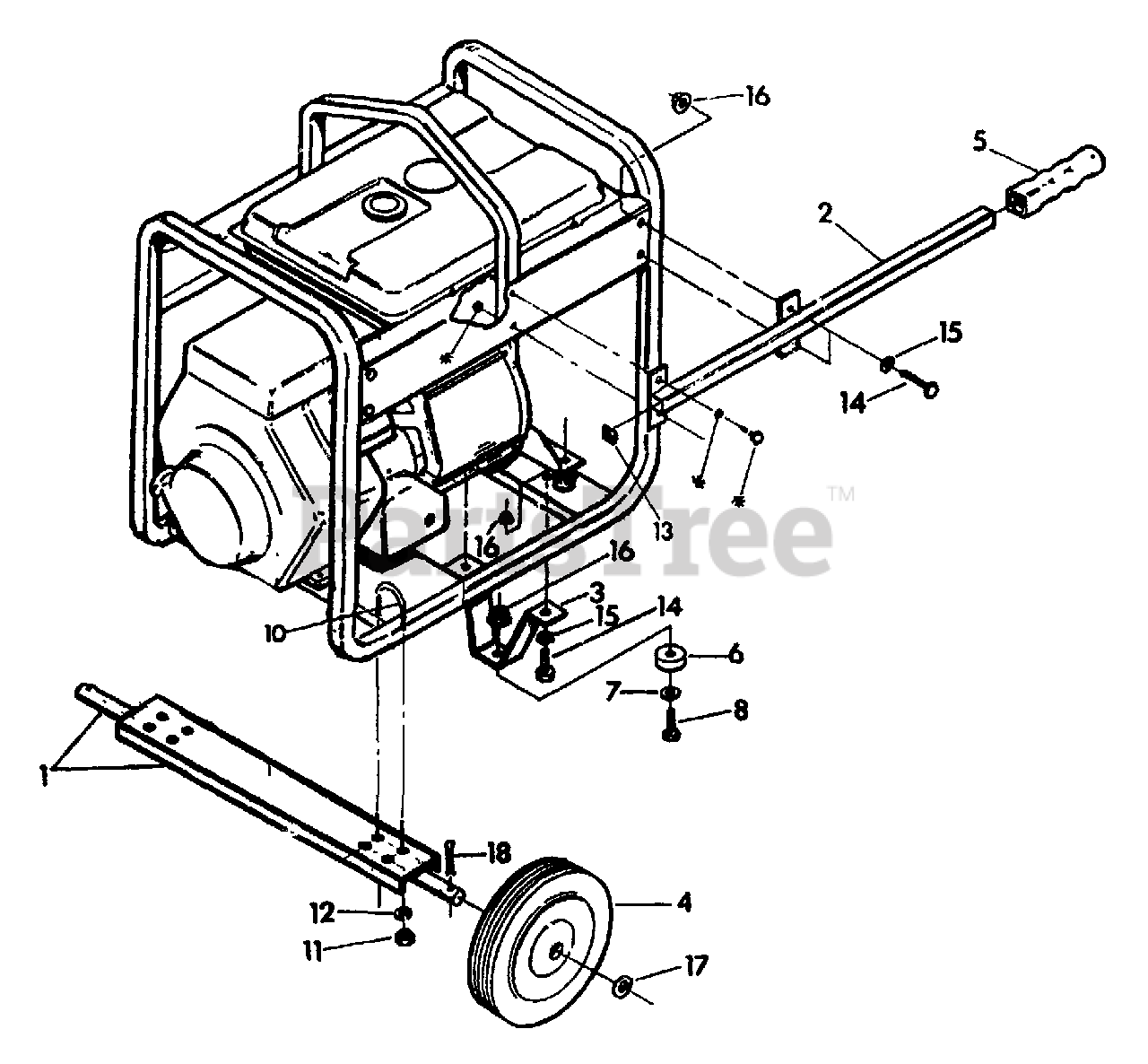

580.328390 (9374-0) - Craftsman 8,000 Watt Portable Generator Axle Assembly Parts Diagram

8,000 Watt Portable Generator

Axle Assembly Parts Diagram

  • Title

1

Briggs & Stratton 78456

AXLE ASSEMBLY

$

$

Currently unavailable

2

Briggs & Stratton 77317

TRANSPORT HANDLE

$

$

Currently unavailable

3

Briggs & Stratton 45131

MOUNTING LEG

$

$

Not available

4

Briggs & Stratton 52555

WHEEL ASSEMBLY
(Superseded to 7600147YP)

$122.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 77584

HANDLE GRIP
(Superseded to 77584GS)

$5.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 27007

VIBRATION MOUNT
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

7

Briggs & Stratton 50190

SPECIAL WASHER
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 42909

M8-1.25 x 30mm HEX HEAD CAPSCREW
(Superseded to 42909GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 26858

U-BOLT

$

$

Not available

11

Briggs & Stratton 22259

5/16"-8 HEX NUT
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22129

5/16" LOCK WASHER
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton 46476

CAP PLUG
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 43107

M8-1.25 x 25mm HEX HEAD CAPSCREW
(Superseded to 43107GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22145

M8 FLAT WASHER

$

$

Not available

16

Briggs & Stratton 52858

M8-1.25 HEX LOCK NUT
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 45900

3/4" FLAT WASHER

$

$

Currently unavailable

18

Briggs & Stratton 22268

COTTER PIN
(Superseded to 22268GS)

$3.99

$

Usually ships in 2-12 days

0
