580.328390 (9374-0) - Craftsman 8,000 Watt Portable Generator Engine Parts Diagram

8,000 Watt Portable Generator

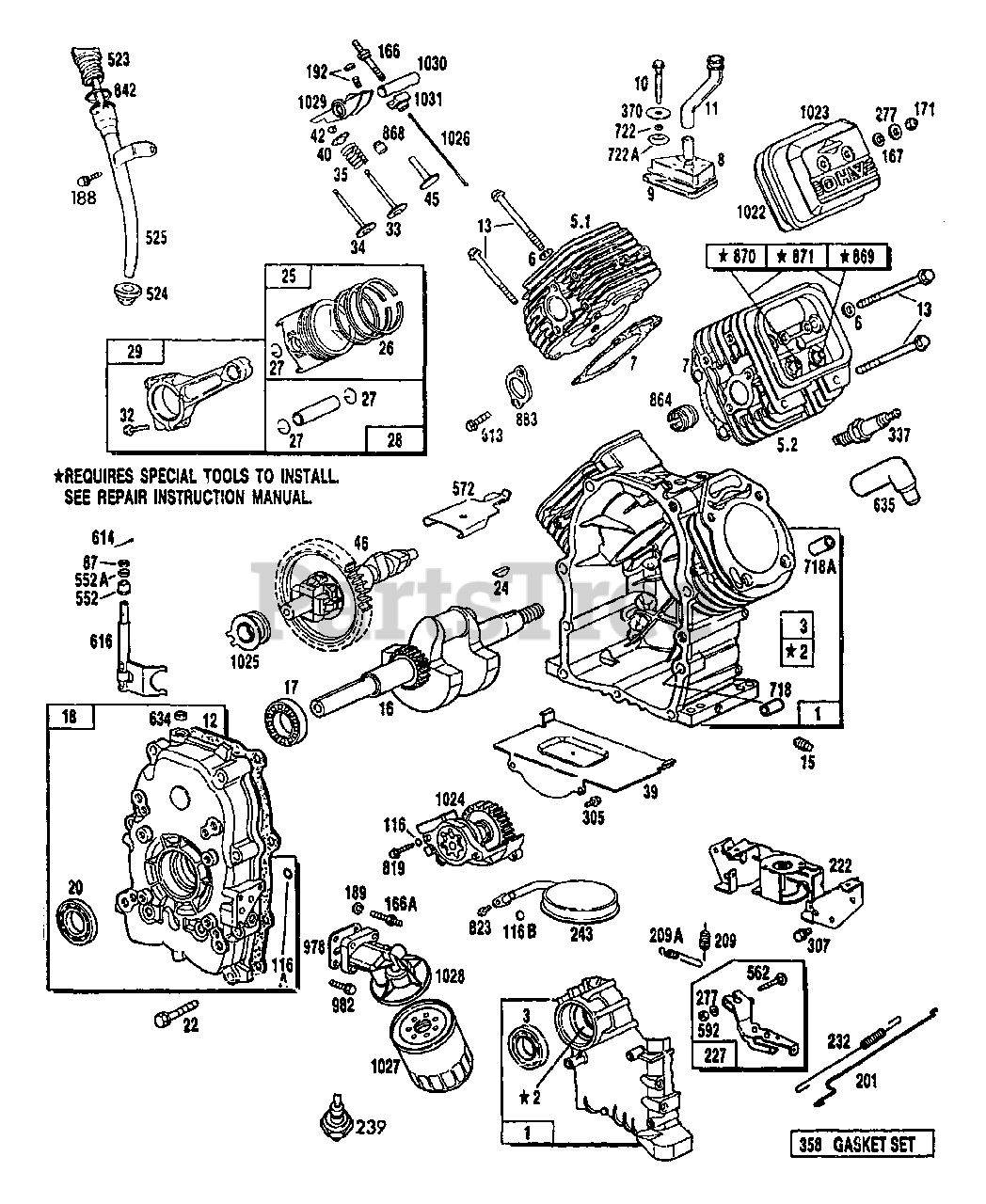

Engine Parts Diagram

  • Title

1

Briggs & Stratton 69376

807521 -- Cylinder Assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 69333

805107 -- Cylinder Bearing

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 67805

805101 -- Oil Seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

5.1

Briggs & Stratton 69311

807508 -- Cylinder Head (#1)

Note: Contact Generac for quantity required

$

$

Not available

5.2

Briggs & Stratton 69312

807510 -- Cylinder Head (#2)

Note: Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 70169

805193 -- Cylinder Hd. Washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 69332

805111 -- Cylinder Hd. Gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

8

Briggs & Stratton 72301

807553 -- Breather Assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 72315

805379 -- Breather Gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 70190

805194 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 70596

805362 -- Breather Tube

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 69336

805112 -- Crankcase Cover Gskt

Note: Contact Generac for quantity required

$

$

Not available

13

Briggs & Stratton 69325

805097 -- Cylinder Head Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

15

Briggs & Stratton 67888

805048 -- Oil Drain Plug
(Superseded to 67888GS)

Note: Contact Generac for quantity required

$9.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 70581

Crankshaft

Note: Contact Generac for quantity required

$

$

Currently unavailable

17

Briggs & Stratton 69315

805213 -- Ball Bearing

Note: Contact Generac for quantity required

$

$

Currently unavailable

18

Briggs & Stratton 70540

807628 -- Crankcase Cover

Note: Contact Generac for quantity required

$

$

Currently unavailable

20

Briggs & Stratton 67924

805049 -- Oil Seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

22

Briggs & Stratton 67878

805017 -- Crankcase Cvr. Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

24

Briggs & Stratton 67877

805016 -- Flywheel Key

Note: Contact Generac for quantity required

$

$

Currently unavailable

25

Briggs & Stratton 75248

807619 -- Piston Assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

26

Briggs & Stratton 75249

807620 -- Piston Ring Set

Note: Contact Generac for quantity required

$

$

Currently unavailable

27

Briggs & Stratton 69327

805099 -- Piston Pin Lock

Note: Contact Generac for quantity required

$

$

Currently unavailable

28

Briggs & Stratton 75250

807621 -- Piston Pin Assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

29

Briggs & Stratton 75251

807622 -- Connecting Rod Assm.

Note: Contact Generac for quantity required

$

$

Currently unavailable

32

Briggs & Stratton 72346

805395 -- Connecting Rod Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

33

Briggs & Stratton 69316

805089 -- Exhaust Valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

34

Briggs & Stratton 69317

805090 -- Intake Valve

Note: Contact Generac for quantity required

$

$

Not available

35

Briggs & Stratton 67816

805078 -- Valve Spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

39

Briggs & Stratton 70523

805300 -- Windage Plate

Note: Contact Generac for quantity required

$

$

Currently unavailable

40

Briggs & Stratton 69320

805092 -- Valve Spring Retainer

Note: Contact Generac for quantity required

$

$

Currently unavailable

42

Briggs & Stratton 70513

805161 -- Valve Retainer

Note: Contact Generac for quantity required

$

$

Currently unavailable

45

Briggs & Stratton 70584

805354 -- Valve Tappet

Note: Contact Generac for quantity required

$

$

Currently unavailable

46

Briggs & Stratton 70530

807542 -- Cam Gear -- 4WT

Note: Contact Generac for quantity required

$

$

Currently unavailable

87

Briggs & Stratton 68554

805054 -- Governor Shaft Seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

116

Briggs & Stratton 68573

805058 -- O-ring (oil Pump)

Note: Contact Generac for quantity required

$

$

Currently unavailable

116A

Briggs & Stratton 70506

805198 -- O-ring (crankcase)

Note: Contact Generac for quantity required

$

$

Currently unavailable

116B

Briggs & Stratton 70541

805316 -- O-ring (pick-up Tube)

Note: Contact Generac for quantity required

$

$

Currently unavailable

166

Briggs & Stratton 70567

805342 -- Rocker Arm Stud

Note: Contact Generac for quantity required

$

$

Currently unavailable

166A

Briggs & Stratton 70131

805073 -- Oil Filter Adapter Stud

Note: Contact Generac for quantity required

$

$

Currently unavailable

167

Briggs & Stratton 75253

805420 -- Valve Cover Washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

171

Briggs & Stratton 67885

805019 -- Nut
(Superseded to 67885GS)

Note: Contact Generac for quantity required

$6.99

$

In Stock, only 1 left!

0

188

Briggs & Stratton 39253

805247 -- Screw
(Superseded to 39253GS)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

189

Briggs & Stratton 22129

805449 -- Lock Washer
(Superseded to 22129GS)

Note: Contact Generac for quantity required

$2.99

$

In Stock, only 2 left!

0

192

Briggs & Stratton 75254

807623 -- Valve Adjusting Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

201

Briggs & Stratton 74946

8055480 -- Governor Link
(Superseded to 7074946YP)

Note: Contact Generac for quantity required

$22.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 77348

805630 -- Governor Spring - 2WT
(Superseded to 77348GS)

Note: Contact Generac for quantity required

$29.99

$

Usually ships in 2-12 days

0

209A

Briggs & Stratton 79282

805450 -- Governor Idle Spring

Note: Contact Generac for quantity required

$

$

Not available

222

Briggs & Stratton 79285

807610 -- Governor Control Brkt
(Superseded to 7079285YP)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 72320

807528 -- Governor Lever Assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

232

Briggs & Stratton 70125

805465 -- Governor Link Spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

239

Briggs & Stratton 60108

491657 -- Oil Pressure Switch

Note: Contact Generac for quantity required

$

$

Not available

243

Briggs & Stratton 70531

807598 -- Oil Pump Pick-up Screen

Note: Contact Generac for quantity required

$

$

Currently unavailable

277

Briggs & Stratton 67884

805018 -- Washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

305

Briggs & Stratton 66886

805406 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

307

Briggs & Stratton 67898

805025 -- Screw

Note: Contact Generac for quantity required

$

$

Not available

337

Briggs & Stratton 72347

491055 -- Spark Plug
(Superseded to 491055S)

Note: Contact Generac for quantity required

$4.99

$

In Stock, Qty 20+

0

358

Briggs & Stratton 72528

807640 -- Gasket Set

Note: Contact Generac for quantity required

$

$

Currently unavailable

370

Briggs & Stratton 75259

805484 -- Breather Screw -- Washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

523

Briggs & Stratton 70158

807585 -- Dipstick

Note: Contact Generac for quantity required

$

$

Currently unavailable

524

Briggs & Stratton 67181

805259 -- Filler Tube Seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

525

Briggs & Stratton 70151

807584 -- Oil Filler Tube

Note: Contact Generac for quantity required

$

$

Currently unavailable

552

Briggs & Stratton 72361

805412 -- Governor Shaft Bushing

Note: Contact Generac for quantity required

$

$

Not available

552A

Briggs & Stratton 72362

805413 -- governor Shaft Bushing
(Superseded to 7072362YP)

Note: Contact Generac for quantity required

$13.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 80003

805381 -- Bolt

Note: Contact Generac for quantity required

$

$

Currently unavailable

572

Briggs & Stratton 70199

805197 -- Breather Baffle

Note: Contact Generac for quantity required

$

$

Currently unavailable

592

Briggs & Stratton 72321

805383 -- Hex Nut
(Superseded to 7072321YP)

Note: Contact Generac for quantity required

$26.99

$

Usually ships in 2-12 days

0

613

Briggs & Stratton 69397

805158 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

614

Briggs & Stratton 72366

805417 -- Cotter Pin

Note: Contact Generac for quantity required

$

$

Currently unavailable

616

Briggs & Stratton 72367

807596 -- Governor Fork

Note: Contact Generac for quantity required

$

$

Currently unavailable

634

Briggs & Stratton 72365

805416 -- Governor Shaft Washer
(Superseded to 7072365YP)

Note: Contact Generac for quantity required

$22.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 70562

805529 -- Spark Plug Elbow

Note: Contact Generac for quantity required

$

$

Currently unavailable

718

Briggs & Stratton 68555

805103 -- Crankcase Dowel

Note: Contact Generac for quantity required

$

$

Currently unavailable

718A

Briggs & Stratton 67806

805102 -- Cylinder Head Dowel

Note: Contact Generac for quantity required

$

$

Currently unavailable

722

Briggs & Stratton 75262

805482 -- Breather Screw Seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

722A

Briggs & Stratton 75263

805483 -- Breather Screw Seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

819

Briggs & Stratton 68572

805057 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

823

Briggs & Stratton 70542

805317 -- Mounting Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

842

Briggs & Stratton 80007

805386 -- O-ring

Note: Contact Generac for quantity required

$

$

Currently unavailable

864

Briggs & Stratton 67195

805083 -- Exhaust Port Liner

Note: Contact Generac for quantity required

$

$

Currently unavailable

868

Briggs & Stratton 70122

805094 -- Valve Guide Seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

869

Briggs & Stratton 67910

805085 -- Intake Valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

870

Briggs & Stratton 67911

805088 -- Exhaust Valve Seat

Note: Contact Generac for quantity required

$

$

Currently unavailable

871

Briggs & Stratton 67813

805084 -- Valve Guide
(Superseded to 67813GS)

Note: Contact Generac for quantity required

$9.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 67897

805024 -- Exhaust Manifold Gasket
(Superseded to 691613)

Note: Contact Generac for quantity required

$5.49

$

In Stock, Qty 16

0

978

Briggs & Stratton 68548

805250 -- Oil Filter Adapter Gasket

Note: Contact Generac for quantity required

$

$

Not available

982

Briggs & Stratton 68527

805030 -- Screw
(Superseded to 68527GS)

Note: Contact Generac for quantity required

$15.99

$

Usually ships in 2-12 days

0

1022

Briggs & Stratton 67920

805028 -- Valve Cover Gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

1023

Briggs & Stratton 69328

805100 -- Valve Cover

Note: Contact Generac for quantity required

$

$

Currently unavailable

1024

Briggs & Stratton 70539

807644 -- Oil Pump Assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

1025

Briggs & Stratton 70536

805313 -- Governor Slider

Note: Contact Generac for quantity required

$

$

Currently unavailable

1026

Briggs & Stratton 70577

805352 -- Rod Intake Push

Note: Contact Generac for quantity required

$

$

Currently unavailable

1027

Briggs & Stratton 70185

491056 -- Oil Filter
(Superseded to 70185GS)

Note: Contact Generac for quantity required

$14.99

$

Usually ships in 2-12 days

0

1028

Briggs & Stratton 81959

807755 -- Oil Filter Adapter

Note: Contact Generac for quantity required

$

$

Currently unavailable

1029

Briggs & Stratton 70599

807557 -- Rocker Arm

Note: Contact Generac for quantity required

$

$

Currently unavailable

1030

Briggs & Stratton 70567

805342 -- Rocker Arm Shaft

Note: Contact Generac for quantity required

$

$

Currently unavailable

1031

Briggs & Stratton 70566

805341 -- Rocker Arm Support

Note: Contact Generac for quantity required

$

$

Currently unavailable
