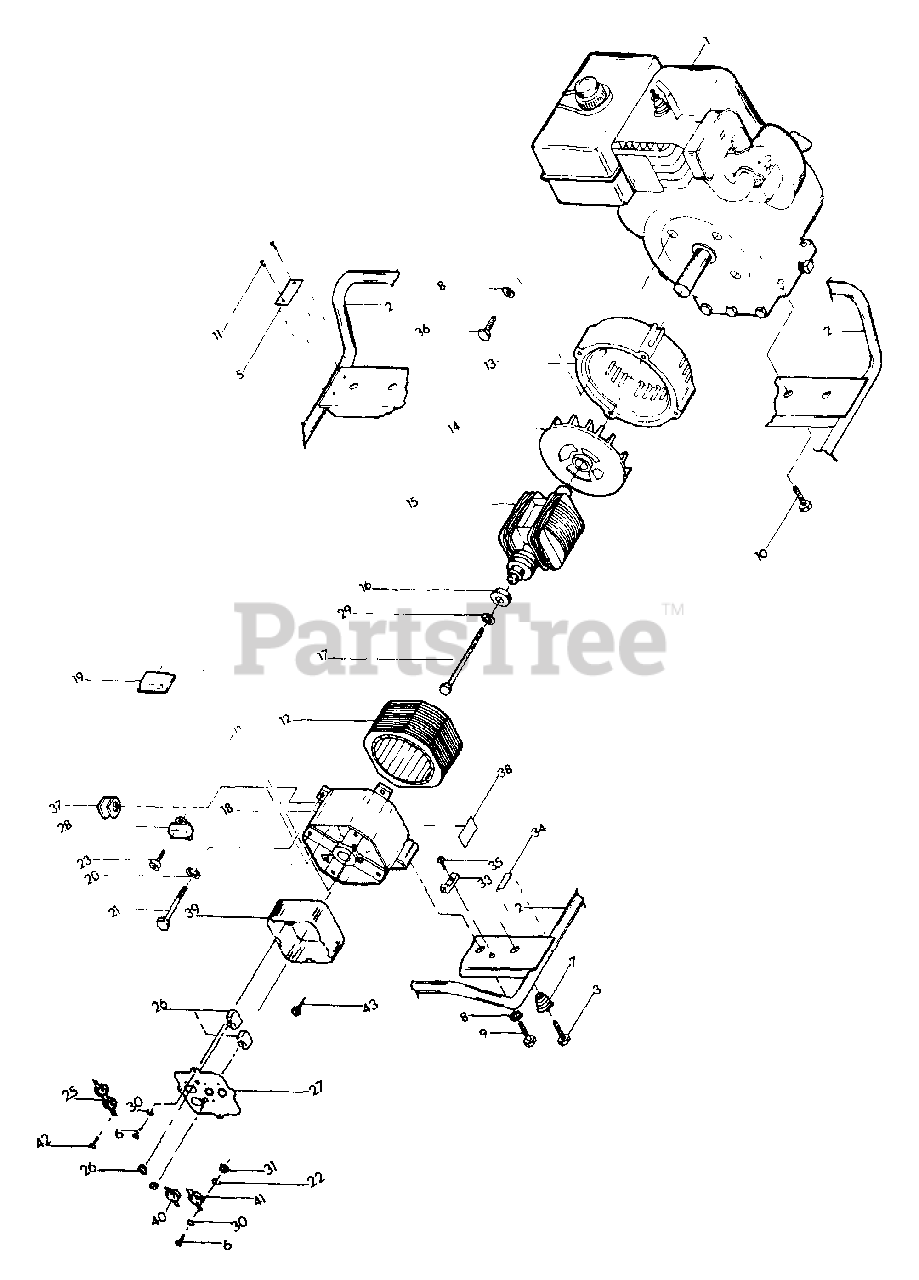

580.328450 (9024-0) - Craftsman 5,000 Watt Portable Generator Generator (10/95) Parts Diagram

5,000 Watt Portable Generator

Generator (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 74739

ENGINE - Craftsman 10 Horsepower

$

$

Currently unavailable

2

Briggs & Stratton 72097

CRADLE

$

$

Currently unavailable

3

Briggs & Stratton 24910

SCREW (Taptite) - 5/16"-18 x 1/2"

$

$

Not available

5

-----

PLATE, Serial

$

$

Not available

6

Briggs & Stratton 36917

SCREW, Pan Head Machine - No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23594

MOUNT, Vibration

$

$

Currently unavailable

8

Briggs & Stratton 22129

LOCKWASHER - M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 39253

SCREW, Pan Head Machine - M8-1.25 x 20mm
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 59637

SCREW (Taptite) - 3/8"-16 x 3/4"

$

$

Not available

11

Briggs & Stratton 36261

RIVET - Stainless Steel

$

$

Not available

12

Briggs & Stratton 74737

STATOR ASSY
(Superseded to 7075710YP)

$1709.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66365D

HOUSING, Engine Adapter
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66389

FAN, Cooling

$

$

Not available

15

Briggs & Stratton 73063

ROTOR ASSY

$

$

Currently unavailable

16

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 46958

BOLT, Rotor - 5/16"-24 x 8"

$

$

Not available

18

Briggs & Stratton 66825

CARRIER, Rear Bearing

$

$

Currently unavailable

19

Briggs & Stratton 66850

RECTIFIER, Bridge
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22097

LOCKWASHER - M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66449F

BOLT, Stator - M6-1.00 x 140mm

$

$

Not available

22

Briggs & Stratton 22264

LOCKWASHER - No. 8

$

$

Not available

23

Briggs & Stratton 66849

SCREW (Taptite) - M5-0.80 x 15mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 68759

RECEPTACLE - 120 volts a-c
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 66819

BREAKER, Circuit - 20 amp

$

$

Currently unavailable

27

Briggs & Stratton 74702

PANEL, Receptacle

$

$

Currently unavailable

28

Briggs & Stratton 66386

BRUSH
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

29

Briggs & Stratton 67451

FLATWASHER (Special)

$

$

Currently unavailable

30

Briggs & Stratton 23365

WASHER (Serrated)
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

31

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 25433

LUG, Grounding

$

$

Not available

34

Briggs & Stratton 67210A

DECAL, Ground Lug
(Superseded to 67210AGS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 56893

SCREW (Taptite) - No. 10-24 x 1/2"
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 22336

SCREW, Hex - 5/16"-24 x 3/4"

$

$

Not available

37

Briggs & Stratton 67022

GROMMET, Bearing Carrier
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

38

-----

DECAL, Data

$

$

Not available

39

Briggs & Stratton 72280

SHROUD, Panel
(Superseded to 7072280YP)

$22.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 68868

RECEPTACLE - 120 Volts, 30 amp
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 68867

RECEPTACLE - 120/240 Volts, 20 amp
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 33528

SCREW, Pan Head - No. 10-32 x 1/4"

$

$

Currently unavailable

43

Briggs & Stratton 73540

SCREW, Pan Head - M5-0.80

$

$

Currently unavailable

Briggs & Stratton 74700

MANUAL, Owner's

$

$

Not available

Briggs & Stratton 37806

PLUG, Connector - 120 volts, 30 amp, 3-prong
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

PLUG, Connector - 120/240 volts, 4-prong, 20 amp
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0
