580.328451 (9024-2) - Craftsman 5,000 Watt Portable Generator Generator Parts Diagram

5,000 Watt Portable Generator

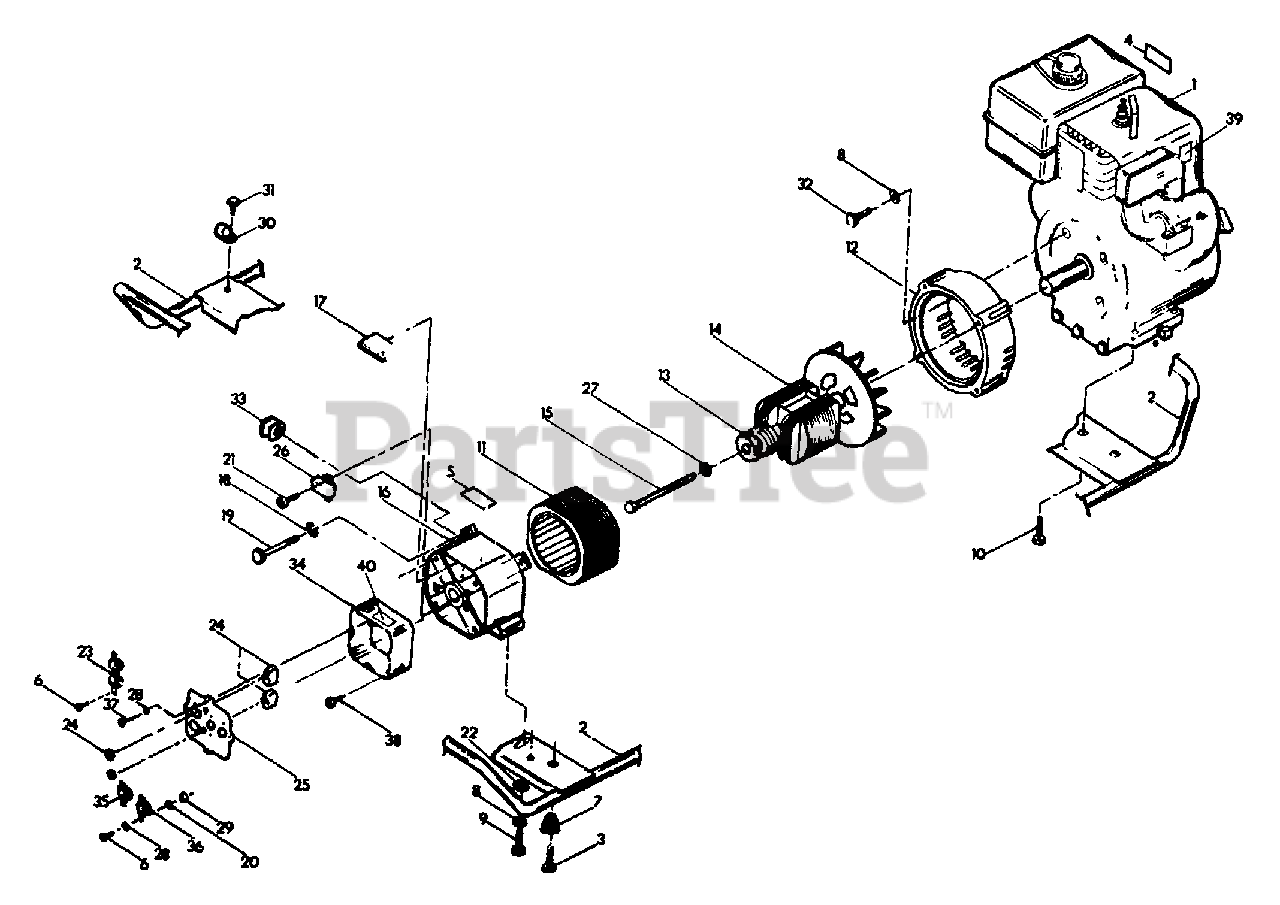

Generator Parts Diagram

  • Title

1

Briggs & Stratton 74739

ENGINE, CRAFTSMAN Model 143.786202

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 74766

CRADLE ASSEMBLY

$

$

Currently unavailable

3

Briggs & Stratton 24910

SCREW - 5/16"-18 X 1/2"

$

$

Not available

4

Briggs & Stratton 39178

DECAL - CAUTION

$

$

Currently unavailable

5

Briggs & Stratton 72079

DECAL - WARNING

$

$

Currently unavailable

6

Briggs & Stratton 36917

SCREW - No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23594

VIBRATION MOUNT

$

$

Currently unavailable

8

Briggs & Stratton 22129

LOCK WASHER - M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 39253

SCREW - M8-1.25 x 20mm
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 59637

SCREW - 3/8"-16 x 3/4" 1

$

$

Not available

11

Briggs & Stratton 74709

STATOR ASSEMBLY

$

$

Currently unavailable

12

Briggs & Stratton 66365D

ENGINE ADAPTOR HOUSING
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 74716

ROTOR ASSEMBLY

$

$

Not available

15

Briggs & Stratton 73607

ROTOR BOLT - 5/16"-24 x 8.25"
(Superseded to 7073607SM)

$9.99

$

In Stock, only 2 left!

0

16

Briggs & Stratton 66825

CARRIER, REAR BEARING

$

$

Currently unavailable

17

Briggs & Stratton 66850

CIRCUIT BOARD
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22097

LOCKWASHER
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 66449D

STATOR BOLT - M6-1.00 x 130mm

$

$

Currently unavailable

20

Briggs & Stratton 22264

LOCKWASHER -- No. 8

$

$

Not available

21

Briggs & Stratton 66849

SCREW - M5-0.80 x 15mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 22145

FLAT WASHER - 5/16"

$

$

Not available

23

Briggs & Stratton 68759

RECEPTACLE - 120 volts a-c DUPLEX TYPE
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 66819

CIRCUIT BREAKER - 20 AMP

$

$

Currently unavailable

25

Briggs & Stratton 74702

RECEPTACLE PANEL

$

$

Currently unavailable

26

Briggs & Stratton 66386

BRUSH ASSEMBLY
(Superseded to 66386GS)

$23.99

$

In Stock, only 4 left!

0

27

Briggs & Stratton 67451

FLAT WASHER - SPECIAL

$

$

Currently unavailable

28

Briggs & Stratton 23365

LOCK WASHER - No. 8
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 22471

HEX NUT - No. 6-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 25433

GROUNDING LUG

$

$

Not available

31

Briggs & Stratton 24489

SCREW - No. 10-24 x 1/2"

Note: Contact Generac for quantity required

$

$

Currently unavailable

32

Briggs & Stratton 22336

HEX SCREW - 5/16"-24 x 3/4"

Note: Contact Generac for quantity required

$

$

Not available

33

Briggs & Stratton 67022

GROMMET, BEARING CARRIER
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 72280

SHROUD, PANEL
(Superseded to 7072280YP)

$22.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 68868

RECEPTACLE - 120 volts, 30 amp
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 68867

RECEPTACLE - 120/240 volts, 20 amp
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 33528

SCREW - No. 10-32 x 1/4"

Note: Contact Generac for quantity required

$

$

Currently unavailable

38

Briggs & Stratton 73540

SCREW - M5-0.80mm

Note: Contact Generac for quantity required

$

$

Currently unavailable

39

Briggs & Stratton 63118

DECAL - WARRANTY

Note: Contact Generac for quantity required

$

$

Currently unavailable

40

Briggs & Stratton 74728

DECAL - GROUNDING
(Superseded to 74728GS)

Note: Contact Generac for quantity required

$5.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 37806

CONNECTOR PLUG - 120 volts, 30 amp
(Superseded to 100523GS)

Note: Contact Generac for quantity required

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

CONNECTOR PLUG - 120/240 volts, 20 amp
(Superseded to 100522GS)

Note: Contact Generac for quantity required

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 75429

OWNER'S MANUAL

Note: Contact Generac for quantity required

$

$

Not available
