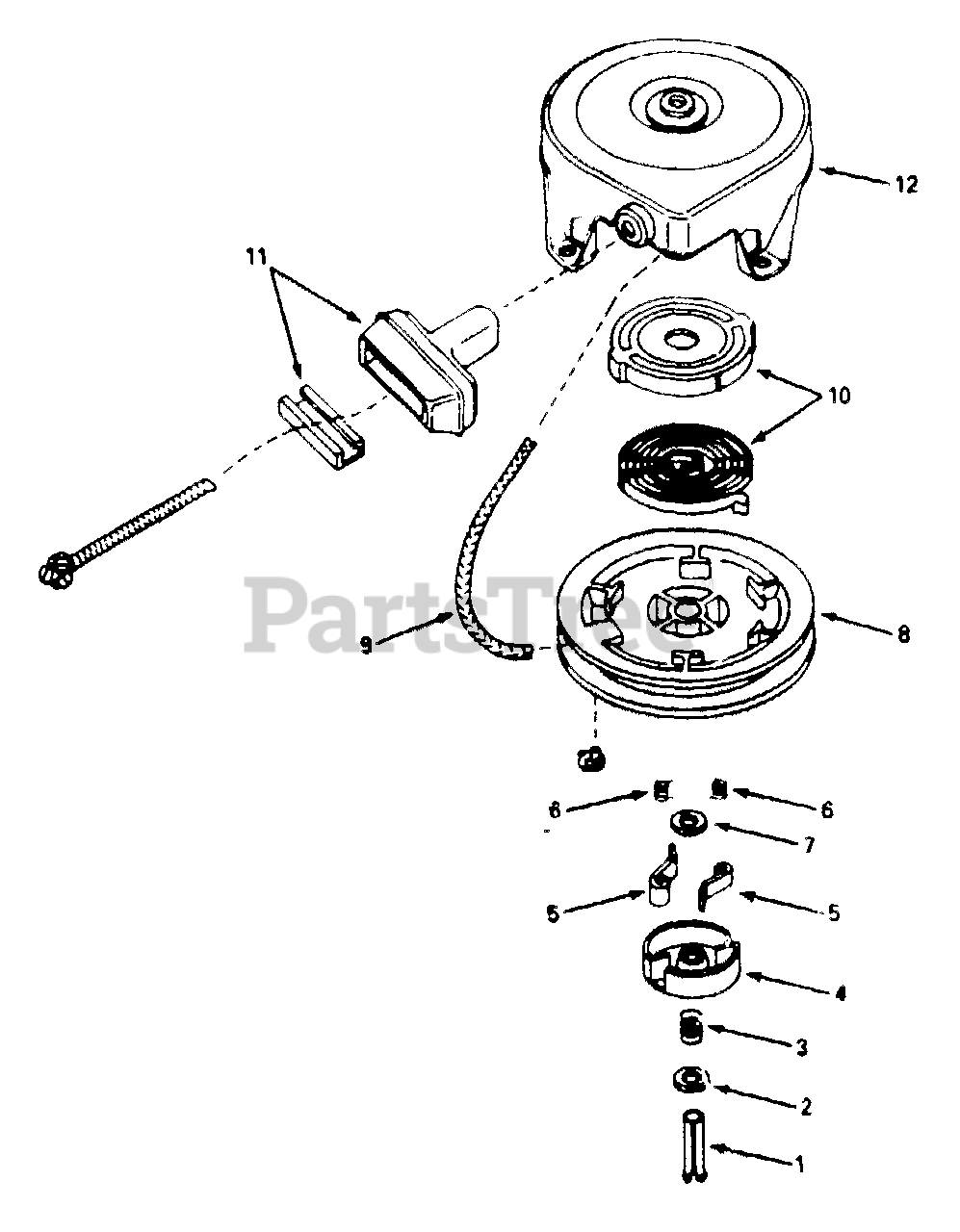

580.328451 (9024-2) - Craftsman 5,000 Watt Portable Generator Rewind Starter No. 590633 Parts Diagram

5,000 Watt Portable Generator

Rewind Starter No. 590633 Parts Diagram

  • Title

Briggs & Stratton 590633

Starter, Rewind

Note: Contact Generac for quantity required

$3.99

$

In Stock, only 2 left!

0

1

Briggs & Stratton 590599A

Pin, Spring

Note: (Incl. No. 7) Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 590600

Washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 590698

Spring, Brake

Note: Contact Generac for quantity required

$9.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 590627

Retainer

Note: Contact Generac for quantity required

$6.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 590641

Dog, Starter

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 590617

Spring, Dog

Note: Contact Generac for quantity required

$160.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 590601

Washer

Note: Contact Generac for quantity required

$18.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 590632

Pulley

Note: Contact Generac for quantity required

$3.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 590451A

Rope, Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 590629

Spring & Keeper Assy.

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 590387

Handle Assy., Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 590634

Housing Assy., Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable
