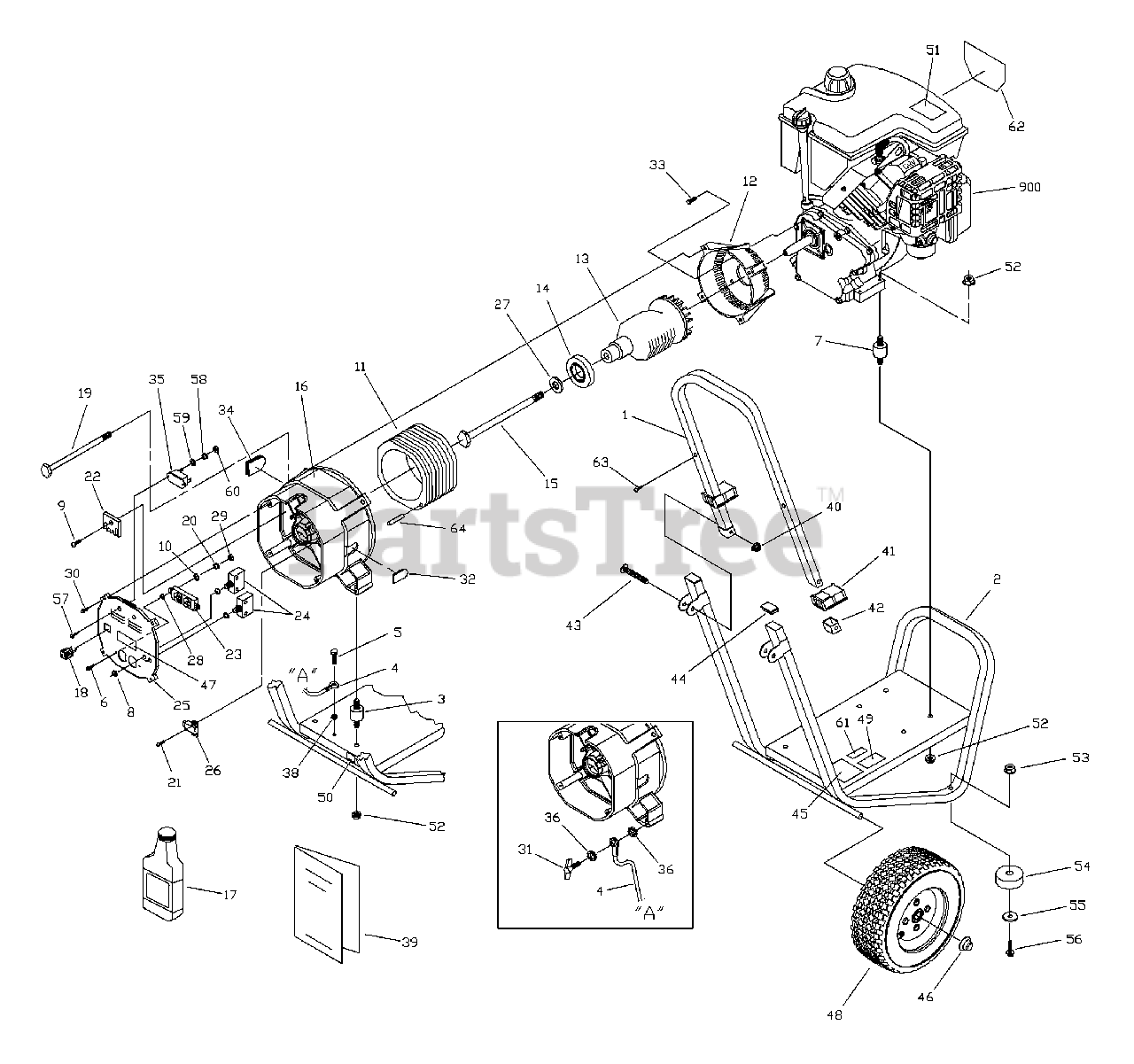

580.329120 (1523-0) - Craftsman 3,000 Watt Portable Generator Main Unit Parts Diagram

3,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B187358

HANDLE
(Superseded to B187358GS)

$65.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B186974

BASE
(Superseded to B186974GS)

$136.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 85652

MOUNT, Vibration Alt.
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 17

0

4

14353621

WIRE, Ground

$

$

Not available

5

Briggs & Stratton 86292

CAPSCREW, Self Driller #10
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 75475

SCREW, PHM M4 - 0.7 x 10

$

$

Not available

7

Briggs & Stratton 85651

MOUNT, Vibration Engine
(Superseded to 85651GS)

$24.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 99617

NUT, PAL 3/8" - 24

$

$

Currently unavailable

9

Briggs & Stratton 66849A

TAPTITE, M5 - 0.8 x 20
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 38150

WASHER, #8 Flat
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 186953A

ASSEMBLY, Stator
(Superseded to 186953AGS)

$291.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 66365F

HOUSING, Engine Adapter
(Superseded to 66365FGS)

$79.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B2816J

ASSEMBLY, Rotor
(Superseded to B2816JGS)

$170.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 47480

BOLT, Rotor 5/16" - 24 x 7"
(Superseded to 5047480B)

$205.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66825B

CARRIER, Rear Bearing

$

$

Currently unavailable

17

Briggs & Stratton AB3061

BOTTLE, Oil, 20 oz, SRS
(Superseded to BB3061GS)

$13.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 90418

OUTLET, 12 VDC
(Superseded to 90418GS)

$

$

Not available

19

Briggs & Stratton 86308G

BOLT, Stator M6 1.00 x 100mm
(Superseded to 86308GGS)

$4.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22264

WASHER, No. 8 Lock

$

$

Not available

21

Briggs & Stratton 66849

SCREW, M5 - .80 x 16mm Taptite
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 65795

RECTIFIER, Battery Charge
(Superseded to 65795GS)

$

$

Not available

23

Briggs & Stratton 68759

RECEPTACLE, 120V AC, 20A
(Superseded to 68759GS)

$24.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 77247

BREAKER, Circuit - 20AMP
(Superseded to 77247GS)

$10.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 187095

PANEL, Receptacle
(Superseded to 186984GS)

$114.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 91825

RECTIFIER, Brush & Bridge

$

$

Not available

27

Briggs & Stratton 96796

WASHER, Flat (special)
(Superseded to 96796GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 23365

WASHER, Shakeproof No. 8
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

29

Briggs & Stratton 51715

NUT, M4 - 0.7 Hex
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

SCREW, M5 0.80 x 10mm Taptite
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 86494

SCREW, M6 - 1.0 x 16 Wing
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 84242

GROMMET, Plastic RBC
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 86307

CAPSCREW, Hx Hd 5/16-24 x 3/4
(Superseded to 86307GS)

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 67022

GROMMET, Rubber
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 87962

BREAKER, Circuit, 10A 12Volt
(Superseded to 87962GS)

$29.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 26850

WASHER, M6 1/4 Shakeproof

$

$

Not available

38

Briggs & Stratton 22769

WASHER, #10 Shakeproof
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 186956

MANUAL, 3000, SRS

$

$

Not available

40

Briggs & Stratton B2071

NUT, Locking Flange 1/4" x 20
(Superseded to 194005GS)

$2.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton B1779

COVER, Hinge
(Superseded to B1779GS)

$8.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton B2347

CAP, End of Tube
(Superseded to B2347GS)

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 31669

CARRIAGE BOLT, 1/4"-20 x 1-3/4"
(Superseded to 31669GS)

$3.49

$

In Stock, only 2 left!

0

44

Briggs & Stratton 46476

CAPLUG, 1 Sq. x 16 GA
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 93639

DECAL, Danger (English)

$2.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 75402C

PUSHNUT, 5/8"
(Superseded to 75402CGS)

$3.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton B2415

DECAL, Control Panel
(Superseded to B2415GS)

$9.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton B4966

TIRE, Metal Hub 10"
(Superseded to 209636GS)

$93.99

$

In Stock, only 3 left!

0

49

Briggs & Stratton 96409

DECAL, 1-800 Number
(Superseded to 96409GS)

$8.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton B4986

DECAL, Ground
(Superseded to B4986GS)

$2.99

$

In Stock, only 1 left!

0

51

Briggs & Stratton 99541

DECAL, Start Instructions

$

$

Not available

52

Briggs & Stratton 67989

NUT, M8 Flanged Serrated
(Superseded to 67989GS)

$3.49

$

In Stock, Qty 20+

0

53

Briggs & Stratton 52858

NUT, Locking M8 1.25"
(Superseded to 52858GS)

$3.99

$

In Stock, only 4 left!

0

54

Briggs & Stratton 27007

VIB MOUNT, Donut Type
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

55

Briggs & Stratton 50190

WASHER, Flat 10GA 3/4" x 1"
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 39287

HHCS, M8 1.25 x 45
(Superseded to 39287GS)

$3.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 43181

PHMS, M3 - 0.5 x 10
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 43182

WASHER, Lock, M3
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 52777

WASHER, Flat, M3
(Superseded to 52777GS)

$2.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 51714

NUT, M3 - 0.5
(Superseded to 51714GS)

$3.49

$

Usually ships in 2-12 days

0

61

Briggs & Stratton B4901

DECAL, 1-800-4-MYHOME

$

$

Currently unavailable

62

Briggs & Stratton 187137

DECAL, Unit
(Superseded to 187137GS)

$17.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton B2153

SCREW, Self Driller, #12-14 x 7/8
(Superseded to B2153GS)

$4.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 81917

PIN, Roll M4 x 10
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE, Tecumseh 6HP

$

$

Currently unavailable

Briggs & Stratton 65787

Battery Charge Cables

Note: Not Illustrated

$3.99

$

In Stock, only 1 left!
