580.329120 (1525-0) - Craftsman 4,200 Watt Portable Generator Main Unit Parts Diagram

4,200 Watt Portable Generator

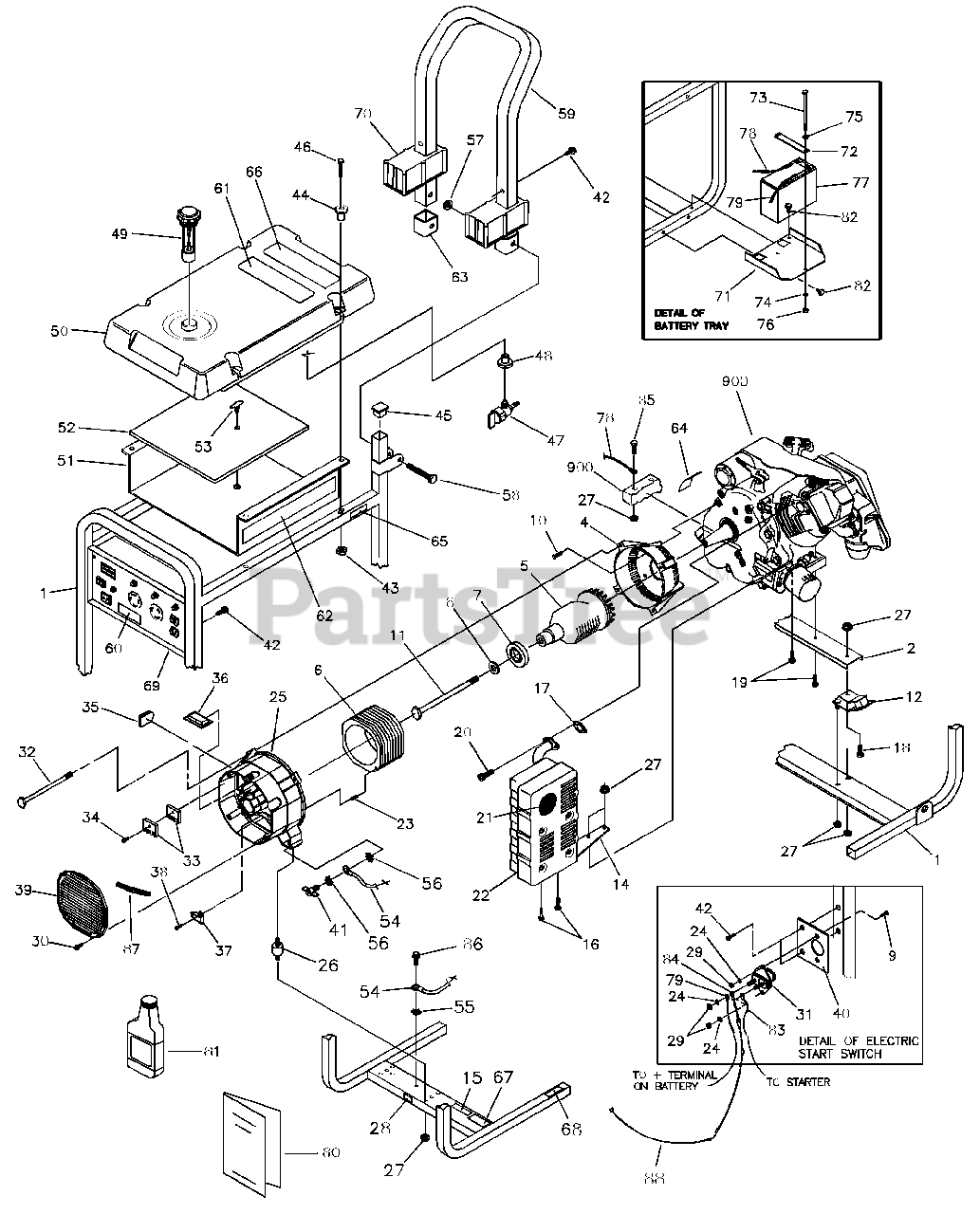

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton BB2551GS

CRADLE

$183.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B84021GS

SUPPORT, Engine

$20.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 66365GS

HOUSING, Engine Adapter

$69.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 84141JGS

ASSY, Rotor

Note: (Inclds Item 7)

$278.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 187105AGS

ASSY, Stator

$

$

Not available

7

Briggs & Stratton 65791GS

BEARING

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22287GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 86307GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 47480GS

SCREW

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 84508GS

MOUNT, Vibration

$22.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 83208GS

BRACKET, Muffler

$21.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B4901GS

DECAL, 1-800-4-My Home

$8.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66476GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 89476GS

GASKET, Exhaust

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 70644GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 84346GS

SCREW
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 40976GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 83083GS

SCREEN, Spark Arrester

$9.49

$

In Stock, Qty 8

0

22

Briggs & Stratton 83071GS

MUFFLER

$

$

Not available

23

Briggs & Stratton 81917GS

PIN, Roll

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 22097GS

WASHER, Lock

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton SRV66825DGS

CARRIER, Rear Bearing

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 85652GS

MOUNT, Vibration
(Superseded to 194153GS)

$11.99

$

In Stock, Qty 17

0

27

Briggs & Stratton 67989GS

NUT

$3.49

$

In Stock, Qty 20+

0

28

Briggs & Stratton B4986GS

DECAL, Ground

$2.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 22127GS

NUT

$1.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 77282GS

SWITCH, Starter

$76.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 86308GS

BOLT, Stator

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

$

$

Not available

34

Briggs & Stratton 66849CGS

SCREW

$4.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 67022GS

GROMMET, Rubber

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84132GS

MODULE, Drive

$126.99

$

In Stock, only 2 left!

0

37

Briggs & Stratton 66386GS

ASSY, Brush Holder

$23.99

$

In Stock, only 4 left!

0

38

Briggs & Stratton 66849GS

SCREW

$4.99

$

In Stock, only 1 left!

0

39

Briggs & Stratton B4871GS

COVER, Bearing Carrier

$9.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 78289GS

BRACKET, Starter Switch

$7.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 86494GS

SCREW, Wing

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 77395GS

NUT, Lock

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 83465GS

GROMMET, Tank

$3.99

$

In Stock, Qty 20+

0

45

Briggs & Stratton 46476GS

CAP PLUG

$2.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 78831BGS

SCREW

$

$

Not available

47

Briggs & Stratton 80270GS

VALVE, Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

48

Briggs & Stratton 78299GS

BUSHING, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

49

Briggs & Stratton 85134GS

CAP, Fuel
(Superseded to B4363GS)

$41.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 83311GS

ASSY, Tank, Fuel

Note: (Includes Items 47 & 48)

$

$

Not available

51

Briggs & Stratton B84042GS

SHIELD, Heat

$38.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 84687GS

INSULATION

$22.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 85000GS

CLIP, Insulation

$2.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 14353621GS

WIRE, Ground
(Superseded to 195373GS)

$2.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 23762GS

WASHER

$2.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 26850GS

WASHER

$2.99

$

In Stock, only 1 left!

0

57

Briggs & Stratton 52857GS

NUT, Lock

$3.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 51767GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton BB2555GS

HANDLE

$33.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 187002GS

DECAL, Control Panel

$24.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

62

Briggs & Stratton 187214GS

DECAL, Heat Shield

$15.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton B2347GS

END CAP, Tube

$2.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton ~NSP

DECAL, Data

$

$

Currently unavailable

65

Briggs & Stratton 73054GS

DECAL, Fuel Shut Off

$8.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 93826GS

DECAL, Start Instructions

$14.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 96409GS

DECAL, 1-800 #

$8.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 77816GS

DECAL, Muffler Warning

$4.99

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 187001GS

ASSY, Control Panel
(Superseded to 191484GS)

Note: (See "Control Panel" illustration and parts list)

$434.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton B1779GS

COVER, Hinge

$8.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton B187078GS

TRAY, Battery

$55.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton B187081GS

BRACKET, Hold Down

$8.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 26586GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 22097GS

WASHER, Lock

$3.49

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 22473GS

WASHER
(Superseded to 703332)

$4.49

$

In Stock, Qty 12

0

76

Briggs & Stratton 22127GS

NUT

$1.99

$

Usually ships in 2-12 days

0

77

Briggs & Stratton 187079GS

BATTERY

$

$

Not available

78

Briggs & Stratton 185931DGS

ASSY, Wire

$9.49

$

Usually ships in 2-12 days

0

79

Briggs & Stratton 185931CGS

ASSY, Wire

$9.49

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 187004GS

MANUAL, Owner's

$16.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton AB3061GS

BOTTLE, Oil
(Superseded to BB3061GS)

$13.99

$

In Stock, only 1 left!

0

82

Briggs & Stratton 58443GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 185939DGS

ASSY, Wire

$15.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 189992GS

HARNESS, Wire, Starter

$13.99

$

Usually ships in 2-12 days

0

85

Briggs & Stratton 39414GS

SCREW

$2.99

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 86292GS

SCREW
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

87

Briggs & Stratton 84409GS

SLEEVING, Flexo

$4.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 187128GS

HARNESS, Wire, Starter

$30.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

Briggs & Stratton 65787GS

Battery Charge Cable

Note: Not Illustrated

$24.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B4177GS

Battery Charger
(Superseded to 705927)

Note: Not Illustrated

$38.99

$

In Stock, only 1 left!

0

Briggs & Stratton 28739AGS

4" Black Tie Wraps

Note: Not Illustrated

$1.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 0932688GS

Cord Wrap Kit
(Superseded to 84883GS)

Note: Optional Accessories Not Illustrated

$29.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 0932785GS

Storage Cover
(Superseded to B4767GS)

Note: Optional Accessories Not Illustrated

$108.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 0932686GS

PLUG, Locking, 120/240 Volt 20 Amp
(Superseded to 100522GS)

Note: Optional Accessories Not Illustrated

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 0932687GS

120 Volt 30 Amp Locking Plug

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable
