580.329130 (1524-0) - Craftsman 3,800 Watt Portable Generator Long Block Parts Diagram

3,800 Watt Portable Generator

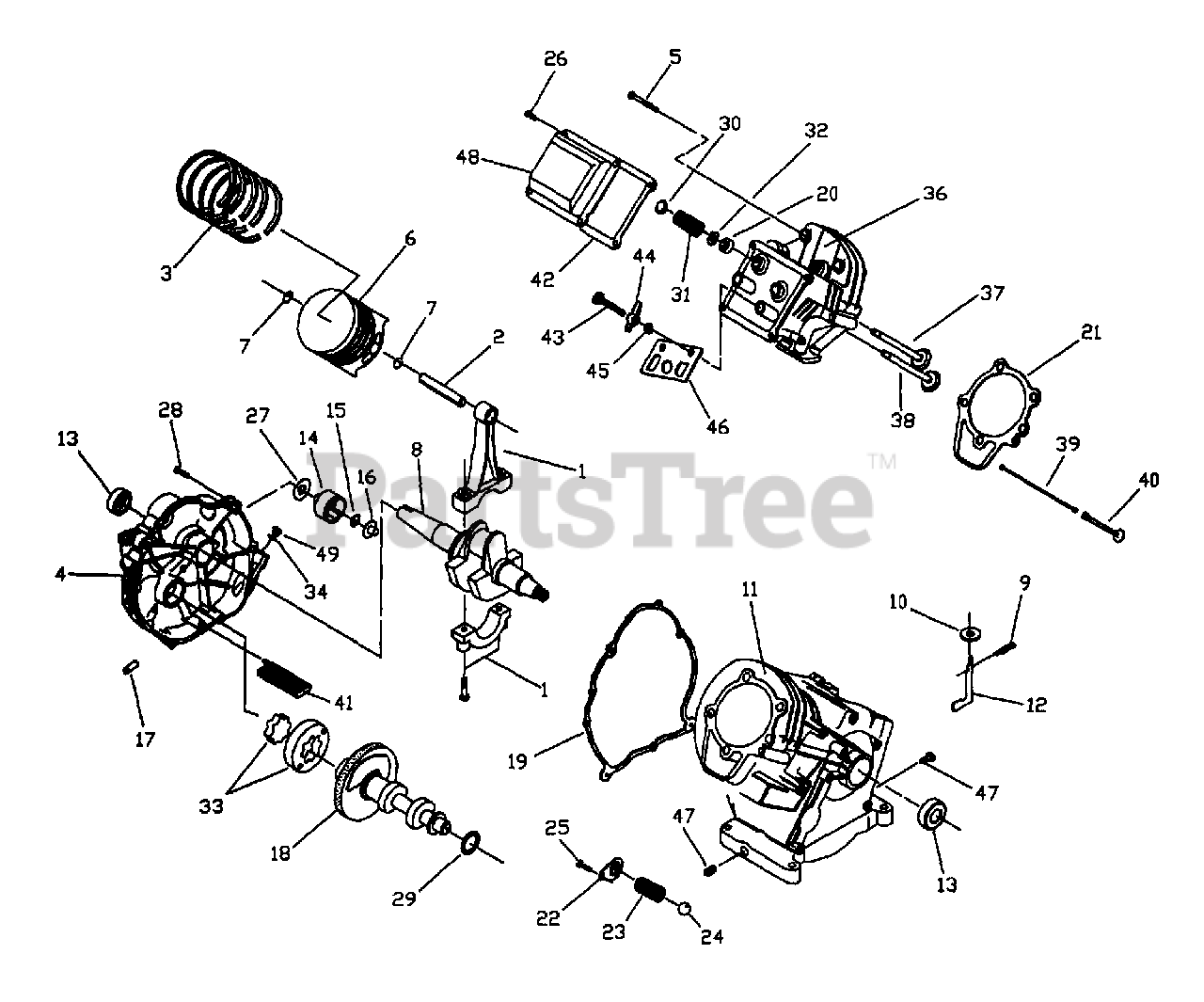

Long Block Parts Diagram

  • Title
1

Briggs & Stratton 78621

Control Rod Assembly

$

$

Currently unavailable

$

$

Currently unavailable

3

Briggs & Stratton 88411

Piston Ring Set

$

$

Currently unavailable

4

Briggs & Stratton A8897A

Gear Cover Assembly

$

$

Currently unavailable

5

Briggs & Stratton 77168

M8 x 52mm Head Bolt

$

$

Currently unavailable

6

Briggs & Stratton 88057

Piston [220cc]

$

$

Currently unavailable

7

Briggs & Stratton 76390

Pin Retainer Ring
(Superseded to 7047947YP)

$27.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 83337A

Tapered Crankshaft Assm.

$

$

Currently unavailable

9

Briggs & Stratton 78658

Governor "R" Pin

$

$

Not available

10

Briggs & Stratton 78659

Governor Arm Thrust Washer

$

$

Not available

11

Briggs & Stratton 89213J

Crankcase Assm.

$

$

Currently unavailable

12

$

$

Currently unavailable

$

$

Currently unavailable

14

Briggs & Stratton A8929

Governor Gear Assembly

$

$

Currently unavailable

15

Briggs & Stratton 78645

Governor Gear C-Ring

$

$

Not available

16

Briggs & Stratton A7811

Governor Spool

$

$

Currently unavailable

17

Briggs & Stratton 72683

1/8" NPT Pipe Plug

$

$

Currently unavailable

18

Briggs & Stratton 98752

Camshaft Assembly

$

$

Currently unavailable

19

Briggs & Stratton 89096

Crankcase Gasket

$

$

Currently unavailable

20

Briggs & Stratton 88156

Valve Stem Seal

$

$

Currently unavailable

21

Briggs & Stratton A8822

Cylinder Head Gasket

$

$

Not available

22

Briggs & Stratton 78691

Oil Pressure Relief Cover

$

$

Not available

23

Briggs & Stratton A5772

Oil Pressure Spring

$

$

Currently unavailable

24

$

$

Currently unavailable

25

Briggs & Stratton 74908

M5 Form Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 78606

M6-1.0 x 12 mm Screw

$

$

Currently unavailable

27

Briggs & Stratton 76361

Governor Gear Thrust Washer

$

$

Not available

28

Briggs & Stratton 89230

M8-1.25 x 35 mm Screw

$

$

Currently unavailable

29

Briggs & Stratton 99922

Spring Washer

$

$

Currently unavailable

30

Briggs & Stratton A1720

Valve Spring Retainer

$

$

Currently unavailable

31

$

$

Currently unavailable

32

Briggs & Stratton 84186

Valve Spring Wear Washer

$

$

Currently unavailable

33

$

$

Currently unavailable

$

$

Currently unavailable

36

Briggs & Stratton 21705B

Cylinder Head Assembly

$

$

Currently unavailable

37

Briggs & Stratton 90082

Exhaust Valve

$

$

Currently unavailable

38

Briggs & Stratton 90081

Intake Valve
(Superseded to 93259)

$3.99

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

$

$

Currently unavailable

41

Briggs & Stratton 80336

Oil Pick-up Assembly

$

$

Not available

42

Briggs & Stratton 96362

Rocker Cover Gasket

$

$

Not available

43

Briggs & Stratton 77161

Pivot Ball Stud

$

$

Currently unavailable

44

$

$

Currently unavailable

45

Briggs & Stratton 76307

Rocker Arm Jam Nut

$

$

Currently unavailable

46

Briggs & Stratton 88403

Push Rod Guide Plate

$

$

Currently unavailable

47

Briggs & Stratton 72657

1/4" NPT Pipe Plug
(Superseded to 7072657YP)

$64.99

$

In Stock, only 3 left!

0

48

Briggs & Stratton 88412

Rocker Cover Assembly

$

$

Currently unavailable

49

Briggs & Stratton 76329

Plastic Oil Fill Plug

$

$

Not available

Briggs & Stratton 21944E

Complete Long Block

Note: (All items shown)

$

$

Currently unavailable
