580.676620 (020322-0) - Craftsman 2,000 PSI Pressure Washer, Canada Main Unit Parts Diagram

2,000 PSI Pressure Washer, Canada

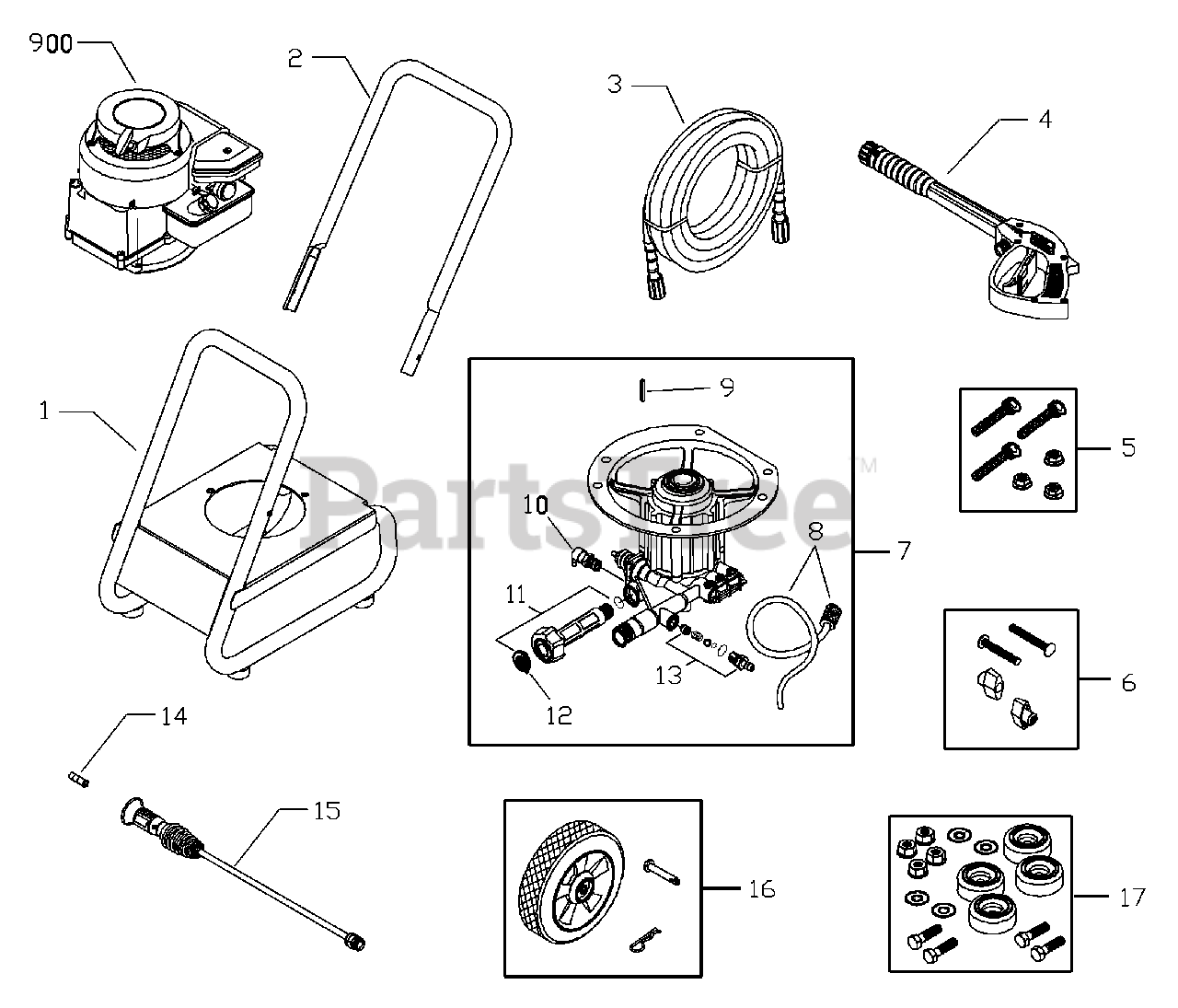

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 203246GS

ASSY, Base w/mounts

$195.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton R202565GS

HANDLE

$67.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 196006GS

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

4

Briggs & Stratton 193482GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 192525GS

KIT, Pump/Engine Mounting Hardware

$11.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 2 left!

0

7

Briggs & Stratton 200200GS

ASSY, Pump

$

$

Not available

8

Briggs & Stratton 189971GS

Kit, Chemical Hose

$

$

Not available

9

Briggs & Stratton 23139GS

Key

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 16

0

11

Briggs & Stratton 200278GS

Kit, Water Inlet

$

$

Not available

12

Briggs & Stratton B2384GS

Filter, Inlet

$4.49

$

In Stock, only 3 left!

0

13

Briggs & Stratton 200279GS

Kit, Chemical Injection

$22.99

$

In Stock, only 4 left!

0

14

Briggs & Stratton 193609DGS

ORFICE

$40.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 194344DGS

ASSY, Wand, Adj
(Superseded to 205015CGS)

$67.99

$

In Stock, only 3 left!

0

16

Briggs & Stratton 201388GS

KIT, Wheel

$31.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 87005AGS

Pin, Quick Release
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

Briggs & Stratton 1672344SM

Pin, Round

$6.49

$

In Stock, Qty 8

0

17

Briggs & Stratton 198766GS

KIT, Vibration Mount

$12.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE (see pages 26-28)

$

$

Not available

Briggs & Stratton 203799GS

MANUAL, Operator’s

Note: Items Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061BGS

OIL BOTTLE

Note: Items Not Illustrated

$

$

Not available

Briggs & Stratton 87815GS

GOGGLES

Note: Items Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194141GS

BAG, Accessory, String

Note: Items Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 203363GS

DECAL, Unit

Note: Items Not Illustrated

$16.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 200658GS

DECAL, Recoil

Note: Items Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 203362GS

DECAL, Shroud

Note: Items Not Illustrated

$16.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 275034

LABEL, Warning

Note: Items Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 195015GS

KIT, Tag/Warning, Srv

Note: Items Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 191922GS

KIT, Maintenance, O-Ring

Note: Optional Accessories Not Illustrated

$18.99

$

In Stock, only 3 left!

0

Briggs & Stratton 7167300GS

House Wash Concentrate (makes 4 gallons)

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7167301GS

Deck Wash Concentrate (makes 2 gallons)

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7167302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7167303GS

Degreaser Concentrate (makes 4 gallons)

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable
