580.676640 (020248-0) - Craftsman 2,000 PSI Pressure Washer, Canada Main Unit Parts Diagram

2,000 PSI Pressure Washer, Canada

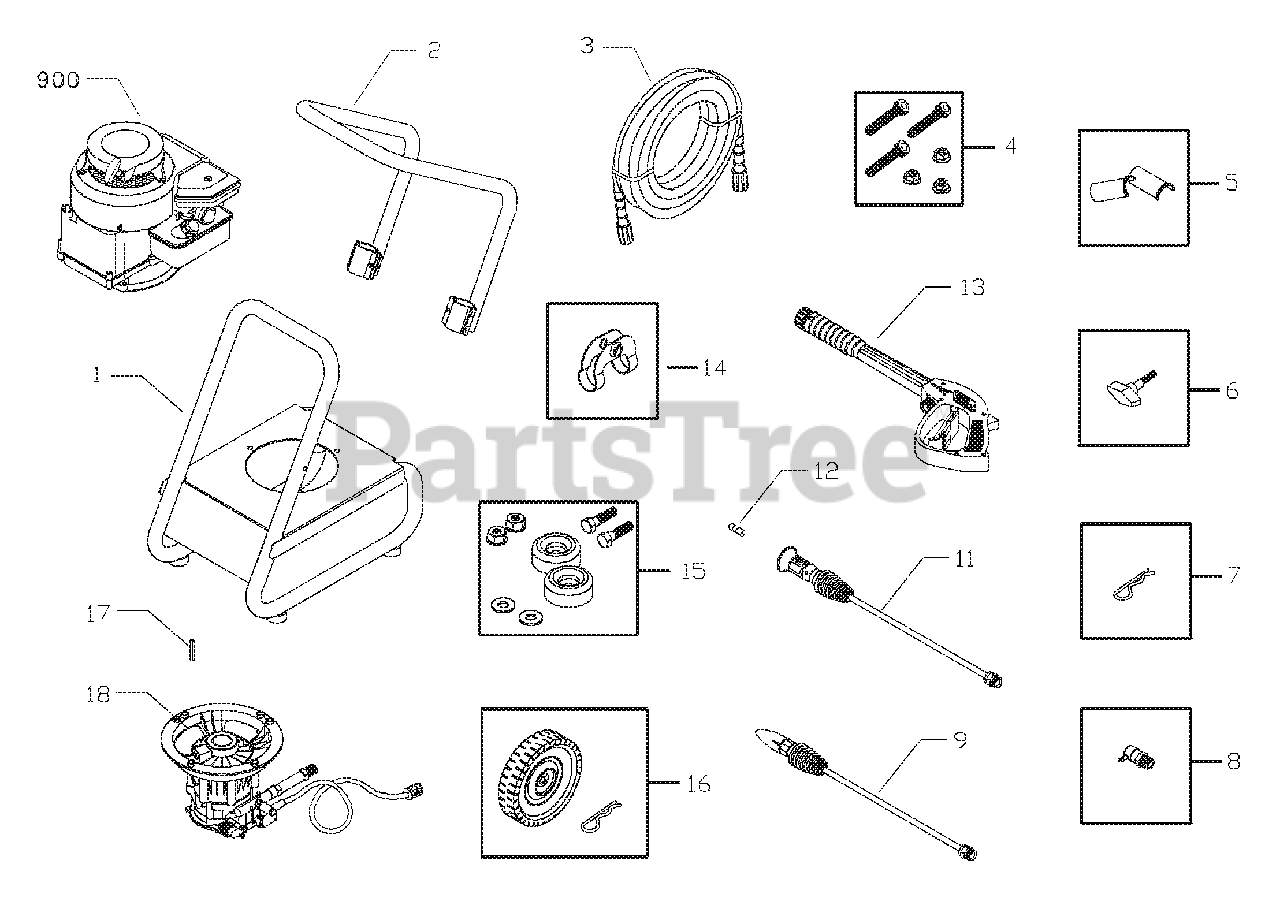

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 190906GS

BASE
(Superseded to 193489GS)

$192.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B196778GS

HANDLE

$57.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 196006GS

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

4

Briggs & Stratton 192525GS

KIT, Pump/Engine Mounting Hardware

$11.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 196899GS

KIT, Insert Plastic

$7.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 196630GS

KNOB

$7.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 87005AGS

PIN, Quick Release
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 194298GS

THERMAL RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 16

0

9

Briggs & Stratton B2335GS

WAND, Turbo

$47.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 188792HGS

WAND, Adjustable Nozzle
(Superseded to 205015CGS)

$67.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 21760GS

ORIFICE

$9.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 193482GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 196037GS

FOOT, Mounting

$11.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

16

Briggs & Stratton 196895GS

KIT, Wheel

$20.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 194216GS

ASSY, Pump
(Superseded to 206383GS)

Note: (See page 24)

$

$

Not available

900

NSP

ENGINE

Note: (See pages 25-27)

$

$

Not available

Briggs & Stratton 196284GS

MANUAL, Owner's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 196859GS

KIT, Decals

Note: Not Illustrated

$27.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061BGS

OIL, Bottle, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 190586GS

OIL, Pump

Note: Not Illustrated

$11.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 196038GS

AXLE

Note: Not Illustrated

$16.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 87815GS

GOGGLES

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 196905GS

DECAL, Clean/Carry

Note: Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193581GS

DECAL, Engine, Muffler

Note: Not Illustrated

$7.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 191922GS

KIT, Maintenance, O-Ring

Note: Optional Accessories Not Illustrated

$18.99

$

In Stock, only 3 left!

0

Briggs & Stratton 7167300GS

House Wash Concentrate

Note: (Makes 4 gallons); Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7167301GS

Deck Wash Concentrate

Note: (Makes 2 gallons); Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7167302GS

Vehicle/Boat Wash Concentrate

Note: (Makes 4 gallons); Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7167303GS

Degreaser Concentrate

Note: (Makes 4 gallons); Optional Accessories Not Illustrated

$

$

Currently unavailable
