580.676651 (020247-1) - Craftsman 2,000 PSI Pressure Washer, Canada Main Unit Parts Diagram

2,000 PSI Pressure Washer, Canada

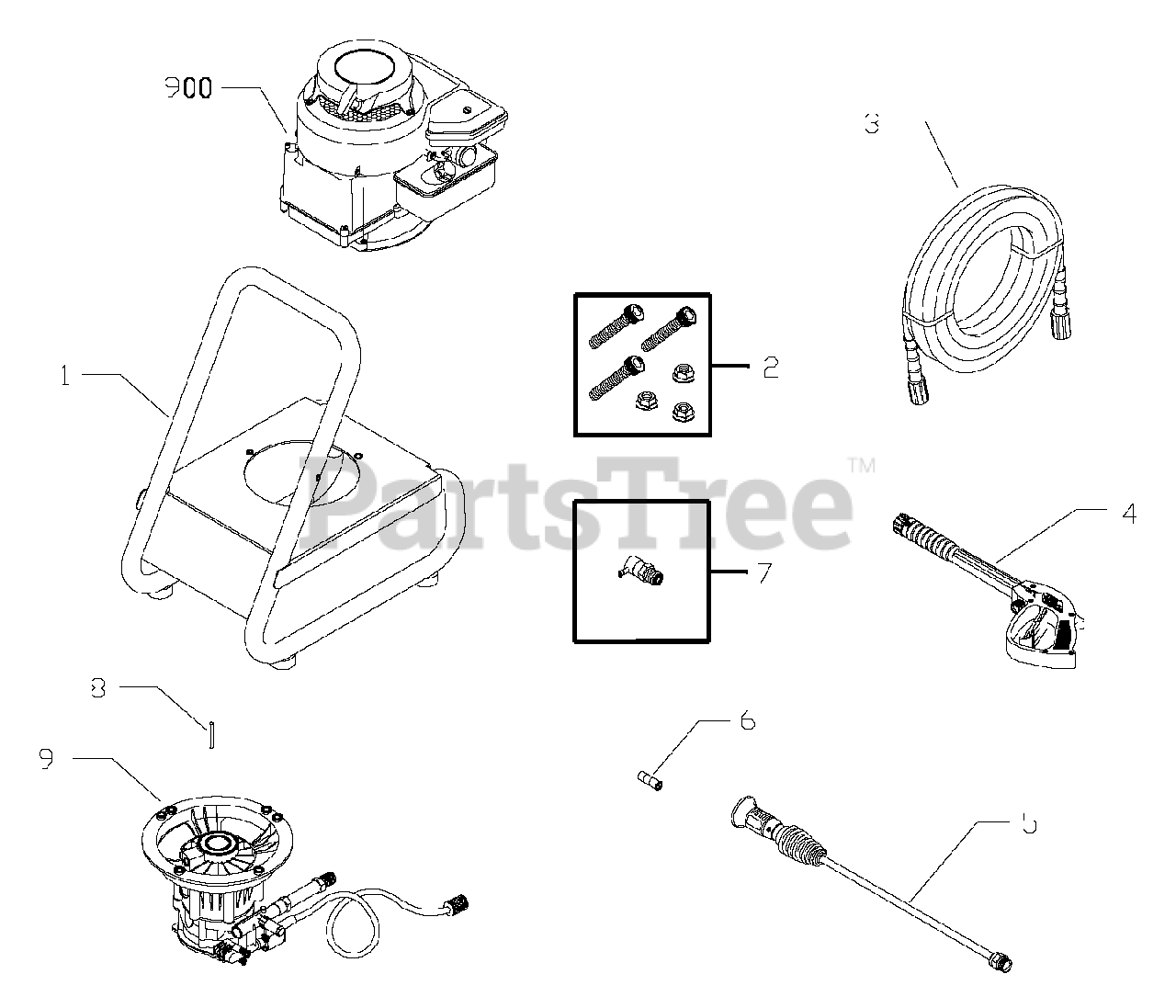

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 196519GS

BASE (BASE)

$203.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 192525GS

KIT, Pump/Engine Mounting Hardware

$12.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 196006GS

HOSE (TUYAU)
(Superseded to 84006753)

$63.99

$

In Stock, Qty 7

0

4

Briggs & Stratton 193482GS

GUN (PISTOLET)
(Superseded to 84003228)

$

$

Not available

5

Briggs & Stratton 194344DGS

WAND, Adjustable Nozzle
(Superseded to 205015CGS)

$71.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 193609DGS

ORIFICE

$

$

Not available

7

Briggs & Stratton 194298GS

THERMAL RELIEF
(Superseded to 208673GS)

$15.99

$

In Stock, Qty 17

0

8

Briggs & Stratton 23139GS

KEY

$4.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 197300GS

ASSY, Pump
(Superseded to 206383GS)

Note: (see "Pump")

$

$

Not available

900

NSP

ENGINE

Note: (see pages 24-26)

$

$

Not available

Briggs & Stratton 197194GS

MANUAL, Owner's

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 196724GS

KIT, Decals

Note: Not Illustrated

$23.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061BGS

OIL, Bottle, Engine

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 87815GS

GOGGLES

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 193583GS

DECAL, Clean/Carry

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 193581GS

DECAL, Engine, Muffler

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 191922GS

KIT, Maintenance, O-Ring

Note: Optional Accessories Not Illustrated

$19.99

$

In Stock, Qty 20+

0

Briggs & Stratton 7167300GS

House Wash Concentrate (makes 4 gallons)

Note: Optional Accessories

$

$

Currently unavailable

Briggs & Stratton 7167301GS

Deck Wash Concentrate (makes 2 gallons)

Note: Optional Accessories

$

$

Currently unavailable

Briggs & Stratton 7167302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)

Note: Optional Accessories

$

$

Currently unavailable

Briggs & Stratton 7167303GS

Degreaser Concentrate (makes 4 gallons)

Note: Optional Accessories

$

$

Currently unavailable
