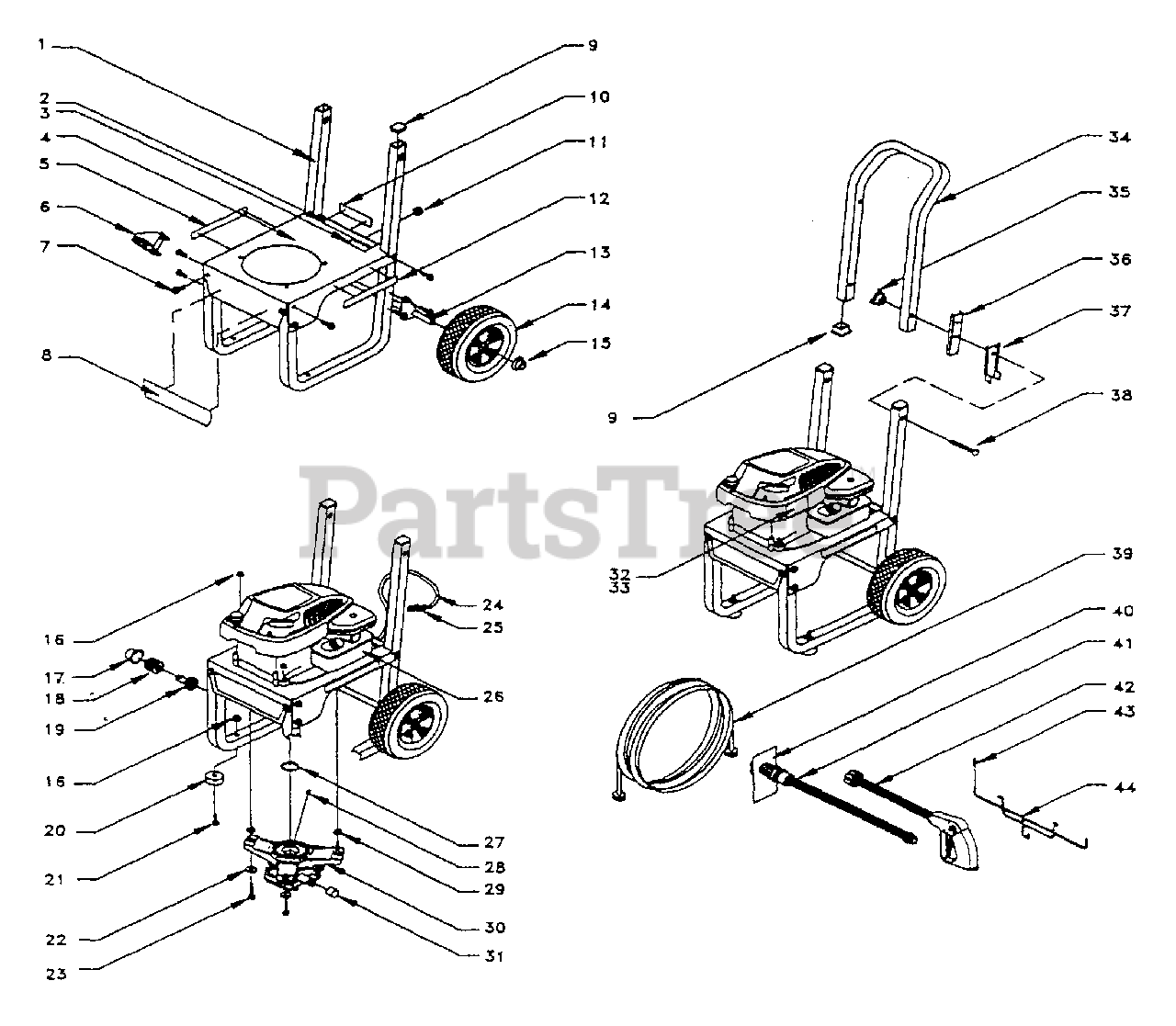

580.677170 (0794-0) - Craftsman 1,750 PSI Pressure Washer Motor & Carriage Assembly Parts Diagram

1,750 PSI Pressure Washer

Motor & Carriage Assembly Parts Diagram

  • Title

$

$

Not available

2

Briggs & Stratton 20089A

STARTING INSTRUCTION DECAL
(Superseded to 20089AGS)

$2.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 96307

1-800 NUMBER DECAL
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 21207

SHEET METAL BASE VSPW
(Superseded to 5021207)

$219.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 21449

DANGER/EXHAUST DECAL

$

$

Not available

6

Briggs & Stratton 97769

GUN CUP
(Superseded to 97769GS)

$10.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 20441

1/4"-14 SELF-DRILLING SCREW
(Superseded to 5020441)

$14.99

$

In Stock, Qty 19

0

8

Briggs & Stratton 21225

LOGO DECAL 1750
(Superseded to 5021225)

$26.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 81895

3/4" SQ. TUBING CAP
(Superseded to 81895GS)

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 20042

IMPORTANT/CAUTION DECAL
(Superseded to 20042GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 30809

CHEM. HOSE GROMMET
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

12

$

$

Not available

13

Briggs & Stratton 97741

PW AXLE ASSEMBLY
(Superseded to 97741GS)

$21.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 21206

2" x 8" BLACK MAG TIRE
(Superseded to 21206GS)

$21.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75402

1/2" PUSHNUT
(Superseded to 194062GS)

$4.49

$

In Stock, only 3 left!

0

16

Briggs & Stratton 52858

M8 LOCKING FLANGE NUT
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

17

Briggs & Stratton A1408

QUICK-CONNECT CAP
(Superseded to A1408GS)

$2.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 21782

QUICK-CONNECT [FEMALE]

$

$

Not available

19

Briggs & Stratton 21781

QUICK-CONNECT [MALE]

$

$

Not available

20

Briggs & Stratton 87841

RUBBER MOUNT FOOT
(Superseded to 87841GS)

$3.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 39414

M8 x 1.25 X 35mm LONG HHCS
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 96796

GROMMET SUPPORT WASHER
(Superseded to 96796GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 39288

M8 x 1.25 X 55mm LONG HHCS
(Superseded to 39288GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton A1040B

CHEMICAL HOSE
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton A1041

CHEMICAL HOSE FILTER
(Superseded to 709496)

$6.99

$

Usually ships in 2-12 days

0

26

-----

ENGINE, 4HP, Briggs & Stratton Quattro

Note: NOT A SERIVICEABLE PART. SEE PARTS LIST FOR MODEL #

$

$

Not available

27

Briggs & Stratton 98300

ENGINE SEAL DONUT
(Superseded to 98300GS)

$11.99

$

In Stock, only 2 left!

0

28

Briggs & Stratton 96137

1/8" NPT PLUG WITH SEALANT
(Superseded to 96137GS)

$

$

Not available

29

Briggs & Stratton 20874

ENGINE MOUNT SPACER
(Superseded to 5020874)

$9.49

$

Usually ships in 2-12 days

0

30

-----

GPW - EG ASSEMBLY

Note: (For replacement, order 209940GS)

$

$

Not available

30

Briggs & Stratton 209940GS

REPLACEMENT PUMP ASSEMBLY

$

$

Not available

31

Briggs & Stratton 97100

HIGH PRESSURE CAP
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

32

-----

UNKNOWN

$

$

Not available

33

-----

UNKNOWN

$

$

Not available

34

$1.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 97178

PW HANDLE KNOB
(Superseded to 97178GS)

$8.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 99368

S.S. WEAR PLATE
(Superseded to 99368GS)

$2.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 97082

HANDLE HOLDING CUP
(Superseded to 97082GS)

$5.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 97912

1/4"-20 x 2.25 CARRIAGE BOLT
(Superseded to 97912GS)

$3.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 21779

1/4" x 30' HOSE

$

$

Currently unavailable

40

Briggs & Stratton 97566

NOZZLE HANG TAG
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 98317B

ADJUSTABLE NOZZLE WAND
(Superseded to 205015CGS)

$67.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 98316

HIGH PRESSURE GUN

$

$

Currently unavailable

43

Briggs & Stratton 21702

BLACK VINYL CAP
(Superseded to 5021702)

$2.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 21208

WIREFORM
(Superseded to 5021208)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 21004

OWNER'S MANUAL
(Superseded to 5021004)

Note: NOT SHOWN

$5.99

$

Usually ships in 2-12 days

0
