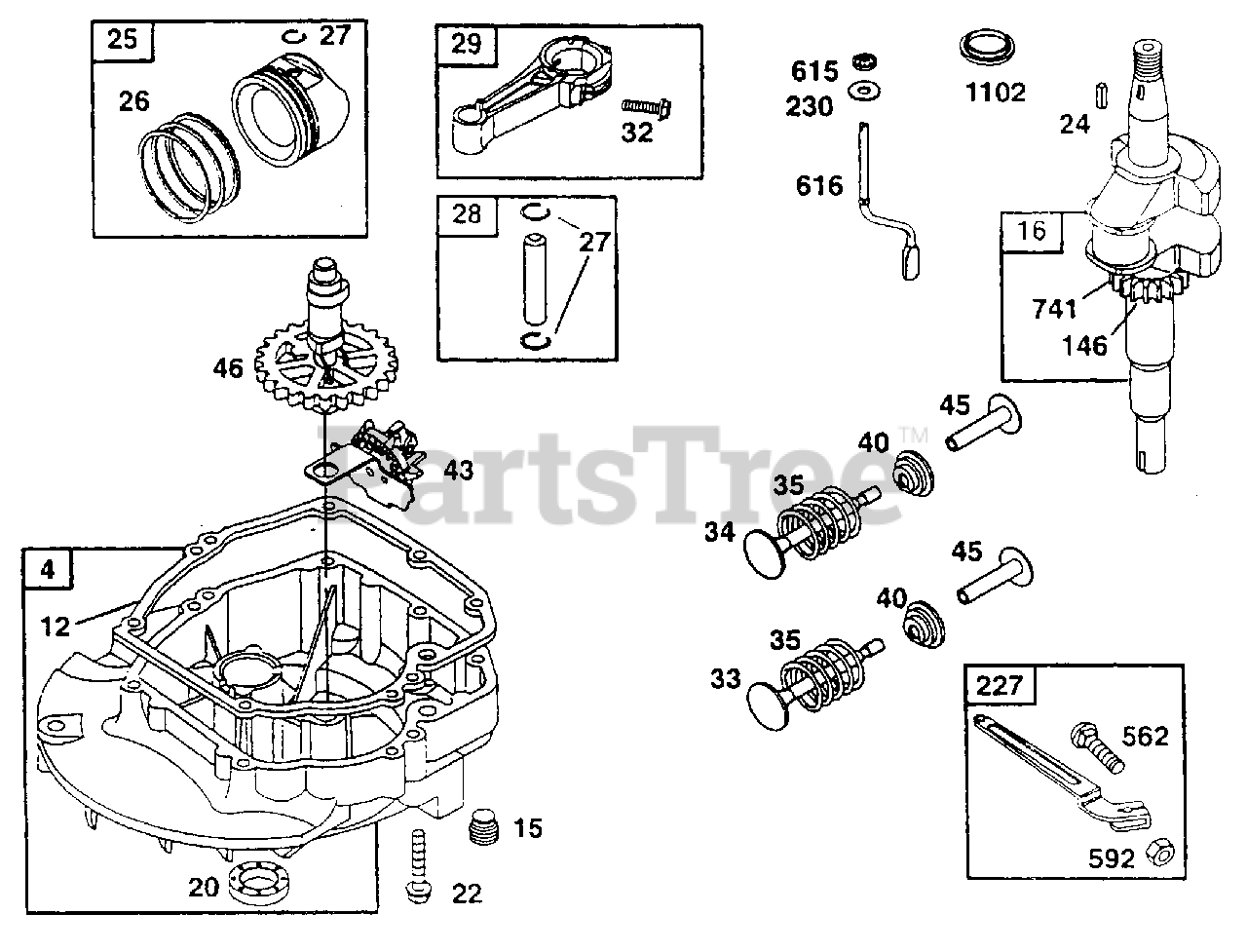

580.678200 (1133-0) - Craftsman 2,000 Watt Portable Generator Engine Sump And Connecting Rod Parts Diagram

2,000 Watt Portable Generator

Engine Sump And Connecting Rod Parts Diagram

  • Title

4

Briggs & Stratton 498893

Engine Sump

$

$

Currently unavailable

12

Briggs & Stratton 272198

Crankcase Gasket
(Superseded to 692232)

Note: (Included in Gasket Set #497316)

$6.49

$

In Stock, Qty 13

0

15

Briggs & Stratton 94720

Oil Drain Plug
(Superseded to 691680)

$6.49

$

In Stock, only 3 left!

0

16

Briggs & Stratton 493282

Crankshaft
(Superseded to 593915)

$

$

Not available

20

Briggs & Stratton 399781

Oil Seal
(Superseded to 399781S)

Note: (Included in Gasket Set #497316)

$8.49

$

In Stock, Qty 12

0

22

Briggs & Stratton 94220

Hex Screw
(Superseded to 691092)

Note: (NOTE: 94612 Hex Screw Used in Hole Nearest Breather)

$4.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Flywheel Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 9

0

25

Briggs & Stratton 499429

Piston Assembly (Standard)
(Superseded to 799063)

$100.99

$

In Stock, only 3 left!

0

25

Briggs & Stratton 493430

Piston Assembly (.010" 0.S.)
(Superseded to 797019)

$178.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 499431

Piston Assembly (.020" O.S.)
(Superseded to 799064)

$132.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 499432

Piston Assembly (.030" O.S.)

$

$

Not available

26

Briggs & Stratton 499425

Ring Set (Standard)

$

$

Not available

26

Briggs & Stratton 499426

Ring Set (.010" O.S.)

$

$

Not available

26

Briggs & Stratton 499427

Ring Set (.020" O.S.)

$

$

Not available

26

Briggs & Stratton 499428

Ring Set (.030" O.S.)

$

$

Not available

27

Briggs & Stratton 263190

Piston Pin Lock
(Superseded to 691866)

$4.99

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Piston Pin (Standard)

$9.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 499424

Connecting Rod
(Superseded to 590406)

$96.99

$

In Stock, only 3 left!

0

33

Briggs & Stratton 262651

Exhaust Valve
(Superseded to 590394)

$26.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 262652

Intake Valve
(Superseded to 590393)

$24.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 262224

Valve Spring
(Superseded to 691270)

$5.99

$

In Stock, Qty 7

0

40

Briggs & Stratton 93312

Valve Retainer
(Superseded to 692194)

$6.49

$

In Stock, only 2 left!

0

43

Briggs & Stratton 493737

Governor/Oil Slinger
(Superseded to 691997)

$28.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 262204

Valve Tappet
(Superseded to 690548)

$10.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 498275

Cam Gear
(Superseded to 691449)

$80.99

$

In Stock, only 3 left!

0

146

Briggs & Stratton 94388

Timing Key
(Superseded to 690979)

$3.49

$

In Stock, only 2 left!

0

227

Briggs & Stratton 492349

Governor Lever
(Superseded to 690783)

$17.99

$

In Stock, only 3 left!

0

230

Briggs & Stratton 67072

Washer
(Superseded to 690272)

$4.49

$

In Stock, only 3 left!

0

562

Briggs & Stratton 94852

Carriage Bolt
(Superseded to 691119)

$4.49

$

In Stock, Qty 16

0

592

Briggs & Stratton 231082

Hex. Nut
(Superseded to 691251)

$3.49

$

In Stock, Qty 8

0

615

Briggs & Stratton 94474

Retainer
(Superseded to 690340)

$4.99

$

In Stock, Qty 10

0

616

Briggs & Stratton 263202

Governor Crank
(Superseded to 698801)

$11.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 262598

Timing Gear
(Superseded to 691830)

$19.99

$

Usually ships in 2-12 days

0

1102

Briggs & Stratton 232052

Guide Pilot
(Superseded to 691266)

$

$

Not available

Briggs & Stratton 497316

Gasket Set
(Superseded to 590508)

$37.99

$

In Stock, only 3 left!

0

Briggs & Stratton 498261

Carburetor Gasket Set
(Superseded to 498260)

$18.99

$

In Stock, Qty 20+

0

Briggs & Stratton 498260

Carburetor Kit

$18.99

$

In Stock, Qty 20+

0

Briggs & Stratton 498528

Valve Overhaul Gasket Set

$27.99

$

In Stock, only 1 left!

0

Briggs & Stratton 497466

Main Jet (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 63709

Guide Bushing (Intake)

$15.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 94612

Hex Screw
(Superseded to 691092)

Note: (Used in hole nearest breather.)

$4.49

$

Usually ships in 2-12 days

0
