580.741700 (9618-0) - Craftsman 1,400 PSI Pressure Washer Repair Parts Drawing Number 88602 Parts Diagram

1,400 PSI Pressure Washer

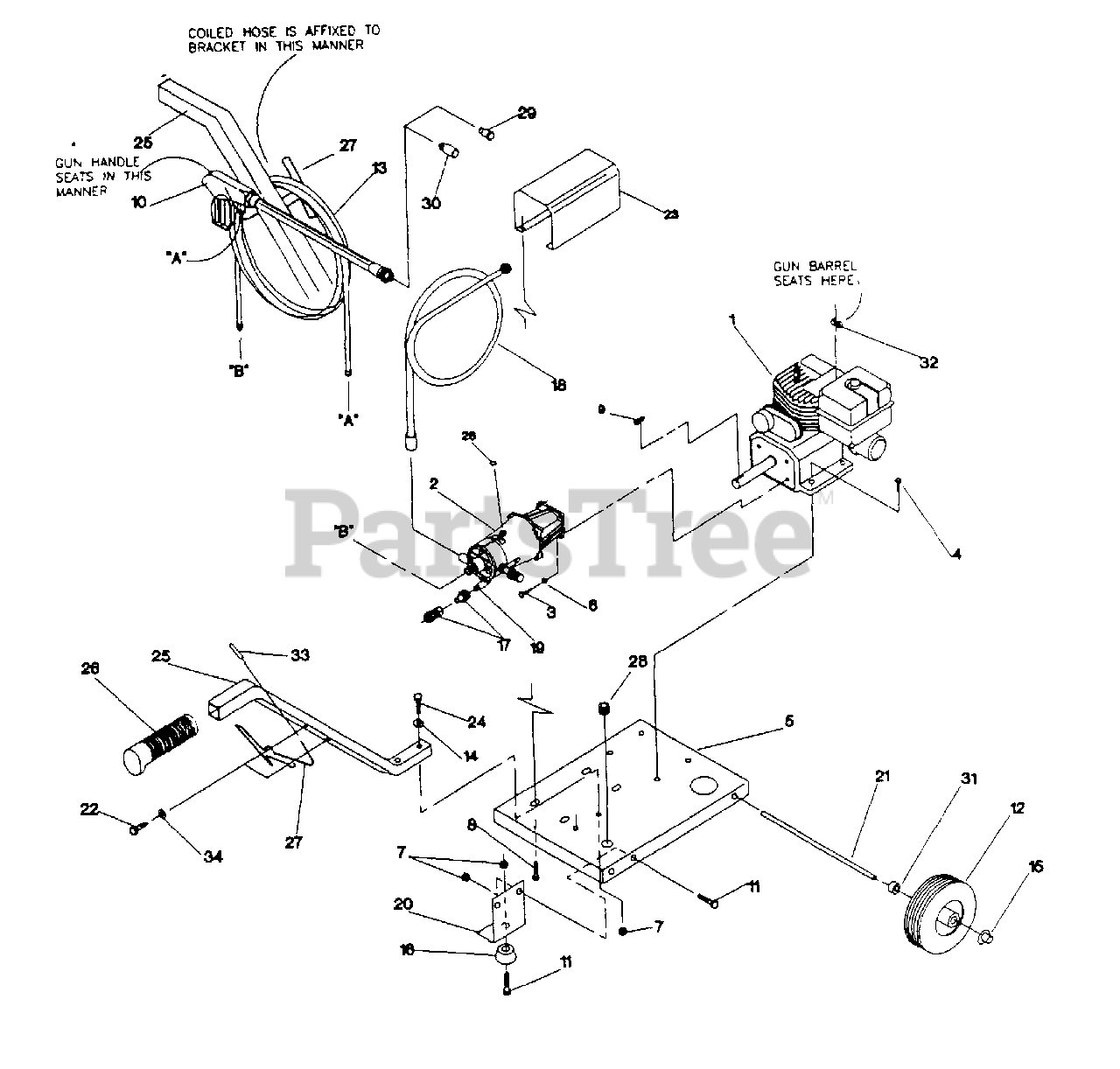

Repair Parts Drawing Number 88602 Parts Diagram

  • Title

1

Briggs & Stratton 91122

3 H.P. Tecumseh Engine
(Superseded to 197886GS)

$4.49

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 87627

2 GPM Pump
(Superseded to 87627GS)

$

$

Not available

3

Briggs & Stratton 22147

5/16"-24 x 1" Capscrew
(Superseded to 22147GS)

$3.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 39414

M8 x 35mm Capscrew
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 91091

Mounting Plate

$

$

Not available

6

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 52858

M8-1.25 Flange Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 70116

M5-0.8 x 12mm Screw with lockwasher
(Superseded to 70116GS)

$6.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 89314

3/16" sq. x 1-7/8" Key
(Superseded to 89314GS)

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 91104

Spray Gun Assembly

$

$

Currently unavailable

11

Briggs & Stratton 39253

M8-1.25 x 20mm Capscrew
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 91094

Wheel
(Superseded to 197061GS)

$24.99

$

In Stock, only 4 left!

0

13

Briggs & Stratton 91629

Hose Assembly
(Superseded to 703464)

$4.49

$

In Stock, only 1 left!

0

14

Briggs & Stratton 50190

M8 Flat Washers
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 75402

1/2" Push Nut
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

16

Briggs & Stratton 87841

Shock Mount
(Superseded to 87841GS)

$3.99

$

In Stock, only 3 left!

0

17

Briggs & Stratton 91129

Hose Quick Disconnect
(Superseded to 7175187GS)

$17.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 89800

Injector Tube and Filter
(Superseded to 89800GS)

$15.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 90065

Plastic Garden Hose Neck
(Superseded to 90065GS)

$32.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 91092

Support Leg
(Superseded to 91092GS)

$15.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 91096

Zinc Axle
(Superseded to 91096GS)

$19.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 86292

#10 Self-drilling Screw
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 88618

Pump Shroud

$

$

Not available

24

Briggs & Stratton 57821

M8-1.25 x 40m Capscrew

$

$

Not available

25

Briggs & Stratton 91093

Guide Handle
(Superseded to 91093GS)

$60.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 77584

Handle Grip
(Superseded to 77584GS)

$5.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 92029

Gun and Hose Holder

$

$

Currently unavailable

28

Briggs & Stratton 92235

Nozzle Grommet
(Superseded to 199553GS)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 91106

Turbo Head

$

$

Not available

30

Briggs & Stratton 91107

Hi-Lo Adjustable Head
(Superseded to 95587CGS)

$34.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 92272

Wheel Spacer
(Superseded to 92272GS)

$5.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 65852

Spring Clip
(Superseded to 65852GS)

$9.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 92067

Vinyl Cap

$3.99

$

Usually ships in 2-12 days

0

34

22473

M6 Flat Washer

$

$

Not available

Briggs & Stratton 88601

Owner's Manual
(Superseded to 88601GS)

Note: (Not shown)

$14.99

$

Usually ships in 2-12 days

0
