580.742780 (0504-0) - Craftsman 2,600 PSI Pressure Washer Repair Parts Drawing No. 97334 Parts Diagram

2,600 PSI Pressure Washer

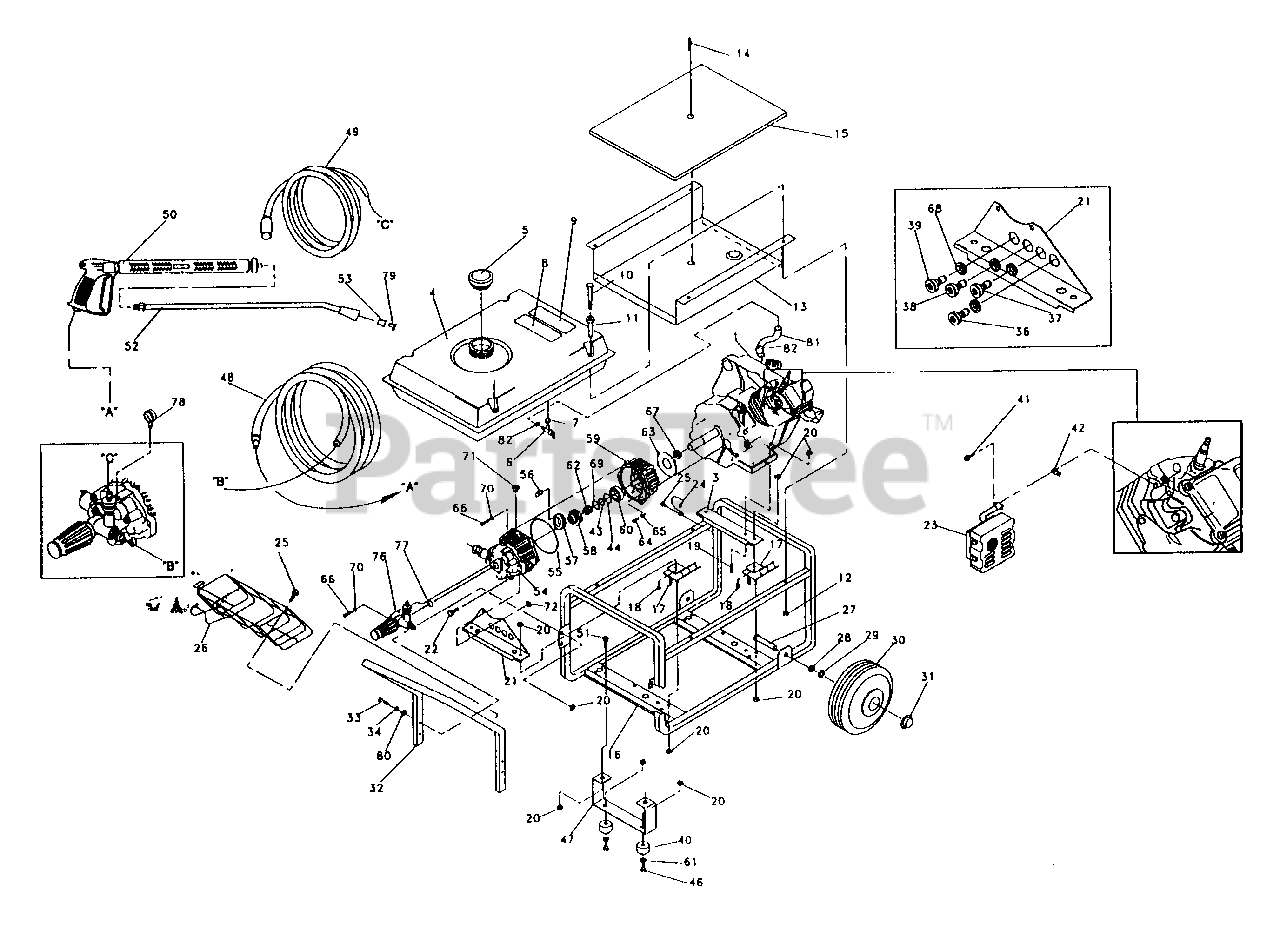

Repair Parts Drawing No. 97334 Parts Diagram

  • Title

1

Briggs & Stratton ENG97954

7.8 HP ENGINE

$

$

Currently unavailable

3

Briggs & Stratton 84021

Engine Support
(Superseded to B84021GS)

$20.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 88325

Fuel Tank
(Superseded to 195617GS)

$

$

Not available

5

Briggs & Stratton 90878

Fuel Cap
(Superseded to 846987)

$21.99

$

In Stock, Qty 6

0

6

Briggs & Stratton 80270

Tank Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 78299

Plastic Tank Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

8

Briggs & Stratton 96404

Starting Instructions Decal

$

$

Currently unavailable

9

Briggs & Stratton 96405

Danger Decal

$

$

Not available

10

Briggs & Stratton 78831B

M6-1.0 x 60mm Capscrew
(Superseded to 78831BGS)

$

$

Not available

11

Briggs & Stratton 83465

Tank Grommet
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 77395

M6 Flange Lock Nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 87840

Tank Heat Shield
(Superseded to 87840GS)

$47.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 85000

Insulation Clip
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 84687

#2 1/4" thick Insulation
(Superseded to 84687GS)

$22.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 95402

Cradle

$

$

Not available

17

Briggs & Stratton 84508

45-degree Vibration Mount
(Superseded to 84508GS)

$22.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 70644

M8-1.25 x 20mm Screw
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 84346

M8-1.25 x 35mm Capscrew
(Superseded to 195398GS)

$2.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 52858

M8-1.25 Flange Lock Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 95635

Pump Support Bracket

$

$

Currently unavailable

22

Briggs & Stratton 38750

M6-1.0 x 30mm Capscrew
(Superseded to 38750GS)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 88688

Muffler Assembly
(Superseded to 195002GS)

$86.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 87985

Rear Wand Holder
(Superseded to 87985GS)

$9.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 86292

#10-16 Capscrew
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 87836

Wire Basket

$

$

Not available

27

Briggs & Stratton 93728A

Axle Pin
(Superseded to 93728AGS)

$5.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 94222Q

5/8" JAM Nut
(Superseded to 94222QGS)

$3.99

$

In Stock, only 3 left!

0

29

Briggs & Stratton 49808

M12 Flat Washer
(Superseded to 49808GS)

$3.99

$

In Stock, only 4 left!

0

30

Briggs & Stratton 88521

Wheel Assembly
(Superseded to 88521GS)

$93.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 75402

1/2" Push Nut
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

32

Briggs & Stratton 97313

Handle

$

$

Currently unavailable

33

Briggs & Stratton 57821

M8-1.25 x 40mm Capscrew

$

$

Not available

34

Briggs & Stratton 22129

5/16" Flat Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 98122A

Red Nozzle

$

$

Currently unavailable

37

Briggs & Stratton 98122B

Yellow Nozzle

$

$

Currently unavailable

38

Briggs & Stratton 98122C

Green Nozzle

$

$

Currently unavailable

39

Briggs & Stratton 98122D

White Nozzle

$

$

Currently unavailable

40

Briggs & Stratton 27007

Vibration Mount
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

41

Briggs & Stratton 40976

M8-1.25 x 20mm Capscrew

$

$

Not available

42

Briggs & Stratton 89476

Exhaust Gasket
(Superseded to 89476GS)

$2.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 95524

Retainer Washer
(Superseded to 95524GS)

$2.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 97675

Cam Driver Retainer
(Superseded to 97675GS)

$3.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 42909

M8-1.25 x 30mm Capscrew
(Superseded to 42909GS)

$3.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 97084

Cradle Support
(Superseded to 97084GS)

$37.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 89634A

3/8" I.D. Hose Assembly
(Superseded to 189532GS)

$226.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 96168

Chemical Injector Hose Assembly
(Superseded to 96168GS)

$11.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 89633

Gun Assembly
(Superseded to 89633GS)

$223.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 39253

M8-1.25 x 20mm Capscrew
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 89641

Lance Extension

$

$

Not available

53

Briggs & Stratton 90199

Quick Adaptor

$3.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 97240C

Pump Head Assembly

$

$

Currently unavailable

55

Briggs & Stratton 93790

O-ring 2.62 x 113.97
(Superseded to 93790GS)

$6.49

$

In Stock, only 3 left!

0

56

Briggs & Stratton 94944

Piston Pivot Shoe
(Superseded to 94944GS)

$4.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 97606

Roller Thrust Bearing
(Superseded to 97606GS)

$88.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 97673

3.0 GPM Axial Cam
(Superseded to 97673VGS)

$50.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 97583

Engine Adaptor

$

$

Currently unavailable

60

Briggs & Stratton 96542

Roller Thrust Bearing
(Superseded to 96542GS)

$100.99

$

In Stock, only 1 left!

0

61

Briggs & Stratton 22145

M8 Flat Washer

$

$

Not available

62

Briggs & Stratton 95435

Engine Shaft Adaptor
(Superseded to 95435GS)

$8.49

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 93871

Engine Adaptor Gasket
(Superseded to 93871GS)

$3.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 23707

5/16" - 24 x 1" Capscrew
(Superseded to 23707GS)

$3.99

$

In Stock, only 1 left!

0

65

Briggs & Stratton 92479

M8 Ribbed Lock Washer
(Superseded to 92479GS)

$3.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 40945

M6-1.0 x 20mm Screw
(Superseded to 40945GS)

$3.49

$

In Stock, only 2 left!

0

67

Briggs & Stratton 95441

Engine Adaptor Sleeve
(Superseded to 95441GS)

$8.49

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 30809

Grommet
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

69

Briggs & Stratton 97570

Thrust Washer
(Superseded to 97570GS)

$4.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 93873

M6 Ribbed Lock Washer

$4.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 95454

Oil Fill Cap/Breather

$

$

Currently unavailable

72

Briggs & Stratton 52857

M6-1.0 Locking Flange Nut
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 95212B

Unloader Assembly

$

$

Not available

77

Briggs & Stratton 93723

Spindle Seat O-ring
(Superseded to 690904)

$11.99

$

In Stock, Qty 6

0

78

Briggs & Stratton 94197

Pressure Gauge
(Superseded to 94197GS)

Note: Optional

$54.99

$

Usually ships in 2-12 days

0

79

Briggs & Stratton 90200

Black Nozzle

$3.99

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 50190

10GA Flat Washer
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 82580A

Hose

$

$

Not available

82

Briggs & Stratton 48031G

3/16" Hose Clamp
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 97339

Owner's Manual
(Superseded to 97339GS)

Note: Not Shown

$14.99

$

Usually ships in 2-12 days

0
