580.742780 (0504-1) - Craftsman 2,600 PSI Pressure Washer Repair Parts Drawing Number 20938 Parts Diagram

2,600 PSI Pressure Washer

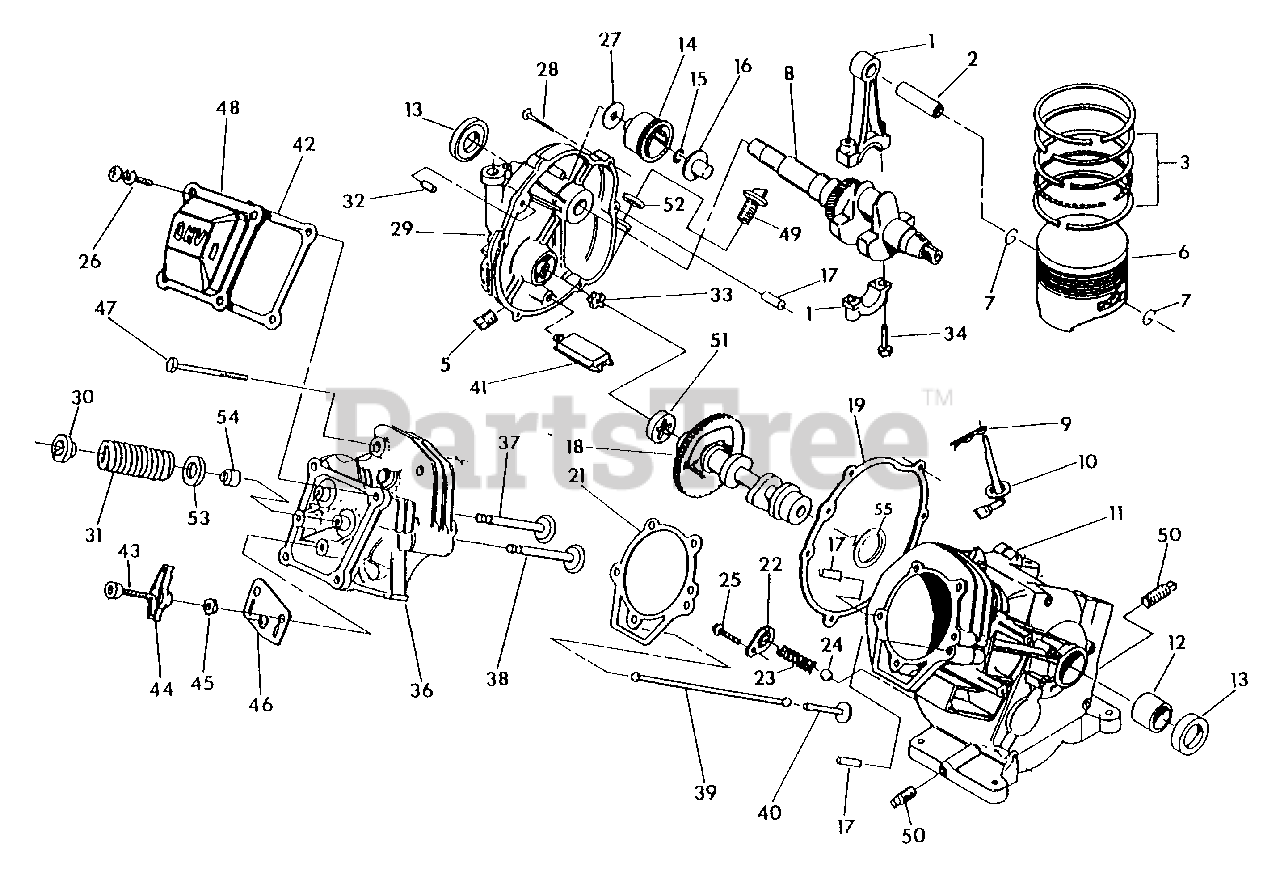

Repair Parts Drawing Number 20938 Parts Diagram

  • Title

1

Briggs & Stratton 76380

Connector Rod and Cap Assembly

$

$

Not available

2

Briggs & Stratton 76389

Piston Pin

$

$

Currently unavailable

3

Briggs & Stratton 88411

Piston Ring Set (standard Size)

$

$

Currently unavailable

4

Briggs & Stratton 81694

1/4" Npt Magnetic Pipe Plug

$

$

Currently unavailable

5

Briggs & Stratton 72683

1/8" Npt Pipe Plug

$

$

Currently unavailable

6

Briggs & Stratton 88057

75mm dia. Piston

$

$

Currently unavailable

7

Briggs & Stratton 76390

Piston Pin Retainer
(Superseded to 7047947YP)

$27.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 83337

Crankshaft Assembly With Gear

$

$

Not available

9

Briggs & Stratton 78658

Governor Arm "R" Pin

$

$

Not available

10

Briggs & Stratton 76354

Governor Arm

$

$

Currently unavailable

11

Briggs & Stratton 89213A

Crankcase Sub-assembly

$

$

Currently unavailable

12

Briggs & Stratton 76349

Sleeve Bearing

$

$

Currently unavailable

13

Briggs & Stratton 81695

Crankshaft Oil Seal

$

$

Currently unavailable

14

Briggs & Stratton 76359

Governor Gear Assembly

$

$

Currently unavailable

15

Briggs & Stratton 78645

Governor Retainer ("C" Ring)

$

$

Not available

16

Briggs & Stratton 76365

Governor Spool

$

$

Currently unavailable

17

Briggs & Stratton 78699B

12mm I.d. Dowel Sleeve

$

$

Currently unavailable

18

Briggs & Stratton 83335

Camshaft Assembly

$

$

Currently unavailable

19

Briggs & Stratton 89096

Crankcase Flange Gasket

$

$

Currently unavailable

21

Briggs & Stratton 88058

Cylinder Head Gasket

$

$

Currently unavailable

22

Briggs & Stratton 78691

Oil Pressure Spring Retainer

$

$

Not available

23

Briggs & Stratton 76367

Oil Pressure Spring

$

$

Currently unavailable

24

Briggs & Stratton 76362

Oil Pressure Ball

$

$

Currently unavailable

25

Briggs & Stratton 78692

M5 Thread-forming Bolt

$

$

Currently unavailable

26

Briggs & Stratton 78606

M6-1.0 x 12mm Screw and Lock Washer

$

$

Currently unavailable

27

Briggs & Stratton 76361

Thrust Washer

$

$

Not available

28

Briggs & Stratton 89230

Flanged Hex Head Capscrew

$

$

Currently unavailable

29

Briggs & Stratton 89665A

Gear Cover Sub-assembly

$

$

Currently unavailable

30

Briggs & Stratton 86293

Valve Spring Retainer Valve

$

$

Currently unavailable

31

Briggs & Stratton 88401

Valve Spring

$

$

Currently unavailable

32

Briggs & Stratton 88590

Deg. 10 x 20 Dowel Pin

$

$

Currently unavailable

33

Briggs & Stratton 83152

Inner Gerotor

$

$

Currently unavailable

34

Briggs & Stratton 76381

Connecting Rod Bolt

$

$

Currently unavailable

35

Briggs & Stratton 78659

Governor Arm Washer

$

$

Not available

36

Briggs & Stratton 88404B

Cylinder Head Casting Assembly

$

$

Currently unavailable

37

Briggs & Stratton 90082

Exhaust Valve

$

$

Currently unavailable

38

Briggs & Stratton 90081

Intake Valve
(Superseded to 93259)

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 88396A

Push Rod

$

$

Currently unavailable

40

Briggs & Stratton 83235

Tappet

$

$

Currently unavailable

41

Briggs & Stratton 80336

Oil Pickup Assembly

$

$

Not available

42

Briggs & Stratton 88397

Rocker Cover Gasket

$

$

Currently unavailable

43

Briggs & Stratton 77161

Ball Pivot Stud

$

$

Currently unavailable

44

Briggs & Stratton 77160

Rocker Arm

$

$

Currently unavailable

45

Briggs & Stratton 76307

Jam Nut (rocker Arm)

$

$

Currently unavailable

46

Briggs & Stratton 88403

Push Rod Guide Plate

$

$

Currently unavailable

47

Briggs & Stratton 77168

M8 x 52mm Head Bolt

$

$

Currently unavailable

48

Briggs & Stratton 88412

Rocker Cover Breather Assembly

$

$

Currently unavailable

49

Briggs & Stratton 76329

Oil Fill Plug

$

$

Not available

50

Briggs & Stratton 72657

1/4" Npt Pipe Plug
(Superseded to 7072657YP)

$64.99

$

In Stock, only 3 left!

0

51

Briggs & Stratton 83153

Outer Gerotor

$

$

Currently unavailable

52

Briggs & Stratton 86254

"O" Ring (17.8" I.d. x 2.4" Thick)

$

$

Currently unavailable

53

Briggs & Stratton 84186

Wear-valve Spring Washer

$

$

Currently unavailable

54

Briggs & Stratton 88156

Intake Valve Seal

$

$

Currently unavailable

55

Briggs & Stratton 99922

Spring Washer

$

$

Currently unavailable
