580.751500 (9896-0) - Craftsman 1,800 PSI Pressure Washer Repair Parts Drawing Number 95087 Part 1 Parts Diagram

1,800 PSI Pressure Washer

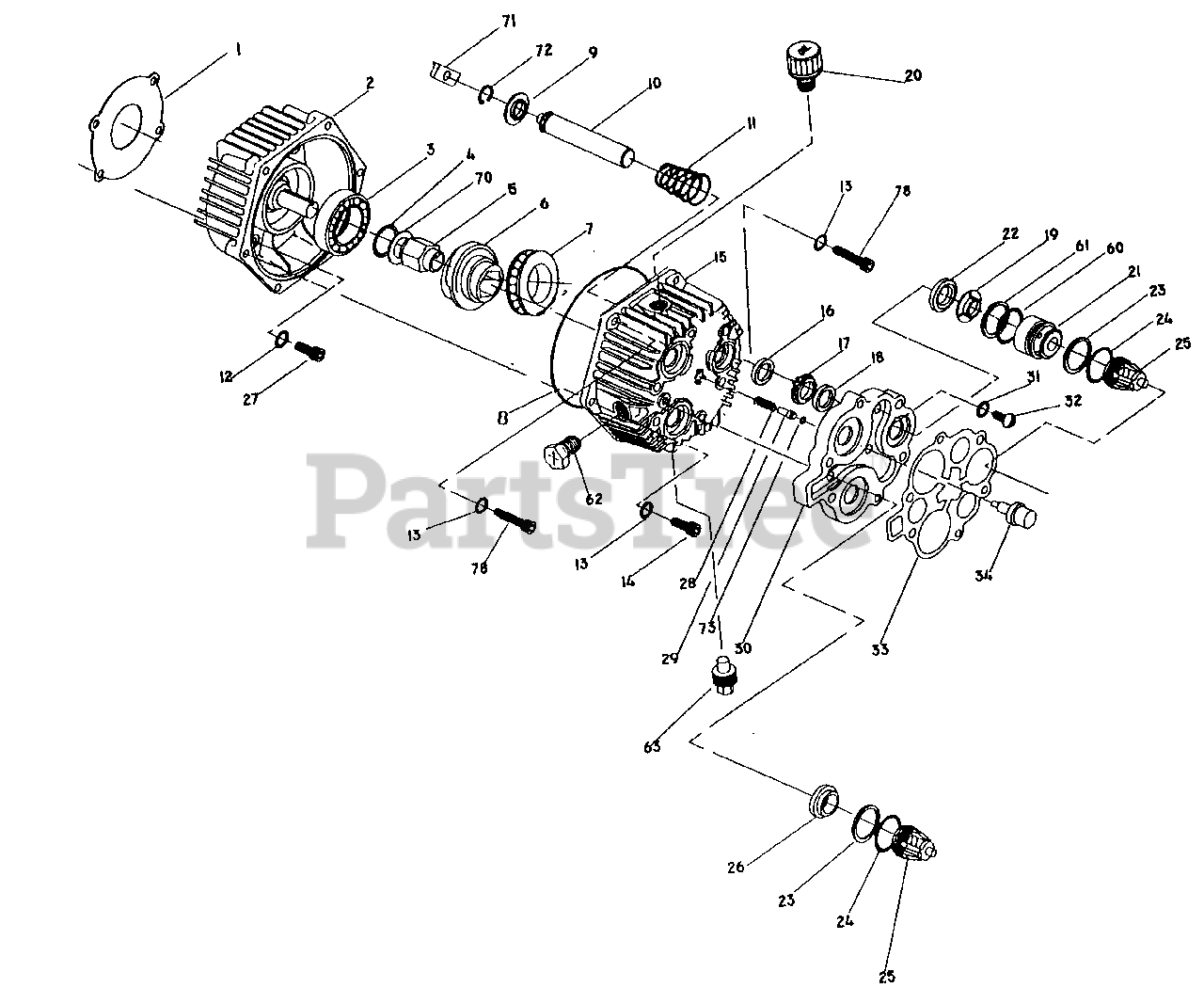

Repair Parts Drawing Number 95087 Part 1 Parts Diagram

  • Title

1

Briggs & Stratton 93871

Engine Adaptor Gasket
(Superseded to 93871GS)

$3.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 96430C

Engine Adaptor

$

$

Currently unavailable

3

Briggs & Stratton 93869

Thrust Ball Bearing
(Superseded to 93869GS)

$47.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 95624

Washer Retainer

$

$

Currently unavailable

5

Briggs & Stratton 95185

Engine Adaptor

$

$

Not available

6

Briggs & Stratton 95437

Axial Cam

$

$

Not available

7

Briggs & Stratton 93869

Thrust Roller Bearing
(Superseded to 93869GS)

$47.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 93790

114 x 119 x 2.6 O-Ring
(Superseded to 93790GS)

$6.49

$

In Stock, only 3 left!

0

9

Briggs & Stratton 95386

Piston Spring Retainer
(Superseded to 95386GS)

$1.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 95217

Piston, #15 S.S.

$

$

Currently unavailable

11

Briggs & Stratton 96400

Piston Return Spring
(Superseded to 96400GS)

$4.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 92479

M8 Ribbed Lock Washer
(Superseded to 92479GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 93873

M6 Ribbed Lock Washer

$4.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 40945

M6 x 1.0 x 20mm Capscrew
(Superseded to 40945GS)

$3.49

$

In Stock, only 2 left!

0

15

Briggs & Stratton 94404

Aluminum Crankcase
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

16

Briggs & Stratton 93680

Piston Oil Seal
(Superseded to 93680GS)

$7.49

$

In Stock, Qty 6

0

17

Briggs & Stratton 93668

Pilot Spacer
(Superseded to 93668GS)

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 93667

Seal
(Superseded to 93667GS)

$9.99

$

In Stock, Qty 16

0

19

Briggs & Stratton 96015

Bearing Ring Seal
(Superseded to 96015GS)

$3.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 95454

Oil Fill/Breather

$

$

Currently unavailable

21

Briggs & Stratton 95895

High Pressure Port Tower
(Superseded to 95895GS)

$23.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 96052

High Pressure Seal (black)
(Superseded to 96052GS)

$18.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 95504

Back-up Ring
(Superseded to 95504GS)

$2.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 95503

O-Ring 2.62 x 17.12mm
(Superseded to 95503GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 96005

Valve Check Kit
(Superseded to 96005GS)

$34.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 95896

Check Valve Seat Support

$

$

Not available

27

Briggs & Stratton 95531

5/16"-24 x 3/4" Bolt
(Superseded to 95531GS)

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 93652

Thermal By-pass Spring
(Superseded to 93652GS)

$6.49

$

In Stock, only 1 left!

0

29

Briggs & Stratton 95416

By-pass Piston
(Superseded to 95416GS)

$3.99

$

In Stock, only 2 left!

0

30

Briggs & Stratton 94402

Spacer Plate

$

$

Currently unavailable

31

Briggs & Stratton 93673

O-Ring 4.5 x 8 x 1.8
(Superseded to 93673GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 93678

M5 4.8 x 20 Truss Head Bolt
(Superseded to 93678GS)

$2.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 93645

Head Gasket

$

$

Currently unavailable

34

Briggs & Stratton 93644

Thermal By-pass Actuator
(Superseded to 93644GS)

$24.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 96069

Quad-Ring 0.09 x 1.06"
(Superseded to 96069GS)

$3.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 95506

Back-up Ring
(Superseded to 95506GS)

$2.49

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 57163

3/8" NPT Magnetic Plug
(Superseded to 57163GS)

$8.49

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 95434

Thrust Washer
(Superseded to 95434GS)

$3.49

$

Usually ships in 2-12 days

0

71

Briggs & Stratton 94944

Piston Pivot Shoe
(Superseded to 94944GS)

$4.49

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 94284

"C" Ring Retainer

$

$

Currently unavailable

73

Briggs & Stratton 93876

O-Ring 1.78 x 2.9
(Superseded to 690312)

$3.99

$

In Stock, only 2 left!

0

78

Briggs & Stratton 46580

M6-1.0 x 45mm Capscrew
(Superseded to 46580GS)

$5.99

$

Usually ships in 2-12 days

0
