580.751510 (0457-0) - Craftsman 1,800 PSI Pressure Washer General Assembly (10/95) Parts Diagram

1,800 PSI Pressure Washer

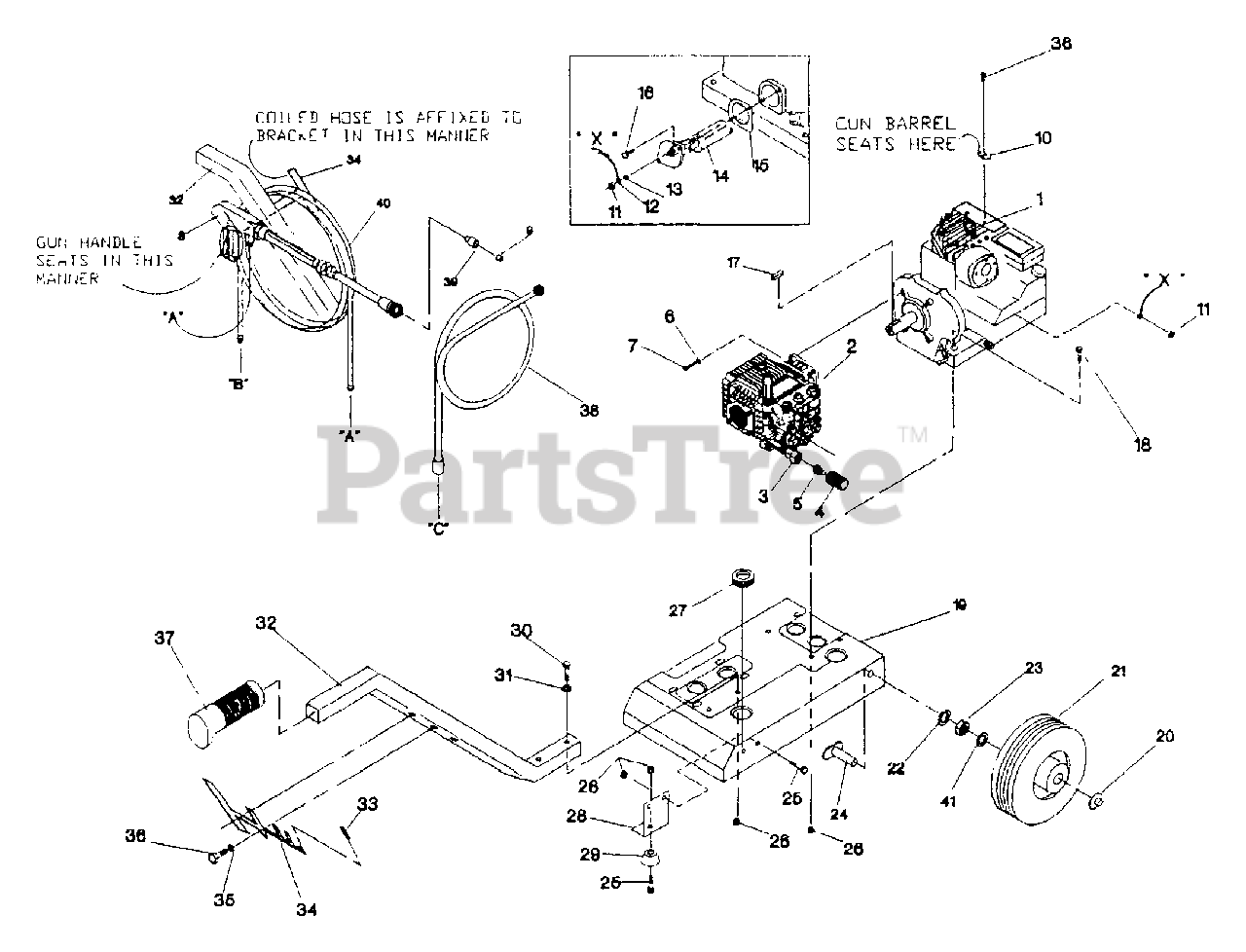

General Assembly (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 95998

5 hp Briggs & Stratton Engine

$

$

Currently unavailable

2

Briggs & Stratton 87628

Pump

$

$

Not available

3

Briggs & Stratton 89647

Brass Water Hose Connector

$

$

Not available

4

Briggs & Stratton 96016

Quick-connect, Female
(Superseded to 7175187GS)

$17.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton 95456

Quick-connect, Male
(Superseded to 7175187GS)

$17.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 92479

5/16" Conical Lock Washer
(Superseded to 92479GS)

$3.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 22336

5/16" - 24 x 3/4" Capscrew

$

$

Not available

8

Briggs & Stratton 95567

Gun And Wand Assembly
(Superseded to 95567GS)

$115.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 92661

Replacement Nozzle [blue]
(Superseded to 92661GS)

$9.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 65852

Spring Clip
(Superseded to 65852GS)

$9.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 22471

#8-32 Nut
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 91842A

Low Oil Shutdown Wire
(Superseded to 91842AGS)

$6.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 23365

#8 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 88977

Low Oil Shutdown

$

$

Currently unavailable

15

Briggs & Stratton 91841

Low Oil Shutdown Gasket

$

$

Not available

16

Briggs & Stratton 32713

#10-32 x 5/8" Taptite Screw
(Superseded to 32713GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 89314

3/16" Sq. x 1-7/8" Key
(Superseded to 89314GS)

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 39414

M8-1.25 x 35mm Capscrew
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 95902

Mounting Base

$

$

Not available

20

Briggs & Stratton 75402

1/2" Dia. Push Nut
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

21

Briggs & Stratton 91094

2-1/4" x 8" Wheel
(Superseded to 197061GS)

$24.99

$

In Stock, only 4 left!

0

22

Briggs & Stratton 22246

5/8" Lock Washer
(Superseded to 5022246)

$912.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 25391

Jam Nut
(Superseded to 5025391)

$4.49

$

In Stock, only 3 left!

0

24

Briggs & Stratton 93728

Wheel Axle
(Superseded to 93728GS)

$7.49

$

In Stock, Qty 5

0

25

Briggs & Stratton 39253

M8-1.25 x 20mm Capscrew
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 52858

M8-1.25 Flange Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

27

Briggs & Stratton 92235

Rubber Grommet
(Superseded to 199553GS)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 91092

Support Leg
(Superseded to 91092GS)

$15.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 87841

Shock Mount
(Superseded to 87841GS)

$3.99

$

In Stock, only 3 left!

0

30

Briggs & Stratton 57821

M8-1.25 x 40mm Screw

$

$

Not available

31

Briggs & Stratton 50190

M8 x 25 Flat Washer
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 91093

Guide Handle
(Superseded to 91093GS)

$60.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 92067

Vinyl Cap

$3.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 95908

Gun And Hose Holder
(Superseded to 95908GS)

$31.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 96633

#10 Flat Washer

$

$

Not available

36

Briggs & Stratton 86292

#10 Self-drilling Screw
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 77584

Handle Grip
(Superseded to 77584GS)

$5.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 89800

Replacement Chemical Injector Hose
(Superseded to 89800GS)

$15.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 95587A

Adjustable Nozzle
(Superseded to 95587AGS)

$34.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 91630

3/8" I.D. x 25' Hose Assembly

$

$

Not available

41

Briggs & Stratton 49808

M12 Flat Washer
(Superseded to 49808GS)

$3.99

$

In Stock, only 4 left!

0

41

Briggs & Stratton 96596

Owner's Manual
(Superseded to 96596GS)

Note: [Not Shown]

$14.99

$

Usually ships in 2-12 days

0
