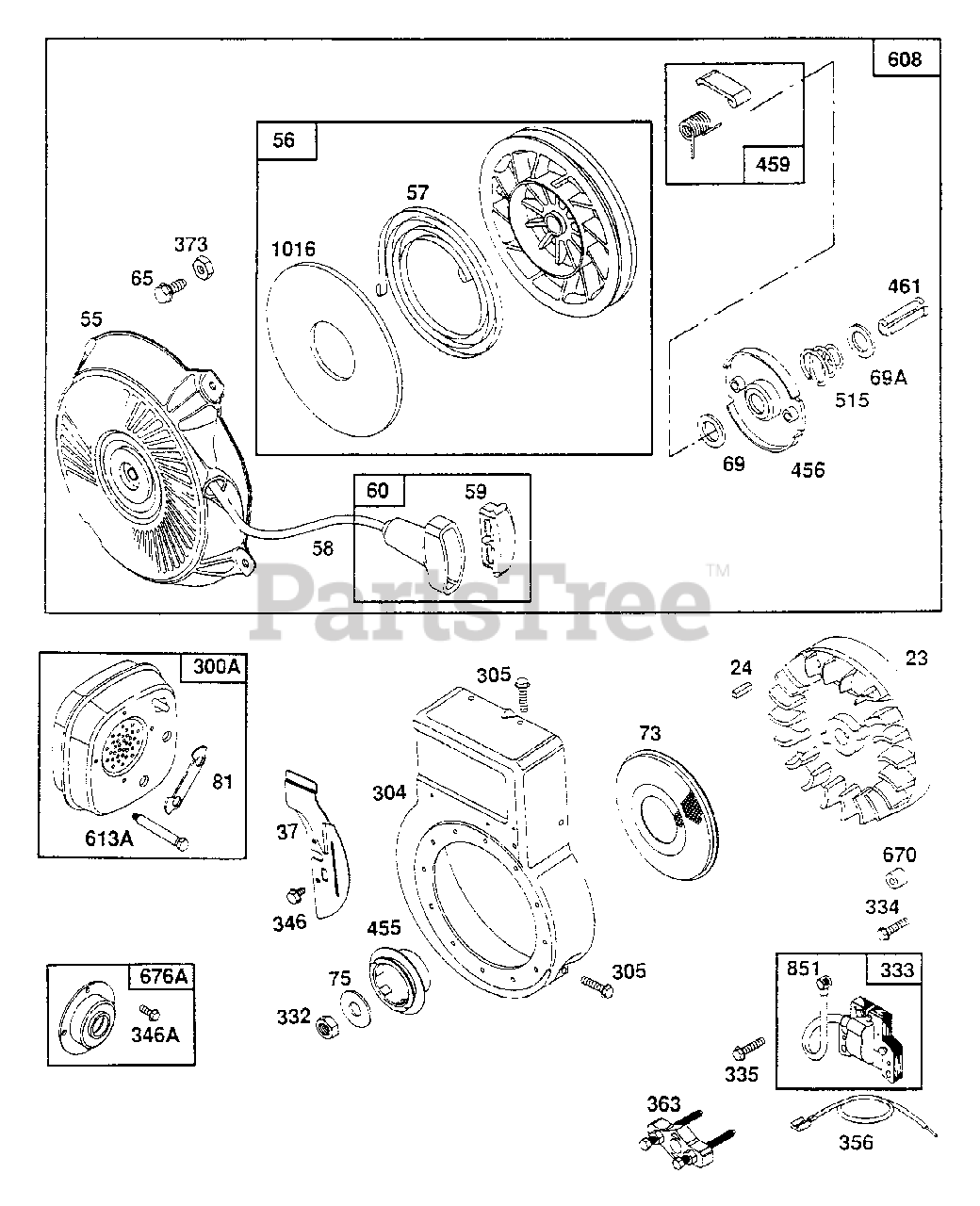

580.751510 (0457-0) - Craftsman 1,800 PSI Pressure Washer Starter And Flywheel (10/95) Parts Diagram

1,800 PSI Pressure Washer

Starter And Flywheel (10/95) Parts Diagram

  • Title

23

Briggs & Stratton 297229

Flywheel

$

$

Not available

24

Briggs & Stratton 222698

Flywheel Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 222443

Flywheel Guard
(Superseded to 691732)

$9.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 494846

Rewind Starting Housing
(Superseded to 497830)

$49.99

$

In Stock, Qty 15

0

56

Briggs & Stratton 493824

Rewind Starter Pulley

$27.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 262594

Rewind Starter Spring
(Superseded to 491889)

$15.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 280406

Rewind Starter Rope
(Superseded to 280406S)

Note: (Cut to length)

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 396892

Starter Handle Insert

$5.49

$

In Stock, only 2 left!

0

60

Briggs & Stratton 393152

Rewind Starter Handle

$4.99

$

In Stock, only 3 left!

0

65

Briggs & Stratton 94686

Housing Mounting Screw
(Superseded to 690837)

$3.49

$

In Stock, Qty 18

0

69

Briggs & Stratton 280973

Washer

$5.49

$

Usually ships in 2-12 days

0

69A

Briggs & Stratton 224322

Washer

$5.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 224633

Rotating Screen

$

$

Not available

75

Briggs & Stratton 224061

Flywheel Washer
(Superseded to 690582)

$4.49

$

In Stock, only 2 left!

0

81

Briggs & Stratton 222263

Screw Lock
(Superseded to 691729)

$5.99

$

In Stock, only 3 left!

0

300A

Briggs & Stratton 393615

Exhaust Muffler
(Superseded to 494585)

$23.99

$

In Stock, Qty 9

0

304

Briggs & Stratton 495795

Blower Housing

$142.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94619

Blower Housing Mounting Screw
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

332

Briggs & Stratton 92284

Flywheel Nut
(Superseded to 690662)

$5.99

$

In Stock, Qty 8

0

333

Briggs & Stratton 397358

Armature Assembly

$53.99

$

In Stock, Qty 7

0

334

Briggs & Stratton 93613

Sem Screw
(Superseded to 690306)

$

$

Not available

335

Briggs & Stratton 93414

Armature Mounting Screw
(Superseded to 691621)

$7.49

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 94680

Screw
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

346A

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 398808

Ground Wire

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Flywheel Puller

$23.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 92987

Hex Nut
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

455

Briggs & Stratton 494770

Flywheel Cup

$24.99

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 224321

Retainer Spring

$8.99

$

Usually ships in 2-12 days

0

459

Briggs & Stratton 492883

Ratchet Pawl

$22.99

$

Usually ships in 2-12 days

0

461

Briggs & Stratton 262626

Spring Pin

$4.49

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 262625

Spring

$6.49

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 299406

Rewind Starter Assembly

$

$

Currently unavailable

613A

Briggs & Stratton 93935

Hex Head Shoulder Screw
(Superseded to 691413)

$5.99

$

In Stock, only 2 left!

0

670

Briggs & Stratton 281065

Armature Spacer

$

$

Currently unavailable

676A

Briggs & Stratton 395700

Exhaust Deflector

$15.99

$

In Stock, only 1 left!

0

851

Briggs & Stratton 221798

Ignition Cable Terminal
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

1016

Briggs & Stratton 490817

Spacer

$9.49

$

In Stock, only 2 left!

0
