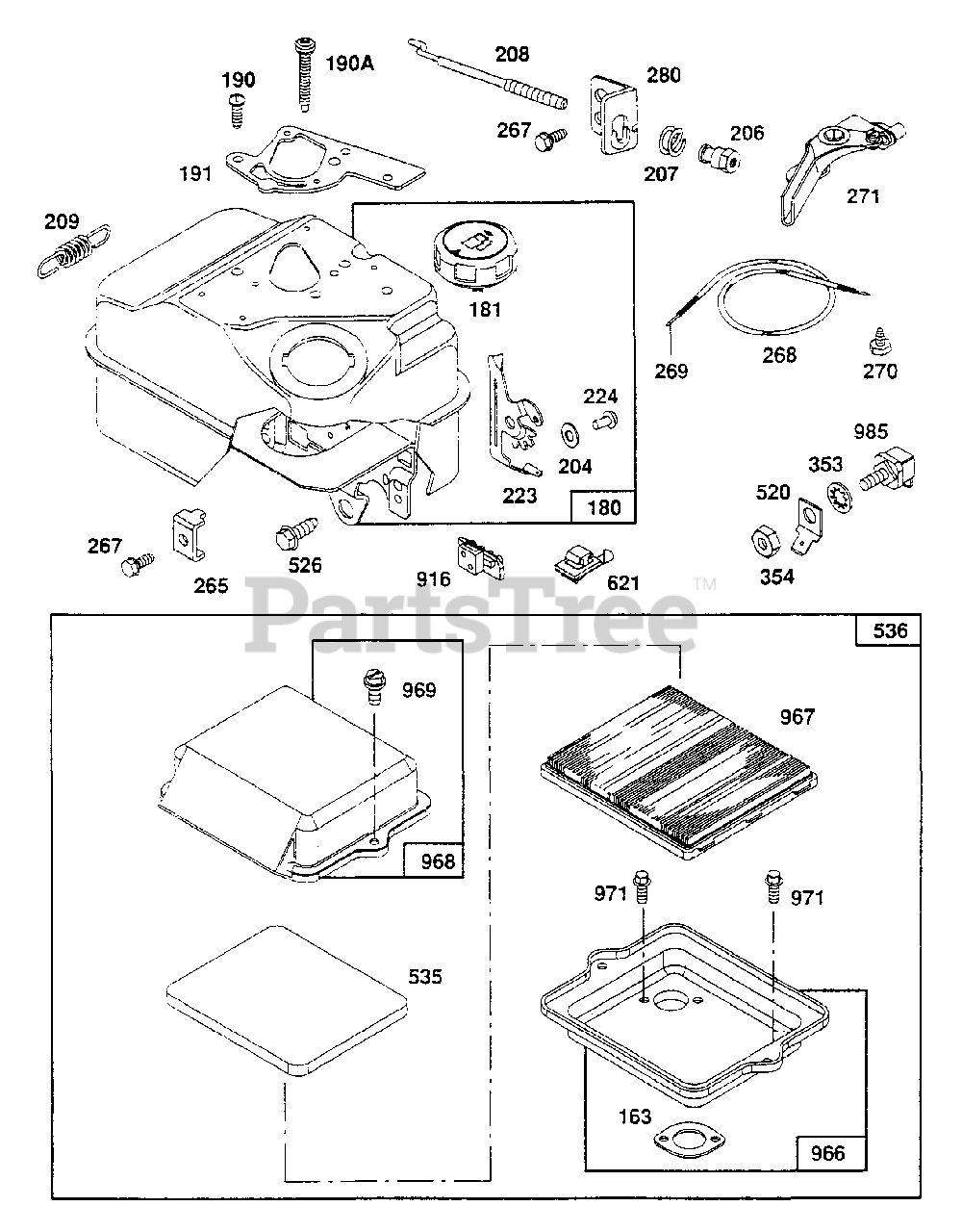

580.751510 (0457-0) - Craftsman 1,800 PSI Pressure Washer Tank And Filters (10/95) Parts Diagram

1,800 PSI Pressure Washer

Tank And Filters (10/95) Parts Diagram

  • Title
163

Briggs & Stratton 271935

Air Cleaner Mounting Gasket
(Superseded to 271935S)

$6.49

$

In Stock, Qty 17

0

180

Briggs & Stratton 495405

Fuel Tank Assembly
(Superseded to 694315)

$

$

Not available

181

Briggs & Stratton 494559

Fuel Tank Cap

$15.99

$

In Stock, Qty 8

0

190

Briggs & Stratton 94712

Screw -- Sem
(Superseded to 692200)

$

$

Not available

190A

Briggs & Stratton 94677

Screw -- Sem
(Superseded to 691687)

$4.99

$

In Stock, only 1 left!

0

191

Briggs & Stratton 272489

Fuel Tank Mounting Gasket
(Superseded to 692241)

$4.49

$

In Stock, Qty 20+

0

204

Briggs & Stratton 222962

Control Lever Bushing

$1.49

$

Usually ships in 2-12 days

0

206

Briggs & Stratton 94081

Stop Nut
(Superseded to 690325)

$3.49

$

Usually ships in 2-12 days

0

207

Briggs & Stratton 26855

Control Rod Spring
(Superseded to 692522)

$

$

Not available

208

Briggs & Stratton 262323

Speed Control Rod
(Superseded to 691821)

$13.99

$

In Stock, Qty 5

0

209

Briggs & Stratton 262282

Governor Spring
(Superseded to 690376)

$11.99

$

In Stock, only 4 left!

0

223

Briggs & Stratton 223455

Governor Control Lever

$2.49

$

Usually ships in 2-12 days

0

224

Briggs & Stratton 93491

Governor Control Lever Rivet

$1.49

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 221535

Casing Clamp
(Superseded to 691024)

$3.99

$

In Stock, only 1 left!

0

267

Briggs & Stratton 93496

Screw
(Superseded to 690804)

$2.99

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 66986

Control Wire Casing -- 48" long
(Superseded to 691025)

Note: If longer casing is needed, specify length in inches; if shorter casing is needed, order No. 66986 and cut to required length.

$

$

Not available

269

Briggs & Stratton 26099

Control Wire
(Superseded to 691026)

$

$

Not available

270

Briggs & Stratton 63426

Casing Locknut
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Control Lever
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

280

Briggs & Stratton 223798

Control Rod Bracket
(Superseded to 691184)

$7.49

$

Usually ships in 2-12 days

0

353

Briggs & Stratton 92791

Lock Washer
(Superseded to 691077)

$3.49

$

Usually ships in 2-12 days

0

354

Briggs & Stratton 90576

Hex Nut
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

520

Briggs & Stratton 93722

Terminal
(Superseded to 691084)

$6.49

$

In Stock, only 2 left!

0

526

Briggs & Stratton 94659

Sem Screw
(Superseded to 691685)

$3.99

$

In Stock, Qty 6

0

535

Briggs & Stratton 491435

Air Filter
(Superseded to 491435S)

$4.99

$

In Stock, Qty 20+

0

536

Briggs & Stratton 494279

Air Cleaner Assembly

$

$

Not available

621

Briggs & Stratton 396847

Stop Switch
(Superseded to 692310)

$5.99

$

In Stock, Qty 20+

0

916

Briggs & Stratton 280321

Governor Gear Rack
(Superseded to 691900)

$5.99

$

Usually ships in 2-12 days

0

966

Briggs & Stratton 492797

Air Cleaner Base
(Superseded to 494279)

$

$

Not available

967

Briggs & Stratton 491588

Air Filter
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 495357

Air Cleaner Cover
(Superseded to 791082)

$20.99

$

In Stock, Qty 6

0

969

Briggs & Stratton 490073

Cover Mounting Screw
(Superseded to 694515)

$5.99

$

In Stock, Qty 13

0

971

Briggs & Stratton 94018

Air Cleaner Screw
(Superseded to 690859)

$3.99

$

In Stock, Qty 9

0

985

Briggs & Stratton 398525

Insulator
(Superseded to 691972)

$8.49

$

In Stock, Qty 6

0
