580.752040 (020311-0) - Craftsman 2,200 PSI Pressure Washer Main Unit Parts Diagram

2,200 PSI Pressure Washer

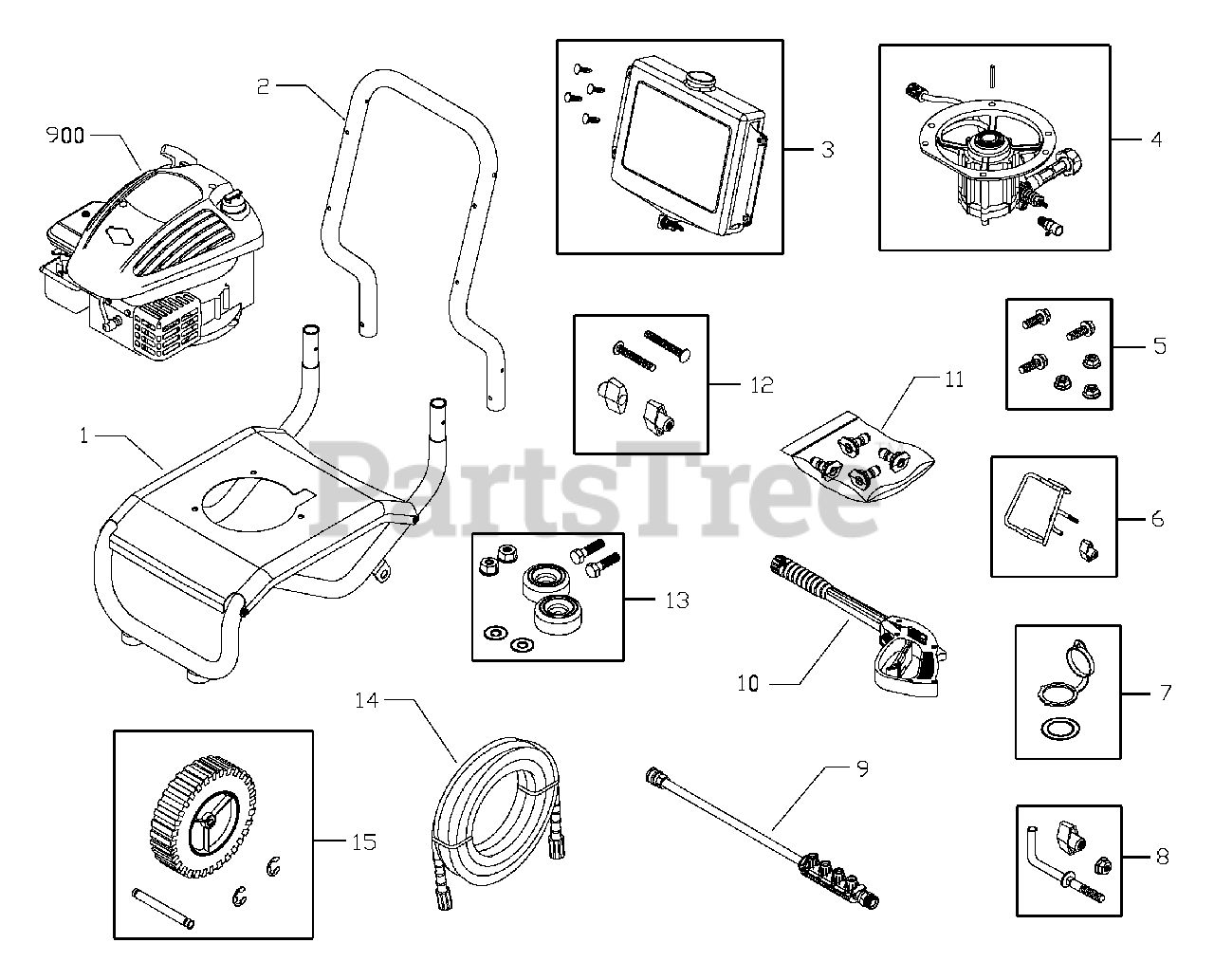

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 203009GS

ASSY, Base

$204.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton R202522

HANDLE

$

$

Currently unavailable

3

Briggs & Stratton 203010GS

ASSY, Chem Tank w/Decal & Clips

$75.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195964GS

Clip

$4.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 192980GS

Kit, Fuel Valve

$17.99

$

In Stock, Qty 20+

0

4

Briggs & Stratton 200200GS

ASSY, Pump

Note: (see "Pump")

$

$

Not available

4

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 13

0

4

Briggs & Stratton 23139GS

Key

$4.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 192525GS

KIT, Pump Mounting Hardware

$11.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 201661GS

KIT, Gun Holder Weldment

$36.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 199955GS

KIT, Cap Chem

$6.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 194264GS

KIT, Hook, Handle

$5.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 192199GS

ASSY, Extension w/Nozzle Holder
(Superseded to 207796GS)

$53.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 193482GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 200557GS

KIT, Nozzles

$53.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 195983AEGS

Nozzle, QC, Red

$10.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 195983RGS

Nozzle, QC, White

$10.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 195983XGS

Nozzle, QC, Yellow

$10.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 198841GS

Nozzle, Plastic, Soap

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 3 left!

0

13

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, Qty 5

0

14

Briggs & Stratton 196006GS

HOSE
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 200730GS

KIT, Wheel

$25.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 192050GS

E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 192006GS

Axle

$16.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE (10T502-0130-B1)

$

$

Not available

Briggs & Stratton 202691GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061BGS

OIL BOTTLE

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 87815GS

GOGGLES

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton A1040NGS

HOSE, Chemical

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 275034

DECAL, Warning

Note: Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 790984

ASSY, Shroud/Label

Note: Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 194256GS

KIT, Tag Warning
(Superseded to 705752)

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessory Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessory Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175124GS

Rotating Brush Kit

Note: Optional Accessory Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175122GS

30' Replacement Hose

Note: Optional Accessory Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessory Not Illustrated

$18.99

$

In Stock, only 3 left!

0

Briggs & Stratton 7175129GS

Turbo Nozzle

Note: Optional Accessory Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175121GS

25' Extension Hose

Note: Optional Accessory Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessory Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessory Not Illustrated

$12.99

$

In Stock, only 2 left!

0

Briggs & Stratton 7174300GS

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: Optional Accessory Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate (makes 2 gallons)
(Superseded to 100524GS)

Note: Optional Accessory Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: Optional Accessory Not Illustrated

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: Optional Accessory Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate (makes 2 gallons)
(Superseded to 6160)

Note: Optional Accessory Not Illustrated

$

$

Not available
