580.752051 (020312-1) - Craftsman 2,550 PSI Pressure Washer Main Unit Parts Diagram

2,550 PSI Pressure Washer

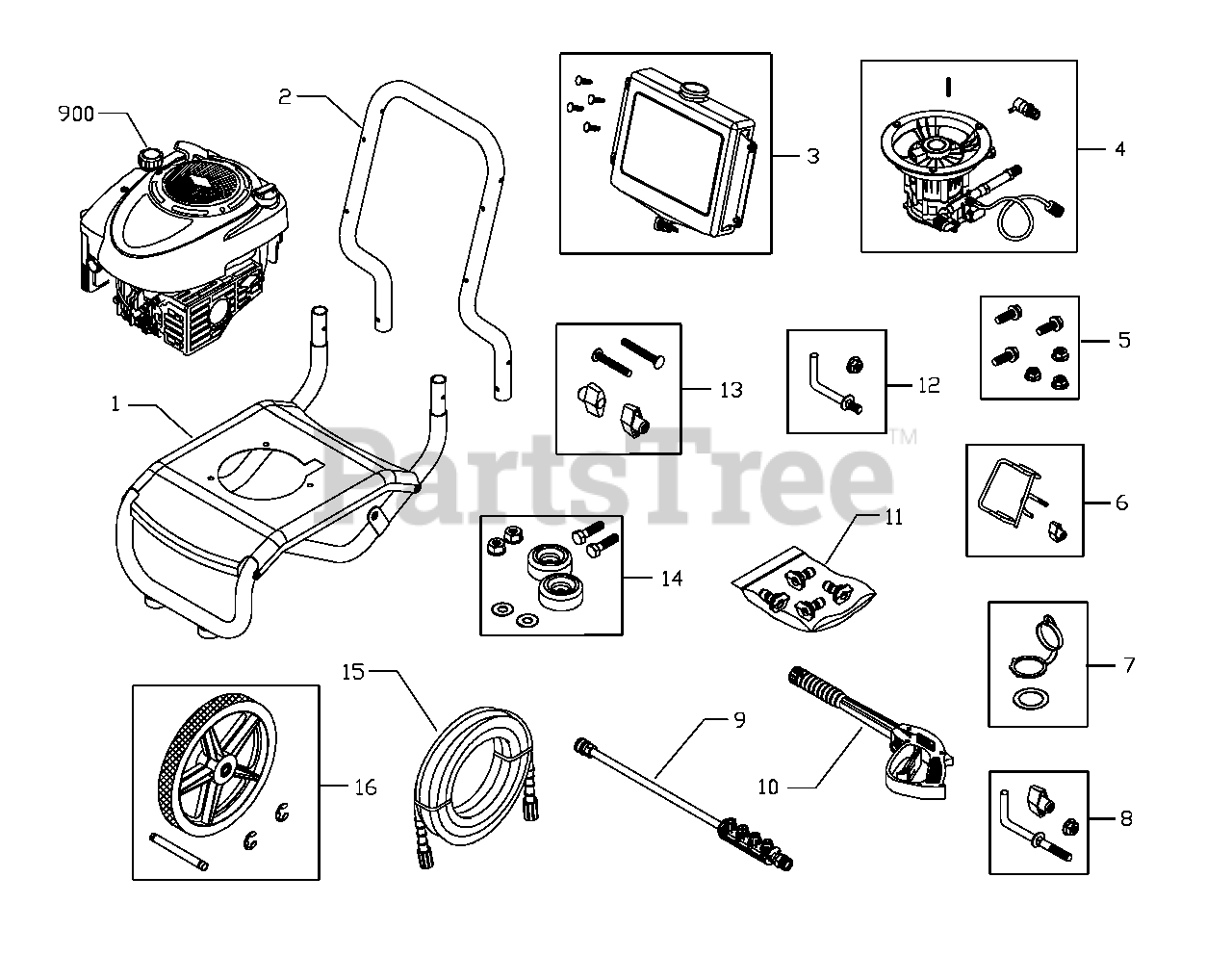

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 200159GS

Assy, Base

$114.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton M202522GS

Handle

$130.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 203024GS

Assy, Chem Tank w/Decal & Clips

$78.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195964GS

Clip

$4.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 192980GS

Kit, Valve

$17.99

$

In Stock, Qty 20+

0

4

Briggs & Stratton 202605GS

Assy, Pump

$328.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 12

0

Briggs & Stratton 23139GS

Key

$4.49

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 192529GS

Kit, Pump Mounting Hardware

$6.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 201661GS

Kit, Gun Holder Weldment

$36.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 199955GS

Kit, Cap Chem

$6.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 194264GS

Kit, Hook, Handle

$5.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 192198GS

Extension w/Nozzle Holder
(Superseded to 207796GS)

$53.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 204627GS

Gun
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 200557GS

Kit, Nozzles

$53.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195983AEGS

Nozzle, QC, Red

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195983RGS

Nozzle, QC, White

$10.99

$

In Stock, only 3 left!

0

Briggs & Stratton 195983XGS

Nozzle, QC, Yellow

$10.99

$

In Stock, Qty 5

0

Briggs & Stratton 198841GS

Nozzle, Plastic, Soap

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 192309GS

Kit, Hook

$4.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B2203GS

Kit, Handle Connector

$5.49

$

In Stock, only 3 left!

0

14

Briggs & Stratton 192310GS

Kit, Vibration Mount

$9.99

$

In Stock, Qty 5

0

15

Briggs & Stratton 196006GS

Hose
(Superseded to 84006753)

$59.99

$

In Stock, Qty 20+

0

16

Briggs & Stratton 196439GS

Kit, Wheel

$75.99

$

In Stock, Qty 5

0

Briggs & Stratton 192050GS

E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

Briggs & Stratton 195454GS

Axle

$12.99

$

Usually ships in 2-12 days

0

900

NSP

Engine

Note: 126T02-0114-B1 see pages 25-27

$

$

Not available

Briggs & Stratton 206214GS

Manual, Operator's

Note: Items Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061BGS

Oil Bottle

Note: Items Not Illustrated

$

$

Not available

Briggs & Stratton 87815GS

Goggles

Note: Items Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton A1040RGS

Hose, Chemical

Note: Items Not Illustrated

$13.99

$

In Stock, only 1 left!

0

Briggs & Stratton 202637GS

Decal, Shroud

Note: Items Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Murray 794693

Decal, Warning

Note: Items Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 790701

Shroud
(Superseded to 795064)

Note: Items Not Illustrated

$70.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 282846

Cover, Control

Note: Items Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 194256GS

Kit, Tag Warning
(Superseded to 705752)

Note: Items Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessories Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessories Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175124GS

Rotating Brush Kit

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175122GS

30' Replacement Hose

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessories Not Illustrated

$18.99

$

In Stock, Qty 5

0

Briggs & Stratton 7175129GS

Turbo Nozzle

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175121GS

25' Extension Hose

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessories Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessories Not Illustrated

$12.99

$

In Stock, only 2 left!

0

Briggs & Stratton 7174300GS

House Wash Concentrate
(Superseded to 6159)

Note: Makes 4 gallons Optional Accessories Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate
(Superseded to 100524GS)

Note: Makes 2 gallons Optional Accessories Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle/Boat Wash Concentrate
(Superseded to 6160)

Note: Makes 4 gallons Optional Accessories Not Illustrated

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate
(Superseded to 100526GS)

Note: Makes 4 gallons Optional Accessories Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate
(Superseded to 6160)

Note: Makes 2 gallons Optional Accessories Not Illustrated

$

$

Not available
