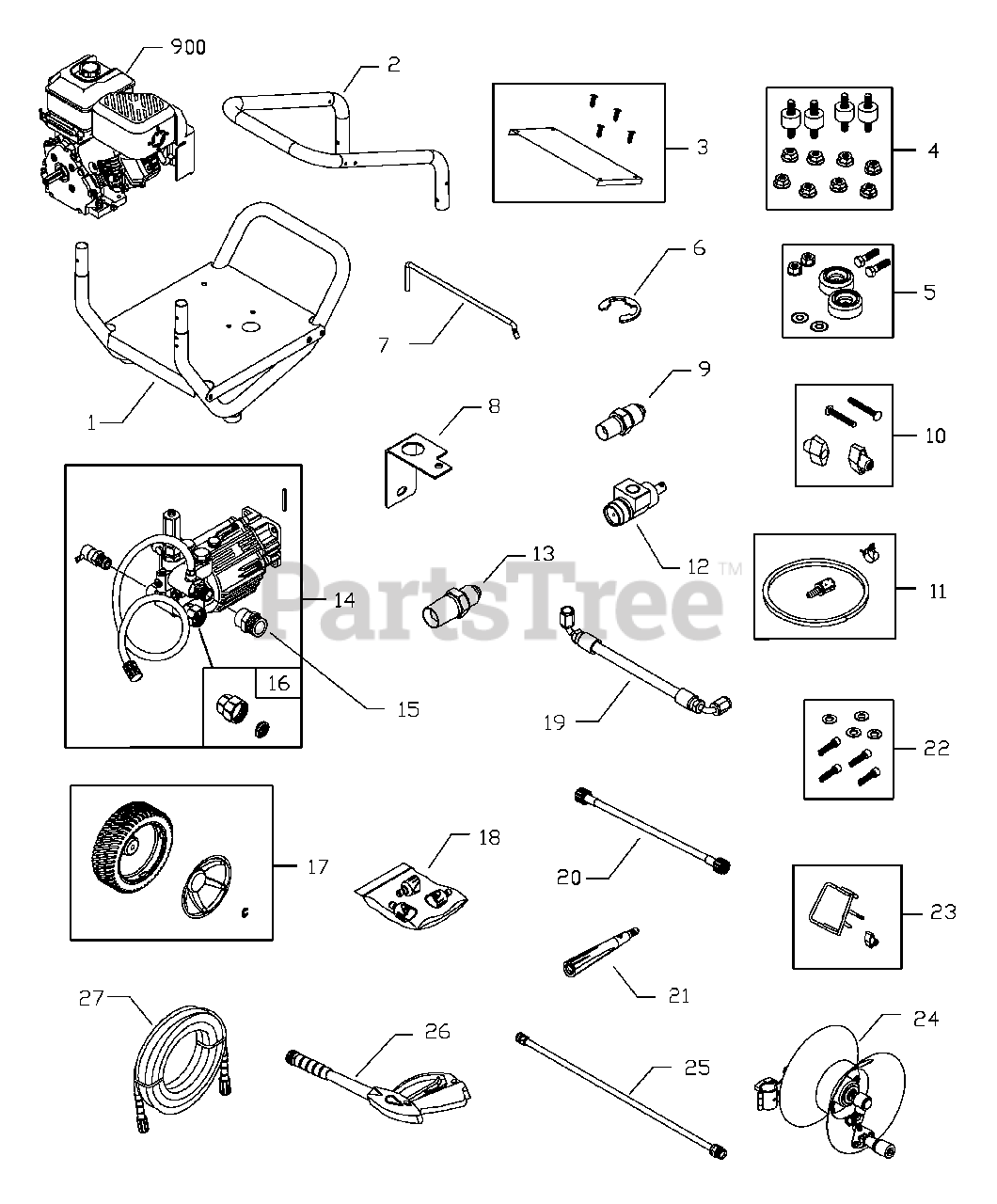

580.752090 (020299-0) - Craftsman 3,400 PSI Pressure Washer Main Unit Parts Diagram

3,400 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 202966GS

ASSY, Base

$

$

Not available

2

Briggs & Stratton B201499GS

HANDLE

$70.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 202903GS

KIT, Billboard

$46.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195964GS

Clips, Tree

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 192134GS

KIT, Engine Mounting Hrdwr

$29.99

$

In Stock, only 2 left!

0

5

Briggs & Stratton 192553GS

KIT, Vibration Mount

$16.99

$

In Stock, Qty 8

0

6

Briggs & Stratton 202351GS

E-RING, Thrttl Cntrl

$3.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 202873GS

WIRE, Idle Control

$3.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B200973GS

BRACKET, Idle Control Mounting

$8.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 202429GS

FITTING, Hose to Thrttl Cntrl

$8.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton B2203GS

KIT, Handle Fastening

$5.49

$

In Stock, only 2 left!

0

11

Briggs & Stratton 192796GS

KIT, Chem Hose & Filter

$16.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 202352GS

THROTTLE CONTROL

$57.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 202428GS

FITTING, Thrttl Cntrl, Hose to Pump

$29.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 202005GS

ASSY, Pump

Note: (see "Pump")

$719.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 16

0

Briggs & Stratton 23139DGS

Key

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 95457GS

ADAPTER

$7.49

$

In Stock, only 1 left!

0

16

Briggs & Stratton 194004GS

KIT, Inlet, Grdn Hose

$15.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 202978GS

KIT, Wheel

$40.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 200517GS

Hubcap

$16.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 192050GS

E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

18

Briggs & Stratton 201758GS

KIT, Nozzle

$34.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 201580RGS

Nozzle, QC, Project Pro, Yellow

$11.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 201580XGS

Nozzle, QC, Project Pro, Orange
(Superseded to 195983XGS)

$10.99

$

In Stock, Qty 5

0

18

Briggs & Stratton 201580AAGS

Nozzle, QC,Project Pro, Red
(Superseded to 195983AAGS)

$10.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 202427GS

ASSY, Hose Swivel, Thrttl Cntrl

$155.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 202418GS

HOSE, Whip

$39.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 198423GS

ASSY, Nozzle, Foaming

$

$

Not available

22

Briggs & Stratton 192131GS

KIT, Pump Mounting Hrdwr

$5.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 201661GS

KIT, Gun Holder Weldment

$36.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 202136GS

ASSY, Hose Reel

$78.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 203488GS

Kit, Hrdwr, Hose Reel

$7.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 193814GS

EXTENSION, QC
(Superseded to 707471)

$62.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 199990GS

GUN
(Superseded to 704312)

$93.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton 202419GS

HOSE

$211.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE (150212-0119-E9)

$

$

Not available

Briggs & Stratton 203780GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 87815GS

GOGGLES

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 30809GS

GROMMET, Billboard

Note: Not Illustrated

$4.49

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061BGS

OIL BOTTLE

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 201314GS

AXLE

Note: Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 199462GS

BOTTLE, Cncntrt, Hydro-Foam

Note: Not Illustrated

$33.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 203167GS

KIT, Decals, Srv

Note: Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 194256GS

KIT, Tag/Warning Srv
(Superseded to 705752)

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessories, Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessories, Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175124GS

Rotating Brush Kit

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175122GS

30' Replacement Hose

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessories, Not Illustrated

$18.99

$

In Stock, only 3 left!

0

Briggs & Stratton 7175129GS

Turbo Nozzle

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175121GS

25' Extension Hose

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessories, Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessories, Not Illustrated

$12.99

$

In Stock, only 2 left!

0

Briggs & Stratton 6092

WASH, Hydro Foam(TM)

Note: Optional Accessories, Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6135

KIT, Hydro Foam(TM) Launcher & Wash

Note: Optional Accessories, Not Illustrated

$22.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174300GS

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: Optional Accessories, Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate (makes2 gallons)
(Superseded to 100524GS)

Note: Optional Accessories, Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: Optional Accessories, Not Illustrated

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: Optional Accessories, Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate (makes 2 gallons)
(Superseded to 6160)

Note: Optional Accessories, Not Illustrated

$

$

Not available
