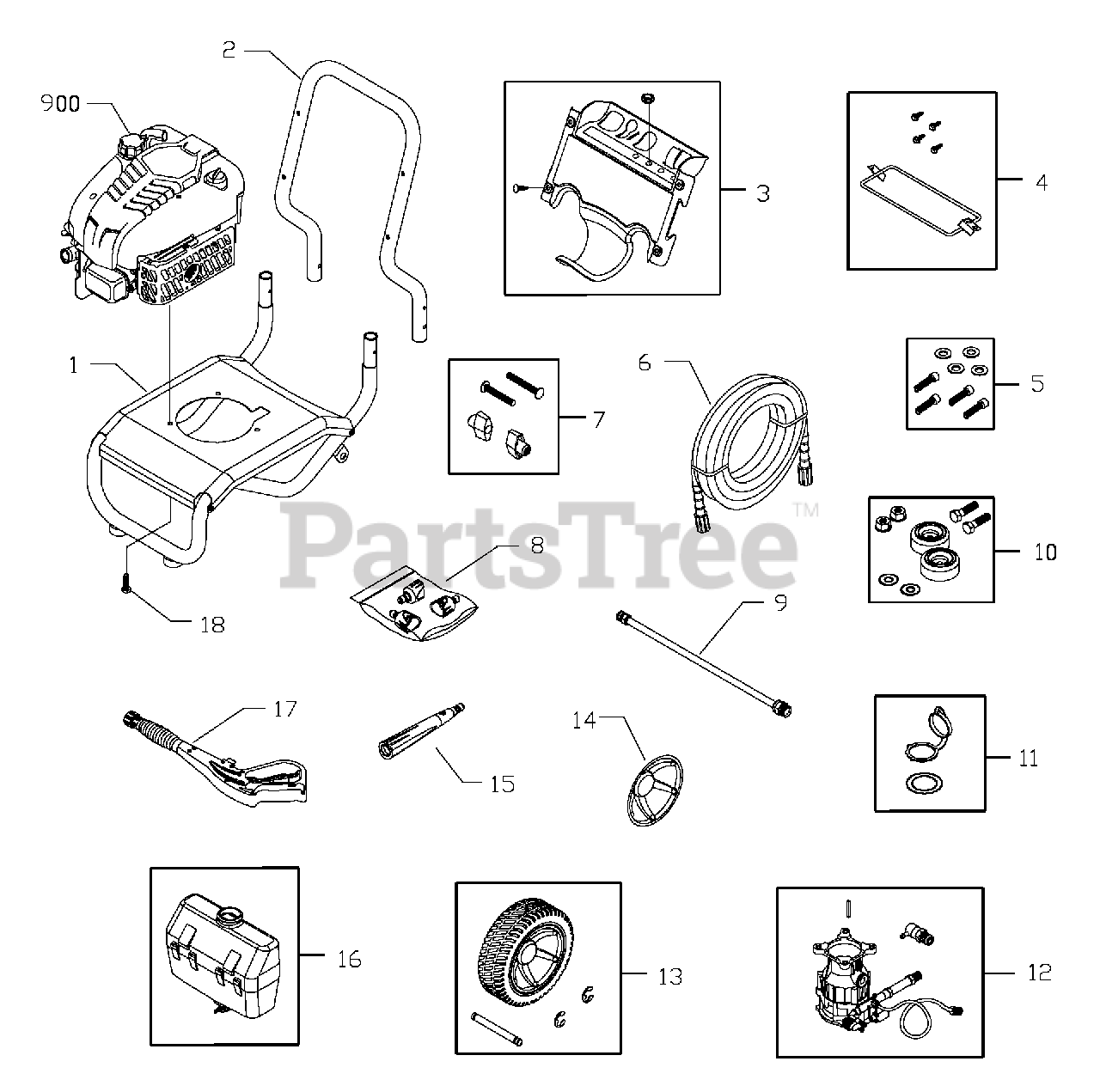

580.752140 (020284-0) - Craftsman 3,000 PSI Pressure Washer Main Unit Parts Diagram

3,000 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 202947GS

ASSY, Base

$

$

Not available

2

Briggs & Stratton B196526GS

HANDLE

$110.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 202948GS

ASSY, Billboard/Decals with Clips

$61.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195964GS

Clip, Tree

$4.99

$

In Stock, only 2 left!

0

Briggs & Stratton 30809GS

Grommet

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 197480GS

KIT, Wireform

$40.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 192131GS

KIT, Pump Mounting Hardware

$6.49

$

In Stock, only 2 left!

0

6

Briggs & Stratton 196138GS

HOSE
(Superseded to 709464)

$86.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.99

$

In Stock, Qty 9

0

8

Briggs & Stratton 201758GS

KIT, Nozzle

$36.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 201580RGS

Nozzle, QC,Project Pro, Yellow
(Superseded to 195983RGS)

$11.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 201580XGS

Nozzle, QC, Project Pro, Orange
(Superseded to 195983XGS)

$11.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 201580AAGS

Nozzle, QC, Project Pro, Red
(Superseded to 195983AAGS)

$11.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 190779GS

ASSY, Extension
(Superseded to 706595)

$50.99

$

In Stock, Qty 5

0

10

Briggs & Stratton 192310GS

KIT, Vibration Mount

$10.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 199955GS

KIT, Cap Chem

$6.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 198164GS

ASSY, Pump
(Superseded to 206376GS)

Note: (see "Pump")

$408.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$15.99

$

In Stock, Qty 17

0

Briggs & Stratton 23139DGS

Key

$4.99

$

In Stock, only 2 left!

0

13

Briggs & Stratton 202949GS

KIT, Wheel

$

$

Not available

13

Briggs & Stratton 195454GS

Axle

$12.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 192050GS

E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

14

Briggs & Stratton 200517GS

CAP, Hub

$17.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 198423GS

ASSY, Nozzle, Foaming

$

$

Not available

16

Briggs & Stratton 199229GS

ASSY, Tank, Chem

$

$

Not available

Briggs & Stratton 192980GS

Kit, Valve

$18.99

$

In Stock, Qty 20+

0

17

Briggs & Stratton 199117GS

GUN
(Superseded to 704312)

$99.99

$

In Stock, only 4 left!

0

18

Briggs & Stratton 75246GS

HHS, Trilobular, 3/8-16 x 1-1/4

$4.49

$

Usually ships in 2-12 days

0

900

NSP

ENGINE (12S512-0119-E1)

$

$

Not available

Briggs & Stratton 194256GS

KIT, Tag Warning w/Clip
(Superseded to 705752)

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199462GS

BOTTLE, Cncntrt, Hydro Foam

Note: Not Illustrated

$33.99

$

Usually ships in 2-12 days

0

Briggs & Stratton A1040NGS

HOSE, Chemical

Note: Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 87815GS

GOGGLES

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 202735GS

MANUAL, Operator's

Note: Not Illustrated

$

$

Not available

Briggs & Stratton AB3061BGS

OIL BOTTLE

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 275034

LABEL, Warning

Note: Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessory, Not Illustrated

$17.99

$

In Stock, only 2 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessory, Not Illustrated

$42.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175124GS

Rotating Brush Kit

Note: Optional Accessory, Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175122GS

30' Replacement Hose

Note: Optional Accessory, Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessory, Not Illustrated

$19.99

$

In Stock, Qty 20+

0

Briggs & Stratton 7175129GS

Turbo Nozzle

Note: Optional Accessory, Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175121GS

25' Extension Hose

Note: Optional Accessory, Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessory, Not Illustrated

$78.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessory, Not Illustrated

$12.99

$

In Stock, Qty 20+

0

Briggs & Stratton 6092

WASH, Hydro Foam(TM)

Note: Optional Accessory, Not Illustrated

$

$

Not available

Briggs & Stratton 6135

KIT, Hydro Foam(TM) Launcher & Wash

Note: Optional Accessory, Not Illustrated

$

$

Not available

Briggs & Stratton 7174300GS

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: Optional Accessory, Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate (makes 2 gallons)
(Superseded to 100524GS)

Note: Optional Accessory, Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: Optional Accessory, Not Illustrated

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: Optional Accessory, Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate (makes 2 gallons)
(Superseded to 6160)

Note: Optional Accessory, Not Illustrated

$

$

Not available
