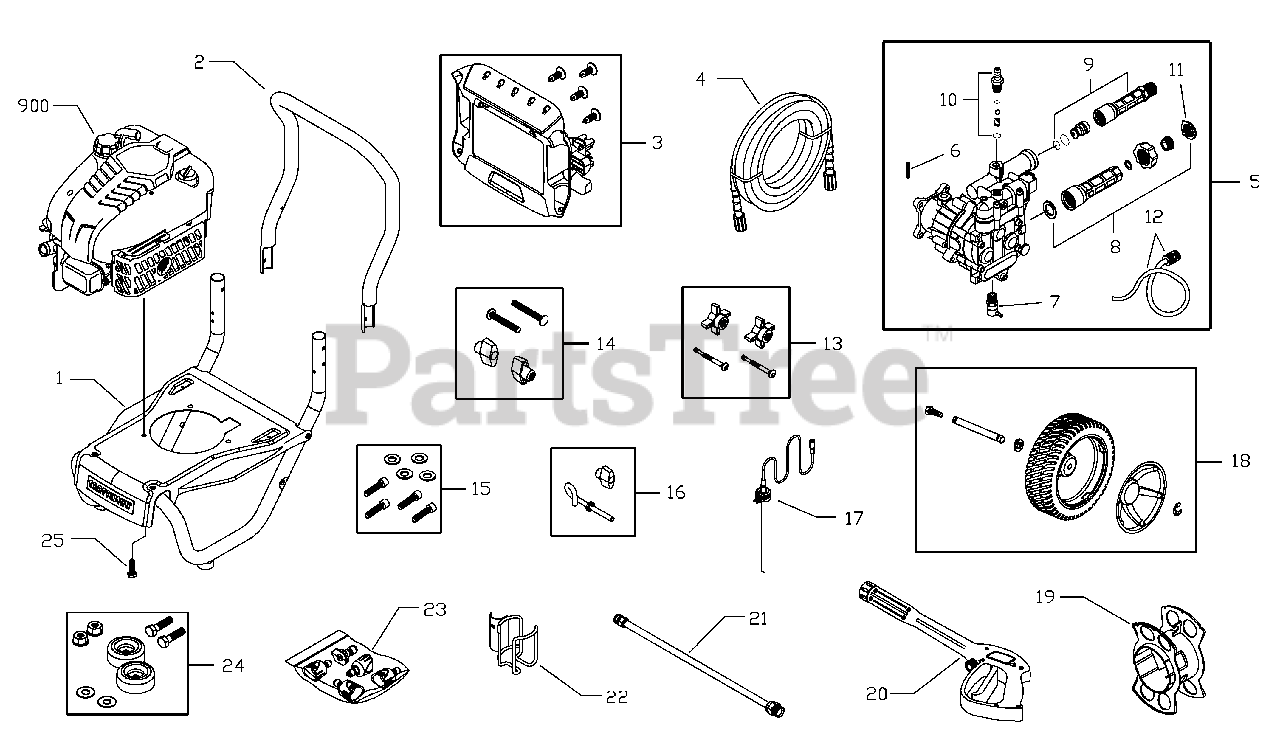

580.752211 (020355-1) - Craftsman 3,000 PSI Pressure Washer Main Unit Parts Diagram

3,000 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 205961GS

Base, w/Vib Mounts
(Superseded to 703860)

$421.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B204257GS

Handle

$62.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 205963GS

Kit, Billboard w/Clips & Decals

$71.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195964GS

Clips, Tree

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 205291GS

Hose
(Superseded to 202017GS)

$

$

Not available

5

Briggs & Stratton 206376GS

Assy, Pump

$385.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 23139DGS

Key

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 17

0

8

Briggs & Stratton 206374GS

Kit, Water Inlet

$23.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 206375GS

Kit, Outlet

$120.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 190593GS

Kit, Chemical Injection

$

$

Not available

11

Briggs & Stratton B2384GS

Filter, Inlet

$4.49

$

In Stock, only 3 left!

0

12

Briggs & Stratton 189971GS

Kit, Chemical Hose

$

$

Not available

13

Briggs & Stratton 205910GS

Kit, Handle

$22.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B2203GS

Kit, Handle

$5.49

$

In Stock, only 2 left!

0

15

Briggs & Stratton 192131GS

Kit, Pump Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 205912GS

Kit, Rope Guide

$4.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 204658GS

Hose, Chemical

$30.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 205964GS

Kit, Wheel

$

$

Not available

Briggs & Stratton 192050GS

E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

Briggs & Stratton 200517GS

Hubcap

$16.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 205413GS

Axle
(Superseded to 312393GS)

$40.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 204684GS

Wrap, Hose

$34.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 204627GS

Gun
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 200595GS

Extension, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

22

Briggs & Stratton 204484GS

Wireform
(Superseded to 206566GS)

$27.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 205710GS

Kit, Nozzles

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 198841GS

Nozzle, Soap

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 201580AWGS

Nozzle, Project Pro, Cyn
(Superseded to 195983APGS)

$11.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 201580AXGS

Nozzle, Project Pro, Mgnta
(Superseded to 706155)

$11.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 201580XGS

Nozzle, Project Pro, Orng
(Superseded to 195983XGS)

$10.99

$

In Stock, Qty 5

0

Briggs & Stratton 201580AAGS

Nozzle, Project Pro, Red
(Superseded to 195983AAGS)

$10.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 192310GS

Kit, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 75246GS

Hhs, Trilobular, 3/8-16 x 1-1/4

$3.99

$

Usually ships in 2-12 days

0

900

NSP

Engine

Note: 12S512-0119-B1 See Pages 26-29

$

$

Not available

Briggs & Stratton 206339GS

Manual, Operator's

Note: Items Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061BGS

Oil Bottle

Note: Items Not Illustrated

$

$

Not available

Briggs & Stratton 792342

Cover, Static

Note: Items Not Illustrated

$80.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 202712GS

Decal, Recoil

Note: Items Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 202713GS

Label, Torquepower

Note: Items Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 189332GS

Cap, Plug

Note: Items Not Illustrated

$3.99

$

In Stock, only 2 left!

0

Briggs & Stratton 100092

Cartridge, Fresh Start

Note: Items Not Illustrated

$

$

Currently unavailable

Murray 794693

Label, Warning

Note: Items Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 87815GS

Goggles

Note: Items Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194256GS

Kit, Tag/Warning, Srv
(Superseded to 705752)

Note: Items Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessories Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessories Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175124GS

Rotating Brush Kit

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175122GS

30' Replacement Hose

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessories Not Illustrated

$18.99

$

In Stock, only 3 left!

0

Briggs & Stratton 7175129GS

Turbo Nozzle

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175121GS

25' Extension Hose

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessories Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessories Not Illustrated

$12.99

$

In Stock, only 2 left!

0

Briggs & Stratton 6159

Project Pro® PerfectMix™ Multi-Purpose And Vehicle Cleaner

Note: Optional Accessories Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6160

Project Pro® PerfectMix™ Concrete, Brick, And Tile Cleaner

Note: Optional Accessories Not Illustrated

$

$

Not available

Briggs & Stratton 6161

Project Pro® PerfectMix™ Mold And Mildew Cleaner

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable
