580.752280 (020370-0) - Craftsman 2,700 PSI Pressure Washer Main Unit Parts Diagram

2,700 PSI Pressure Washer

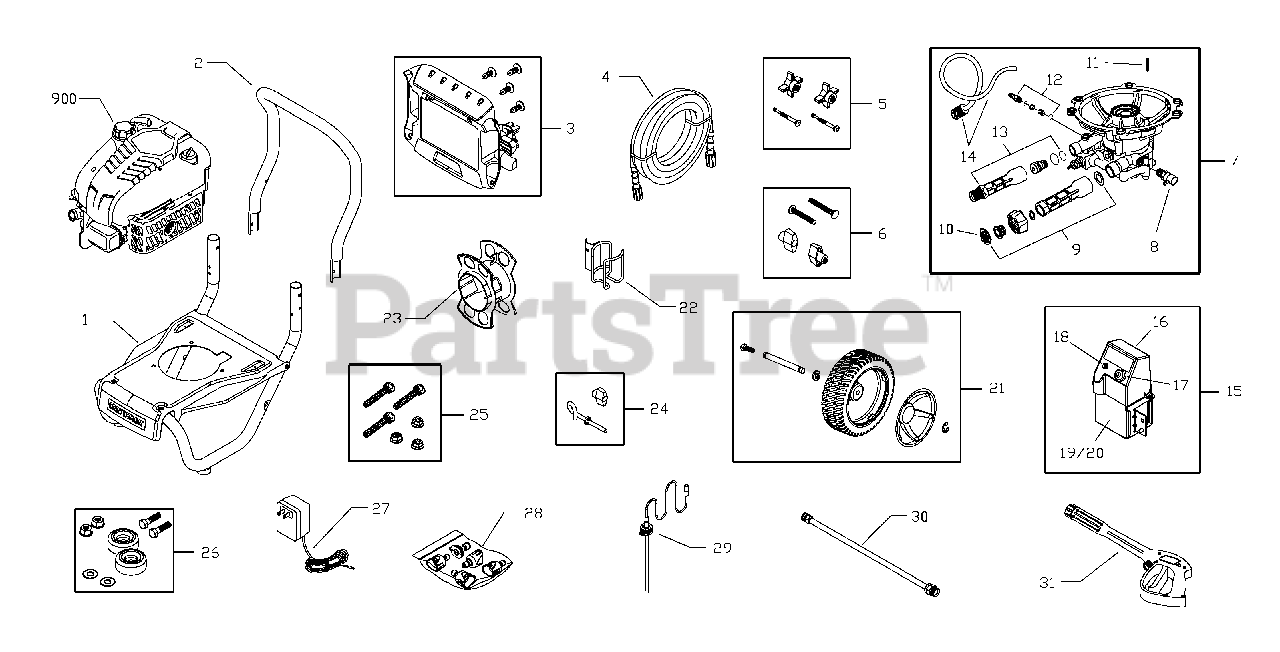

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 205961GS

Base, w/Vib Mounts
(Superseded to 703860)

$421.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton B204257GS

Handle

$62.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 206606GS

Kit, Billboard w/Clips & Decals

$46.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 195964GS

Clips, Tree

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 205290GS

Hose
(Superseded to 708962)

$

$

Not available

5

Briggs & Stratton 205910GS

Kit, Handle

$22.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B2203GS

Kit, Handle

$5.49

$

In Stock, only 2 left!

0

7

Briggs & Stratton 205816GS

Assy, Pump
(Superseded to 706386)

Note: (NLA - Please order 706386)

$328.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 13

0

9

Briggs & Stratton 206374GS

Kit, Water Inlet

$23.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton B2384GS

Filter, Inlet

$4.49

$

In Stock, only 3 left!

0

11

Briggs & Stratton 23139GS

Key

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 190593GS

Kit, Chemical Injection

$

$

Not available

13

Briggs & Stratton 206375GS

Kit, Water Outlet

$120.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 189971GS

Kit, Chemical Hose/Filter

$

$

Not available

15

Briggs & Stratton 206382GS

Assy, Battery Electric Start

$

$

Not available

16

Briggs & Stratton 206292GS

Switch Cover
(Superseded to 206382GS)

Note: (Includes Items 17 & 18)

$

$

Not available

17

Briggs & Stratton 690646

Switch, Key

$34.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 206272GS

Coaxial Jack, DC

$25.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 186133GS

Cap, Battery Charge

$6.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 205949GS

Weldment, Battery Holder

$

$

Not available

20

Briggs & Stratton 206295GS

Battery
(Superseded to 206382GS)

$

$

Not available

21

Briggs & Stratton 205964GS

Kit, Wheel

$

$

Not available

--

Briggs & Stratton 192050GS

E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

--

Briggs & Stratton 200517GS

Hubcap

$16.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 205413GS

Axle
(Superseded to 312393GS)

$40.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 204484GS

Wireform
(Superseded to 206566GS)

$27.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 204684GS

Wrap, Hose

$34.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 205912GS

Kit, Rope Guide

$4.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 192529GS

Kit, Pump Mounting Hardware

$6.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 192310GS

Kit, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

27

Briggs & Stratton B4177GS

Charger, Battery
(Superseded to 705927)

$38.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 205710GS

Kit, Nozzles

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 198841GS

Nozzle, Soap

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 201580AWGS

Nozzle, Project Pro, Cyn
(Superseded to 195983APGS)

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 201580AXGS

Nozzle, Project Pro, Mgnta
(Superseded to 706155)

$11.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 201580XGS

Nozzle, Project Pro, Orng
(Superseded to 195983XGS)

$10.99

$

In Stock, Qty 5

0

--

Briggs & Stratton 201580AAGS

Nozzle, Project Pro, Red
(Superseded to 195983AAGS)

$10.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 204658GS

Hose, Chemical

$30.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 200595GS

Extension, QC
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

31

Briggs & Stratton 204627GS

Gun
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 706386

PUMP

$328.99

$

Usually ships in 2-12 days

0

900

-----

Engine

Note: (12R605-0116-F1)

$

$

Not available

--

Briggs & Stratton AB3061BGS

Oil Bottle

Note: (Not Illustrated)

$

$

Not available

--

Briggs & Stratton 206013GS

Cover, Static

Note: (Not Illustrated)

$

$

Currently unavailable

--

Briggs & Stratton 202712GS

Decal, Recoil

Note: (Not Illustrated)

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 206056GS

Decal, Shroud

Note: (Not Illustrated)

$26.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 189332GS

Cap, Plug

Note: (Not Illustrated)

$3.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 691959

Key, Ignition

Note: (Not Illustrated)

$7.99

$

In Stock, Qty 9

0

--

Murray 794693

Label, Warning

Note: (Not Illustrated)

$10.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 87815GS

Goggles

Note: (Not Illustrated)

$12.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 194256GS

Kit, Tag/Warning, Srv
(Superseded to 705752)

Note: (Not Illustrated)

$3.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: (Optional Accessory - Not Included)

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: (Optional Accessory - Not Included)

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175124GS

Rotating Brush Kit

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 7175122GS

30' Replacement Hose

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: (Optional Accessory - Not Included)

$18.99

$

In Stock, Qty 7

0

--

Briggs & Stratton 7175129GS

Turbo Nozzle

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 7175121GS

25' Extension Hose

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable

--

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: (Optional Accessory - Not Included)

$74.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6039

Pump Saver

Note: (Optional Accessory - Not Included)

$12.99

$

In Stock, only 2 left!

0

--

Briggs & Stratton 6159

Project Pro(R) Perfectmix™ Multi-Purpose And Vehicle Cleaner

Note: (Optional Accessory - Not Included)

$9.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 6160

Project Pro(R) Perfectmix™ Concrete, Brick, And Tile Cleaner

Note: (Optional Accessory - Not Included)

$

$

Not available

--

Briggs & Stratton 6161

Project Pro(R) Perfectmix™ Mold And Mildew Cleaner

Note: (Optional Accessory - Not Included)

$

$

Currently unavailable
