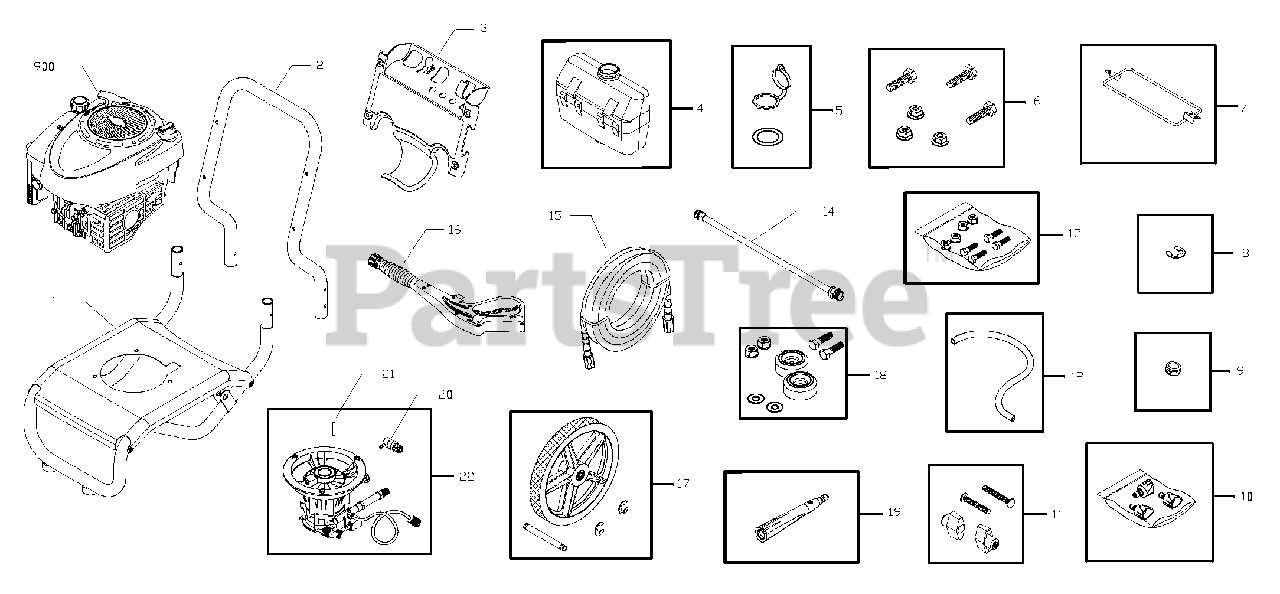

580.752352 (020267-2) - Craftsman 2,500 PSI Pressure Washer Main Unit Parts Diagram

2,500 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 196811GS

ASSY, Base

$

$

Not available

2

Briggs & Stratton M196526GS

HANDLE

$110.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 199944GS

ASSY, Billboard

$47.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195964GS

Clips, Tree

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 199229GS

ASSY, Chemical Tank

$73.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 192980GS

KIT, Valve

$17.99

$

In Stock, Qty 20+

0

5

Briggs & Stratton 199955GS

KIT, Chem Cap with Tag

$6.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192645GS

KIT, Engine/Pump Mounting Hardware

$9.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 195085GS

WIREFORM

$31.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 199388GS

KIT, Nozzles
(Superseded to 204971GS)

$35.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 195842AEGS

Nozzle, QC, Proj Pro, Red
(Superseded to 195983AEGS)

$10.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 195842XGS

Nozzle, QC, Proj Pro, Orange
(Superseded to 201580XGS)

$10.99

$

In Stock, Qty 5

0

10

Briggs & Stratton 195842RGS

Nozzle, QC, Proj Pro, Yellow
(Superseded to 201580RGS)

$11.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 2 left!

0

12

Briggs & Stratton A1040NGS

HOSE, Chemical, 24"

$12.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 194627GS

KIT, Wireform Hardware

$5.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 190779GS

ASSY, Extension
(Superseded to 706595)

$47.99

$

In Stock, Qty 9

0

15

Briggs & Stratton 196138GS

HOSE, 30'
(Superseded to 709464)

$81.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 199117GS

GUN
(Superseded to 704312)

$93.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 196439GS

KIT, Wheel

$75.99

$

In Stock, Qty 5

0

18

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

19

Briggs & Stratton 198423GS

ASSY, Nozzle Foaming

$

$

Not available

20

Briggs & Stratton 194298GS

VALVE, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 16

0

21

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 199735GS

ASSY, Pump (see pages 26-27)
(Superseded to 207365GS)

$234.99

$

In Stock, only 2 left!

0

900

NSP

ENGINE (122K02-0169-E1)

$

$

Not available

Briggs & Stratton 199576GS

MANUAL, Operator's

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061BGS

OIL BOTTLE

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 199462GS

BOTTLE, Concentrate, Hyro-Foam

Note: Not Illustrated

$33.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194256GS

KIT, Tag Warning, Srv
(Superseded to 705752)

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 87815GS

GOGGLES

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessories; Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessories; Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175124GS

Rotating Brush Kit

Note: Optional Accessories; Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175122GS

30' Replacement Hose

Note: Optional Accessories; Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessories; Not Illustrated

$18.99

$

In Stock, only 3 left!

0

Briggs & Stratton 7175129GS

Turbo Nozzle

Note: Optional Accessories; Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7175121GS

25' Extension Hose

Note: Optional Accessories; Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessories; Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessories; Not Illustrated

$12.99

$

In Stock, only 2 left!

0

Briggs & Stratton 6092

WASH, Hydro Foam™

Note: Optional Accessories; Not Illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 6135

KIT, Hydro Foam™ Launcher & Wash

Note: Optional Accessories; Not Illustrated

$22.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174300GS

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: Optional Accessories; Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate (makes 2 gallons)
(Superseded to 100524GS)

Note: Optional Accessories; Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: Optional Accessories; Not Illustrated

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: Optional Accessories; Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate (makes 2 gallons)
(Superseded to 6160)

Note: Optional Accessories; Not Illustrated

$

$

Not available
