580.752360 (020360-0) - Craftsman 3,000 PSI Pressure Washer Pump Parts Diagram

3,000 PSI Pressure Washer

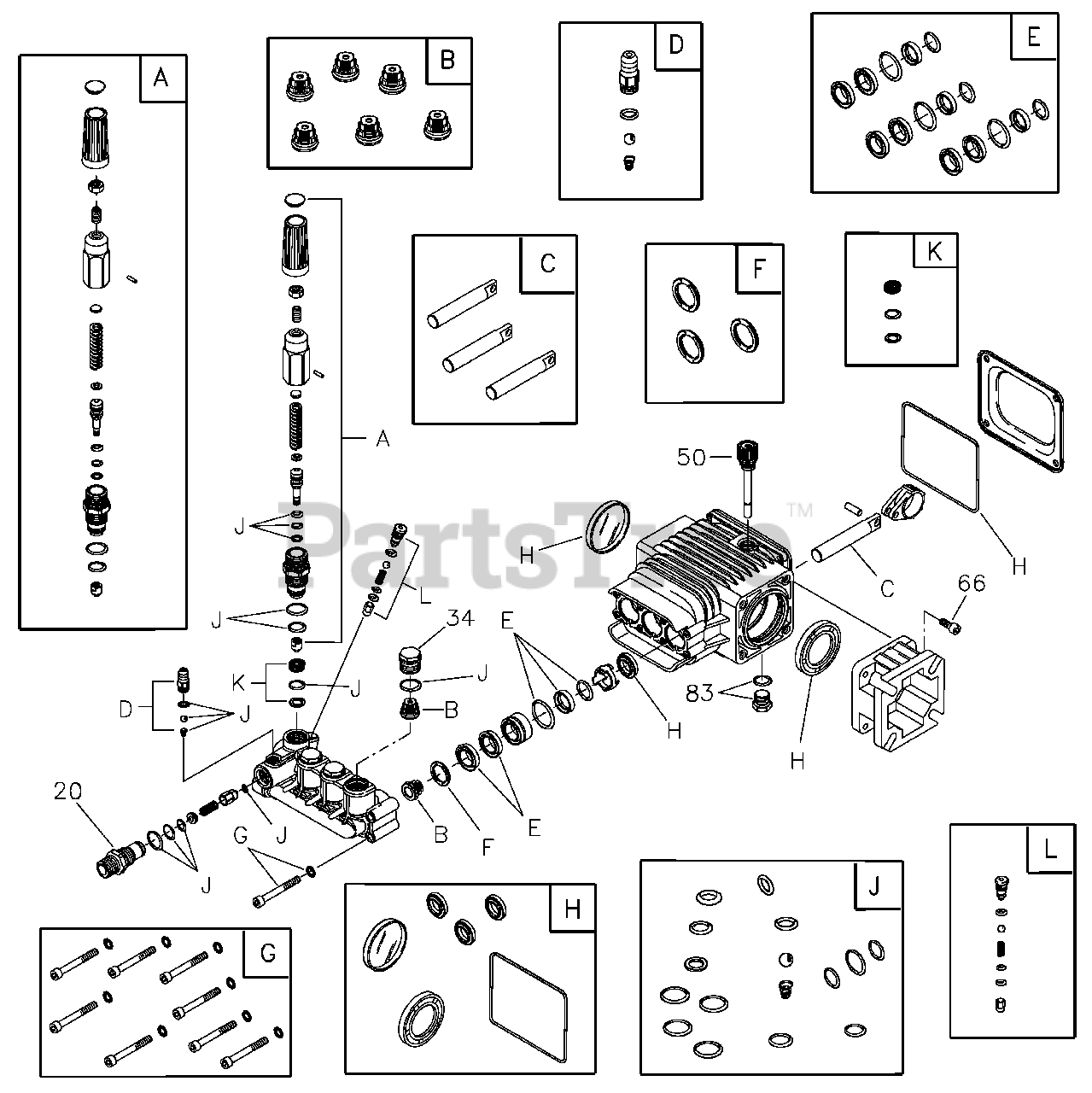

Pump Parts Diagram

  • Title

20

Briggs & Stratton 198851GS

INJTR, Detergent 3/8 NPT

$45.99

$

In Stock, Qty 10

0

34

Briggs & Stratton 198850GS

Plug

$20.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 198849GS

Cap, Oil Dipstick

$33.99

$

In Stock, only 1 left!

0

66

Briggs & Stratton 198297GS

Screw, M8 x 20

$9.49

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 203034GS

Kit, Drain Plug

$14.99

$

Usually ships in 2-12 days

0

A

Briggs & Stratton 198736GS

Kit, Unloader

Note: Service kits and include all parts shown within the box.

$134.99

$

In Stock, Qty 8

0

B

Briggs & Stratton 198843GS

Kit, Valves

Note: Service kits and include all parts shown within the box.

$86.99

$

Usually ships in 2-12 days

0

C

Briggs & Stratton 198844GS

Kit, Piston

Note: Service kits and include all parts shown within the box.

$286.99

$

In Stock, only 1 left!

0

D

Briggs & Stratton 192914GS

Kit, Hose Tail

Note: Service kits and include all parts shown within the box.

$24.99

$

In Stock, only 4 left!

0

E

Briggs & Stratton 198845GS

Kit, Water Seals

Note: Service kits and include all parts shown within the box.

$164.99

$

Usually ships in 2-12 days

0

F

Briggs & Stratton 198848GS

Kit, Support Ring

Note: Service kits and include all parts shown within the box.

$13.99

$

Usually ships in 2-12 days

0

G

Briggs & Stratton 198852GS

Kit, Pump Head Hardware

Note: Service kits and include all parts shown within the box.

$33.99

$

In Stock, only 1 left!

0

H

Briggs & Stratton 198846GS

Kit, Oil Seals

Note: Service kits and include all parts shown within the box.

$101.99

$

Usually ships in 2-12 days

0

J

Briggs & Stratton 198847GS

Kit, O-Rings

Note: Service kits and include all parts shown within the box.

$26.99

$

In Stock, only 1 left!

0

K

Briggs & Stratton 202902GS

Kit, Seat

Note: Service kits and include all parts shown within the box.

$152.99

$

Usually ships in 2-12 days

0

L

Briggs & Stratton 202800GS

Kit, EZ Start

Note: Service kits and include all parts shown within the box.

$69.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B2384GS

Filter, Inlet

Note: Parts Not Illustrated

$4.49

$

In Stock, only 4 left!

0

Briggs & Stratton 194298GS

Valve, Thermal Relief
(Superseded to 208673GS)

Note: Parts Not Illustrated

$14.99

$

In Stock, Qty 13

0

Briggs & Stratton 6039

Pump Saver

Note: Optional Accessories

$12.99

$

In Stock, only 2 left!

0

Briggs & Stratton 6033

Oil Bottle, Pump

Note: Optional Accessories

$24.99

$

Usually ships in 2-12 days

0
