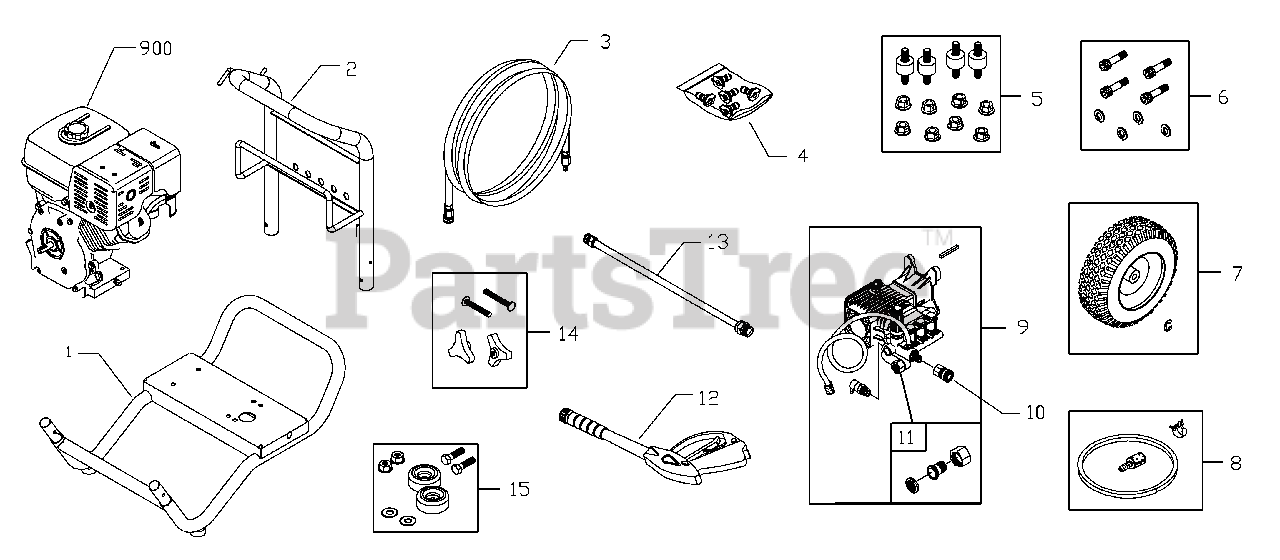

580.752380 (020361-0) - Craftsman 3,800 PSI Pressure Washer Main Unit Parts Diagram

3,800 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 206055GS

Base, w/Mounts
(Superseded to 313328GS)

$401.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton AD201457GS

Handle

$186.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 205734GS

Hose

$168.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 196233GS

Kit, Spray Tips
(Superseded to 207491GS)

$45.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195983AGS

Nozzle, QC, Red

$11.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195983BGS

Nozzle, QC, Yellow

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195983CGS

Nozzle, QC, Green

$12.99

$

In Stock, only 1 left!

0

Briggs & Stratton 195983DGS

Nozzle, QC, White

$12.99

$

In Stock, only 1 left!

0

Briggs & Stratton 195846ZZGS

Nozzle, QC, Black

$12.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 195294GS

Kit, Engine Mounting Hardware

$25.99

$

In Stock, only 2 left!

0

6

Briggs & Stratton 192132GS

Kit, Pump Mounting Hardware

$16.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 194411GS

Kit, Wheel

$

$

Not available

Briggs & Stratton 191265GS

E-Ring
(Superseded to 703977)

$4.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 192796GS

Kit, Chemical Hose/Filter

$17.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 199311GS

Assy, Pump
(Superseded to 203046GS)

Note: See Page 25

$775.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194298GS

Thermal Relief
(Superseded to 208673GS)

$15.99

$

In Stock, Qty 12

0

Briggs & Stratton 23139DGS

Key

$4.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 95458GS

Fitting, Quick Connect
(Superseded to 703824)

$

$

Not available

11

Briggs & Stratton 199310GS

Kit, Garden Hose Inlet

$13.99

$

In Stock, only 4 left!

0

12

Briggs & Stratton 199956GS

Gun
(Superseded to 704311)

$122.99

$

In Stock, only 3 left!

0

13

Briggs & Stratton 193814GS

Assy, Wand, QC
(Superseded to 707471)

$66.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 203040GS

Kit, Handle Fastening

$6.99

$

In Stock, Qty 7

0

15

Briggs & Stratton 192310GS

Kit, Vibration Mount

$10.99

$

In Stock, only 3 left!

0

900

NSP

Engine

Note: GX390UT1 See Pages 26-31

$

$

Not available

Briggs & Stratton 191267RGS

Axle

Note: Items Not Illustrated

$47.99

$

In Stock, only 1 left!

0

Briggs & Stratton 205732GS

Manual, Operator's

Note: Items Not Illustrated

$

$

Not available

Briggs & Stratton 30809GS

Grommet

Note: Items Not Illustrated

$4.49

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061BGS

Oil Bottle

Note: Items Not Illustrated

$

$

Not available

Briggs & Stratton 87815GS

Goggles

Note: Items Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194355GS

Decal, Eng Slow/Fast

Note: Items Not Illustrated

$15.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 199571GS

Decal, Choke

Note: Items Not Illustrated

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 205687GS

Decal, Shroud

Note: Items Not Illustrated

$15.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 202057GS

Decal, Cvr, Air Cleaner

Note: Items Not Illustrated

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194256GS

Kit, Tag, Warning, Srv
(Superseded to 705752)

Note: Items Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessories

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessories

$42.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175199GS

Rotating Brush Kit

Note: Optional Accessories

$

$

Not available

Briggs & Stratton 190249GS

25' Replacement Hose
(Superseded to 708962)

Note: Optional Accessories

$

$

Not available

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessories

$19.99

$

In Stock, Qty 20+

0

Briggs & Stratton 7174400GS

Turbo Nozzle

Note: Optional Accessories

$

$

Not available

Briggs & Stratton 100513GS

Extension Hose, 25'
(Superseded to 206192GS)

Note: Optional Accessories

$

$

Not available

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessories

$78.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174300GS

House Wash Concentrate
(Superseded to 6159)

Note: Makes 4 Gallons Optional Accessories

$8.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate
(Superseded to 100524GS)

Note: Makes 2 Gallons Optional Accessories

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle/Boat Wash Concentrate
(Superseded to 6160)

Note: Makes 4 Gallons Optional Accessories

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate
(Superseded to 100526GS)

Note: Makes 4 Gallons Optional Accessories

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate
(Superseded to 6160)

Note: Makes 2 Gallons Optional Accessories

$

$

Not available
