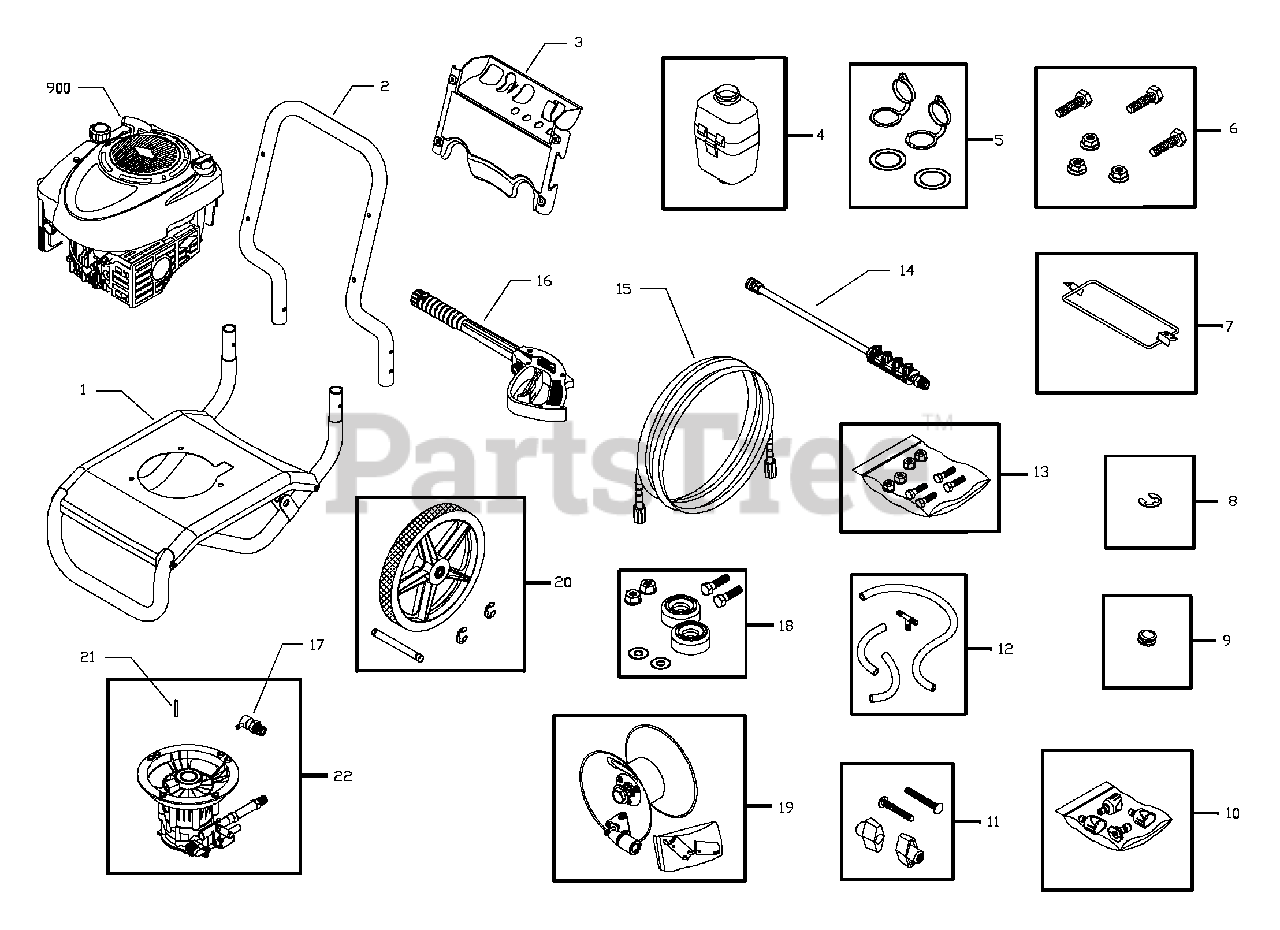

580.752710 (020234-0) - Craftsman 2,550 PSI Pressure Washer Main Unit Parts Diagram

2,550 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 196811GS

ASSY, Base

$

$

Not available

2

Briggs & Stratton M196526GS

HANDLE

$110.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 196812GS

ASSY, Billboard

$58.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195964GS

Clip, Tree

$4.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 195190GS

ASSY, Chemical Tank, Snap On

$27.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 196843GS

KIT, Chem Caps with Tags

$10.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192645GS

KIT, Engine/Pump Mounting Hardware

$9.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 195085GS

WIREFORM

$31.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 192050GS

KIT, E-Ring
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

9

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 195943GS

KIT, Nozzles

$48.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 195851ZZGS

NOZZLE, QC, Black
(Superseded to 195846ZZGS)

$11.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 196621AEGS

NOZZLE, QC, Proj Pro, Red
(Superseded to 195983AEGS)

$10.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 196621XGS

NOZZLE, QC, Proj Pro, Orange
(Superseded to 201580XGS)

$10.99

$

In Stock, Qty 5

0

10

Briggs & Stratton 196621RGS

NOZZLE, QC, Proj Pro, Yellow
(Superseded to 201580RGS)

$11.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 2 left!

0

12

Briggs & Stratton 196813GS

KIT, Chemical Hoses

$9.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 194627GS

KIT, Wireform Hardware

$5.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 192199GS

ASSY, Extension. QC
(Superseded to 207796GS)

$53.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 196138GS

HOSE
(Superseded to 709464)

$81.99

$

In Stock, only 1 left!

0

16

Briggs & Stratton 193482GS

GUN
(Superseded to 708807)

$74.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 194298GS

VALVE, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 16

0

18

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, only 4 left!

0

19

Briggs & Stratton 192648GS

ASSY, Hose Reel

$74.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 196439GS

KIT, Wheel

$75.99

$

In Stock, Qty 5

0

21

Briggs & Stratton 23139GS

KEY

$4.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 198421GS

ASSY, Pump

Note: (see "Pump")

$328.99

$

Usually ships in 2-12 days

0

900

NSP

ENGINE (125K02-0137-E1)

$

$

Not available

Briggs & Stratton 196294GS

MANUAL, Owners

Note: Not illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061BGS

OIL BOTTLE

Note: Not illustrated

$

$

Not available

Briggs & Stratton 195015GS

KIT, Tag Warning, Srv

Note: Not illustrated

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 87815GS

GOGGLES

Note: Not illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessories Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessories Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175199GS

Rotating Brush Kit

Note: Optional Accessories Not Illustrated

$82.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 190249GS

25' Replacement Hose
(Superseded to 708962)

Note: Optional Accessories Not Illustrated

$

$

Not available

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessories Not Illustrated

$18.99

$

In Stock, only 3 left!

0

Briggs & Stratton 7174400GS

Turbo Nozzle

Note: Optional Accessories Not Illustrated

$52.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100513GS

Extension Hose, 25'
(Superseded to 206192GS)

Note: Optional Accessories Not Illustrated

$103.99

$

In Stock, only 2 left!

0

Briggs & Stratton 7174403GS

Pump Saver
(Superseded to 6151)

Note: Optional Accessories Not Illustrated

$21.99

$

In Stock, only 2 left!

0

Briggs & Stratton 7174300GS

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: Optional Accessories Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate (makes 2 gallons)
(Superseded to 100524GS)

Note: Optional Accessories Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: Optional Accessories Not Illustrated

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: Optional Accessories Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate (makes 2 gallons)
(Superseded to 6160)

Note: Optional Accessories Not Illustrated

$

$

Not available
