580.752810 (020236-0) - Craftsman 2,900 PSI Pressure Washer Main Unit Parts Diagram

2,900 PSI Pressure Washer

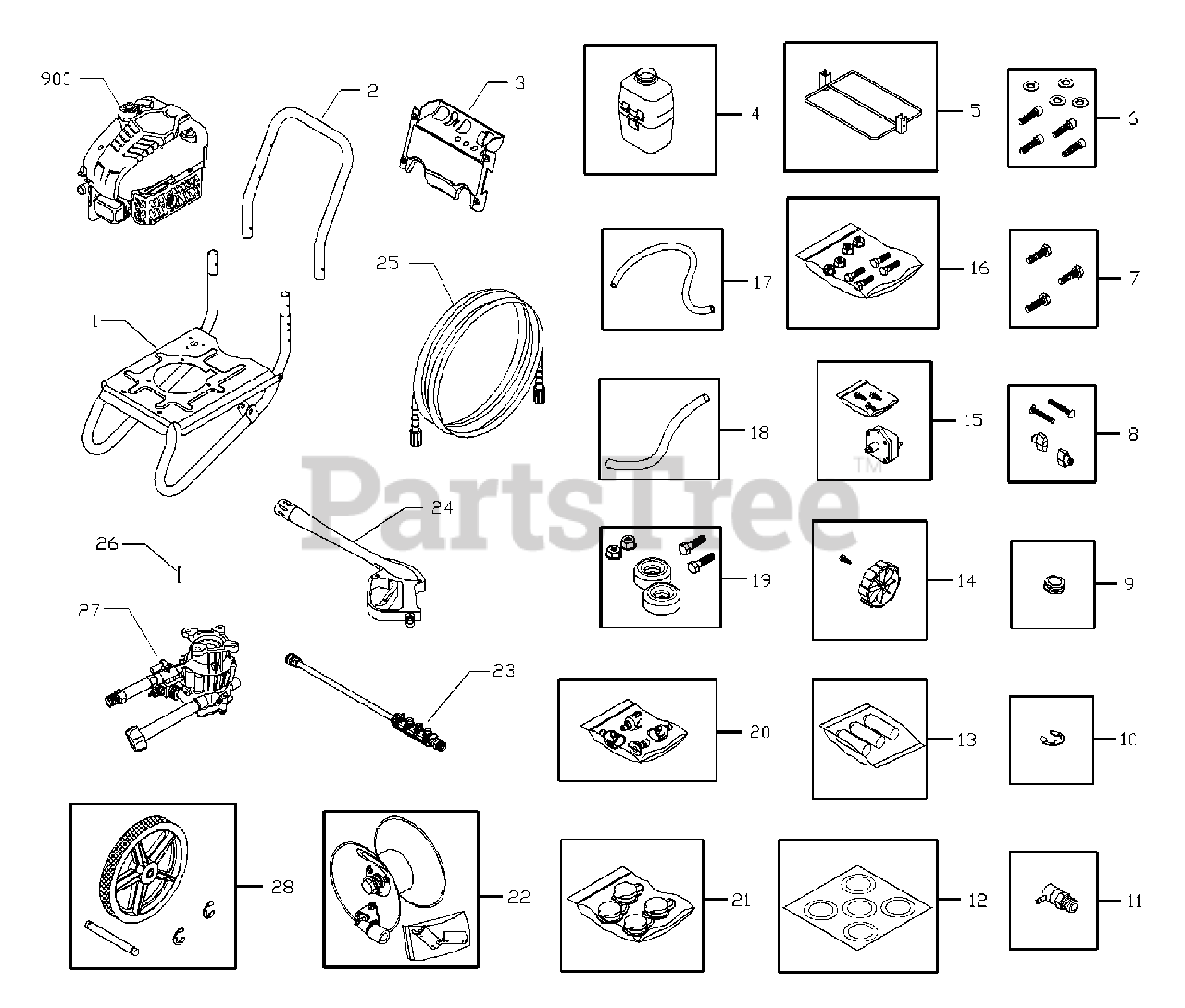

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 196948GS

ASSY, Base

$108.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton M194122GS

HANDLE

$65.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 196949GS

ASSY, Billboard w/Clips

$45.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 195964GS

Clip, Tree

$4.99

$

In Stock, only 1 left!

0

4

Briggs & Stratton 195189GS

ASSY, Chemical Tank

$18.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 195026GS

WIREFORM

$55.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 192131GS

KIT, Pump Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 192133GS

KIT, Engine Mounting Hardware

$5.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2203GS

KIT, Handle Connector

$5.49

$

In Stock, only 3 left!

0

9

Briggs & Stratton 30809GS

GROMMET

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 192050GS

E-RING
(Superseded to 703976)

$4.49

$

In Stock, Qty 20+

0

11

Briggs & Stratton 194298GS

VALVE, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 15

0

12

Briggs & Stratton 192961GS

LABEL TAGS, 1 sheet Chemical Tank

$19.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 192149GS

KIT, Concentrate, 3 Bottle

$29.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 194063GS

KIT, Knob, 4-Way Valve

$10.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 194064GS

KIT, Subassy, Valve 4-way

$17.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 194627GS

KIT, Wireform Hardware

$5.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B3577HGS

HOSE, Subassy.(cut to length)

$10.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton A1040JGS

HOSE, Chemical 18"

$13.99

$

In Stock, only 1 left!

0

19

Briggs & Stratton 192310GS

KIT, Vibration Mount

$9.99

$

In Stock, Qty 5

0

20

Briggs & Stratton 195889GS

KIT, Nozzles
(Superseded to 202182GS)

$31.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 195851ZZGS

NOZZLE, QC, Black
(Superseded to 195846ZZGS)

$11.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 195842AAGS

NOZZLE, QC, Red
(Superseded to 201580AAGS)

$10.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 195842XGS

NOZZLE, QC, Orange
(Superseded to 201580XGS)

$10.99

$

In Stock, Qty 5

0

20

Briggs & Stratton 195842RGS

NOZZLE, QC, Yellow
(Superseded to 201580RGS)

$11.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 194076GS

KIT, Caps, Chemical Containers

$14.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 192648GS

ASSY, Hose Reel

$74.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 192199GS

ASSY, Extension, w/ Nozzle Holder
(Superseded to 207796GS)

$53.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton B3263GS

GUN

$93.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 196138GS

HOSE
(Superseded to 709464)

$81.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 23139DGS

KEY

$4.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 194059GS

ASSY, Pump
(Superseded to 206376GS)

Note: (see "Pump")

$385.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 196439GS

KIT, Wheel

$75.99

$

In Stock, Qty 5

0

900

NSP

ENGINE (129612-0114-E1)

$

$

Not available

Briggs & Stratton AB3061BGS

OIL BOTTLE

Note: Not Illustrated

$

$

Not available

Briggs & Stratton 196338GS

MANUAL, Owners

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 194256GS

KIT, Tag Warning
(Superseded to 705752)

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 195454GS

AXLE, 1/2"

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 87815GS

GOGGLES

Note: Not Illustrated

$12.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 5097D

Fresh Start Cartridge

Note: Optional Accessory; Not Illustrated

$

$

Not available

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessory; Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessory; Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175199GS

Rotating Brush Kit

Note: Optional Accessory; Not Illustrated

$82.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 190249GS

25' Replacement Hose
(Superseded to 708962)

Note: Optional Accessory; Not Illustrated

$

$

Not available

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessory; Not Illustrated

$18.99

$

In Stock, Qty 7

0

Briggs & Stratton 7174400GS

Turbo Nozzle

Note: Optional Accessory; Not Illustrated

$52.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 100513GS

Extension Hose, 25'
(Superseded to 206192GS)

Note: Optional Accessory; Not Illustrated

$103.99

$

In Stock, only 2 left!

0

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessory; Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174403GS

Pump Saver
(Superseded to 6151)

Note: Optional Accessory; Not Illustrated

$21.99

$

In Stock, only 2 left!

0

Briggs & Stratton 7174300GS

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: Optional Accessory; Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate (makes 2 gallons)
(Superseded to 100524GS)

Note: Optional Accessory; Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle/Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: Optional Accessory; Not Illustrated

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: Optional Accessory; Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174307GS

Mold/Mildew Concentrate (makes 2 gallons)
(Superseded to 6160)

Note: Optional Accessory; Not Illustrated

$

$

Not available
