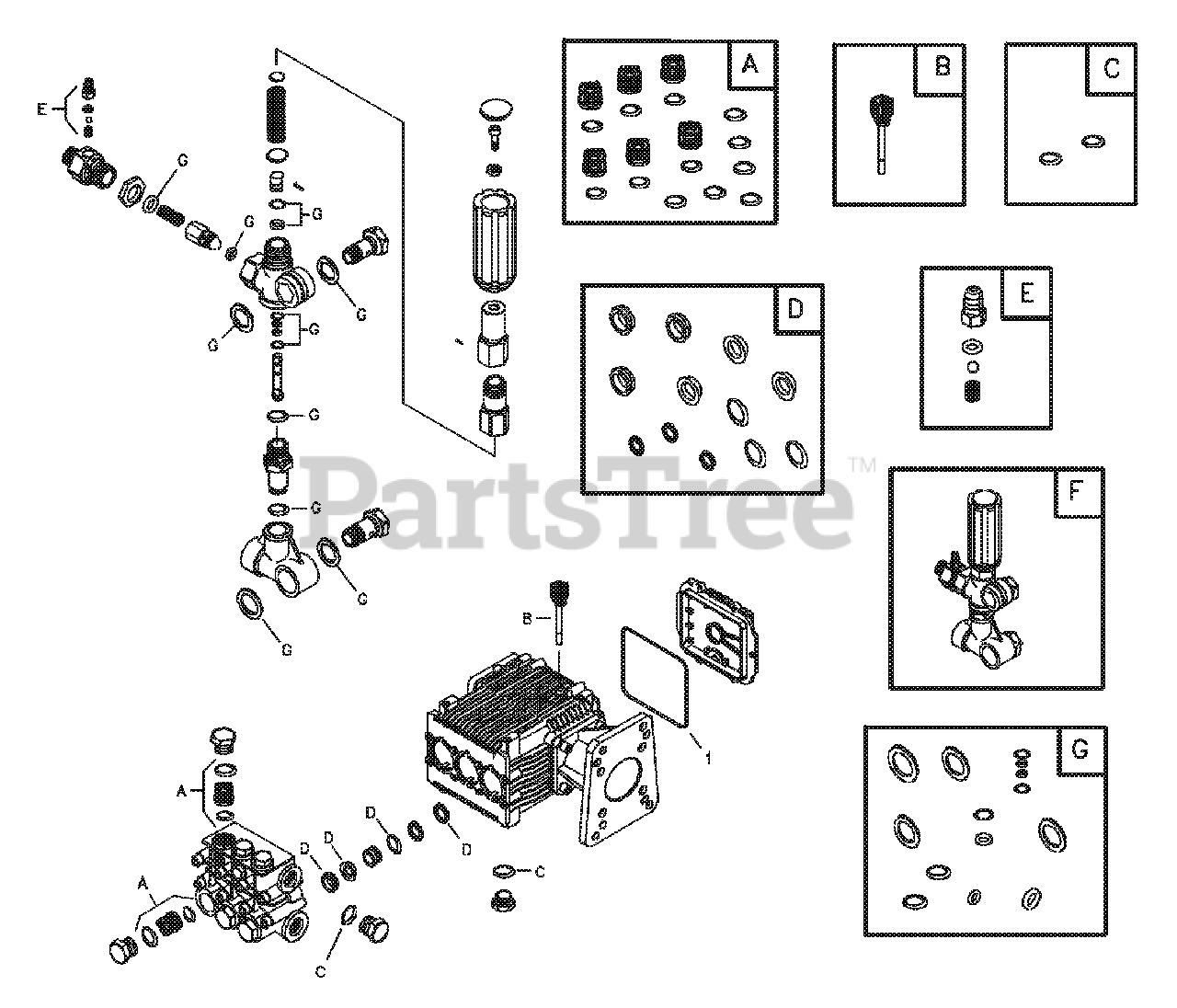

580.753410 (020237-0) - Craftsman 3,700 PSI Pressure Washer Pump Parts Diagram

3,700 PSI Pressure Washer

Pump Parts Diagram

  • Title

1

Briggs & Stratton 116B2126GS

OIL SEAL, Square

$6.99

$

Usually ships in 2-12 days

0

A

Briggs & Stratton 193990GS

KIT, Valve

Note: Service kit includes all parts shown within the box.

$388.99

$

Usually ships in 2-12 days

0

B

Briggs & Stratton 117B2327GS

OIL CAP/DIPSTICK
(Superseded to 11287628PGS)

Note: Service kit includes all parts shown within the box.

$30.99

$

Usually ships in 2-12 days

0

C

Briggs & Stratton 134B2327GS

O-RING

Note: Service kit includes all parts shown within the box.

$4.99

$

Usually ships in 2-12 days

0

D

Briggs & Stratton 193991GS

KIT, Support Ring & Seals

Note: Service kit includes all parts shown within the box.

$434.99

$

Usually ships in 2-12 days

0

E

Briggs & Stratton 193724GS

KIT, Hose Tail

Note: Service kit includes all parts shown within the box.

$31.99

$

Usually ships in 2-12 days

0

F

Briggs & Stratton 153B2126GS

UNLOADER, Complete

Note: Service kit includes all parts shown within the box.

$265.99

$

In Stock, only 1 left!

0

G

Briggs & Stratton 250B2327GS

KIT, O-Rings, Unloader

Note: Service kit includes all parts shown within the box.

$60.99

$

In Stock, only 1 left!

0
