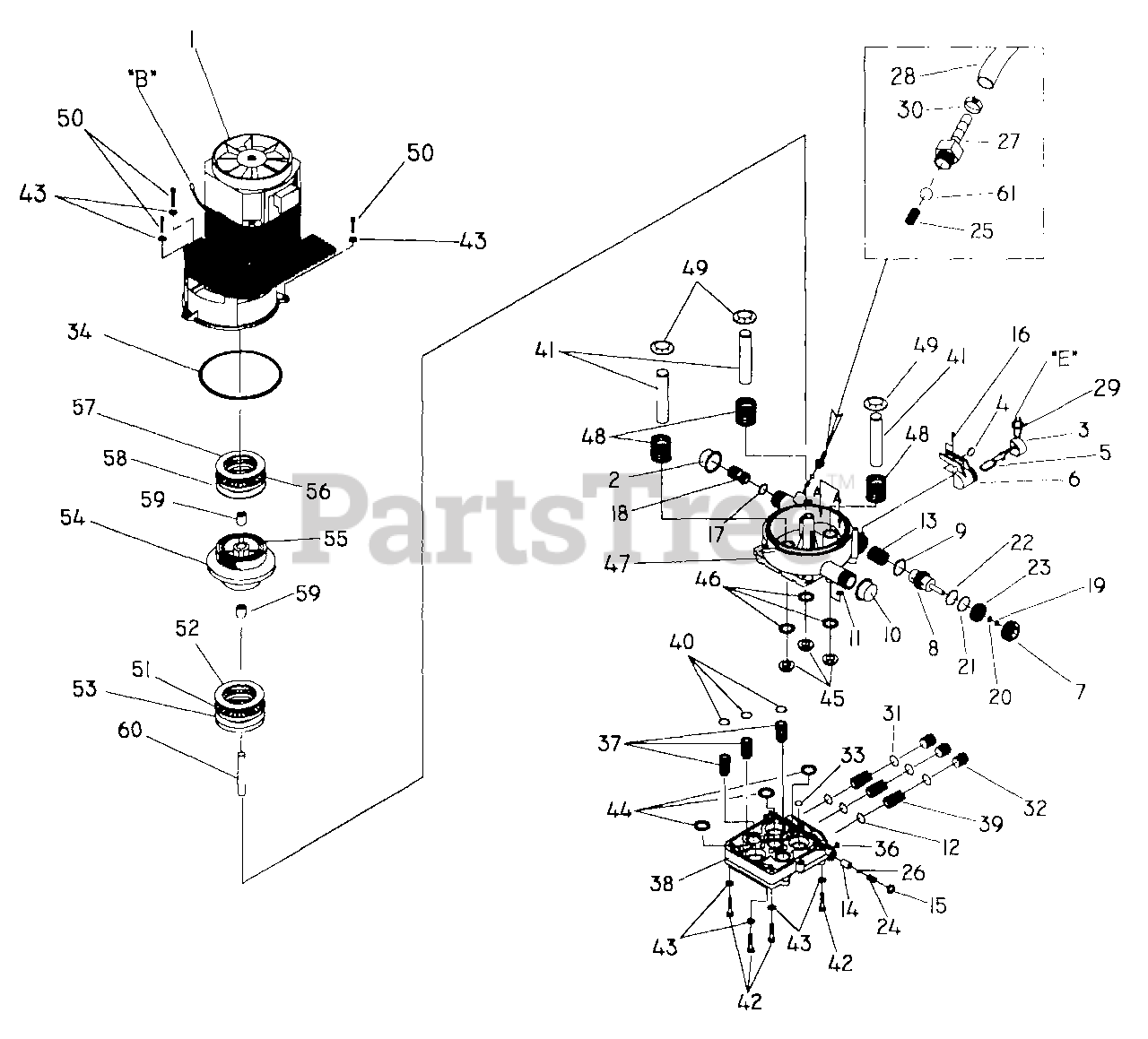

580.760230 (1032-0) - Craftsman 1,300 PSI Pressure Washer Pump & Motor Parts Diagram

1,300 PSI Pressure Washer

Pump & Motor Parts Diagram

  • Title
1

Briggs & Stratton B1514

ASSY, Motor Complete
(Superseded to B1514GS)

$184.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 97100

CAP, HP
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 21054

BOOT, Rubber
(Superseded to 21054GS)

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 21055

GROMMET, Rubber

$

$

Not available

5

Briggs & Stratton 20138

SWITCH, Auto
(Superseded to 20138GS)

$8.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 20928

HOUSING, Auto-Switch
(Superseded to 5020928)

$6.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 20218

CAP, Retainer
(Superseded to 20218GS)

$9.49

$

In Stock, only 1 left!

0

8

Briggs & Stratton 20213

PISTON ASSY, Auto Switch

$

$

Currently unavailable

9

Briggs & Stratton 21525

WIPER, Piston Bore
(Superseded to 21525GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton B1124

CAP, Inlet
(Superseded to B1124GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 97855

"O" RING, dia.6.5 x 2.01mm
(Superseded to 97855GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 97934

"O" RING, Chk Valve dia. 12.4 x .78mm
(Superseded to 97934GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 20212

SPRING, 15.08 x dia. 1.62 CS x 22.3
(Superseded to 20212GS)

$1.99

$

Usually ships in 2-12 days

0

14

$

$

Currently unavailable

15

Briggs & Stratton B1583

SCREW, Lock Socket

$

$

Currently unavailable

16

Briggs & Stratton A1495

TAPTITE, M4-0.7 x 10mm SW MTG
(Superseded to A1495GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B1077

"O" RING, Venturi
(Superseded to B1077GS)

$4.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton B1060

VENTURI, Chem. Injector
(Superseded to B1060GS)

$11.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 21124

RING, Backup dia. 4.34 Id x 1.24
(Superseded to 5021124)

$37.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 21123

"O" RING dia. 3.68 Id x 1.78 CS [.070"]

$

$

Not available

21

Briggs & Stratton 21126

RING, Backup dia. 26.0 ID
(Superseded to 5021126)

$17.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 21125

"O" RING dia 25.07 ID x 2.62 CS [.103"]
(Superseded to 21125GS)

$3.99

$

In Stock, only 1 left!

0

23

Briggs & Stratton 20217

STOP, Piston Return
(Superseded to 20217GS)

$5.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton A1130

SPRING, Pop-off Valve
(Superseded to A1130GS)

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 95380

SPRING, Chem. Injector
(Superseded to 95380GS)

$

$

Not available

26

Briggs & Stratton 97852

BALL, dia. 3/16" Pop-off Valve
(Superseded to 97852GS)

$4.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton A1575

BARB HOSE, Brass with nylon Insert
(Superseded to A1575GS)

$6.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton A1040A

HOSE, Chem
(Superseded to A1040AGS)

$10.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 28739A

TIE, Wrap
(Superseded to 28739AGS)

$1.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 48031G

CLAMP, 3/16" Hose
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 97840

"O" RING, HI-press dia. 15.6 x 1.78mm
(Superseded to 97840GS)

$5.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 97841

CAP, Check Valve
(Superseded to 97841GS)

$

$

Not available

33

Briggs & Stratton 97837

"O" RING, Hi-press dia. 9.2 x 2.62mm
(Superseded to 97837GS)

$3.49

$

In Stock, Qty 8

0

34

Briggs & Stratton 97835

"O" RING, Hsg Seal, dia. 82.2 x 2.62mm
(Superseded to 97835GS)

$3.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 76353A

PLUG, Taper dia. 5.4

$

$

Not available

37

Briggs & Stratton 97838

ASSY., Check Valve, Inlet

$

$

Currently unavailable

38

Briggs & Stratton A1111A

PUMP, Head
(Superseded to A1111AGS)

$60.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 97839

ASSY., Check Valve, Outlet
(Superseded to 97839GS)

$5.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 97851

"O" RING, Piston dia. 10.82 x 1.78mm
(Superseded to 97851GS)

$3.99

$

In Stock, only 2 left!

0

41

Briggs & Stratton 97832

PISTON dia. 15 x 65mm
(Superseded to 97832GS)

$39.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 40946

BOLT, SHCS M6-1.0 x 35mm

$

$

Not available

43

Briggs & Stratton 93873

LOCKWASHER, M6 Ribbed

$4.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 93667

SEAL, Piston "U" Cup
(Superseded to 93667GS)

$9.99

$

In Stock, Qty 10

0

45

Briggs & Stratton 97831

SPACER, Pilot
(Superseded to 97831GS)

$5.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 93680

SEAL, Oil-piston dia. 15 TC4
(Superseded to 93680GS)

$7.49

$

In Stock, only 4 left!

0

47

Briggs & Stratton 20140

HOUSING, Piston
(Superseded to 20140GS)

$78.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 99503

SPRING, Piston Return
(Superseded to 99503GS)

$3.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 40945

RETAINER, Piston Spring
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

50

Briggs & Stratton 97962

BOLT, SHCS M6-1.0 x 20mm
(Superseded to 97962GS)

$3.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 97824A

BEARING, Needle dia. 40 x 60mm
(Superseded to 97824AGS)

$14.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 97826

WASHER, Brg dia. 40 x 60 x 1mm
(Superseded to 97826GS)

$6.49

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 97825

WASHER, Brg dia. 36 x 60 x 6mm
(Superseded to 97825GS)

$15.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 97716

CAM, Axial 4.3 mm Stroke
(Superseded to 97716GS)

$23.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 97829C

GEAR, Axial Cam
(Superseded to 97829CGS)

$21.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 97822

BEARING, Ndle Thrust dia 35 x 52mm
(Superseded to 97822GS)

$14.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 20610

WASHER, Brg dia. 35 x 55 x 3mm
(Superseded to 20610GS)

$6.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 97823

WASHER, Brg dia. 35 x 52 x 1mm
(Superseded to 97823GS)

$7.49

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 97834

BEARING, Needle dia. 8 x 12 x 10mm
(Superseded to 97834GS)

$3.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 97833

SHAFT, Idler Axial Cam
(Superseded to 97833GS)

$3.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 95379

BALL, Chemical Injector

$

$

Not available
