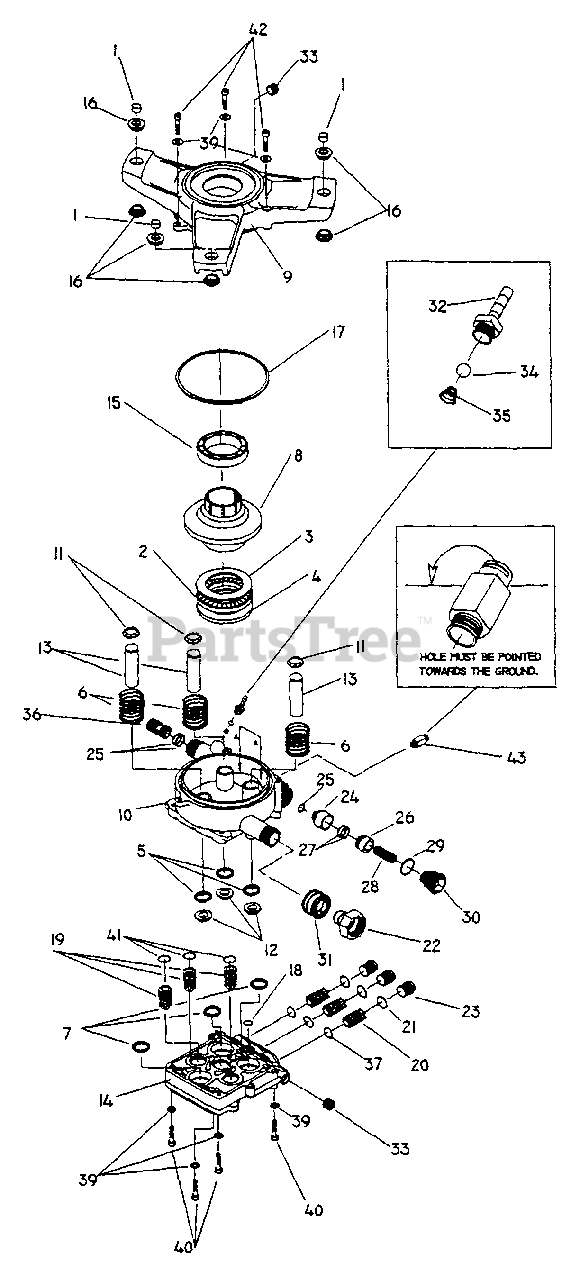

580.761751 (0763-1) - Craftsman 1,750 PSI Pressure Washer Pump Assembly Parts Diagram

1,750 PSI Pressure Washer

Pump Assembly Parts Diagram

  • Title
1

Briggs & Stratton 96795

SLEEVE, RUBBER GROMMET SPACER
(Superseded to 96795GS)

$3.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 21640

ASSY., CAGE NEEDLE BEARING 45 X 65
(Superseded to 21640GS)

$16.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 21641

WASHER, BRG. DIA. 45 x 65 x 1T
(Superseded to 21641GS)

$10.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 21642

WASHER, BRG. DIA. 36 x 65 x 6T [SPECIAL]

$

$

Not available

5

Briggs & Stratton 93680

SEAL, OIL PISTON DIA. 15
(Superseded to 93680GS)

$7.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 97828

SPRING, PISTON RETURN - EG
(Superseded to 97828GS)

$10.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 93667

SEAL, U-CLIP
(Superseded to 93667GS)

$9.99

$

In Stock, Qty 10

0

8

Briggs & Stratton 98304

CAM, AXIAL 5.6mm w/INSERT
(Superseded to 98304GS)

$22.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 98227

ADAPTER, ENGINE
(Superseded to 98227GS)

$21.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 20110

HOUSING, PISTON AND UNLOADER
(Superseded to 20110GS)

$73.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 97830

RETAINER, PISTON SPRING
(Superseded to 97830GS)

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 97831

SPACER, PILOT
(Superseded to 97831GS)

$5.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 97832

PISTON, DIA. 15-65 LONG
(Superseded to 97832GS)

$39.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton A1111B

HEAD, PUMP
(Superseded to A1111BGS)

$

$

Not available

15

Briggs & Stratton 57018

BEARING, BALL RADIAL
(Superseded to 57018GS)

$29.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 21429

BUSHING, RUBBER
(Superseded to 21429GS)

$5.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 97835

"O" RING, HOUSING SEAL
(Superseded to 97835GS)

$3.99

$

In Stock, only 2 left!

0

18

Briggs & Stratton 97837

"O" RING, HI-PRESSURE TRANSFER
(Superseded to 97837GS)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 97838

ASS'Y, CHECK VALVE - INLET

$

$

Currently unavailable

20

Briggs & Stratton 97839

ASS'Y, CHECK VALVE - OUTLET
(Superseded to 97839GS)

$5.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 97840

"O" RING, INLET PORT CAP
(Superseded to 97840GS)

$5.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 21781

QUICK CONNECT, BRASS, MALE, PUMP

$

$

Not available

23

Briggs & Stratton 97841

CAP, INLET PORT
(Superseded to 97841GS)

$

$

Not available

24

Briggs & Stratton 97842

SEAT, UNLOADER

$

$

Currently unavailable

25

Briggs & Stratton 97843

"O" RING, UNLOADER VENTURI
(Superseded to 97843GS)

$2.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B1253

PISTON, UNLOADER

$

$

Currently unavailable

27

Briggs & Stratton 97845

SEAL, UNLOADER "PARBACK"
(Superseded to 97845GS)

$3.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton B2731

SPRING, UNLOADER

$

$

Currently unavailable

29

Briggs & Stratton 97847

"O" RING, UNLOADER CAP
(Superseded to 97847GS)

$3.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton A2730

CAP, UNLOADER
(Superseded to A2730GS)

$6.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 21782

QUICK CONNECT, BRASS, FEMALE/HOSE

$

$

Not available

32

Briggs & Stratton A1575

BARB, HOSE WITH NYLON INSERT
(Superseded to A1575GS)

$6.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 96137

PLUG, 1/8" NPT [WITH SEALANT]
(Superseded to 96137GS)

$

$

Not available

34

Briggs & Stratton 95379

BALL, DIA. 5.5 CHEMICAL INJECTOR

$

$

Not available

35

Briggs & Stratton 95380

SPRING, CHEMICAL INJECTOR
(Superseded to 95380GS)

$

$

Not available

36

Briggs & Stratton 20631

VENTURI, CHEMICAL INJECTOR

$

$

Currently unavailable

37

Briggs & Stratton 97934

"O" RING, CHECK VALVE - INLET
(Superseded to 97934GS)

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 93873

LOCK WASHER, M6 RIBBED

$4.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 40946

SOCKET HEAD CAPSCREW M6-1.0 x 35mm

$

$

Not available

41

Briggs & Stratton 97851

"O" RING PISTON HOUSING
(Superseded to 97851GS)

$3.99

$

In Stock, only 2 left!

0

42

Briggs & Stratton 97962

SOCKET HEAD CAPSCREW, M6-1.0 x 25mm
(Superseded to 97962GS)

$3.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 21783

THERMAL RELIEF
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 20+

0
