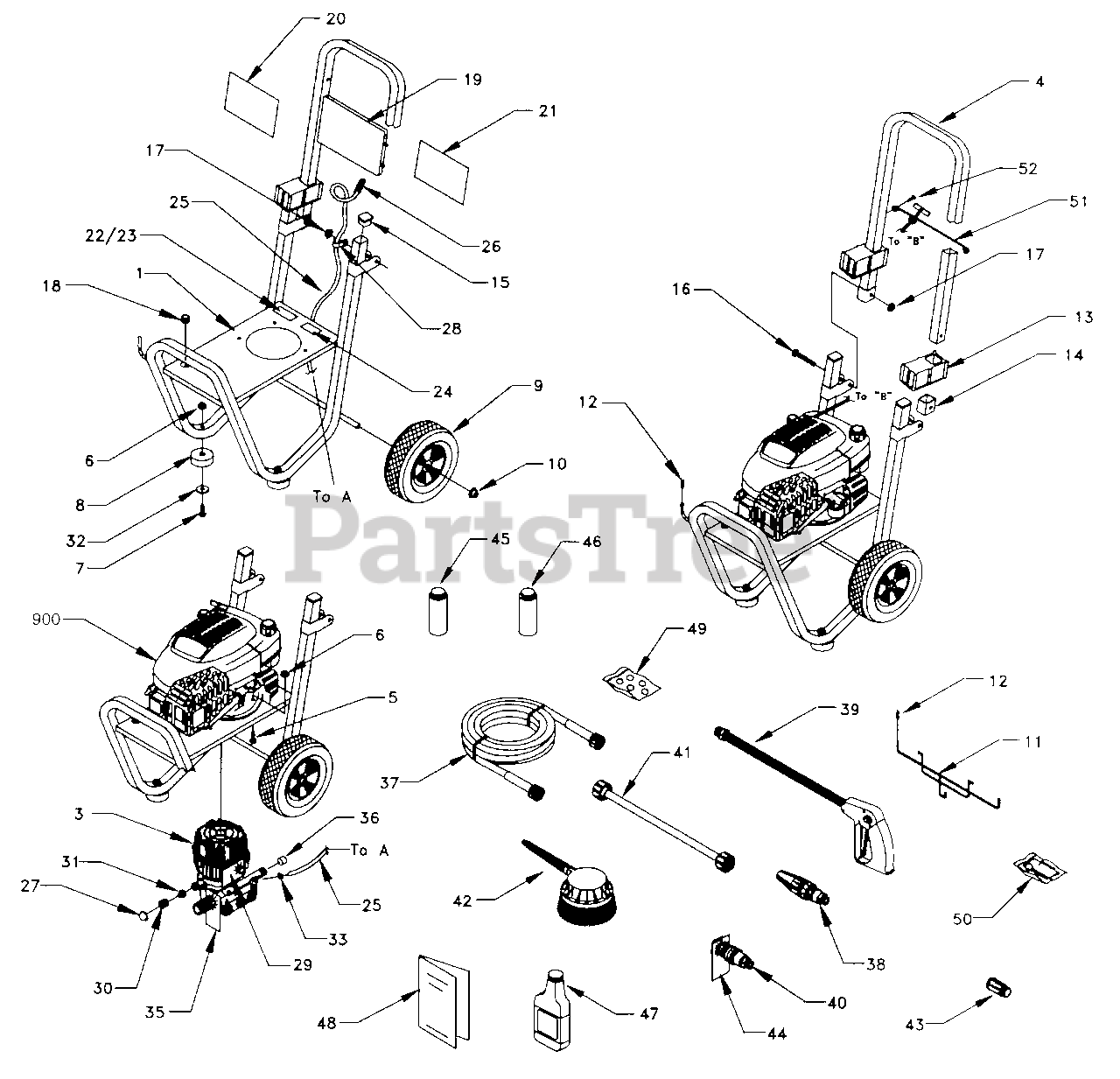

580.762201 (1051-1) - Craftsman 2,200 PSI Pressure Washer Main Unit Parts Diagram

2,200 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton EB2528

BASE, VSPW
(Superseded to EB2528GS)

$

$

Not available

2

Briggs & Stratton ~NSP

ENGINE, Tecumseh OHV 6.75HP, 143.986714

$

$

Currently unavailable

3

Briggs & Stratton ~NSP

PUMP, Medium Frame

$

$

Currently unavailable

4

Briggs & Stratton EB2534

HANDLE
(Superseded to EB2534GS)

$48.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 39414

HHCS, M8 x 35
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 52858

NUT, M8 Locking Flange
(Superseded to 52858GS)

$3.99

$

In Stock, only 3 left!

0

7

Briggs & Stratton 39287

HHCS, M8 x 45
(Superseded to 39287GS)

$3.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 27007

MOUNT, Rubber Foot
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 8

0

9

Briggs & Stratton B2142

WHEEL 2" x 9" Black Mag
(Superseded to B2142GS)

$19.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 75402

PUSHNUT, 1/2"
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

11

Briggs & Stratton B2168

HANGER, Hose

$

$

Currently unavailable

12

Briggs & Stratton B1460

CAP, Vinyl
(Superseded to B1460GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B1779

COVER, Hinge
(Superseded to B1779GS)

$8.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B2347

CAP, End
(Superseded to B2347GS)

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 46476

CAPLUG
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 51767

HHCS, M6 - 1.0 x 45
(Superseded to 51767GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 52857

NUT, M6 Locking Flange
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 92235

GROMMET, Turbo Nozzle
(Superseded to 199553GS)

$4.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B1631A

BILLBOARD
(Superseded to B1631AGS)

$35.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 82623

DECAL, Craftsman 2200 PSI

$

$

Currently unavailable

21

Briggs & Stratton B2626

DECAL, Instructions
(Superseded to B2626GS)

$6.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 91373

DECAL, Data

$

$

Currently unavailable

23

Briggs & Stratton 79552

OVERLAMINATE

$

$

Not available

24

Briggs & Stratton 96307

DECAL, 1-800 #
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton A1040B

HOSE, Chemical
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

27

Briggs & Stratton A1408

CAP, Garden Hose Inlet
(Superseded to A1408GS)

$2.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton B1232

CLAMP, Hose 7/16"
(Superseded to B1232GS)

$2.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B1288

TAG, Breather Cap
(Superseded to B1288GS)

$1.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 21782

QUICK DISCONNECT, Female

$

$

Not available

31

Briggs & Stratton 21781

QUICK DISCONNECT, Male

$

$

Not available

32

Briggs & Stratton 50190

WASHER, M8 Flat
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 48031

CLAMP, Hose 3/16"

$

$

Currently unavailable

35

Briggs & Stratton 97054

TAG, Pressure Adjust

$

$

Not available

36

Briggs & Stratton 97100

CAP, High Pressure
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B1969

HOSE, 1/4" x 25'

$

$

Currently unavailable

38

Briggs & Stratton B1974G

TURBO, Nozzle
(Superseded to B1974GGS)

$65.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton B2370

GUN, High Pressure
(Superseded to B2370GS)

$78.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 95587E

NOZZLE, Adjustable
(Superseded to 95587EGS)

$53.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 97123

WAND, Extension
(Superseded to 97123GS)

$68.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 88176A

BRUSH, Rotating
(Superseded to 6057)

$48.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 88935

ADAPTER, Brush
(Superseded to 88935GS)

$11.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 97566

TAG, Nozzle
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton B1736

WASH, Vehicle/Boat

$

$

Not available

46

Briggs & Stratton B1736A

WASH, House/Multi Purpose

$

$

Not available

47

Briggs & Stratton 96382

OIL, Engine SAE 30

$

$

Currently unavailable

48

Briggs & Stratton B3370

MANUAL, Owners
(Superseded to B3370GS)

$14.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton B2730

KIT, O-Ring Maintenance
(Superseded to B2730GS)

$18.99

$

In Stock, only 3 left!

0

50

Briggs & Stratton 97009

KIT, Nozzle Cleaning
(Superseded to 97009GS)

$7.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton B3073

GUIDE, Recoil Rope

$

$

Not available

52

Briggs & Stratton 20441

SCREW, Self Drill 1/4" x 3/4"
(Superseded to 5020441)

$14.99

$

In Stock, only 4 left!

0

900

UNKNOWN

$

$

Not available

900

Briggs & Stratton 7175187

Garden Hose Quick Connect
(Superseded to 7175187GS)

Note: Optional Accessories, Not Illustrated

$17.99

$

In Stock, only 1 left!

0

900

Briggs & Stratton 7175197

Accessory Quick Connect Kit
(Superseded to 312981GS)

Note: Optional Accessories, Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 7175199

Rotating Brush
(Superseded to 7175199GS)

Note: Optional Accessories, Not Illustrated

$82.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 7176430

Floor/Siding Brush

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

900

Briggs & Stratton 7176431

Utility Brush

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

900

Briggs & Stratton 7175115

Replacement Hose

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

900

Briggs & Stratton 7176450

25' Extension Hose

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

900

Briggs & Stratton 7176451

50' Extension Hose

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

900

Briggs & Stratton 7175116

O Ring Kit
(Superseded to 196002GS)

Note: Optional Accessories, Not Illustrated

$18.99

$

In Stock, only 3 left!

0

900

Briggs & Stratton 7176486

Medium Duty Turbo Nozzle
(Superseded to 7176486GS)

Note: Optional Accessories, Not Illustrated

$86.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton 7176400

House wash

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

900

Briggs & Stratton 7176401

Deckwash

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

900

Briggs & Stratton 7176402

Vehicle / Boat Wash

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable

900

Briggs & Stratton 7176403

Deck Wash

Note: Optional Accessories, Not Illustrated

$

$

Currently unavailable
