580.762601 (0765-1) - Craftsman 2,600 PSI Pressure Washer Main Unit Parts Diagram

2,600 PSI Pressure Washer

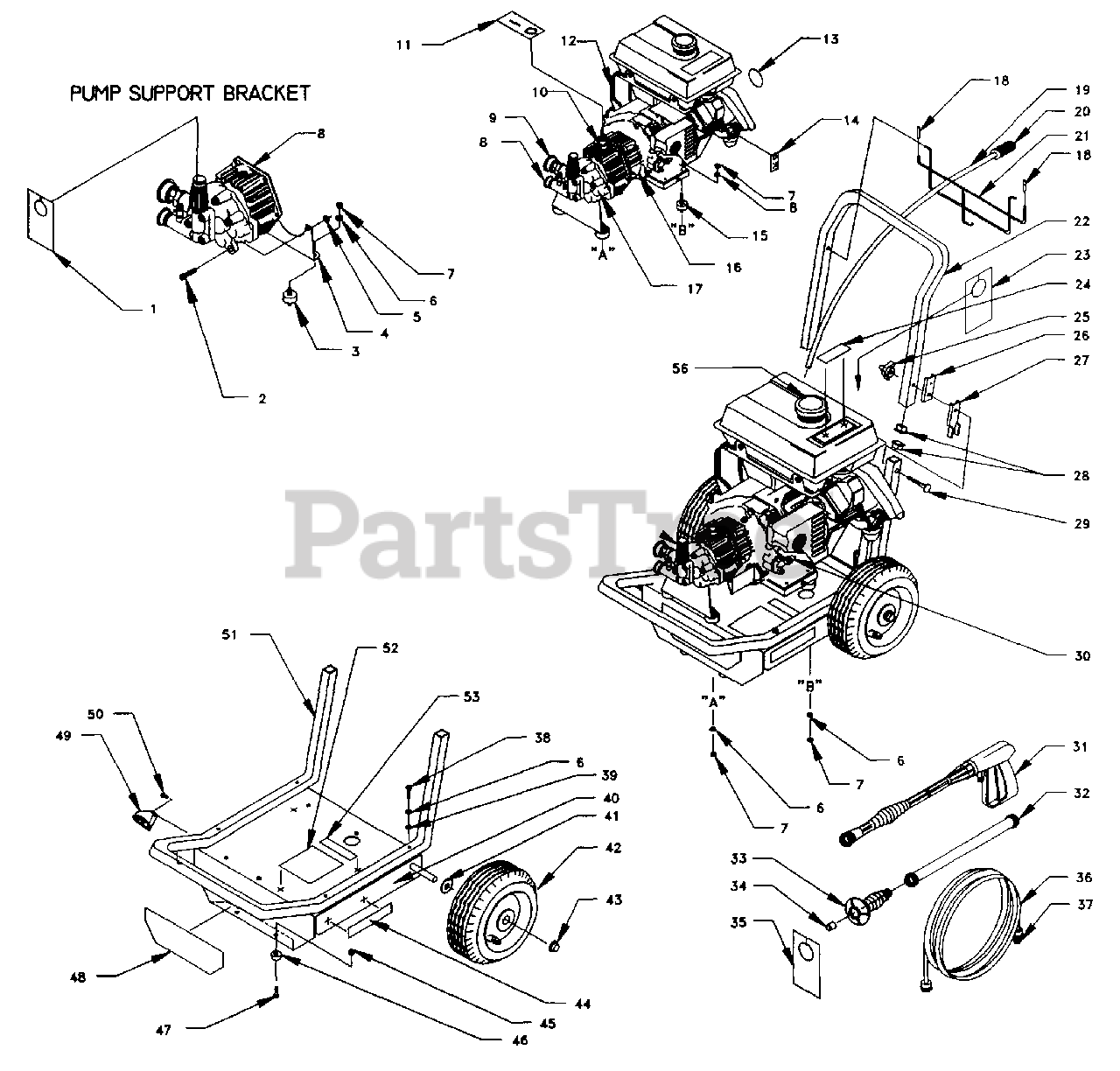

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton 97054

TAG, PRESSURE ADJUST

$

$

Not available

2

Briggs & Stratton 38750

HHCS, M6-1.0 x 30
(Superseded to 38750GS)

$2.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 21216

MOUNT, RUBBER SHOCK
(Superseded to 5021216)

$142.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 20707

BRACKET, PUMP SUPPORT

$

$

Not available

5

Briggs & Stratton 52857

NUT, LOCKING
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 22129

LOCK WASHER, M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 45771

NUT, HEX M8-1.25

$

$

Not available

8

Briggs & Stratton 97100

CAP, HIGH PRESSURE ADAPTOR
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 97098

CAP, GARDEN HOSE INLET
(Superseded to 97098GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 99735

ASSY, OIL BREATHER/FILL
(Superseded to 99735GS)

$12.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B1288

TAG, PW BREATHER CAP
(Superseded to B1288GS)

$1.99

$

Usually ships in 2-12 days

0

12

CRAFTSMAN ENGINE, 7.0 HP MODEL NO. ENG. 21785

Note: NON SERVICEABLE PART

$

$

Not available

13

Briggs & Stratton 21491G

DECAL, RECOIL

$

$

Not available

14

Briggs & Stratton B1210

TAG, START INSTRUCTIONS
(Superseded to B1210AGS)

$2.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 21217

MOUNT RUBBER SHOCK
(Superseded to 21217GS)

$7.49

$

In Stock, only 1 left!

0

16

Briggs & Stratton 21300E

ASSY, FINAL PUMP HEAD

$

$

Currently unavailable

17

Briggs & Stratton B1336P

ASSY, PUMP HEAD

$

$

Not available

18

Briggs & Stratton 99827

CAP, BLACK VINYL, 5/16
(Superseded to 99827GS)

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton A1040B

CHEMICAL HOSE, 4" CLEAR
(Superseded to A1040DGS)

$12.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton A1041

FILTER, CHEM. HOSE
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 21220

WIRE FORM, GUN/HOSE

$

$

Not available

22

Briggs & Stratton 21212

HANDLE, HORIZ.
(Superseded to 21212GS)

$27.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 70453

TAG, OIL WARNING
(Superseded to 70453GS)

Note: [YELLOW]

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 21786

DECAL, DANGER
(Superseded to 21786GS)

$13.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 97178

KNOB, 1/4-20
(Superseded to 97178GS)

$8.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 99368

PLATE, STAINLESS WEAR
(Superseded to 99368GS)

$2.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 97082

CLIP, VSPW HANDLE HOLDING
(Superseded to 97082GS)

$5.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 81895

CAP, 3/4" SQUARE
(Superseded to 81895GS)

$2.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 97912

BOLT, CARRIAGE 1/4-20 x 2.25 LG
(Superseded to 97912GS)

$3.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74031

LIQUID NEOPRENE

$

$

Not available

31

Briggs & Stratton 97124

SPRAY GUN

$

$

Not available

32

Briggs & Stratton 97123

EXTENSION, WAND
(Superseded to 97123GS)

$68.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 95587B

NOZZLE ASSEMBLY
(Superseded to 95587BGS)

$44.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 92659

NOZZLE, 1.15 RED
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

35

Briggs & Stratton 97566

TAG, NOZZLE INSTRUCTIONS
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 91630

HOSE, 3/8" x 25'

$

$

Not available

37

Briggs & Stratton 55905

TEFLON TAPE, 1/2" WIDE

$

$

Currently unavailable

38

Briggs & Stratton 39414

HHCS, M8 - 1.25 x 35
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 22145

FLAT WASHER, 5/16-M8

$

$

Not available

40

Briggs & Stratton 21160

BASE
(Superseded to 5021160)

$27.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 49808

FLAT WASHER, M12
(Superseded to 49808GS)

$3.99

$

In Stock, only 4 left!

0

42

Briggs & Stratton 88521

WHEEL, 10" DIA. x 4"
(Superseded to 88521GS)

$93.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 75402

PUSH NUT, 0.5 DIA.
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

44

Briggs & Stratton 96415

DECAL, CAUTION INSTRUCTIONS
(Superseded to 96415GS)

$1.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 52858

NUT, LOCKING M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

46

Briggs & Stratton 87841

SHOCK MOUNT, RUBBER
(Superseded to 87841GS)

$3.99

$

In Stock, only 3 left!

0

47

Briggs & Stratton 39253

HHCS M8-1.25 x 20
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 21218

DECAL, 2.6K SEARS

$

$

Not available

49

Briggs & Stratton 97769

GUN HOLDER CUP VSHFT
(Superseded to 97769GS)

$10.99

$

In Stock, only 1 left!

0

50

Briggs & Stratton 20441

SELF DRILL, 1/4"-14 x 3/4"
(Superseded to 5020441)

$14.99

$

In Stock, Qty 12

0

51

Briggs & Stratton 21722

SUPPORT HANDLE

$

$

Not available

52

Briggs & Stratton 21521

DECAL, IMPORTANT INSTRUCTIONS

$

$

Not available

53

Briggs & Stratton 96307

DECAL, 1-800 #
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton A1608B

DECAL, E.P.A. 220 HS GAS

$

$

Currently unavailable

55

Briggs & Stratton B1232

CLAMP, HOSE 3/8
(Superseded to B1232GS)

$2.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 85134

CAP, FUEL GAUGE, 4 GAL.
(Superseded to B4363GS)

$41.99

$

In Stock, Qty 20+

0

Briggs & Stratton B1321

Owner's Manual

Note: PARTS NOT ILLUSTRATED

$

$

Not available

Briggs & Stratton 83038

Spark Arrestor

Note: PARTS NOT ILLUSTRATED

$

$

Currently unavailable

Briggs & Stratton 7175199

ROTATING BRUSH KIT
(Superseded to 7175199GS)

Note: OPTIONAL ACCESSORIES (not shown)

$82.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175189

UTILITY BRUSH KIT
(Superseded to 7175189GS)

Note: OPTIONAL ACCESSORIES (not shown)

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175190

BROOM BRUSH KIT
(Superseded to 7175190GS)

Note: OPTIONAL ACCESSORIES (not shown)

$89.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7176487

2600+ PSI TURBO NOZZLE

Note: OPTIONAL ACCESSORIES (not shown)

$

$

Currently unavailable

Briggs & Stratton 7175187

GARDEN HOSE QUICK-CONNECT KIT
(Superseded to 7175187GS)

Note: OPTIONAL ACCESSORIES (not shown)

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175100

MULTIPURPOSE CLEANER

Note: OPTIONAL ACCESSORIES (not shown)

$

$

Currently unavailable

Briggs & Stratton 7175101

DECK WASH
(Superseded to 100524GS)

Note: OPTIONAL ACCESSORIES (not shown)

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175102

VEHICLE WASH

Note: OPTIONAL ACCESSORIES (not shown)

$

$

Currently unavailable

Briggs & Stratton 7175103

DEGREASER

Note: OPTIONAL ACCESSORIES (not shown)

$

$

Currently unavailable

Briggs & Stratton 7175104

SPRAY WAX

Note: OPTIONAL ACCESSORIES (not shown)

$

$

Currently unavailable

Briggs & Stratton 7175183

MULTIPURPOSE STORAGE BRACKET
(Superseded to 7175183GS)

Note: OPTIONAL ACCESSORIES (not shown)

$22.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175196

ANGLE WAND
(Superseded to 7175196GS)

Note: OPTIONAL ACCESSORIES (not shown)

$31.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175192

25-FOOT HIGH PRESSURE HOSE

Note: OPTIONAL ACCESSORIES (not shown)

$

$

Currently unavailable

Briggs & Stratton 7175191

HOSE-TO-HOSE COUPLER

Note: OPTIONAL ACCESSORIES (not shown)

$

$

Currently unavailable

Briggs & Stratton 7175197

ACCESSORY QUICK-CONNECT
(Superseded to 312981GS)

Note: OPTIONAL ACCESSORIES (not shown)

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175198

HIGH PRESSURE HOSE QUICK-CONNECT
(Superseded to 7175198GS)

Note: OPTIONAL ACCESSORIES (not shown)

$35.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175181

PRESSURE GAUGE

Note: OPTIONAL ACCESSORIES (not shown)

$

$

Not available
