580.767201 (1543-1) - Craftsman 2,250 PSI Pressure Washer Main Unit Parts Diagram

2,250 PSI Pressure Washer

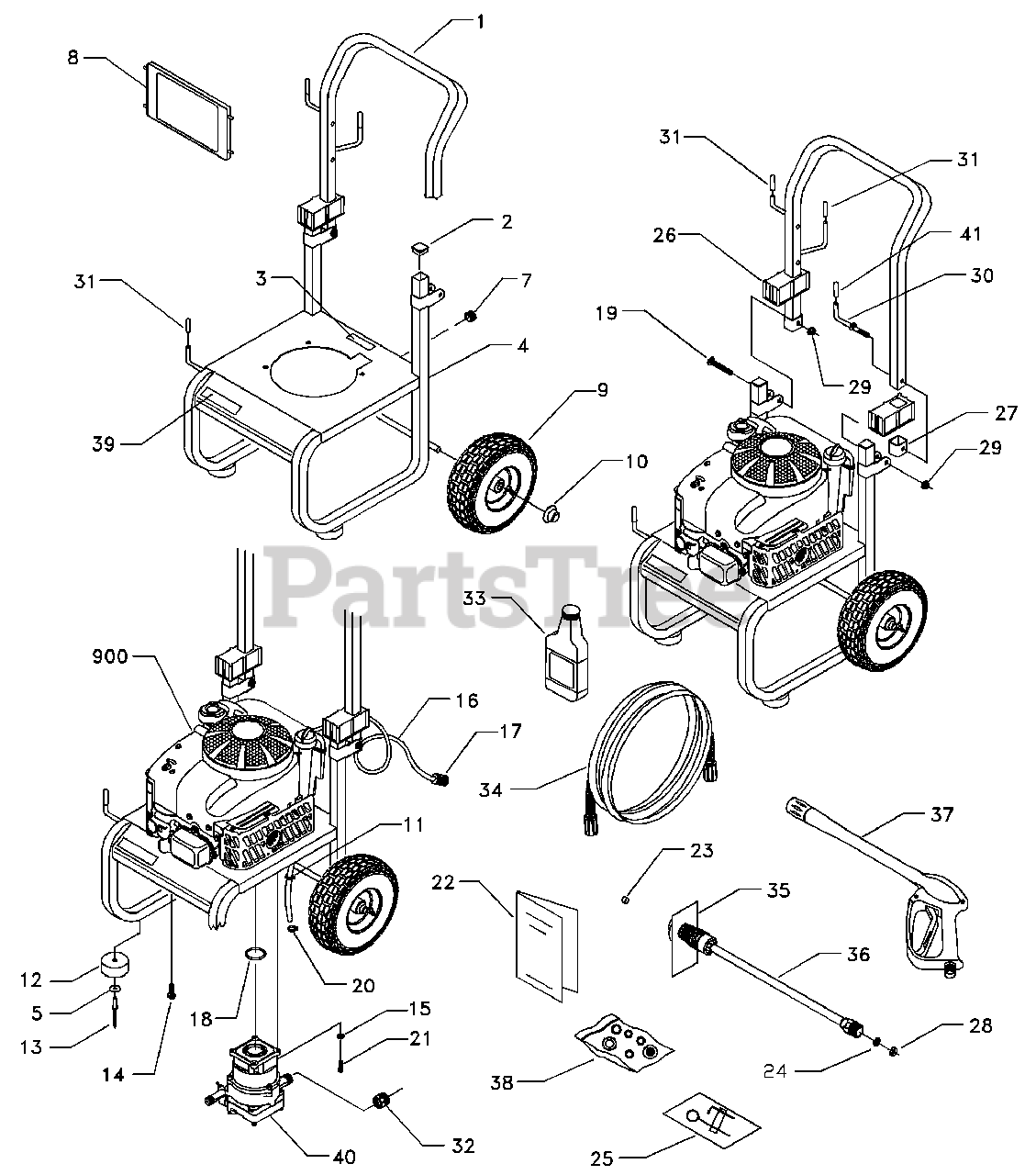

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton EB5653

HANDLE, Polo Green Powder Coated
(Superseded to EB5653GS)

$76.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 46476

CAP, Plug
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 96307

DECAL, 1-800 Number
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton E186548

BASE, Polo Green Powder Coated
(Superseded to E186548GS)

$204.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 71693

WASHER, Flat

$

$

Not available

7

Briggs & Stratton 30809

GROMMET, Chemical Hose
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 188260

DECALS/BILLBOARD, 1543-0

$

$

Currently unavailable

9

Briggs & Stratton 186402A

TIRE, 10", Pneumatic
(Superseded to 186402AGS)

$69.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 75402C

PUSHNUT, 5/8"
(Superseded to 75402CGS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 48031B

CLAMP, Hose Band
(Superseded to 48031BGS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 27007

MOUNT, Vibration
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

13

Briggs & Stratton 188194

RIVET, Blind, Steel

$

$

Currently unavailable

14

Briggs & Stratton 75246

TAPTITE, 3/8" - 16 x 1-1/4"
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 92479

WASHER, M8 Conical Ribbed
(Superseded to 92479GS)

$3.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton A1040B

HOSE, Chemical
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton B2218

O-RING, 1.625" ID x .103"
(Superseded to B2218GS)

$3.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 31669

CARRIAGE BOLT, 1/4" - 20 x 1-3/4"
(Superseded to 31669GS)

$3.49

$

In Stock, only 2 left!

0

20

Briggs & Stratton 48031G

CLAMP, Hose 3/8"
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 23707

SHCS, 5/16" - 24 x 1"
(Superseded to 23707GS)

$3.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 188916

MANUAL

$

$

Not available

23

Briggs & Stratton 21761

NOZZLE, Replacement

$

$

Not available

24

Briggs & Stratton B4224

SCREEN, Gun Inlet
(Superseded to B4224GS)

$1.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 188287

KIT, Nozzle, Cleaning
(Superseded to 191922GS)

$18.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton B1779

COVER, Hinge
(Superseded to B1779GS)

$8.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton B2347

CAP, End
(Superseded to B2347GS)

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 97837

O-RING, Hi Pressure Trns.
(Superseded to 97837GS)

$3.49

$

In Stock, Qty 9

0

29

Briggs & Stratton B2071

NUT, 1/4"-20 Locking Flange
(Superseded to 194005GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton B2759

HOOK, Chemical Bottle
(Superseded to B2759GS)

$3.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B2516

CAP, Vinyl
(Superseded to B2516GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton AB3061B

OIL, Engine
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

34

Briggs & Stratton B5689

HOSE, 1/4" x 30'
(Superseded to 708962)

$59.99

$

In Stock, Qty 20+

0

35

Briggs & Stratton 97566

TAG, Nozzle Instructions
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B3335

WAND, Adjustable Nozzle
(Superseded to 205015CGS)

$67.99

$

In Stock, only 3 left!

0

37

Briggs & Stratton B3263

GUN, High Pressure
(Superseded to 704312)

$93.99

$

In Stock, only 1 left!

0

38

Briggs & Stratton B5830

KIT, Maintenance
(Superseded to 191922GS)

$18.99

$

In Stock, only 1 left!

0

39

Briggs & Stratton 187813

DECAL, Quick Start
(Superseded to 187813GS)

$3.99

$

Usually ships in 2-12 days

0

40

-----

ASSY., Pump

Note: (For replacement, order 193461GS)

$

$

Not available

40

Briggs & Stratton 193461GS

REPLACEMENT PUMP ASSEMBLY

$371.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton B1460

CAP, Vinyl
(Superseded to B1460GS)

$2.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE, Briggs, 5.5 H.P.

$

$

Currently unavailable

--

Briggs & Stratton 7175187

Garden Hose Quick Connect
(Superseded to 7175187GS)

Note: Optional Accessories; Not Illustrated

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 7175197

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessories; Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175199

Rotating Brush Kit
(Superseded to 7175199GS)

Note: Optional Accessories; Not Illustrated

$82.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175115

25' Replacement Hose

Note: Optional Accessories; Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7175116

O-Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessories; Not Illustrated

$18.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 7174400

Turbo Nozzle
(Superseded to 7174400GS)

Note: Optional Accessories; Not Illustrated

$52.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174401

25' Extension Hose
(Superseded to 7174401GS)

Note: Optional Accessories; Not Illustrated

$120.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174402

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessories; Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174403

Pump Saver

Note: Optional Accessories; Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7174300

House Wash Concentrate
(Superseded to 6159)

Note: (Makes 4 gallons); Optional Accessories; Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174301

Deck Wash Concentrate
(Superseded to 100524GS)

Note: (Makes 2 gallons); Optional Accessories; Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174302

Vehicle / Boat Wash Concentrate
(Superseded to 6160)

Note: (Makes 4 gallons); Optional Accessories; Not Illustrated

$

$

Not available

--

Briggs & Stratton 7174303

Degreaser Concentrate
(Superseded to 100526GS)

Note: (Makes 4 gallons); Optional Accessories; Not Illustrated

$18.99

$

Usually ships in 2-12 days

0
