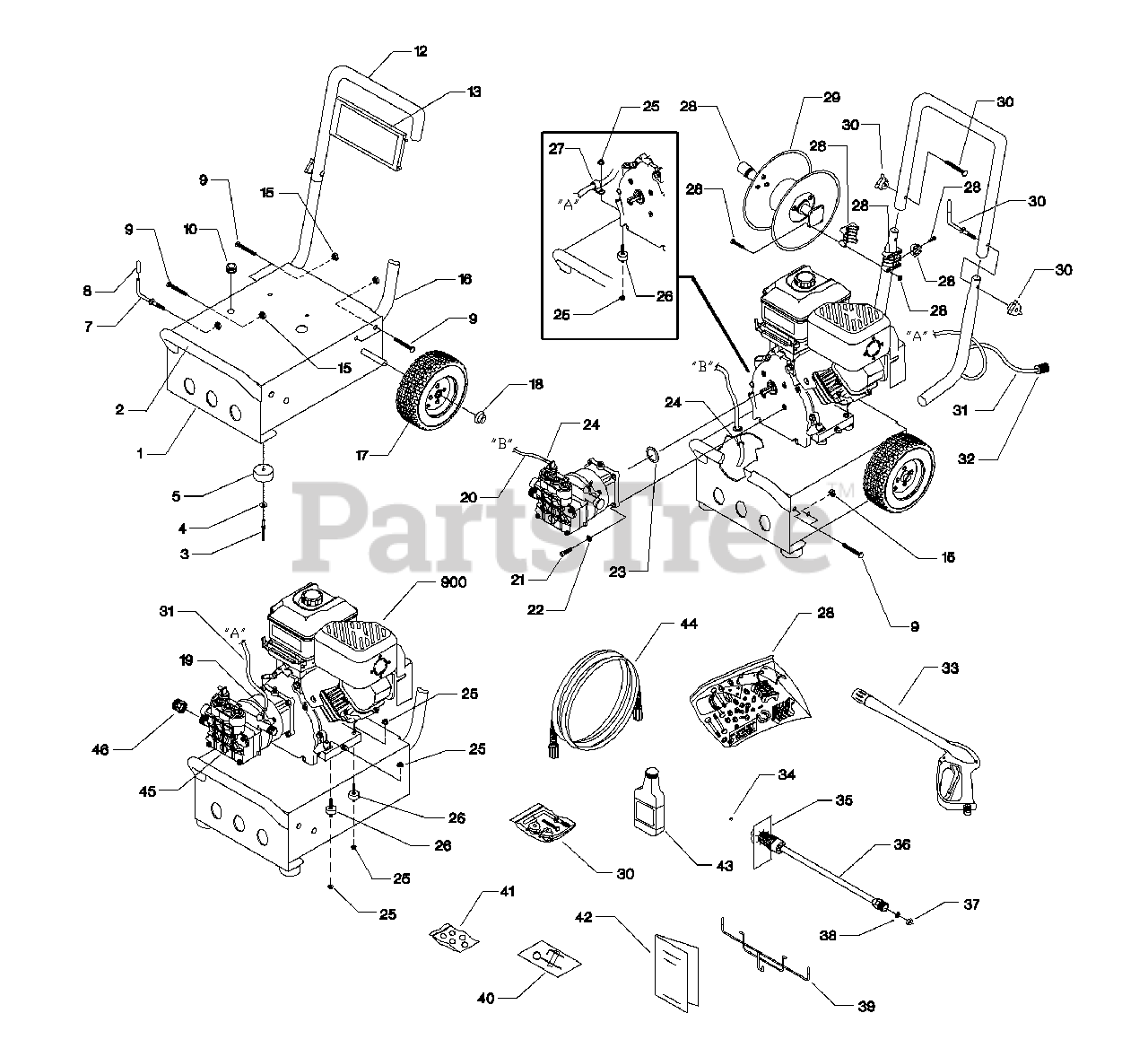

580.767300 (1545-0) - Craftsman 2,400 PSI Pressure Washer Main Unit Parts Diagram

2,400 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton EB5721

BASE

$

$

Not available

2

Briggs & Stratton B1982

BUMPER
(Superseded to B1982GS)

$53.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 188194

BLIND RIVET

$

$

Currently unavailable

4

Briggs & Stratton 71693

WASHER, Flat

$

$

Not available

5

Briggs & Stratton 27007

MOUNT, Donut Type Vibration
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

7

Briggs & Stratton B2150

HOOK, Gun
(Superseded to B2150GS)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2516

CAP, Vinyl, Black
(Superseded to B2516GS)

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B2043

BOLT, 5/16"-18 x 1-3/4"
(Superseded to B2043GS)

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 30809

GROMMET, Rubber
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B1983

HANDLE
(Superseded to B1983GS)

$69.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 188258

DECALS/BILLBOARD, 1545-0

$

$

Currently unavailable

15

Briggs & Stratton 99583

NUT, Flange Lock 5/16"-18
(Superseded to 99583GS)

$2.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B1981

SUPPORT, Handle
(Superseded to CB1981GS)

$19.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B4966

ASSEMBLY, 10" Tire & Wheel
(Superseded to 209636GS)

$93.99

$

In Stock, only 3 left!

0

18

Briggs & Stratton 75402C

PUSHNUT, 5/8" Dia.
(Superseded to 75402CGS)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 48031G

CLAMP, Hose
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B3107

HOSE, Thermal Drain
(Superseded to B3107GS)

$12.99

$

In Stock, only 1 left!

0

21

Briggs & Stratton 23707

SHCS, 5/16" - 24 x 1"
(Superseded to 23707GS)

$3.99

$

In Stock, only 1 left!

0

22

Briggs & Stratton 92479

WASHER, M8 Conical Ribbed
(Superseded to 92479GS)

$3.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B2218

O-RING, 1.625" I.D.
(Superseded to B2218GS)

$3.99

$

In Stock, only 2 left!

0

24

Briggs & Stratton 48031B

CLAMP, Hose Band
(Superseded to 48031BGS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 67989

NUT, M8 Flange Serrated
(Superseded to 67989GS)

$3.49

$

In Stock, Qty 20+

0

26

Briggs & Stratton 21217

MOUNT, Rubber Shock
(Superseded to 21217GS)

$7.49

$

In Stock, only 1 left!

0

27

Briggs & Stratton B1232

CLAMP, Hose 7/16" Dia.
(Superseded to B1232GS)

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 186113

KIT, Hardware Hose Reel
(Superseded to 186113GS)

$22.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 186114

REEL, Hose
(Superseded to 186114GS)

$95.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 187978

KIT, Hardware
(Superseded to 187978GS)

$7.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton A1040D

HOSE, 4-1/2' Chemical Clear
(Superseded to A1040DGS)

$12.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton A1041

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

33

Briggs & Stratton B3263

GUN, High Pressure
(Superseded to 704312)

$93.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton 21761

NOZZLE, 1.05 Yellow Replacement

$

$

Not available

35

Briggs & Stratton 97566

TAG, Nozzle Instructions
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B3335

LANCE, Nozzle Hi/Lo
(Superseded to 205015CGS)

$67.99

$

In Stock, only 3 left!

0

37

Briggs & Stratton 97837

O-RING, Hi Pressure
(Superseded to 97837GS)

$3.49

$

In Stock, Qty 9

0

38

Briggs & Stratton B4224

SCREEN, Gun Inlet
(Superseded to B4224GS)

$1.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton B2168A

HANGER, Hose, Gun
(Superseded to B2168AGS)

$42.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 188287

KIT, Nozzle Cleaning
(Superseded to 191922GS)

$18.99

$

In Stock, only 1 left!

0

41

Briggs & Stratton B5830

KIT, "O" Ring
(Superseded to 191922GS)

$18.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 187958

MANUAL

$

$

Not available

43

Briggs & Stratton AB3061B

OIL
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

44

Briggs & Stratton B5689

HOSE, High Pressure
(Superseded to 708962)

$59.99

$

In Stock, Qty 20+

0

45

-----

ASSEMBLY, Pump

Note: (For Replacement, order 198347GS)

$

$

Not available

45

Briggs & Stratton 198347GS

REPLACEMENT PUMP ASSEMBLY
(Superseded to 317054GS)

$457.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

--

Briggs & Stratton B5747

ASSEMBLY, Complete Hose Reel
(Superseded to 192648GS)

Note: Includes Items 28 & 29

$74.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175187

Garden Hose Quick Connect
(Superseded to 7175187GS)

Note: Optional Accessory Not Illustrated

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 7175197

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessory Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175199

Rotating Brush Kit
(Superseded to 7175199GS)

Note: Optional Accessory Not Illustrated

$82.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175115

25' Replacement Hose

Note: Optional Accessory Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7175116

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessory Not Illustrated

$18.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 7174400

Turbo Nozzle
(Superseded to 7174400GS)

Note: Optional Accessory Not Illustrated

$52.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174401

25' Extension Hose
(Superseded to 7174401GS)

Note: Optional Accessory Not Illustrated

$120.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174402

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessory Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174403

Pump Saver

Note: Optional Accessory Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7174300

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: Optional Accessory Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174301

Deck Wash Concentrate (makes 2 gallons)
(Superseded to 100524GS)

Note: Optional Accessory Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174302

Vehicle / Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: Optional Accessory Not Illustrated

$

$

Not available

--

Briggs & Stratton 7174303

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: Optional Accessory Not Illustrated

$18.99

$

Usually ships in 2-12 days

0
