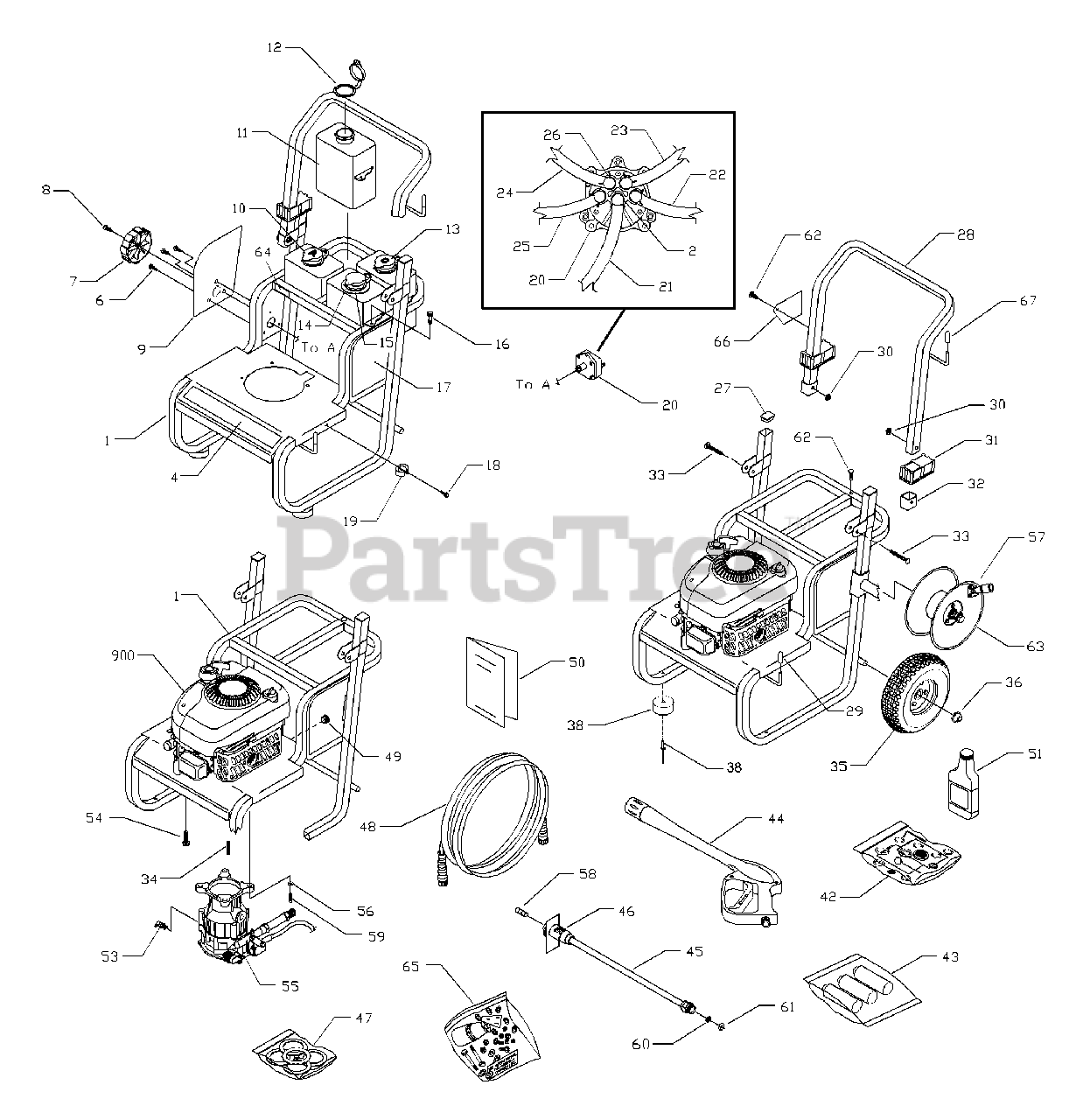

580.767450 (1672-0) - Craftsman 2,500 PSI Pressure Washer Main Unit Parts Diagram

2,500 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton MB5691GS

CRADLE, Red

$272.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 48031CGS

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 7

0

4

Briggs & Stratton 190359GS

DECAL, Logo

$15.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B3377GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B3721GS

HANDLE, 4-Way Valve

$8.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B3311GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B3650GS

DECAL, Control Panel

$15.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton B3222AGS

CAP, Chem Container "A"

$5.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B3594GS

ASSY, Chemical Tank
(Superseded to B3594AGS)

$23.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton B3222BGS

CAP, Chem Container "B"

$5.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B3222CGS

CAP, Chem Container "C"

$5.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton B3222DGS

CAP, Chem Container "Water"

$4.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B3376BGS

TAG, System Flush Water

$3.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B3695GS

BOLT, Washer

$18.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton B5832GS

DECAL, BLNK

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton B2153GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B2427BGS

CLIP, Holder

$9.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton B3306GS

ASSY, Sub 4-Way Valve

$12.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B3601BGS

HOSE, Chemical Pump
(Superseded to 194074GS)

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton B3577AGS

HOSE, "A"
(Superseded to B3577GS)

$9.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B3577BGS

HOSE, "B"
(Superseded to B3577GS)

$9.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B3577CGS

HOSE, "C"
(Superseded to B3577GS)

$9.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B3577DGS

HOSE, "Water"
(Superseded to B3577GS)

$9.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 48031GGS

CLAMP, Hose

$3.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 46476GS

CAP PLUG, Tubing

$2.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton M191774GS

HANDLE, Red

$122.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B2516GS

CAP, Vinyl

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton B2071GS

NUT, Lock
(Superseded to 194005GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B1779GS

COVER, Hinge

$8.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton B2347GS

END CAP, Tube

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 31669GS

BOLT, Carriage

$3.49

$

In Stock, only 2 left!

0

34

Briggs & Stratton 23139DGS

KEY

$4.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton B4966GS

TIRE
(Superseded to 209636GS)

$93.99

$

In Stock, only 3 left!

0

36

Briggs & Stratton 190147GS

NUT, Push
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

38

Briggs & Stratton 192553GS

KIT, Vibe Mount

$16.99

$

In Stock, Qty 8

0

42

Briggs & Stratton 191922GS

KIT, Maintenance

$18.99

$

In Stock, only 1 left!

0

43

Briggs & Stratton 192149GS

KIT, Concentrate, 3 Bottle

$29.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton B3263GS

GUN, High Pressure

$93.99

$

In Stock, only 1 left!

0

45

Briggs & Stratton B3264AGS

WAND, Nozzle Hi/Lo
(Superseded to 205015HGS)

$60.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 97566GS

TAG, Nozzle Instructions

$1.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton B3454GS

KIT, Tags

$16.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 190246GS

HOSE
(Superseded to 708962)

$

$

Not available

49

Briggs & Stratton 30809GS

GROMMET, Chemical Hose

$4.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 190244GS

MANUAL

$14.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton AB3061BGS

OIL BOTTLE

$

$

Not available

53

Briggs & Stratton 21783GS

VALVE, Relief, Thermal
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 13

0

54

Briggs & Stratton 75246GS

SCREW

$3.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 189942GS

ASSY, Pump
(Superseded to 206376GS)

Note: (See "Pump")

$385.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 92479GS

WASHER, Lock

$3.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton B4992GS

REEL, Hose

$74.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 94804GS

ORIFICE

$9.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 23707GS

SCREW

$3.99

$

In Stock, only 1 left!

0

60

Briggs & Stratton B4224GS

SCREEN, Gun Inlet

$1.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 97837GS

O-RING, Hi Pressure

$3.49

$

In Stock, Qty 9

0

62

Briggs & Stratton B1797GS

FASTENER, Clip

$3.99

$

In Stock, Qty 8

0

63

Briggs & Stratton 186318GS

REEL, Hose without Hardware

$86.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 96307GS

DECAL, 1-800#

$4.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 186317GS

KIT, Hardware, Hose Reel

$21.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 191880GS

TAG, Warning/Danger/Operation
(Superseded to 705752)

$3.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton B1460GS

CAP, Vinyl

$2.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessory Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessory Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175199GS

Rotating Brush Kit

Note: Optional Accessory Not Illustrated

$82.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175115GS

HOSE, 4000PSI, 3/8" x 25'

Note: Optional Accessory Not Illustrated

$

$

Not available

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessory Not Illustrated

$18.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7174400GS

Turbo Nozzle

Note: Optional Accessory Not Illustrated

$52.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174401GS

HOSE, 4000PSI, 3/8" x 25'

Note: Optional Accessory Not Illustrated

$120.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174403GS

Pump Saver
(Superseded to 6151)

Note: Optional Accessory Not Illustrated

$21.99

$

In Stock, only 2 left!

0

Briggs & Stratton 7174300GS

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: Optional Accessory Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate (makes 2 gallons)
(Superseded to 100524GS)

Note: Optional Accessory Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle / Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: Optional Accessory Not Illustrated

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: Optional Accessory Not Illustrated

$18.99

$

Usually ships in 2-12 days

0
