580.767700 (1673-0) - Craftsman 2,700 PSI Pressure Washer Main Unit Parts Diagram

2,700 PSI Pressure Washer

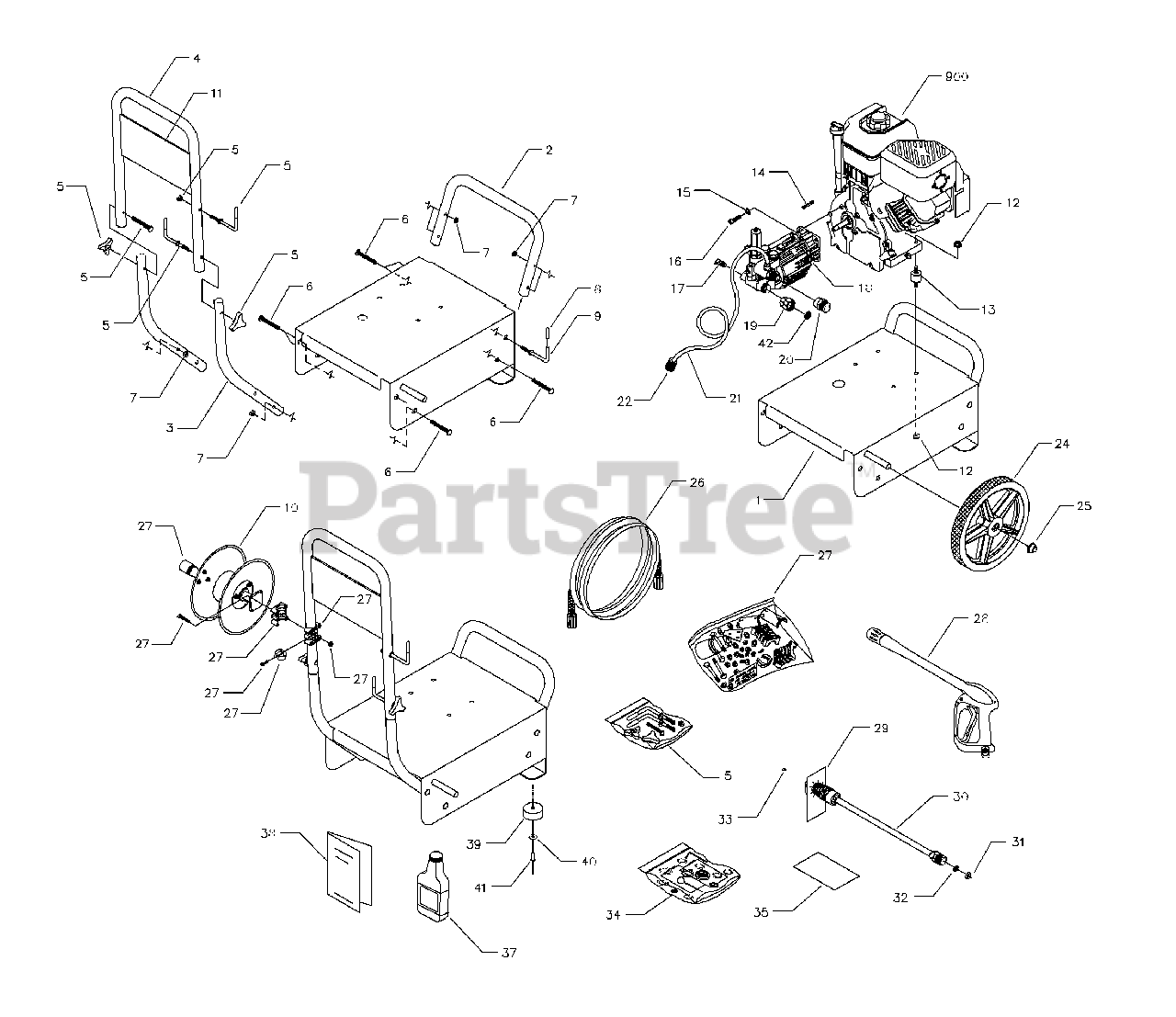

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton M190349GS

BASE

$192.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton CB1982GS

BUMPER

$

$

Not available

3

Briggs & Stratton C190258GS

SUPPORT, Handle

$19.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton CB1983AGS

HANDLE

$65.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 190278GS

KIT, Handle Fastening
(Superseded to 191433GS)

$16.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B2043GS

BOLT, Carriage

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 99583GS

NUT, Flange Lock

$2.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B2516GS

CAP, Vinyl, Black

$2.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B2150GS

HOOK, Gun

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 186114GS

REEL, Hose

$95.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 190559GS

ASSEMBLY, Billboard, 1673

$36.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 67989GS

NUT, Flange Serrated

$3.49

$

In Stock, Qty 20+

0

13

Briggs & Stratton 21217GS

MOUNT, Rubber Shock

$7.49

$

In Stock, only 1 left!

0

14

Briggs & Stratton 23139BGS

KEY

$2.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 92479GS

LOCKWASHER, Ribbed

$3.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 23707GS

CAPSCREW, Socket Head

$3.99

$

In Stock, only 1 left!

0

17

Briggs & Stratton 21783GS

VALVE, Thermal Relief
(Superseded to 208673GS)

$14.99

$

In Stock, Qty 13

0

18

Briggs & Stratton 190183GS

ASSEMBLY, Complete Pump
(Superseded to 202005GS)

Note: (See "Pump" illustration and parts list.)

$719.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B3868AGS

CONNECTER, Garden Hose

$21.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 95457GS

ADAPTER, Hose to Hose

$7.49

$

In Stock, only 1 left!

0

21

Briggs & Stratton A1040EGS

HOSE, Chemical Clear

$

$

Currently unavailable

22

Briggs & Stratton A1041GS

FILTER, Chemical Hose
(Superseded to 709496)

$6.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 189098AGS

ASSEMBLY, Tire and Wheel
(Superseded to 193548GS)

$

$

Not available

25

Briggs & Stratton 190146GS

PUSHNUT

$9.99

$

In Stock, only 2 left!

0

26

Briggs & Stratton 190470GS

HOSE
(Superseded to 206192GS)

$103.99

$

In Stock, only 2 left!

0

27

Briggs & Stratton 186113GS

KIT, Hardware Hose Reel

$22.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton B3263GS

GUN, High Pressure

$93.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 97566GS

TAG, Nozzle Instructions

$1.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton B3264GS

WAND, Hi/Lo
(Superseded to 190937GS)

$83.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 97837GS

O-RING, Hi Pressure

$3.49

$

In Stock, Qty 9

0

32

Briggs & Stratton B4224GS

SCREEN, Gun Inlet

$1.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 21761GS

NOZZLE, Yellow Replacement

$20.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 190862GS

KIT, Maintenance
(Superseded to 191922GS)

$18.99

$

In Stock, only 1 left!

0

35

Briggs & Stratton 188039GS

CARD, Owners Registration

$1.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton AB3061BGS

OIL

$

$

Not available

38

Briggs & Stratton 190231GS

MANUAL

$14.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 27007GS

MOUNT, Donut Type Vibration
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

40

Briggs & Stratton 71693GS

WASHER, Flat

$2.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 188194GS

BLIND RIVET

$1.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton B2384GS

FILTER, Quick Disconnect

$4.49

$

In Stock, only 3 left!

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

Briggs & Stratton B5747GS

ASSEMBLY, Complete Hose Reel
(Superseded to 192648GS)

Note: (Includes Items 10 & 27)

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175187GS

Garden Hose Quick Connect

Note: Optional Accessory Not Illustrated

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197GS

Accessory Quick Connect
(Superseded to 312981GS)

Note: Optional Accessory Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175199GS

Rotating Brush Kit

Note: Optional Accessory Not Illustrated

$82.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175115GS

HOSE, 4000PSI, 3/8" x 25'

Note: Optional Accessory Not Illustrated

$

$

Not available

Briggs & Stratton 7175116GS

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessory Not Illustrated

$18.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7174400GS

Turbo Nozzle

Note: Optional Accessory Not Illustrated

$52.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174401GS

HOSE, 4000PSI, 3/8" x 25'

Note: Optional Accessory Not Illustrated

$120.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174402GS

Hose Reel
(Superseded to 192648GS)

Note: Optional Accessory Not Illustrated

$74.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174403GS

Pump Saver
(Superseded to 6151)

Note: Optional Accessory Not Illustrated

$21.99

$

In Stock, only 2 left!

0

Briggs & Stratton 7174300GS

House Wash Concentrate (makes 4 gallons)
(Superseded to 6159)

Note: Optional Accessory Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301GS

Deck Wash Concentrate (makes 2 gallons)
(Superseded to 100524GS)

Note: Optional Accessory Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302GS

Vehicle / Boat Wash Concentrate (makes 4 gallons)
(Superseded to 6160)

Note: Optional Accessory Not Illustrated

$

$

Not available

Briggs & Stratton 7174303GS

Degreaser Concentrate (makes 4 gallons)
(Superseded to 100526GS)

Note: Optional Accessory Not Illustrated

$18.99

$

Usually ships in 2-12 days

0
