580.768000 (1058-0) - Craftsman 1,500 PSI Pressure Washer Rewind Starter & Flywheel Parts Diagram

1,500 PSI Pressure Washer

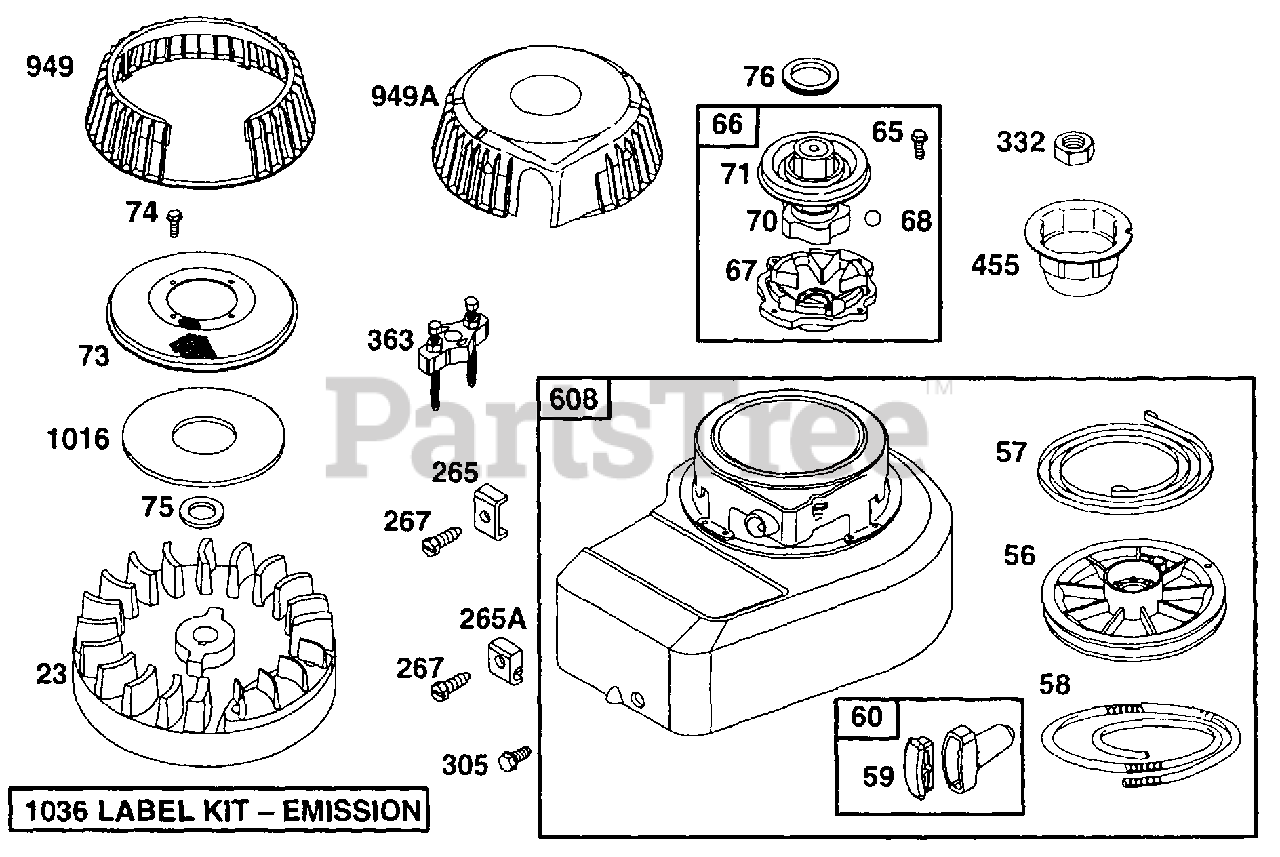

Rewind Starter & Flywheel Parts Diagram

  • Title

23

Briggs & Stratton 495046

Flywheel
(Superseded to 799682)

$

$

Not available

56

Briggs & Stratton 281336

Pulley - Starter
(Superseded to 281336S)

$14.99

$

In Stock, only 1 left!

0

57

Briggs & Stratton 490179

Spring - Rewind Starter

$14.99

$

In Stock, Qty 10

0

58

Briggs & Stratton 280406

Rope - Starter (81" Long)
(Superseded to 280406S)

Note: (Cut to Required Length)

$8.49

$

In Stock, only 2 left!

0

58

Briggs & Stratton 280399

Rope - Starter (99" Long)
(Superseded to 280399S)

Note: (Cut to Required Length)

$5.99

$

In Stock, Qty 19

0

59

Briggs & Stratton 396892

Insert - Grip

$5.49

$

In Stock, only 2 left!

0

60

Briggs & Stratton 393152

Grip - Starter Rope

$4.99

$

In Stock, only 3 left!

0

65

Briggs & Stratton 94680

Screw - Hex.
(Superseded to 691660)

$3.99

$

In Stock, Qty 11

0

66

Briggs & Stratton 399671

Clutch - Starter

$34.99

$

In Stock, Qty 14

0

67

Briggs & Stratton 394897

Housing - Clutch

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball - Clutch
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298799

Ratchet - Clutch
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

Cover - Ratchet
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 221661

Screen - Rotating
(Superseded to 691725)

$

$

Not available

74

Briggs & Stratton 93758

Screw - Hex.
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 223047

Washer - Flywheel
(Superseded to 691736)

$5.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 68238

Seal
(Superseded to 691359)

$9.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 22372

Clamp - Casing
(Superseded to 692179)

$4.49

$

In Stock, Qty 6

0

265A

Briggs & Stratton 213146

Clamp - Casing
(Superseded to 690798)

$5.49

$

In Stock, only 1 left!

0

267

Briggs & Stratton 94694

Screw - Slotted Hex.
(Superseded to 691044)

$3.99

$

In Stock, Qty 11

0

305

Briggs & Stratton 94786

Screw - Hex.
(Superseded to 692198)

$5.99

$

In Stock, only 3 left!

0

332

Briggs & Stratton 92284

Nut - Flywheel
(Superseded to 690662)

$5.99

$

In Stock, Qty 8

0

363

Briggs & Stratton 19069

Flywheel Puller

$23.99

$

In Stock, only 2 left!

0

455

Briggs & Stratton 225121

Cup - Flywheel
(Superseded to 695161)

$37.99

$

Usually ships in 2-12 days

0

608

Starter - Rewind

$

$

Not available

949

Briggs & Stratton 281337

Guard - Rewind
(Superseded to 691330)

$16.99

$

Usually ships in 2-12 days

0

949A

Briggs & Stratton 281279

Guard - Finger
(Superseded to 690601)

$20.99

$

Usually ships in 2-12 days

0

1016

Briggs & Stratton 281353

Spacer - Rewind
(Superseded to 691924)

Note: (2 - 13/16" Dia.)

$24.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 499331

Label Kit - Emission

Note: Used on Type No(s). 0810, 0837, 0849, 0865, 0866, 0891, 0899, 1446, 1472, 1477, 1515, 1516, 1538,1551, 1644.

$4.99

$

Usually ships in 2-12 days

0
