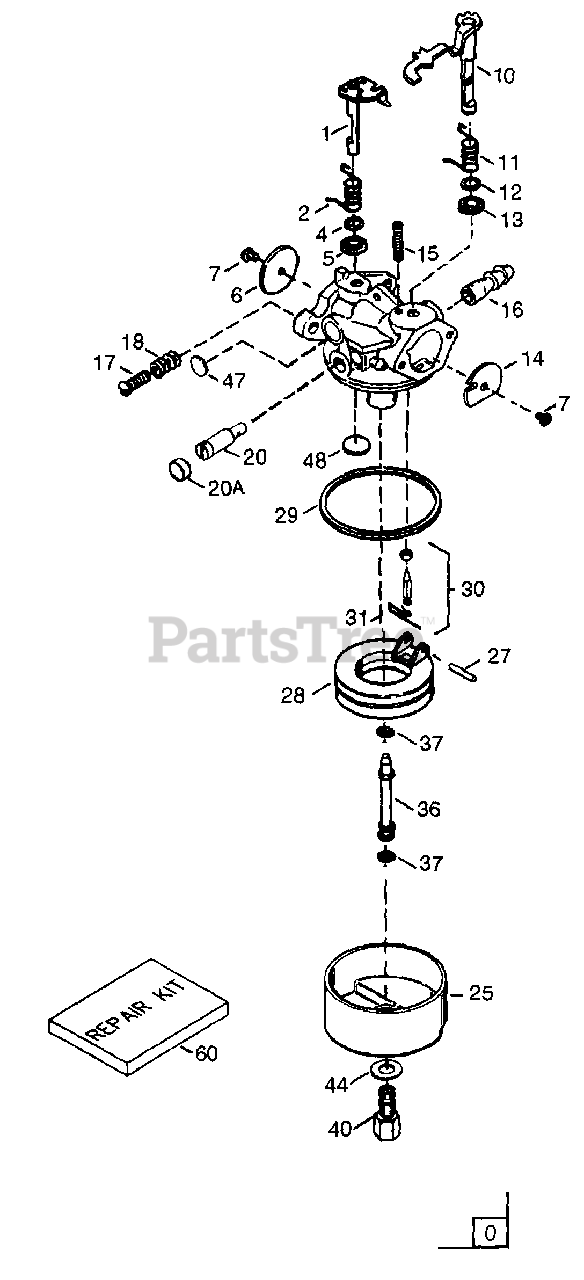

580.768030 (1212-0) - Craftsman 2,250 PSI Pressure Washer Carburetor Parts Diagram

2,250 PSI Pressure Washer

Carburetor Parts Diagram

  • Title

Briggs & Stratton 640060

Carburetor

Note: (Incl. 184 of "Engine (Part 1)" illustration and parts list)

$

$

Currently unavailable

1

Briggs & Stratton 631615

Throttle Shaft & Lever Assembly

$

$

Currently unavailable

2

Briggs & Stratton 631767

Throttle Return Spring

$

$

Currently unavailable

4

Briggs & Stratton 631184

Dust Seal Washer

$

$

Currently unavailable

5

Briggs & Stratton 631183

Dust Seal (Throttle)

$

$

Currently unavailable

6

Briggs & Stratton 631036

Throttle Shutter

$

$

Currently unavailable

7

Briggs & Stratton 650506

Shutter Screw

$

$

Currently unavailable

10

Briggs & Stratton 31868

Choke Shaft & Lever Assembly

$

$

Currently unavailable

11

Briggs & Stratton 632042

Choke Return Spring

$

$

Currently unavailable

12

Briggs & Stratton 631184

Dust Seal Washer (Choke)

$

$

Currently unavailable

13

Briggs & Stratton 631183

Dust Seal (Choke)

$

$

Currently unavailable

14

Briggs & Stratton 631890

Choke Shutter

$

$

Currently unavailable

15

Briggs & Stratton 630735

Choke Positioning Spring

$

$

Currently unavailable

16

Briggs & Stratton 632164

Fuel Fitting

$

$

Currently unavailable

17

Briggs & Stratton 651025

Throttle Crack Screw/Idle Speed Screw

$

$

Currently unavailable

18

Briggs & Stratton 630766

Tension Spring

$

$

Currently unavailable

20

Briggs & Stratton 640027

Idle Restrictor Screw

$

$

Currently unavailable

20A

Briggs & Stratton 640053

Idle Restrictor Screw Cap

$

$

Currently unavailable

25

Briggs & Stratton 631867

Float Bowl

$

$

Currently unavailable

27

Briggs & Stratton 631024

Float Shaft

$

$

Currently unavailable

28

Briggs & Stratton 632019

Float

$

$

Currently unavailable

29

Briggs & Stratton 631028

Float Bowl "O" Ring

$

$

Currently unavailable

30

Briggs & Stratton 631021

Inlet Needle, Seat & Clip

Note: (Incl. 31)

$

$

Currently unavailable

31

Briggs & Stratton 631022

Spring Clip

$

$

Currently unavailable

36

Briggs & Stratton 640019

Main Nozzle Tube

$

$

Currently unavailable

37

Briggs & Stratton 632547

"O" Ring, Main Nozzle Tube

$

$

Currently unavailable

40

Briggs & Stratton 640015

High Speed Bowl Nut

$

$

Currently unavailable

44

Briggs & Stratton 27110A

Bowl Nut Washer

$

$

Currently unavailable

47

Briggs & Stratton 630748

Welch Plug, Idle Mixture Well

$

$

Currently unavailable

48

Briggs & Stratton 631027

Welch Plug, Atmospheric Vent

$

$

Currently unavailable

60

Briggs & Stratton 632760

Repair kit

$

$

Currently unavailable
