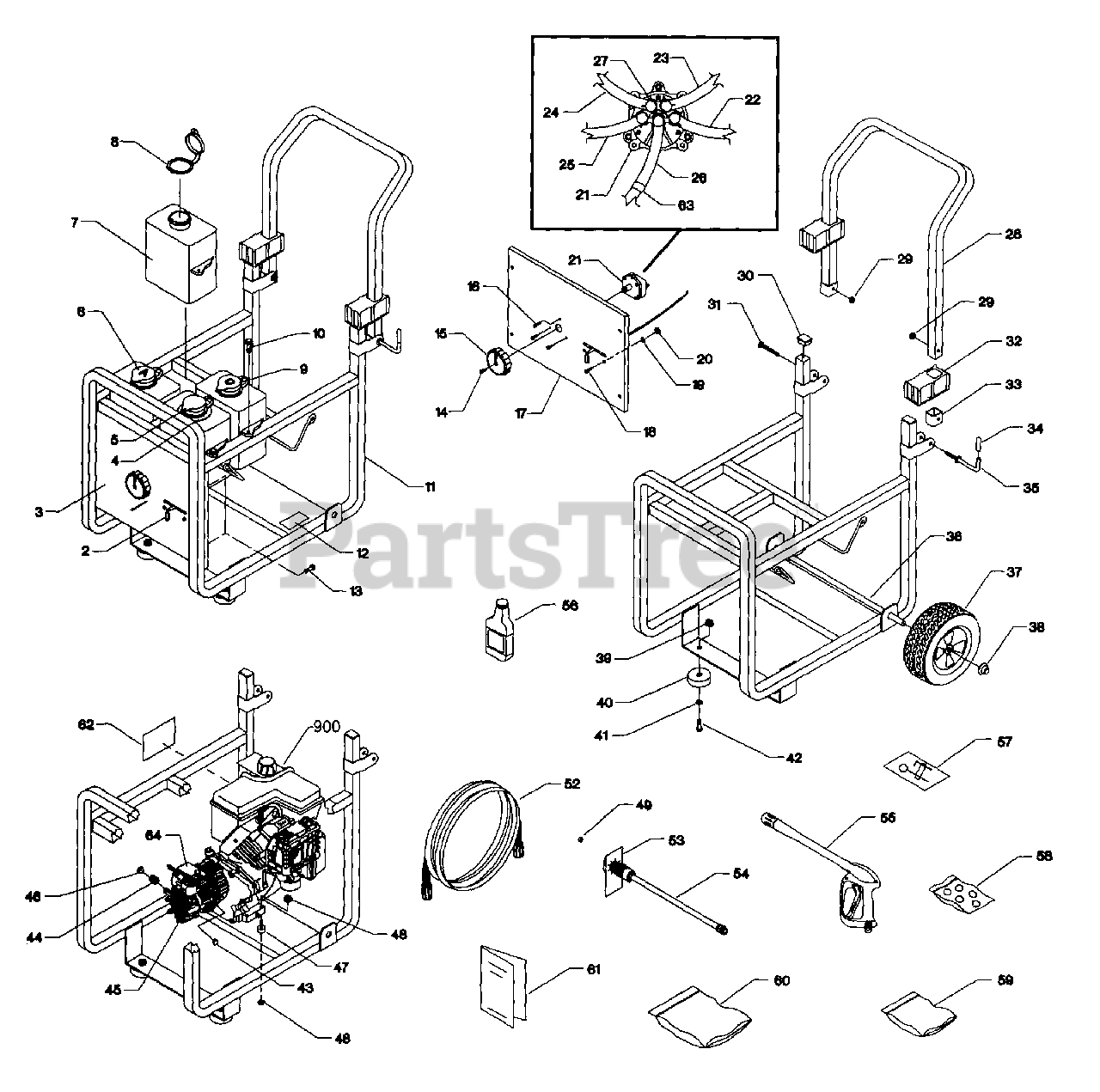

580.768030 (1212-0) - Craftsman 2,250 PSI Pressure Washer Main Unit Parts Diagram

2,250 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

2

Briggs & Stratton B3608C

LINK, Throttle Control

$

$

Not available

3

Briggs & Stratton B3597

DECAL, Control Panel 2250

$

$

Not available

4

Briggs & Stratton B3376B

TAG, System Flush Water
(Superseded to B3376BGS)

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B3222D

CAP, Chem Container "Water"
(Superseded to B3222DGS)

$4.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B3222A

CAP, Chem Container "A"
(Superseded to B3222AGS)

$5.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B3594

ASSY., Chemical Tank 1/2 Gal.
(Superseded to B3594AGS)

$23.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B3222B

CAP, Chem Container "B"
(Superseded to B3222BGS)

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B3222C

CAP, Chem Container "C"
(Superseded to B3222CGS)

$5.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton B3695

BOLT, 1/4"-20 with Washer
(Superseded to B3695GS)

$18.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton EB3265

CRADLE, Polo Green

$

$

Not available

12

Briggs & Stratton 96307

DECAL, 1-800 Number
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 86292

SELF DRILL, 10-16 x 3/4"
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton B3311

SCREW, Plastite 10 - 9
(Superseded to B3311GS)

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B3721

HANDLE, 4-Way Valve
(Superseded to B3721GS)

$8.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B3377

SCREW, Plastite 8 - 11 3/4"
(Superseded to B3377GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton EB3113

PANEL, Control Polo Green

$

$

Not available

18

Briggs & Stratton 91526

SCREW, M5 - 0.8 x 12

$

$

Not available

19

Briggs & Stratton 49226

LOCK WASHER, M5
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 51716

NUT, Hex M5 - 0.8
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B3306

ASSY., Sub 4-Way Valve
(Superseded to B3306GS)

$12.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton B3593A

HOSE, "A" - 6.5"
(Superseded to B3593BGS)

$13.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton B3593B

HOSE, "B" - 8.5"
(Superseded to B3593BGS)

$13.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B3593C

HOSE, "C" - 11.0"
(Superseded to B3593CGS)

$9.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton B3593D

HOSE, "Water" - 8"
(Superseded to B3593DGS)

$11.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B3601D

Hose, Chemical Pump 10.5"
(Superseded to B3601AGS)

$20.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 48031G

CLAMP, Hose 3/16"
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton EB2555

HANDLE, Polo Green

$

$

Not available

29

Briggs & Stratton B2071

NUT, 1/4" - 20 Flange Locking
(Superseded to 194005GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 46476

CAP PLUG, Tubing
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 33669

BOLT, 1/4"-20 x 1-3/4" Carriage

$

$

Currently unavailable

32

Briggs & Stratton B1779

COVER, Hinge
(Superseded to B1779GS)

$8.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton B2347

END CAP, Tube
(Superseded to B2347GS)

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B1460

CAP, Vinyl Black
(Superseded to B1460GS)

$2.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton B2759

HOOK, Square Neck Gun
(Superseded to B2759GS)

$3.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B3741

AXLE ROD, 1/2" x 21.53"
(Superseded to B3741GS)

$17.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B1760

ASSY., Wheel & Tire 10"
(Superseded to B1760GS)

$81.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 75402

PUSHNUT, 1/2"
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

39

Briggs & Stratton 52858

NUT, M8 - 1.25 Locking
(Superseded to 52858GS)

$3.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 27007

MOUNT, Vibration Donut Type
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

41

Briggs & Stratton 50190

FLAT WASHER, M8
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

42

Briggs & Stratton 42909

HHCS, M8 x 1.25 x 30 Long
(Superseded to 42909GS)

$3.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 97100

CAP, Outlet
(Superseded to 97100GS)

$3.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

45

-----

ASSY., Pump

Note: (For Replacement, order 198347GS)

$

$

Not available

45

Briggs & Stratton 198347GS

REPLACEMENT PUMP ASSEMBLY
(Superseded to 317054GS)

$457.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton A1408

CAP, Inlet
(Superseded to A1408GS)

$2.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 21217

MOUNT, Rubber Shock
(Superseded to 21217GS)

$7.49

$

In Stock, only 1 left!

0

48

Briggs & Stratton 67989

NUT, Hex Locking Flange M8
(Superseded to 67989GS)

$3.49

$

In Stock, Qty 20+

0

49

Briggs & Stratton 92659

NOZZLE, Replacement
(Superseded to 690352)

$6.99

$

In Stock, only 3 left!

0

52

Briggs & Stratton B3607

HOSE, 1/4" x 25'

$

$

Currently unavailable

53

Briggs & Stratton 97566

TAG, Nozzle Instructions
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton B3335A

WAND, Nozzle Hi/Lo
(Superseded to 188792AGS)

$67.99

$

In Stock, only 3 left!

0

55

Briggs & Stratton B3263

GUN, High Pressure
(Superseded to 704312)

$93.99

$

In Stock, only 1 left!

0

56

Briggs & Stratton AB3061B

OIL BOTTLE, 20 oz
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

57

Briggs & Stratton B3708

KIT, Cleaning Nozzle

$

$

Currently unavailable

58

Briggs & Stratton B2730

KIT, Maintenance
(Superseded to B2730GS)

$18.99

$

In Stock, only 3 left!

0

59

Briggs & Stratton B3454

KIT, Tag
(Superseded to B3454GS)

$16.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton B3589

KIT, 3 Pak Concentrate
(Superseded to B3589GS)

$22.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton B3595

MANUAL
(Superseded to B3595GS)

$14.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton B3453

DECAL, Start Instructions

$

$

Currently unavailable

63

Briggs & Stratton 48031C

CLAMP, Hose 1/2"

$

$

Not available

64

Briggs & Stratton B1288

TAG, Breather
(Superseded to B1288GS)

$1.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

--

Briggs & Stratton 7174300

House Wash Concentrate
(Superseded to 6159)

Note: Optional Accessory, Not Illustrated

$9.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174301

Deck Wash Concentrate
(Superseded to 100524GS)

Note: Optional Accessory, Not Illustrated

$21.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174302

Vehicle Wash Concentrate
(Superseded to 6160)

Note: Optional Accessory, Not Illustrated

$

$

Not available

--

Briggs & Stratton 7174303

Degreaser Concentrate
(Superseded to 100526GS)

Note: Optional Accessory, Not Illustrated

$18.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174400

Heavy Duty Turbo Nozzle
(Superseded to 7174400GS)

Note: Optional Accessory, Not Illustrated

$52.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7174401

25' 3/8" Replacement Extension Hose
(Superseded to 7174401GS)

Note: Optional Accessory, Not Illustrated

$120.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175115

25' 1/4" Replacement Hose

Note: Optional Accessory, Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7175116

O Ring Repair Kit
(Superseded to 196002GS)

Note: Optional Accessory, Not Illustrated

$18.99

$

In Stock, only 3 left!

0

--

Briggs & Stratton 7175187

Garden Hose Quick Connect
(Superseded to 7175187GS)

Note: Optional Accessory, Not Illustrated

$17.99

$

In Stock, only 1 left!

0

--

Briggs & Stratton 7175197

Accessory Quick Connect Kit
(Superseded to 312981GS)

Note: Optional Accessory, Not Illustrated

$39.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7175199

Rotating Brush
(Superseded to 7175199GS)

Note: Optional Accessory, Not Illustrated

$82.99

$

Usually ships in 2-12 days

0

--

Briggs & Stratton 7176430

Floor/Siding Brush

Note: Optional Accessory, Not Illustrated

$

$

Currently unavailable

--

Briggs & Stratton 7176431

Utility Brush

Note: Optional Accessory, Not Illustrated

$

$

Currently unavailable
