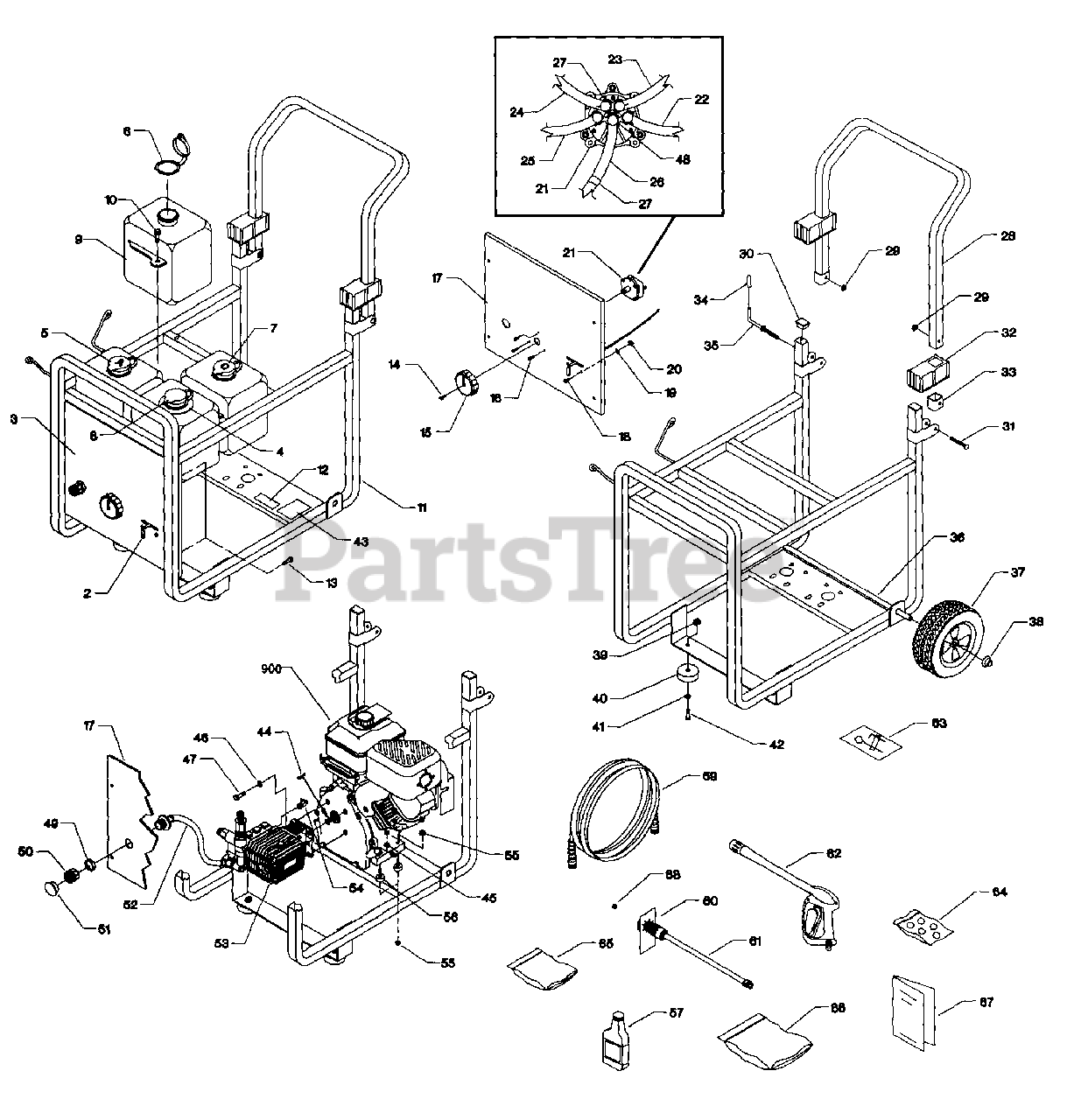

580.768040 (1211-0) - Craftsman 2,500 PSI Pressure Washer Main Unit Parts Diagram

2,500 PSI Pressure Washer

Main Unit Parts Diagram

  • Title

2

Briggs & Stratton B3608B

LINK, Throttle Control
(Superseded to B3608BGS)

$44.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton B3605

DECAL, Control Panel 2500

$

$

Not available

4

Briggs & Stratton B3376B

TAG, System Flush Water
(Superseded to B3376BGS)

$3.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton B3222A

CAP, Chem Container "A"
(Superseded to B3222AGS)

$5.49

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B3222B

CAP, Chem Container "B"
(Superseded to B3222BGS)

$5.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B3222C

CAP, Chem Container "C"
(Superseded to B3222CGS)

$5.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B3222D

CAP, Chem Container "Water"
(Superseded to B3222DGS)

$4.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B3599

ASSY., Chemical Tank 1 Gal.
(Superseded to B3599GS)

$45.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton B3695

BOLT, 1/4"-20 with Washer
(Superseded to B3695GS)

$18.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton EB3440

CRADLE, Powder Ct Green
(Superseded to EB3440GS)

$533.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 96307

DECAL, 1-800 Number
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 86292

SELF DRILL, 10-16 x 3/4"
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton B3311

SCREW, Plastite 10-9
(Superseded to B3311GS)

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B3721

HANDLE, 4-Way Valve
(Superseded to B3721GS)

$8.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B3377

SCREW, Plastite 8 x 3/4"
(Superseded to B3377GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton EB3114

PANEL, Control Powder Green

$

$

Not available

18

Briggs & Stratton 91526

PPHMS, M5-0.8 x 12

$

$

Not available

19

Briggs & Stratton 49226

LOCK WASHER, M5
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 51716

NUT, Hex M5-0.8
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B3306

ASSY., Sub 4-Way Valve
(Superseded to B3306GS)

$12.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton B3839A

HOSE, Chemical "A" - 9"

$

$

Not available

23

Briggs & Stratton B3839B

HOSE, Chemical "B" - 13"
(Superseded to B3839BGS)

$4.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B3839C

HOSE, Chemical "C" - 13"

$

$

Not available

25

Briggs & Stratton B3839D

HOSE, Chemical "D" - 9"

$

$

Not available

26

Briggs & Stratton B3601A

HOSE, Chemical Pump 12.5"
(Superseded to B3601AGS)

$20.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 48031G

CLAMP, Hose 3/16"
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton EB3620

HANDLE, Powder Green
(Superseded to EB3620GS)

$76.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B2071

NUT, 1/4"-20 Flange Locking
(Superseded to 194005GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 46476

CAPLUG, Tubing
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 31669

BOLT, 1/4"-20 x 1-3/4" Carriage
(Superseded to 31669GS)

$3.49

$

In Stock, only 2 left!

0

32

Briggs & Stratton B1779

COVER, Hinge
(Superseded to B1779GS)

$8.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton B2347

END CAP, Tube
(Superseded to B2347GS)

$2.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B1460

CAP, Vinyl Black
(Superseded to B1460GS)

$2.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton B2759

HOOK, Square Neck Gun
(Superseded to B2759GS)

$3.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton B3742

AXLE ROD, 1/2" x 24.65"
(Superseded to B3742GS)

$19.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton B1760

ASSY., Wheel & Tire 10"
(Superseded to B1760GS)

$81.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 75402

PUSHNUT, 1/2"
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

39

Briggs & Stratton 52858

NUT, M8-1.25 Locking
(Superseded to 52858GS)

$3.99

$

In Stock, only 4 left!

0

40

Briggs & Stratton 27007

MOUNT, Vibration Donut Type
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

41

Briggs & Stratton 50190

FLAT WASHER, M8
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 42909

HHCS, M8 x 1.25 x 30
(Superseded to 42909GS)

$3.49

$

In Stock, only 1 left!

0

43

Briggs & Stratton B4231

DECAL, Start Instruction
(Superseded to B4231GS)

$4.49

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 23139B

KEY, 3/16" X 1.50" Sq.
(Superseded to 23139BGS)

$2.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 22145

FLATWASHER, M8

$

$

Not available

46

Briggs & Stratton 92479

LOCKWASHER, M8
(Superseded to 92479GS)

$3.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 22147

HHCS, 5/16"-24 x 3/4"
(Superseded to 22147GS)

$3.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 48031C

CLAMP, Hose 1/2"

$

$

Not available

49

Briggs & Stratton B3735

NUT, Water Inlet
(Superseded to B3735GS)

$18.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 97098

CAP, Garden Hose Inlet
(Superseded to 97098GS)

$3.49

$

Usually ships in 2-12 days

0

52

Briggs & Stratton B3698

HOSE, Water Inlet
(Superseded to B3698GS)

$78.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton B3169

ASSY., Pump
(Superseded to B3169GS)

$713.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton B2727

THERMAL RELIEF, 3/8" NPT

$

$

Currently unavailable

55

Briggs & Stratton 67989

NUT, Hex M8-1.25
(Superseded to 67989GS)

$3.49

$

In Stock, Qty 20+

0

56

Briggs & Stratton 21217

MOUNT, Rubber Shock
(Superseded to 21217GS)

$7.49

$

In Stock, only 1 left!

0

57

Briggs & Stratton AB3061B

OIL BOTTLE
(Superseded to 100005)

$8.99

$

In Stock, Qty 8

0

59

Briggs & Stratton B3635

HOSE, 3/8" x 25'
(Superseded to 206192GS)

$103.99

$

In Stock, only 2 left!

0

60

Briggs & Stratton 97566

TAG, Nozzle Instructions
(Superseded to 97566GS)

$1.49

$

Usually ships in 2-12 days

0

61

Briggs & Stratton B3264C

WAND, Nozzle Hi/Lo
(Superseded to B3264CGS)

$73.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton B3263

GUN, High Pressure
(Superseded to 704312)

$93.99

$

In Stock, only 1 left!

0

63

Briggs & Stratton B3708

KIT, Cleaning Nozzle

$

$

Currently unavailable

64

Briggs & Stratton B2730

KIT, Maintenance
(Superseded to B2730GS)

$18.99

$

In Stock, Qty 9

0

65

Briggs & Stratton B3454

KIT, Chemical Tags
(Superseded to B3454GS)

$16.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton B3589

KIT, 3 Pak Concentrate
(Superseded to B3589GS)

$22.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton B3610

MANUAL
(Superseded to B3610GS)

$14.99

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 92661

NOZZLE - Replacement
(Superseded to 92661GS)

$9.49

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE, B & S Intek 6.5 HP, Model #121412-0148-E1

$

$

Currently unavailable

Briggs & Stratton 7174300

House Wash Concentrate
(Superseded to 6159)

Note: (Optional Accessory, Not Illustrated)

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301

Deck Wash Concentrate
(Superseded to 100524GS)

Note: (Optional Accessory, Not Illustrated)

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302

Vehicle Wash Concentrate
(Superseded to 6160)

Note: (Optional Accessory, Not Illustrated)

$

$

Not available

Briggs & Stratton 7174303

Degreaser Concentrate
(Superseded to 100526GS)

Note: (Optional Accessory, Not Illustrated)

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174400

Heavy Duty Turbo Nozzle
(Superseded to 7174400GS)

Note: (Optional Accessory, Not Illustrated)

$52.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174401

25' 3/8" Replacement Extension Hose
(Superseded to 7174401GS)

Note: (Optional Accessory, Not Illustrated)

$120.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175115

25' 1/4" Replacement Hose

Note: (Optional Accessory, Not Illustrated)

$

$

Currently unavailable

Briggs & Stratton 7175116

O Ring Repair Kit
(Superseded to 196002GS)

Note: (Optional Accessory, Not Illustrated)

$18.99

$

In Stock, Qty 9

0

Briggs & Stratton 7175187

Garden Hose Quick Connect
(Superseded to 7175187GS)

Note: (Optional Accessory, Not Illustrated)

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197

Accessory Quick Connect Kit
(Superseded to 312981GS)

Note: (Optional Accessory, Not Illustrated)

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175199

Rotating Brush
(Superseded to 7175199GS)

Note: (Optional Accessory, Not Illustrated)

$82.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7176430

Floor/Siding Brush

Note: (Optional Accessory, Not Illustrated)

$

$

Currently unavailable

Briggs & Stratton 7176431

Utility Brush

Note: (Optional Accessory, Not Illustrated)

$

$

Currently unavailable
