580.768050 (1210-0) - Craftsman 3,000 PSI Pressure Washer Main Unit Parts Diagram

3,000 PSI Pressure Washer

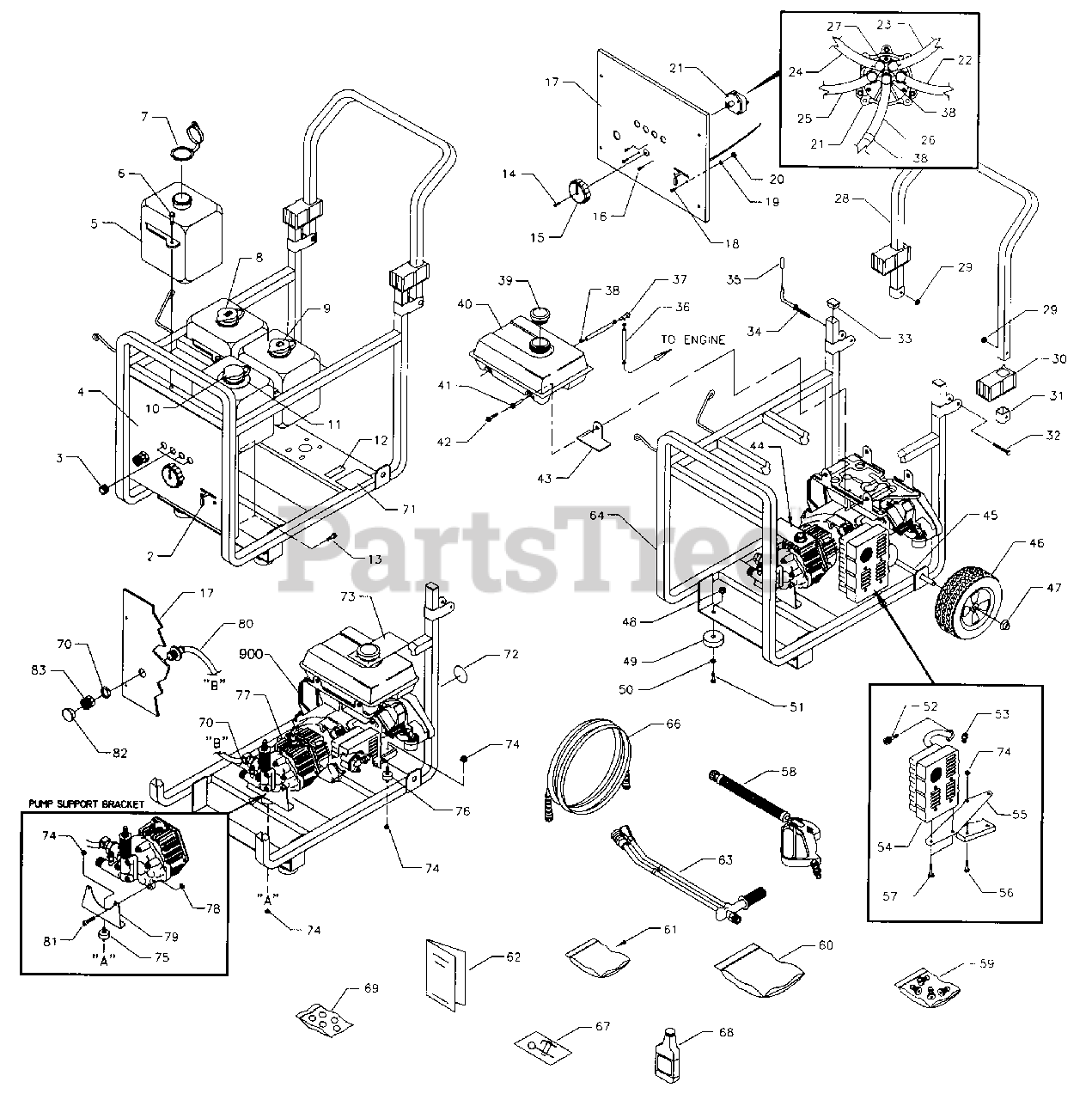

Main Unit Parts Diagram

  • Title

2

Briggs & Stratton B3608A

LINK, Throttle Control
(Superseded to B3608AGS)

$28.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 30809

GROMMET, Rubber
(Superseded to 30809GS)

$4.49

$

Usually ships in 2-12 days

0

4

Briggs & Stratton B3576

DECAL, Control Panel 1210

$

$

Not available

5

Briggs & Stratton B3599

ASSY., Chemical Tank 1 Gal.
(Superseded to B3599GS)

$45.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton B3695

BOLT, 1/4" - 20 with Washer
(Superseded to B3695GS)

$18.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton B3222A

CAP, Chem Container "A"
(Superseded to B3222AGS)

$5.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton B3222B

CAP, Chem Container "B"
(Superseded to B3222BGS)

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton B3222C

CAP, Chem Container "C"
(Superseded to B3222CGS)

$5.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton B3222D

CAP, Chem Container "Water"
(Superseded to B3222DGS)

$4.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton B3376B

TAG, System Flush Water
(Superseded to B3376BGS)

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 96307

DECAL, 1-800 Number
(Superseded to 96307GS)

$4.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 86292

SELF DRILL, 10 - 16 x 3/4"
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton B3311

SCREW, Plastite
(Superseded to B3311GS)

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton B3721

HANDLE, 4-Way Valve
(Superseded to B3721GS)

$8.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton B3377

SCREW, Plastite #8 x .75"
(Superseded to B3377GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton EB3115

PANEL, Control Powder Green

$

$

Not available

18

Briggs & Stratton 91526

PPHMS, M5 - 0.8 x 12

$

$

Not available

19

Briggs & Stratton 49226

LOCK WASHER, M5
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 51716

NUT, Hex M5 - 0.8
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton B3306

ASSY., Sub 4-Way Valve
(Superseded to B3306GS)

$12.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton B3840A

HOSE, Chemical "A" - 10"

$

$

Not available

23

Briggs & Stratton B3840B

HOSE, Chemical "B" - 14"
(Superseded to B3840BGS)

$9.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton B3840C

HOSE, Chemical "C" - 14"

$

$

Not available

25

Briggs & Stratton B3840D

HOSE, Chemical "D" - 10"
(Superseded to B3840DGS)

$6.49

$

Usually ships in 2-12 days

0

26

Briggs & Stratton B3601C

HOSE, Chemical Pump 7.5"

$

$

Not available

27

Briggs & Stratton 48031G

CLAMP, Hose 3/16"
(Superseded to 48031GGS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton EB3620

HANDLE, Powder Green
(Superseded to EB3620GS)

$76.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton B2071

NUT, 1/4" - 20 Flange Locking
(Superseded to 194005GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton B1779

COVER, Hinge
(Superseded to B1779GS)

$8.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton B2347

END CAP, Tube
(Superseded to B2347GS)

$2.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 31669

BOLT, 1/4"-20 x 1-3/4" Carriage
(Superseded to 31669GS)

$3.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 46476

CAPLUG, Tubing
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton B2759

HOOK, Square Neck Gun
(Superseded to B2759GS)

$3.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton B1460

CAP, Vinyl Black
(Superseded to B1460GS)

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 30340C

HOSE, .25" ID
(Superseded to 30340CGS)

$1.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 96193

VALVE, Fuel Shut-Off
(Superseded to 698181)

$11.99

$

In Stock, Qty 7

0

38

Briggs & Stratton 48031C

HOSE, Clamp Band 1/2"

$

$

Not available

39

Briggs & Stratton 95549

CAP, Fuel
(Superseded to 95549GS)

$28.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 94994

TANK, 1 Gal Fuel
(Superseded to 94994GS)

$

$

Not available

41

Briggs & Stratton 96002

BUSHING, Tank
(Superseded to 96002GS)

$5.49

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 96001

BOLT, M6 - 1.0 x 21 Shoulder

$

$

Not available

43

Briggs & Stratton 21545

SHIELD, Heat
(Superseded to 5021545)

$68.99

$

In Stock, only 2 left!

0

44

Briggs & Stratton B1288

TAG, Breather Cap
(Superseded to B1288GS)

$1.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton B4140

AXLE ROD, 1/2" x 24.65"
(Superseded to B4140GS)

$19.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 88521

WHEEL
(Superseded to 88521GS)

$93.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 75402

PUSHNUT,1/2"
(Superseded to 194062GS)

$4.49

$

In Stock, only 4 left!

0

48

Briggs & Stratton 52858

NUT, M8 - 1.25 Locking
(Superseded to 52858GS)

$3.99

$

In Stock, only 4 left!

0

49

Briggs & Stratton 27007

MOUNT, Vibration Donut Type
(Superseded to 191413GS)

$6.49

$

In Stock, Qty 7

0

50

Briggs & Stratton 50190

FLAT WASHER, M8
(Superseded to 50190GS)

$3.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 42909

HHCS, M8 x 1.25 x 30
(Superseded to 42909GS)

$3.49

$

In Stock, only 1 left!

0

52

Briggs & Stratton 40976

SHCS, M8 - 1.25 x 20

$

$

Not available

53

Briggs & Stratton 89476

GASKET, Exhaust
(Superseded to 89476GS)

$2.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 83071

MUFFLER
(Superseded to 83071GS)

$

$

Not available

55

Briggs & Stratton 83208

BRACKET, Muffler
(Superseded to 83208GS)

$21.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 39414

HHCS, M8 - 1.25 x 35
(Superseded to 39414GS)

$2.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 66476

HHCS/LW, M6 - 1.0 x 12
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

58

Briggs & Stratton B1436A

GUN, Molded Grip
(Superseded to B1436AGS)

$

$

Not available

59

Briggs & Stratton B4341

KIT, Nozzles
(Superseded to B4341GS)

$47.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton B3589

KIT, 3 Pak Concentrate
(Superseded to B3589GS)

$22.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton B3454

KIT, Chemical Tags
(Superseded to B3454GS)

$16.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton B3604

MANUAL
(Superseded to B3604GS)

$14.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton B1748

ASSY., Dual Lance Ext.
(Superseded to B1748GS)

$201.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton EB3618

CRADLE, Powder Ct Green
(Superseded to EB3618GS)

$372.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton B3636

HOSE, 3/8" x 50'
(Superseded to B3636GS)

$201.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton B2508

KIT, Cleaning Nozzle
(Superseded to 191922GS)

$18.99

$

In Stock, Qty 8

0

68

Briggs & Stratton AB3061

OIL BOTTLE
(Superseded to BB3061GS)

$13.99

$

In Stock, only 1 left!

0

69

Briggs & Stratton B2730

KIT, Maintenance
(Superseded to B2730GS)

$18.99

$

In Stock, Qty 9

0

70

Briggs & Stratton B3735

NUT,Water Inlet
(Superseded to B3735GS)

$18.99

$

Usually ships in 2-12 days

0

71

Briggs & Stratton B4270

DECAL, Start Instruction
(Superseded to B4270GS)

$6.49

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 96207A

DECAL, Recoil
(Superseded to 96207AGS)

$8.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 70453

TAG, Warning Oil
(Superseded to 70453GS)

$3.49

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 67989

NUT, Hex Locking Flange M8 - 1.25
(Superseded to 67989GS)

$3.49

$

In Stock, Qty 20+

0

75

Briggs & Stratton 21216

MOUNT, Rubber Shock
(Superseded to 5021216)

$142.99

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 21217

MOUNT, Rubber Shock
(Superseded to 21217GS)

$7.49

$

In Stock, only 1 left!

0

77

Briggs & Stratton B3680A

ASSY., Pump

$

$

Not available

78

Briggs & Stratton 52857

NUT, M6 - 1.0 Locking
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

79

Briggs & Stratton A1701

BRACKET, Pump Support

$

$

Not available

80

Briggs & Stratton B3706

HOSE, Water Inlet
(Superseded to B3706GS)

$56.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 38750

HHCS, M6 1.0 x 30
(Superseded to 38750GS)

$2.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 97098

CAP, Garden Hose Inlet
(Superseded to 97098GS)

$3.49

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 21424

CONNECTOR, Garden Hose
(Superseded to 5022163)

$1985.99

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable

Briggs & Stratton 7174300

House Wash Concentrate
(Superseded to 6159)

Note: (Optional Accessories Not Illustrated)

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174301

Deck Wash Concentrate
(Superseded to 100524GS)

Note: (Optional Accessories Not Illustrated)

$21.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174302

Vehicle Wash Concentrate
(Superseded to 6160)

Note: (Optional Accessories Not Illustrated)

$

$

Not available

Briggs & Stratton 7174303

Degreaser Concentrate
(Superseded to 100526GS)

Note: (Optional Accessories Not Illustrated)

$18.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174400

Heavy Duty Turbo Nozzle
(Superseded to 7174400GS)

Note: (Optional Accessories Not Illustrated)

$52.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7174401

25' 3/8" Replacement Extension Hose
(Superseded to 7174401GS)

Note: (Optional Accessories Not Illustrated)

$120.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175116

O Ring Repair Kit
(Superseded to 196002GS)

Note: (Optional Accessories Not Illustrated)

$18.99

$

In Stock, Qty 9

0

Briggs & Stratton 7175187

Garden Hose Quick Connect
(Superseded to 7175187GS)

Note: (Optional Accessories Not Illustrated)

$17.99

$

In Stock, only 1 left!

0

Briggs & Stratton 7175197

Accessory Quick Connect Kit
(Superseded to 312981GS)

Note: (Optional Accessories Not Illustrated)

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7175199

Rotating Brush
(Superseded to 7175199GS)

Note: (Optional Accessories Not Illustrated)

$82.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 7176430

Floor/Siding Brush

Note: (Optional Accessories Not Illustrated)

$

$

Currently unavailable

Briggs & Stratton 7176431

Utility Brush

Note: (Optional Accessories Not Illustrated)

$

$

Currently unavailable
