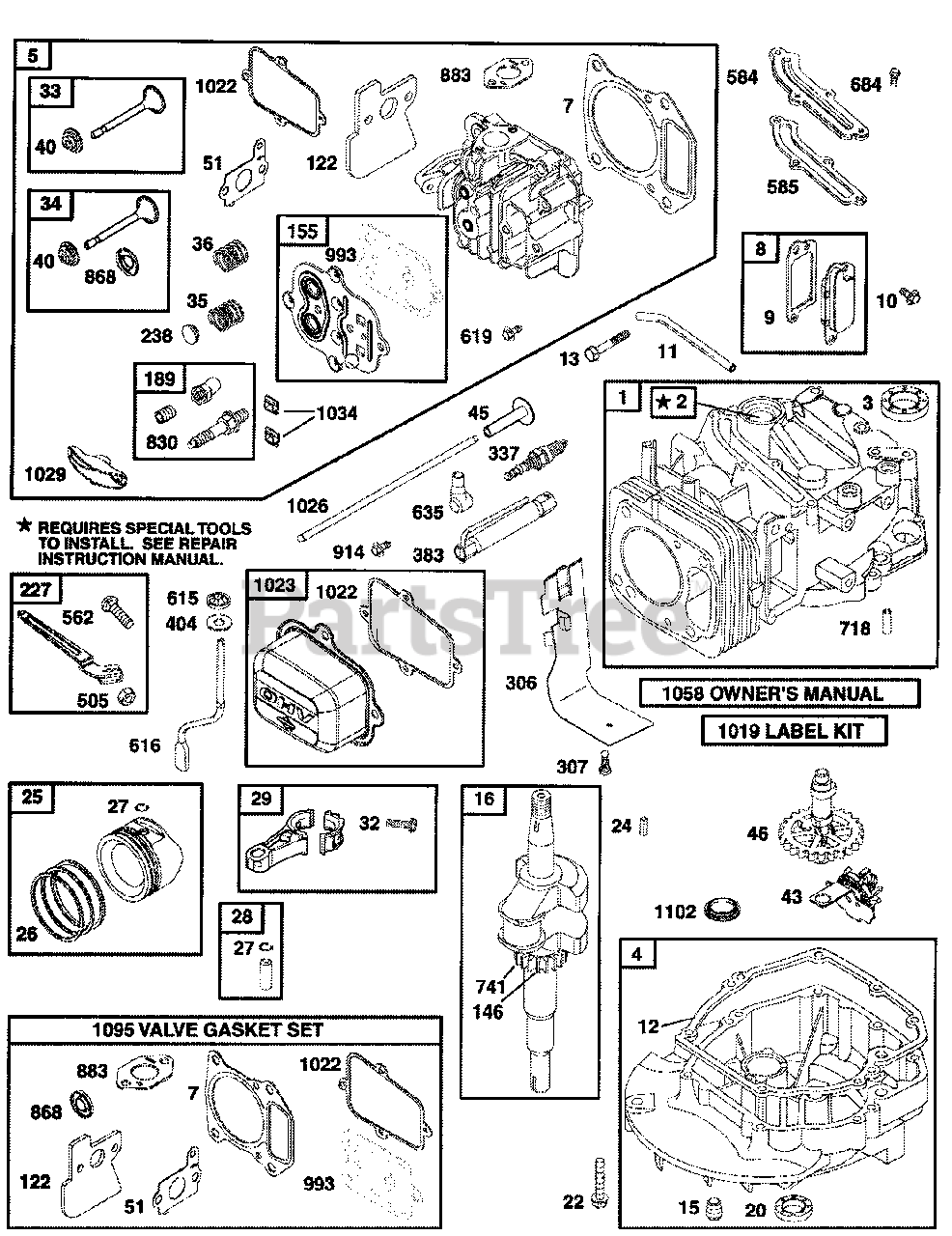

580.768330 (1433-0) - Craftsman 2,400 PSI Pressure Washer Engine, 6.0 HP (Part 1) Parts Diagram

2,400 PSI Pressure Washer

Engine, 6.0 HP (Part 1) Parts Diagram

  • Title

1

Briggs & Stratton 692670

Cylinder Assembly

$259.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

Bushing/Seal Kit (Magneto Side)
(Superseded to 796961)

$21.99

$

In Stock, Qty 6

0

3

Briggs & Stratton 299819

Oil Seal
(Superseded to 299819S)

$5.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 498983

Engine Sump

$122.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 694328

Cylinder Head
(Superseded to 799072)

$142.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 695166

Cylinder Head Gasket
(Superseded to 697230)

$9.99

$

In Stock, Qty 10

0

8

Briggs & Stratton 495786

Breather Assembly
(Superseded to 590395)

$14.99

$

In Stock, Qty 11

0

9

Briggs & Stratton 272481

Breather Gasket
(Superseded to 699833)

$5.49

$

In Stock, Qty 12

0

10

Briggs & Stratton 691125

Screw (Breather Assembly)

$3.99

$

In Stock, Qty 7

0

11

Briggs & Stratton 691260

Breather Tube
(Superseded to 691781)

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 692232

Crankcase Gasket

$5.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 691137

Screw (Cylinder Head)
(Superseded to 592244)

$3.49

$

In Stock, Qty 16

0

15

Briggs & Stratton 691680

Oil Drain Plug

$5.99

$

In Stock, only 4 left!

0

16

Briggs & Stratton 691457

Crankshaft

$204.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 399781

Oil Seal (PTO Side)
(Superseded to 399781S)

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 691092

Screw (Engine Sump)

$3.99

$

In Stock, Qty 5

0

24

Briggs & Stratton 222698

Flywheel Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 690021

Piston Assembly (Standard)
(Superseded to 799063)

$91.99

$

In Stock, Qty 6

0

25

Briggs & Stratton 694167

Piston Assembly(.010 O.S.)

$59.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 694168

Piston Assembly (.020 O.S.)
(Superseded to 799064)

$120.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 694169

Piston Assembly(.030 O.S.)

$59.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499631

Ring Set (Standard)

$53.99

$

In Stock, Qty 6

0

26

Briggs & Stratton 692785

Ring Set (.010 O.S.)

$

$

Not available

26

Briggs & Stratton 692786

Ring Set (.020 O.S.)

$55.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 692787

Ring Set (.030 O.S.)

$26.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691866

Piston Pin Lock

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Piston Pin

$9.49

$

In Stock, only 1 left!

0

29

Briggs & Stratton 499424

Connecting Rod
(Superseded to 590406)

$87.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 691664

Screw (Connecting Rod)

$4.49

$

In Stock, only 2 left!

0

33

Briggs & Stratton 499642

Exhaust Valve

$35.99

$

In Stock, Qty 6

0

34

Briggs & Stratton 499641

Intake Valve
(Superseded to 795443)

$27.99

$

In Stock, Qty 5

0

35

Briggs & Stratton 691304

Valve Spring (Intake)

$5.99

$

In Stock, Qty 8

0

36

Briggs & Stratton 691304

Valve Spring (Exhaust)

$5.99

$

In Stock, Qty 8

0

40

Briggs & Stratton 692194

Valve Retainer

$5.99

$

In Stock, Qty 18

0

43

Briggs & Stratton 691997

Governor/Oil Slinger

$25.99

$

In Stock, only 1 left!

0

45

Briggs & Stratton 690977

Valve Tappet

$7.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 694039

Camshaft

$65.99

$

In Stock, only 2 left!

0

51

Briggs & Stratton 692668

Intake Gasket

$4.49

$

In Stock, Qty 5

0

122

Briggs & Stratton 692799

Carburetor Spacer

$14.99

$

In Stock, only 3 left!

0

146

Briggs & Stratton 690979

Timing Key

$3.49

$

In Stock, only 3 left!

0

155

Briggs & Stratton 695168

Cylinder Head Plate
(Superseded to 696268)

$

$

Not available

189

Briggs & Stratton 694543

Rocker Arm Ball

$

$

Not available

227

Briggs & Stratton 691467

Governor Control Lever

$12.99

$

Usually ships in 2-12 days

0

238

Briggs & Stratton 691300

Valve Cap

$9.49

$

In Stock, Qty 11

0

306

Briggs & Stratton 691232

Cylinder Shield

$16.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 690345

Screw (Cylinder Shield)

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 692051

Sparkplug

$3.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 19374

Wrench-Sparkplug
(Superseded to 19576S)

$5.99

$

In Stock, Qty 5

0

404

Briggs & Stratton 690272

Washer (Governor Crank)

$3.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 11

0

562

Briggs & Stratton 94852

Bolt (Governor Control Lever)
(Superseded to 691119)

$4.49

$

In Stock, Qty 19

0

584

Briggs & Stratton 692342

Breather Passage Cover
(Superseded to 697734)

$9.49

$

Usually ships in 2-12 days

0

585

Briggs & Stratton 691879

Breather Passage Gasket

$6.99

$

In Stock, only 1 left!

0

615

Briggs & Stratton 690340

Retainer-Governor Shaft

$4.49

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 691306

Crank-Governor
(Superseded to 698801)

$10.99

$

In Stock, only 1 left!

0

619

Briggs & Stratton 691108

Screw (Cylinder Head Plate)

$3.49

$

In Stock, Qty 20+

0

635

Briggs & Stratton 66538

Boot-Sparkplug
(Superseded to 66538S)

$3.99

$

In Stock, Qty 17

0

684

Briggs & Stratton 690345

Screw (Breather Passage Cover)

$4.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

Pin-Locating

$6.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 691830

Gear-Timing

$17.99

$

Usually ships in 2-12 days

0

830

Briggs & Stratton 694544

Stud (Rocker Arm)

$7.99

$

Usually ships in 2-12 days

0

868

Briggs & Stratton 498592

Seal-Valve
(Superseded to 795440)

$13.99

$

In Stock, only 3 left!

0

883

Briggs & Stratton 691893

Gasket-Exhaust

$4.49

$

In Stock, Qty 11

0

914

Briggs & Stratton 691108

Screw (Rocker Cover)

$3.49

$

In Stock, Qty 20+

0

993

Briggs & Stratton 694088

Cylinder Head Plate Gasket

$8.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 691890

Gasket-Rocker Cover

$7.99

$

In Stock, Qty 11

0

1023

Briggs & Stratton 499624

Cover-Rocker

$37.99

$

Usually ships in 2-12 days

0

1026

Briggs & Stratton 692045

Rod-Push
(Superseded to 795444)

$11.99

$

Usually ships in 2-12 days

0

1029

Briggs & Stratton 691230

Rocker Arm

$9.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 691343

Guide-Push Rod

$9.99

$

Usually ships in 2-12 days

0

1102

Briggs & Stratton 691255

Guide Pilot

$14.99

$

Usually ships in 2-12 days

0
