580 RSE (601100021) - Husqvarna Walk-Behind Mower (2001-06) HANDLE & CONTROLS Parts Diagram

Walk-Behind Mower

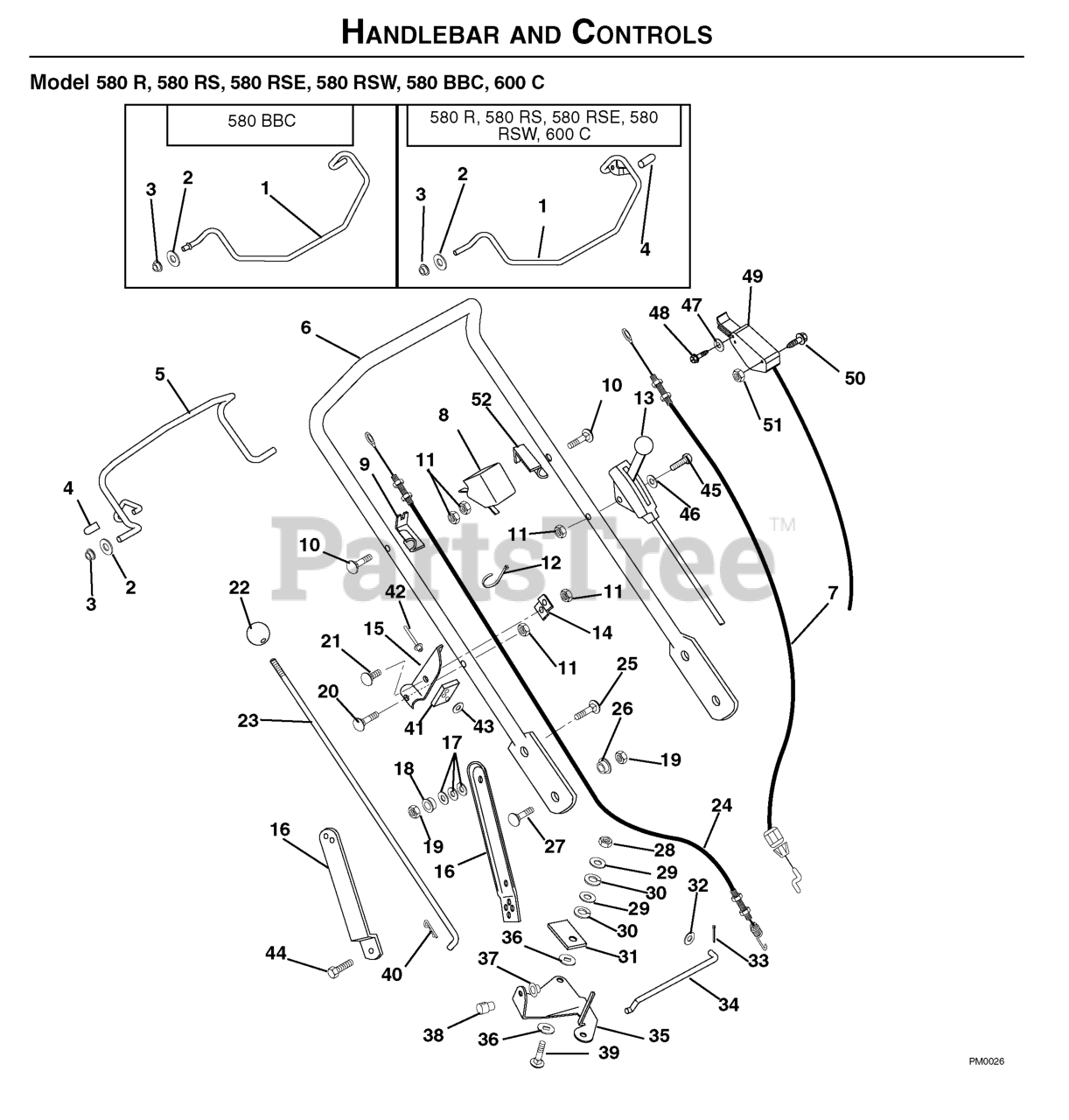

HANDLE & CONTROLS Parts Diagram

  • Title

2

Husqvarna 606000045

WASHER-FLAT STL .344X.688X.065

$

$

Not available

18

Husqvarna 606000035

BSHNG-FLNG .325X.500X.513X.875

$

$

Not available

606 00 00 27

Husqvarna 606000027

Handlebar Bracket (600 C)

$

$

Not available

20

Husqvarna 606000042

BOLT-RND HD SQ NCK .25-20X1.38

$

$

Not available

27

Husqvarna 606000037

BOLT-RND HD SQ NCK .31-18X1.00

$

$

Not available

606 00 03 03

Husqvarna 606000303

CONTROL, THROTTLE

$

$

Not available

606 00 00 38

Husqvarna 606000038

BOLT-RND HD SQ NCK .31-18X.75

$

$

Not available

30

Husqvarna 606000274

Washer-Lock .375 x .115 Heavy (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

21

Husqvarna 606000040

Bolt-Round Head Square Neck .25-20 x .50 Grade 5

$

$

Not available

26

Husqvarna 606000033

SHOULDER SPACER

$

$

Not available

606 00 00 34

Husqvarna 606000034

BUSHING-FLANGE

$

$

Not available

32

Husqvarna 606000046

Washer-Flat-Steel .281 x .620 x .065 (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

606 00 02 89

Husqvarna 606000289

Bail- Blade Brake/Clutch (580 BBC)

$

$

Not available

606 00 00 39

Husqvarna 606000039

BOLT RND HD SQ NCK .25-20X1.25

$

$

Not available

34

Husqvarna 606000017

Shift Link (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

45

Husqvarna 606000276

Bolt-Round Head Square Neck .25-20 x 1.75 Grade 5 (600 C)

$

$

Not available

23

Husqvarna 606000021

ROD-SPEED CONTROL

$

$

Not available

42

Husqvarna 606000053

Rivet .187 x .575 (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

606 00 00 24

Husqvarna 606000024

LINK-HANDLEBAR ADJUSTER RT HND

$

$

Not available

3

Husqvarna 606000034

BUSHING-FLANGE

$

$

Not available

37

Husqvarna 606000014

CAP, 3.8 ROD

$

$

Not available

28

Husqvarna 606000048

Nut-Locking-Center .38-16 (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

31

Husqvarna 606000025

Pressure Flange (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

25

Husqvarna 606000038

BOLT-RND HD SQ NCK .31-18X.75

$

$

Not available

606 00 03 22

Husqvarna 606000322

WASHER, FLT .281X.62X.065"

$

$

Not available

606 00 00 60

Husqvarna 606000060

CAP, VINYL .25 I.D.

$

$

Not available

5

Husqvarna 606000029

TRACTION BAIL WELDMENT

$

$

Not available

10

Husqvarna 606000039

BOLT RND HD SQ NCK .25-20X1.25

$

$

Not available

14

Husqvarna 606000022

BRACE-SPEED CONTROL

$

$

Not available

44

Husqvarna 606000036

BOLT-HEX .31-18 X .75 GRADE 5

$

$

Not available

48

Husqvarna 606000323

SCREW, TAPPING 10-24X2"

$

$

Not available

50

Husqvarna 606000324

SCREW, MACH. 10-24X2"

$

$

Not available

606 00 03 21

Husqvarna 606000321

Bolt-Round Head Square Neck .25-20 x 1.75 XL (580 BBC)

$

$

Not available

38

Husqvarna 606000020

Swivel (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

22

Husqvarna 606000059

KNOB

$

$

Not available

606 00 00 45

Husqvarna 606000045

WASHER-FLAT STL .344X.688X.065

$

$

Not available

9

Husqvarna 606000019

CABLE ANCHOR-RIGHT HAND

$

$

Not available

1

Husqvarna 606000030

ENGINE BAIL WELDMENT

$

$

Not available

17

Husqvarna 606000032

WASHER-BELVILLE SPRING

$

$

Not available

19

Husqvarna 606000050

NUT-LOCKING-CENTER .31-18
(Superseded to 606000243)

$3.49

$

Usually ships in 3-10 days

0

49

Husqvarna 606000304

CONTROL, 580BBC

$

$

Not available

33

Husqvarna 606000051

Pin-Cotter .06 x .50 (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

52

Husqvarna 606000272

Cable Anchor-Left Hand (580 R, 580 RS, 580 RSW, 600 C)

$

$

Not available

4

Husqvarna 606000060

CAP, VINYL .25 I.D.

$

$

Not available

39

Husqvarna 606000041

Bolt-Round Head Square Neck .38-16 x 1.25 (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

47

Husqvarna 606000047

Washer-Flat Steel .219 x .50 x .049 (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

35

Husqvarna 606000016

Bell Crank-Speed Control (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

15

Husqvarna 606000018

BRACKET-SPEED CONTROL

$

$

Not available

6

Husqvarna 606000031

HANDLEBAR, SELF PROPELLED

$

$

Not available

40

Husqvarna 606000052

Pin-Hair-Internal .08 x .18 x 1.18 (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

24

Husqvarna 606000055

TRACTION CABLE

$

$

Not available

36

Husqvarna 606000015

Friction Washer (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

606 00 00 49

Husqvarna 606000049

NUT-LOCKING-CENTER .25-20

$

$

Not available

29

Husqvarna 606000044

WASHER-FLT-STL .406X.812X.065

$

$

Not available

11

Husqvarna 606000049

NUT-LOCKING-CENTER .25-20

$

$

Not available

12

Husqvarna 606000061

CABLE TIE

$

$

Not available

7

Husqvarna 606000056

ENGINE CONTROL CABLE

$

$

Not available

8

Husqvarna 606000026

Switch-Cable Anchor (580 RSE)

$

$

Not available

43

Husqvarna 606000047

Washer-Flat Steel .219 x .50 x .049 (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

46

Husqvarna 606000275

Washer-Flat-Steel .250 x .562 x .049 (600 C)

$

$

Not available

41

Husqvarna 606000028

Support Pad (580 RS, 580 RSE, 580 RSW, 580 BBC, 600 C)

$

$

Not available

606 00 00 57

Husqvarna 606000057

ENGINE CONTROL CABLE

$

$

Not available

13

Husqvarna 606000058

THROTTLE CABLE

$

$

Not available

16

Husqvarna 606000023

LINK-HANDLEBAR ADJUSTER LT HND

$

$

Not available

51

Husqvarna 606000325

NUT, HEX 10-24

$

$

Not available
